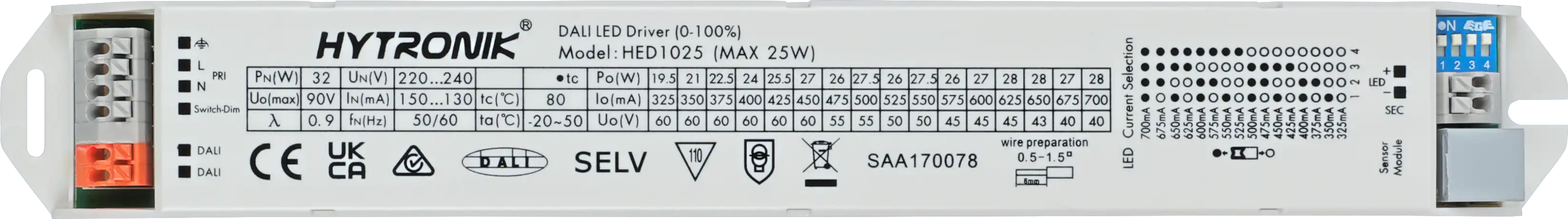

HED1025
DALI LED Driver 25W (CC) | Dimmable | Built-in version
BENEFITS

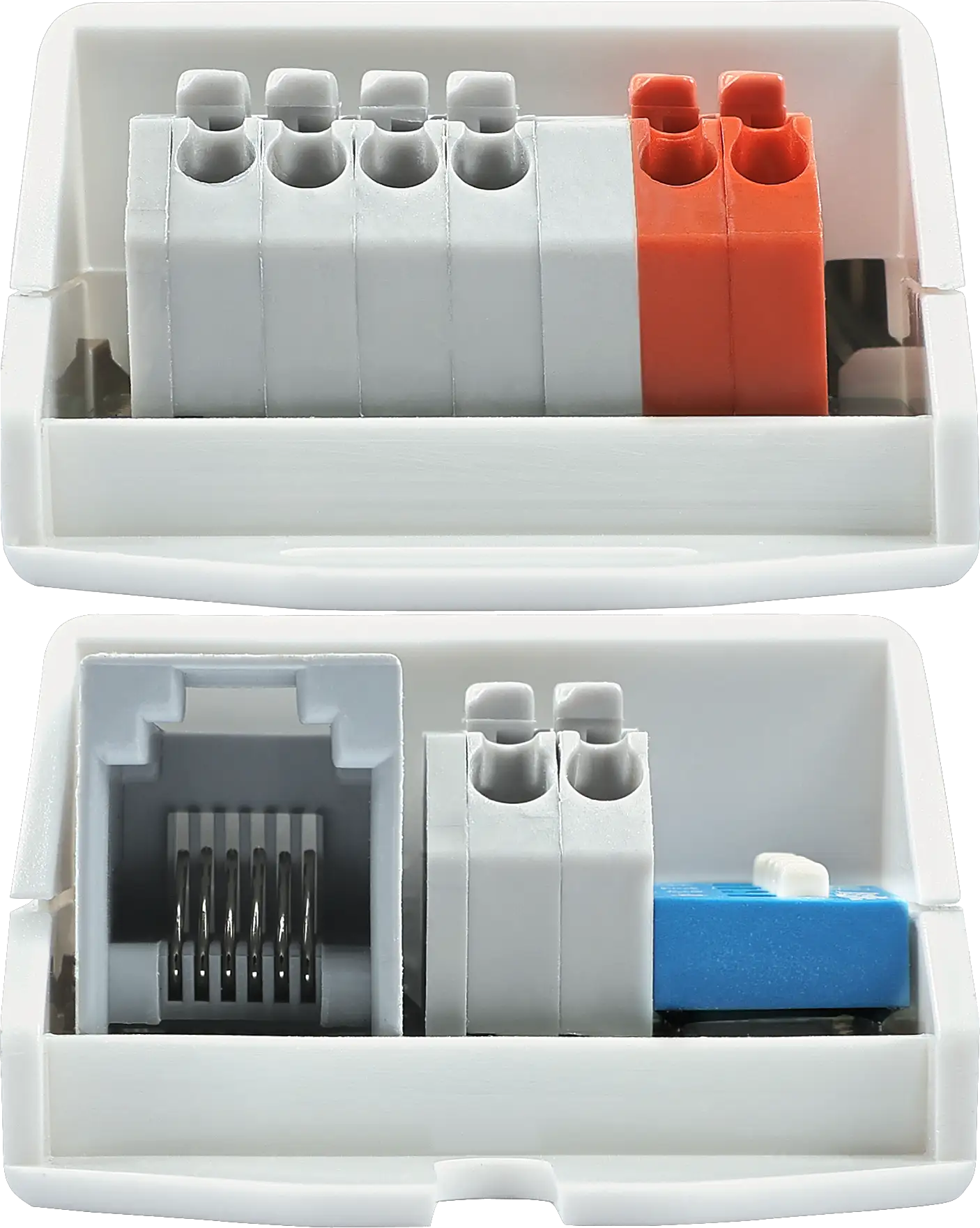

- Compact: Linear LED Hex-Driver with plugable RJ12 Sensorhead
- Flexible: Switch-Dim input for manual control
- Easy configuration: Current selections via DIP-switch
APPLICATIONS
- Linear Luminaire Built-in integration
- DALI applications
- Offices, Classrooms
Product information "HED1025"
HED1025 is a detached DALI LED Driver with Switch-Dim, the maximum ouput is 25W. By simply connecting Bluetooth sensor head HBT01/HBT02/HIR13/HIR16/HIR62/HIR62/R to the driver, it allows for motion detection and Bluetooth mesh control. Once the sensor head is connected to the driver, DALI control are then disabled and sensor antenna will take control. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Dimming (Output) Interface: | 1-10V, DALI, Switch-Dim |
| Driver Type: | Dimming Only |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.2000 mm |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Output Voltage: | 12~60V |
| Product height: | 21.5000 mm |
| Product length: | 269.0000 mm |
| Product weight: | 100.0000 g |
| Product width: | 36.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed1025.pdf
