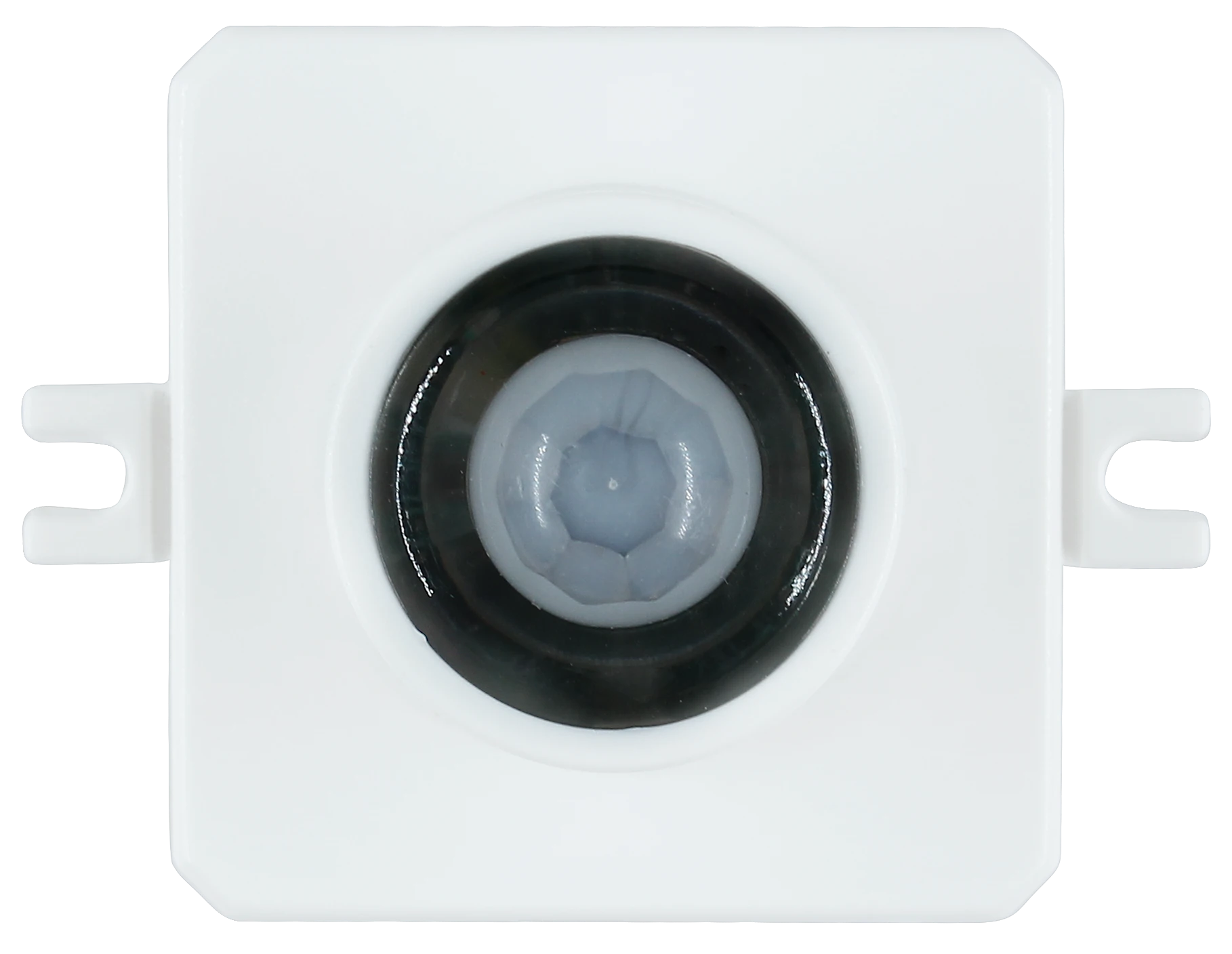

HIR02/RC12
PIR Lowbay | ON/OFF | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: On/Off control
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "HIR02/RC12"
HIR02/RC12 is a PIR sensor head. It can work with the linear shaped control base such as HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 6x3 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 5 VDC |
| Product height: | 25.8000 mm |
| Product length: | 39.5000 mm |
| Product weight: | 18.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
