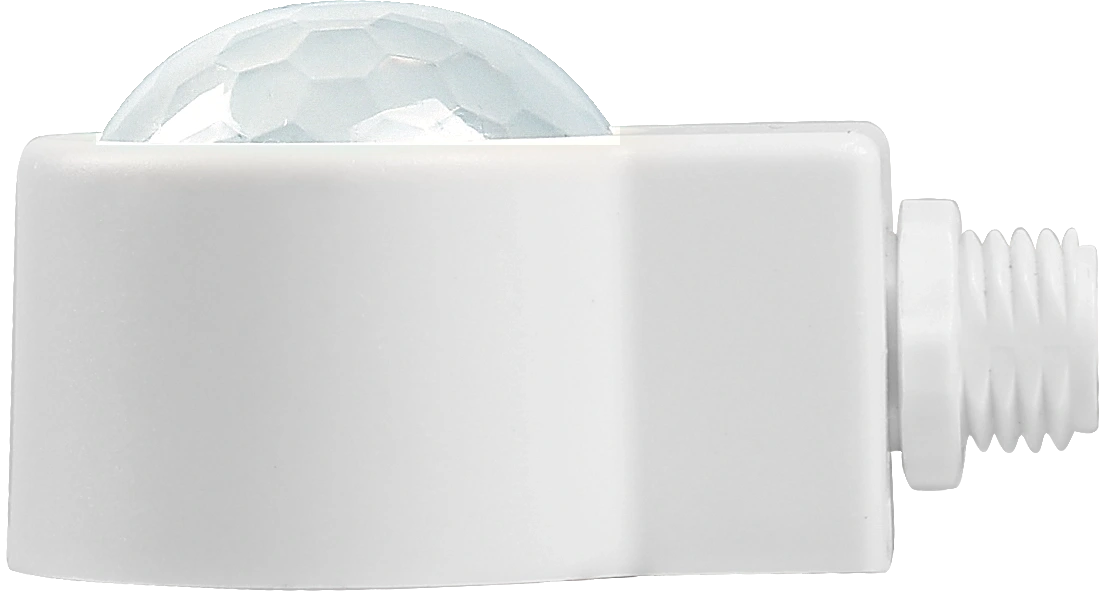

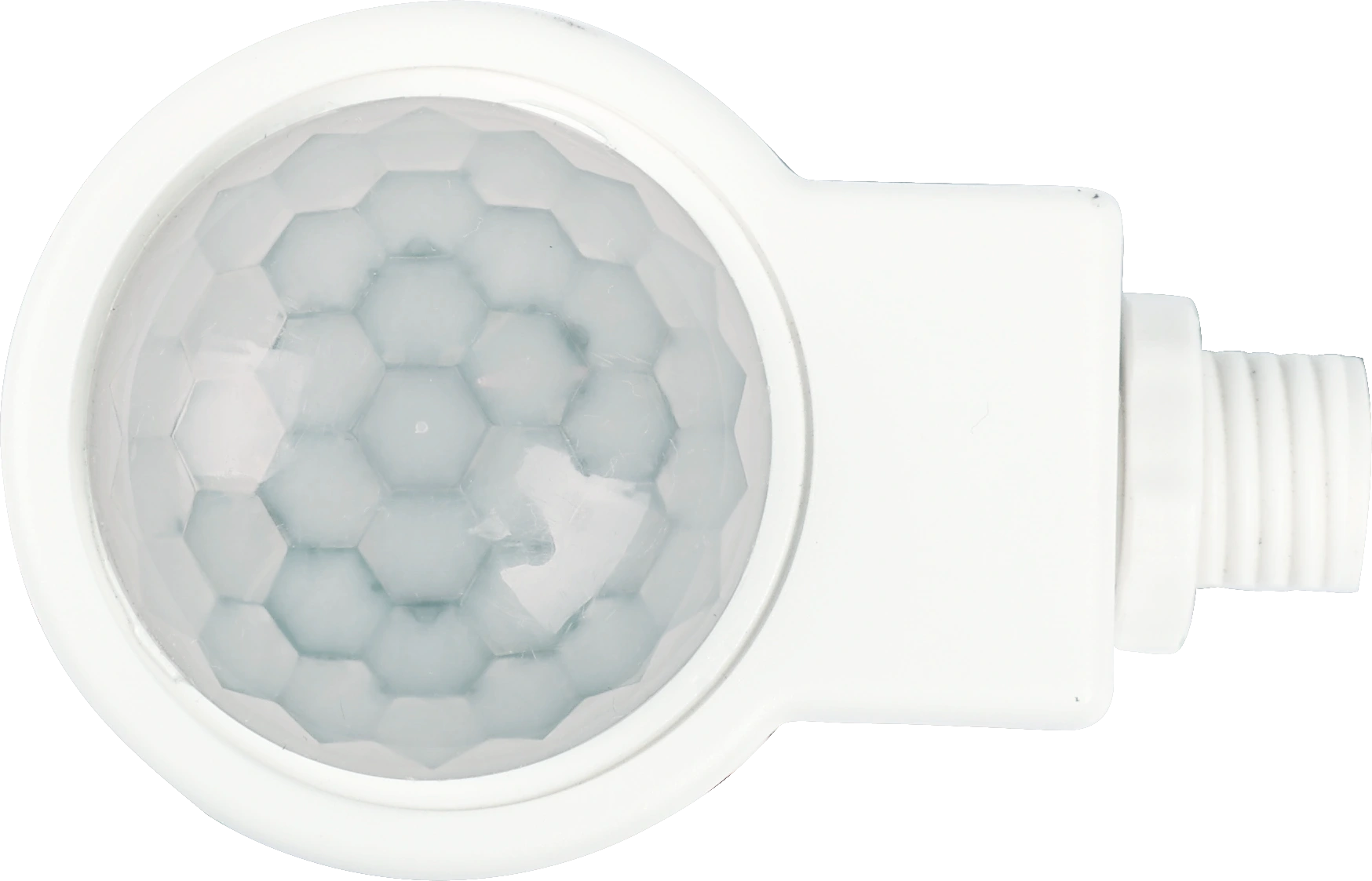

HIR09/C
PIR Highbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Conduit thread: M 13x1.5mm
- Offices
- Classrooms
Product information "HIR09/C"
HIR09/C is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Conduit screws, Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 5 VDC |
| Product height: | 33.9000 mm |
| Product length: | 63.0000 mm |
| Product weight: | 38.0000 g |
| Product width: | 40.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hir09-c.pdf
