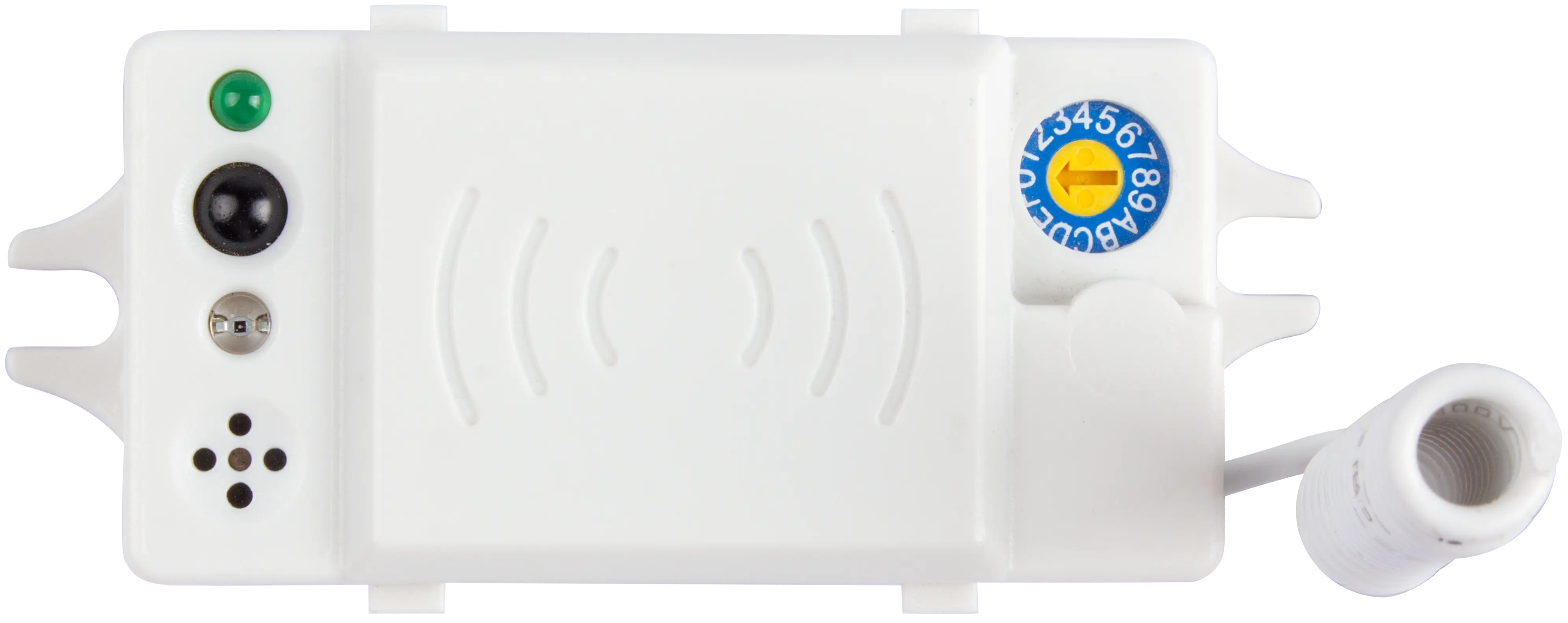

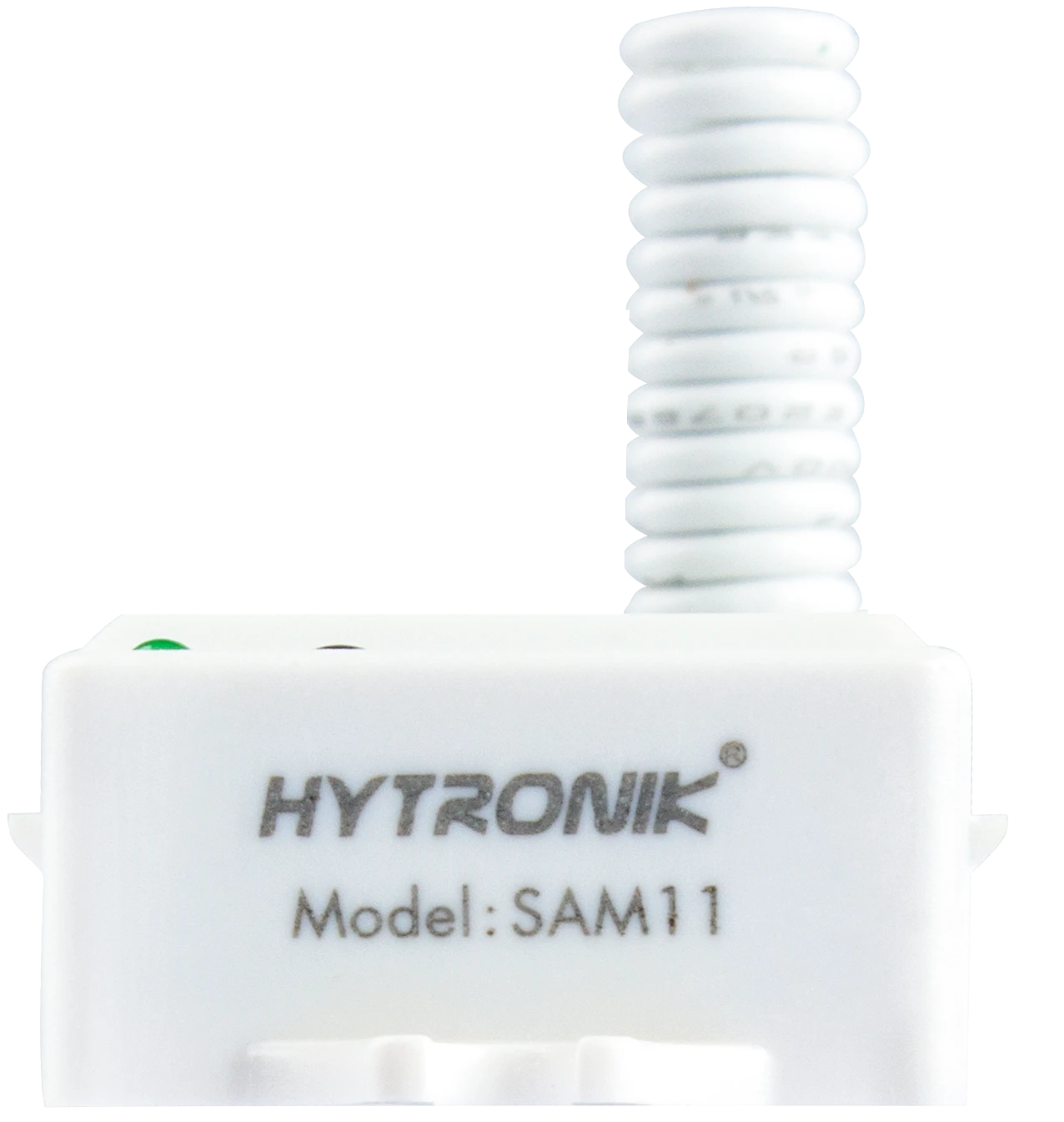

SAM11
HF Lowdbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Rotary switch for quick RF channel pair
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM11"
This sensor features microwave (HF) detection along with tri-level dimming and a robust HF antenna design to mitigate wireless interference. It supports RF pairing (FSK433MHz or FSK868MHz) for primary and secondary control, facilitated by a rotary switch for quick RF channel pairing. It includes a photodiode (PD) and active lux switching capabilities, suitable for installations up to 6m high with a Ø = 12m detection range. Sensor settings are adjustable using the HRC-11 handset.
| Connector Type: | RJ12 |
|---|---|
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Mounting hole: | 4.1000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 16.0000 mm |
| Product length: | 71.5000 mm |
| Product weight: | 25.0000 g |
| Product width: | 31.7000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam11.pdf
Installation Manual
User manual: installation-manual-sam11.pdf
Login

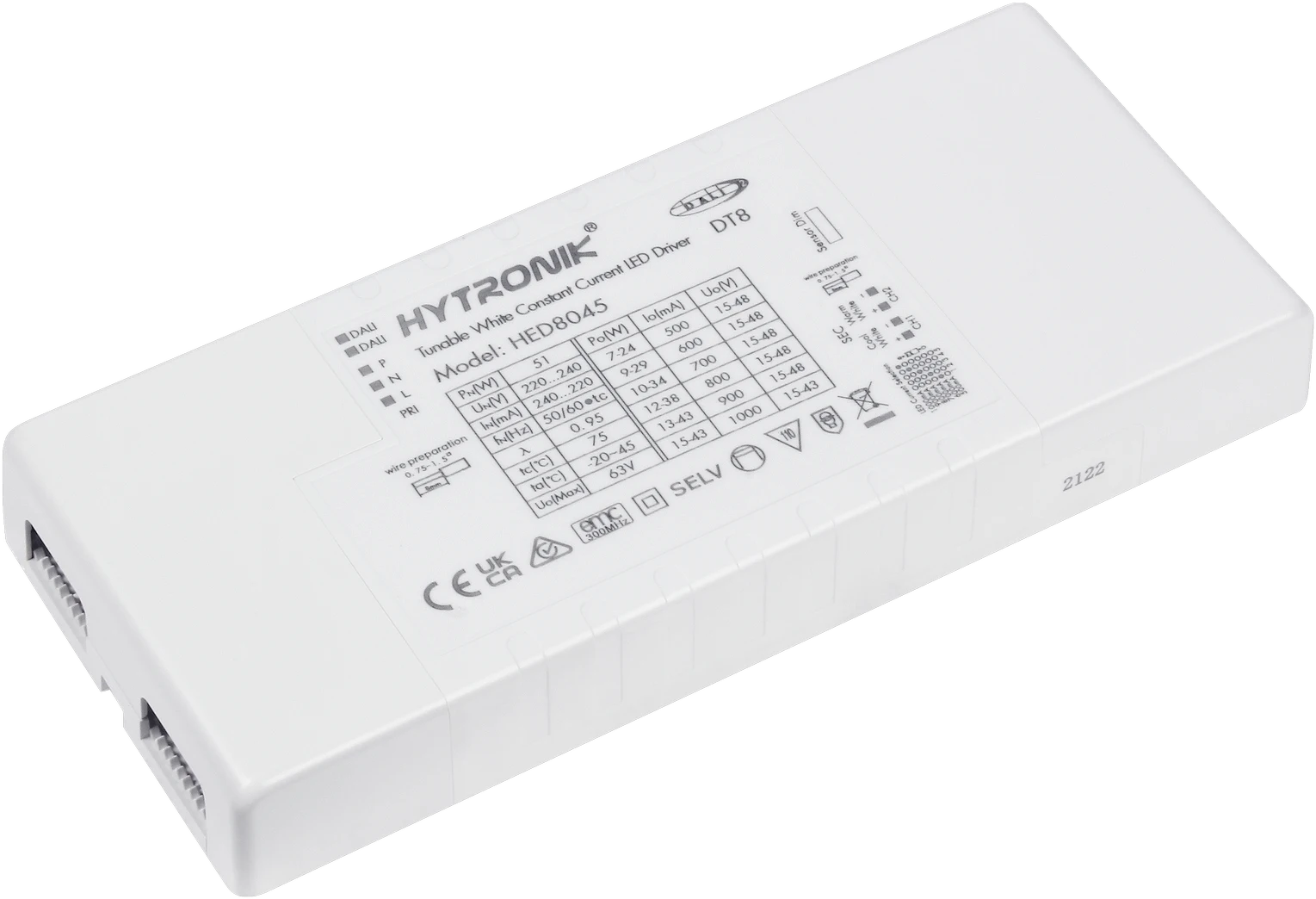

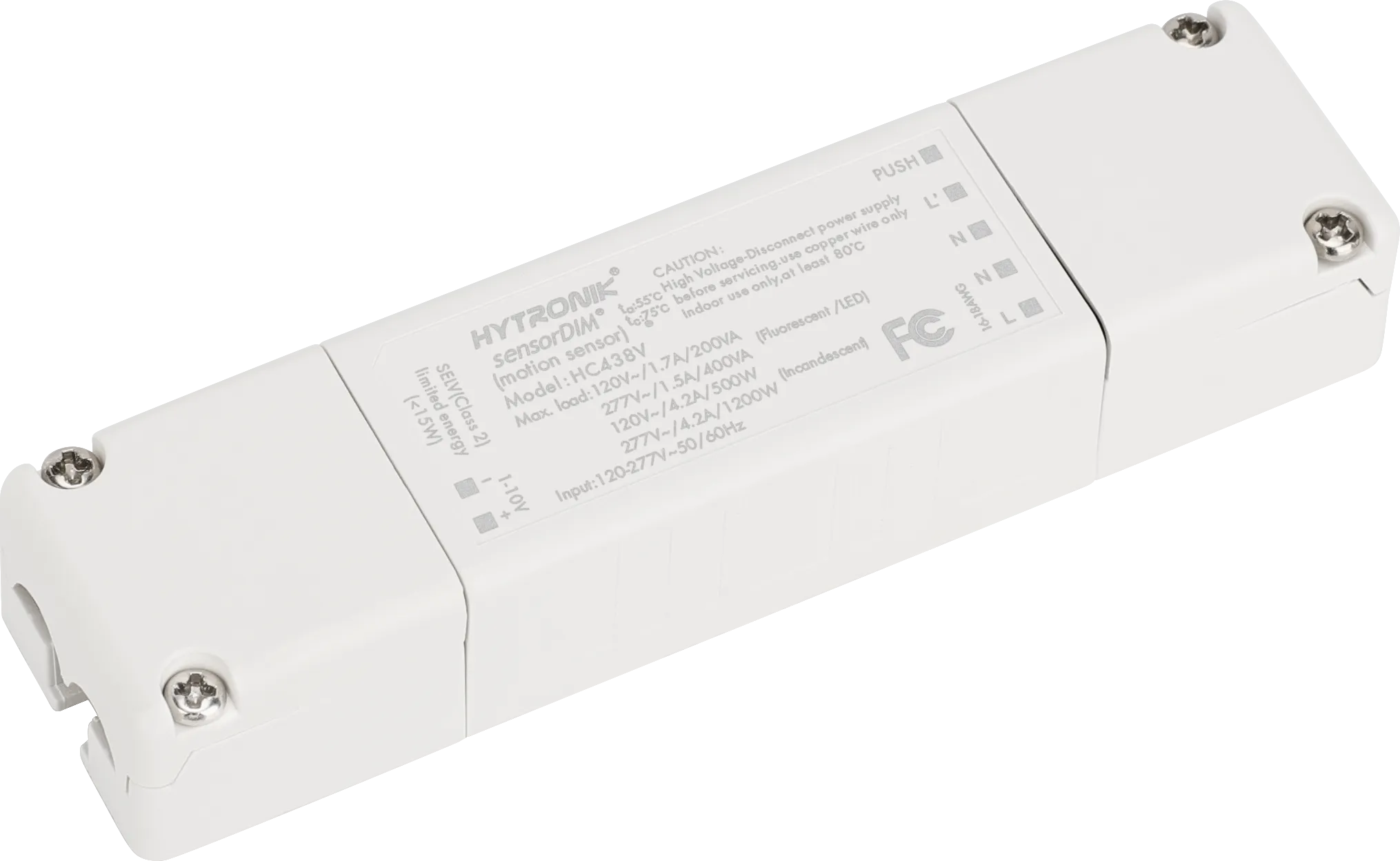

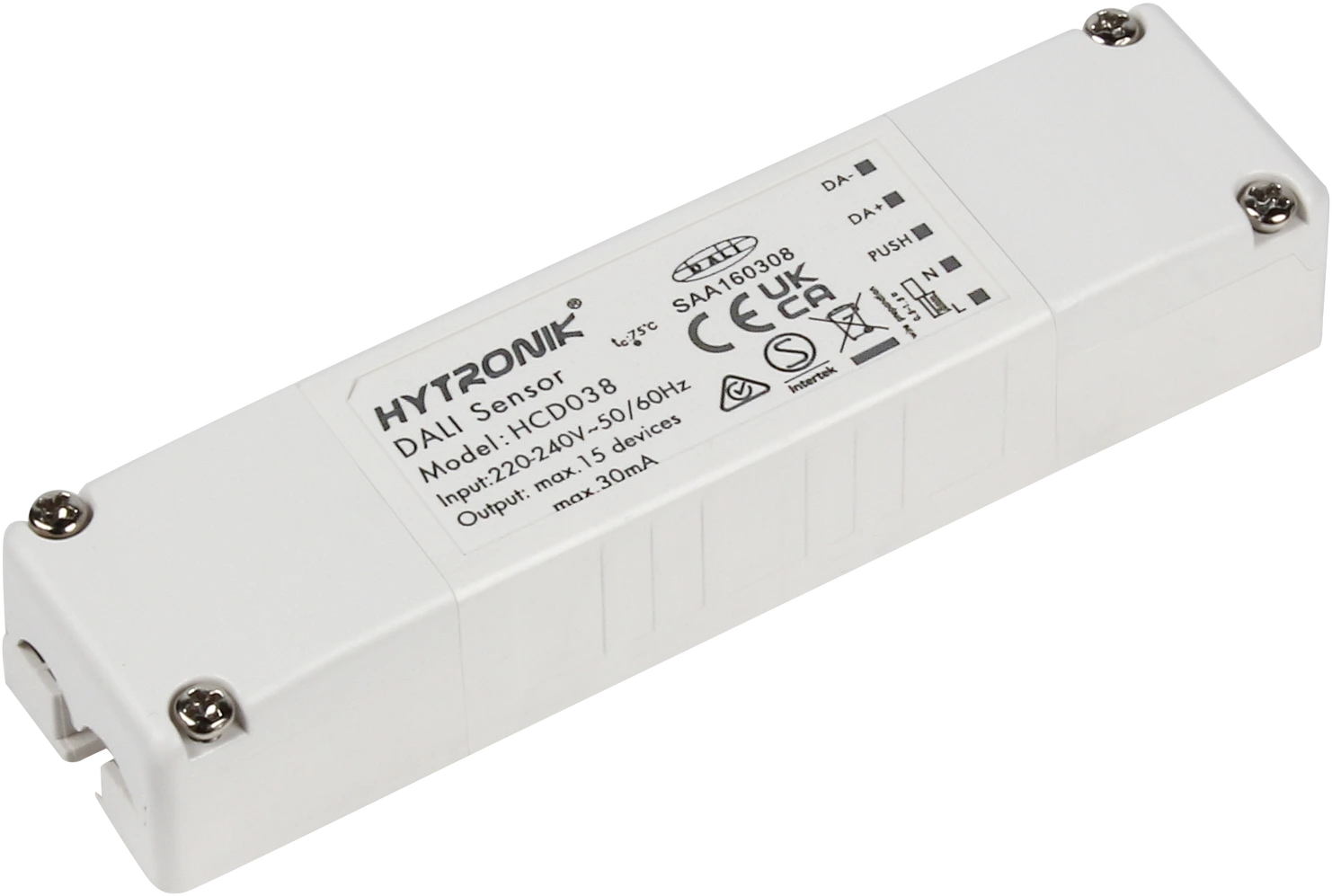

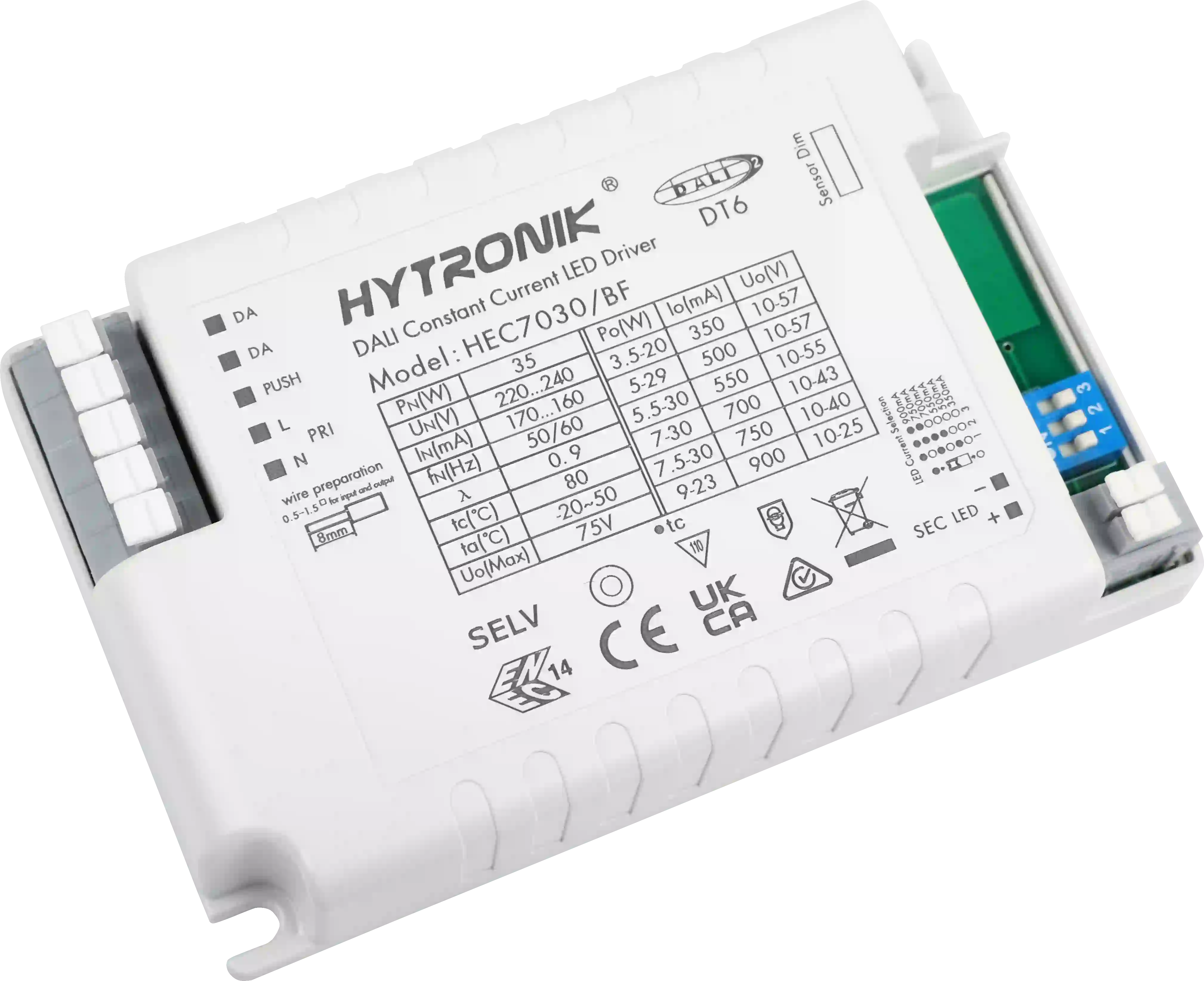

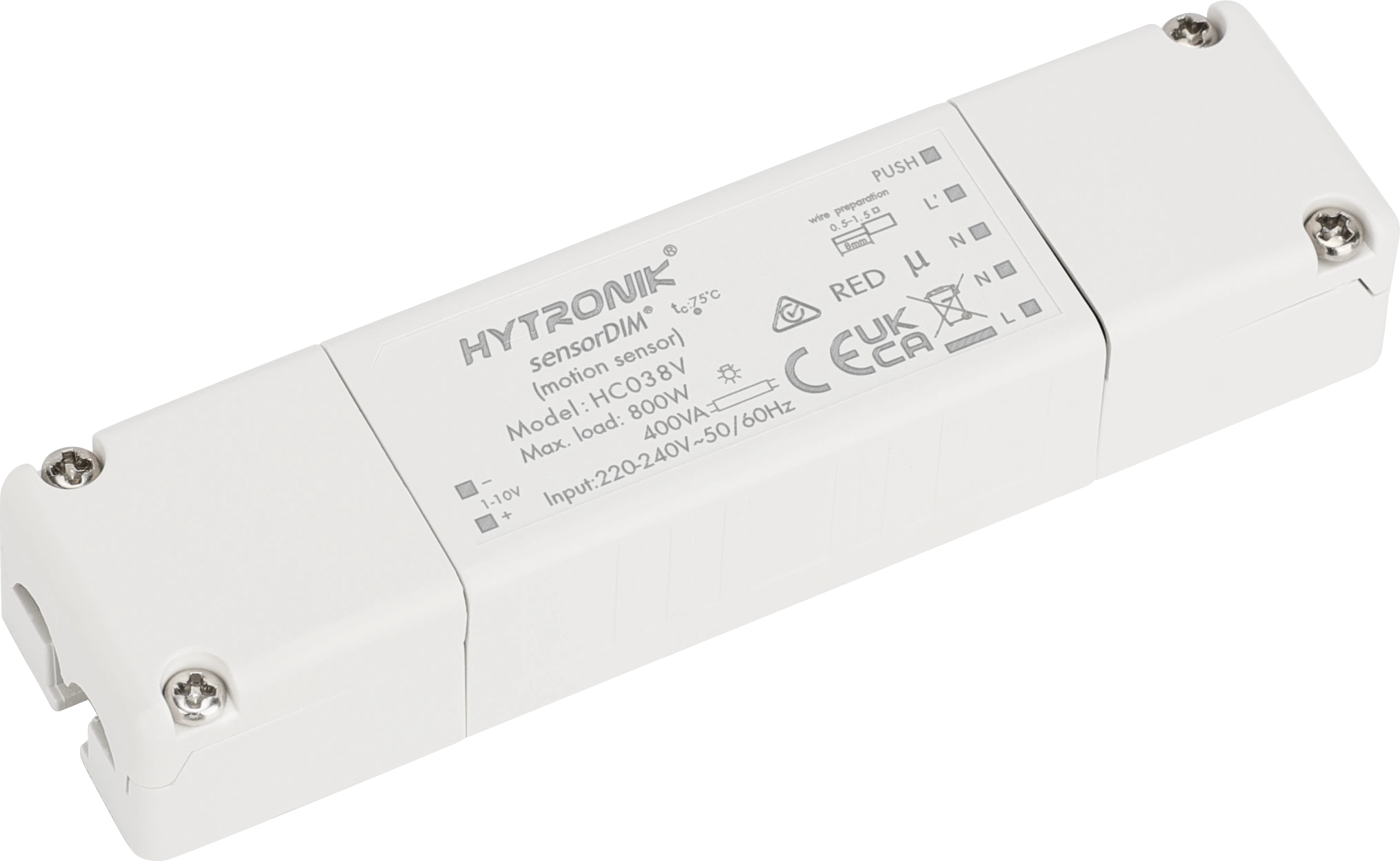

Compatible products (for full functionality)
