HIR17
PIR Lowbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard circular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Tunable white control
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS

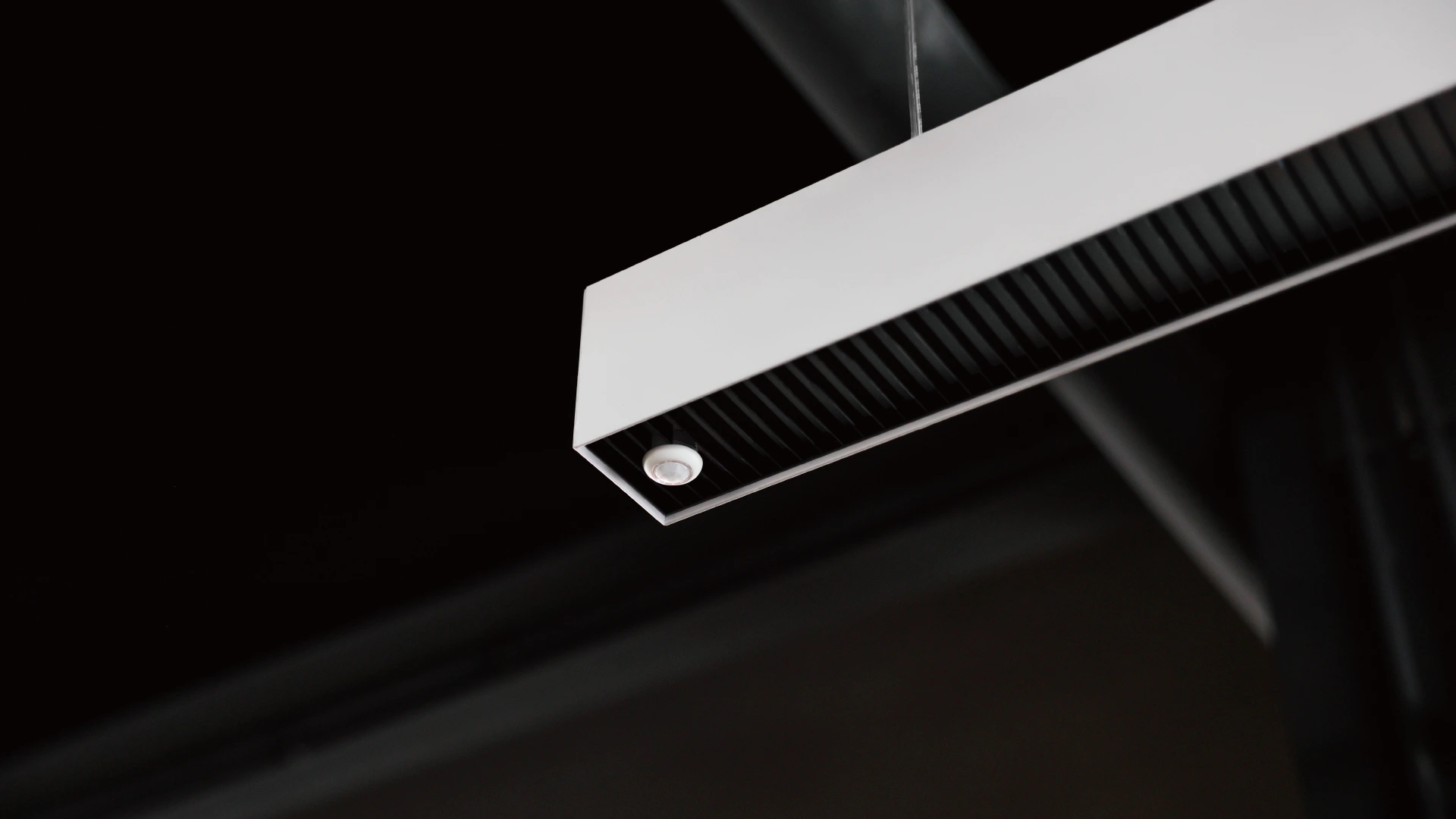

- Master luminaire with sensor
- Offices
- Classrooms
Product information "HIR17"

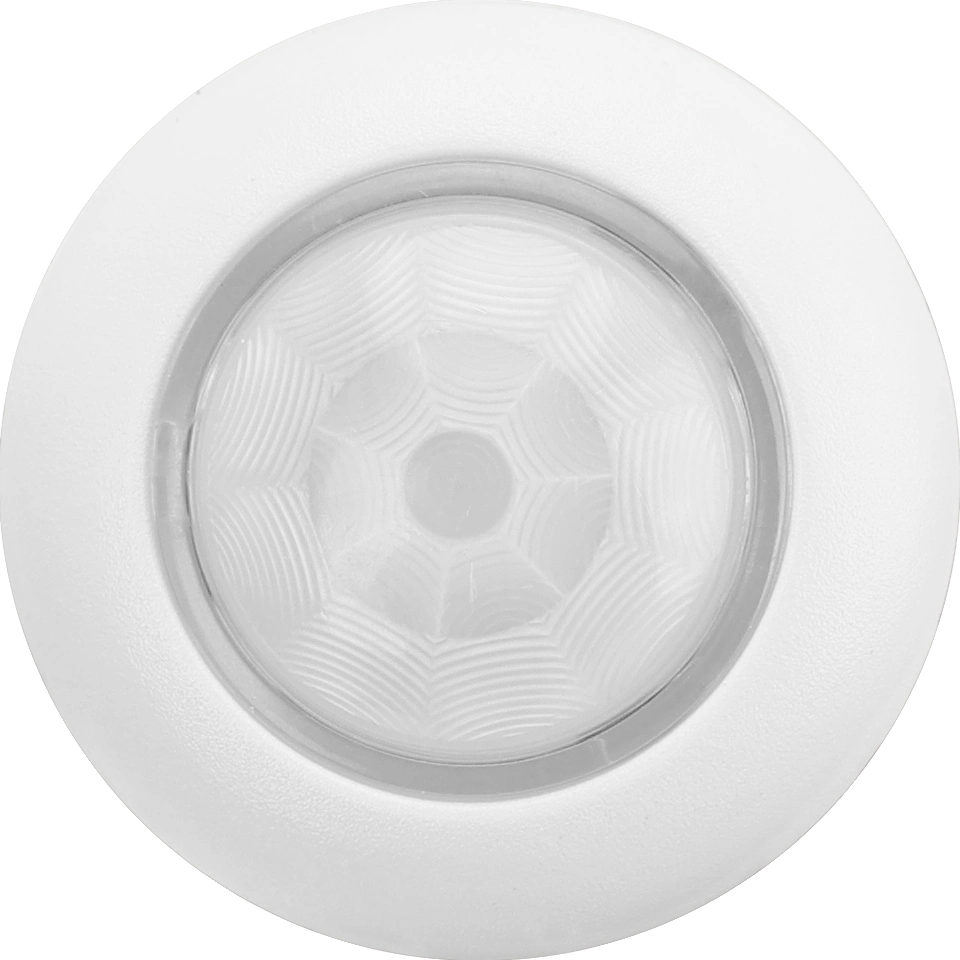

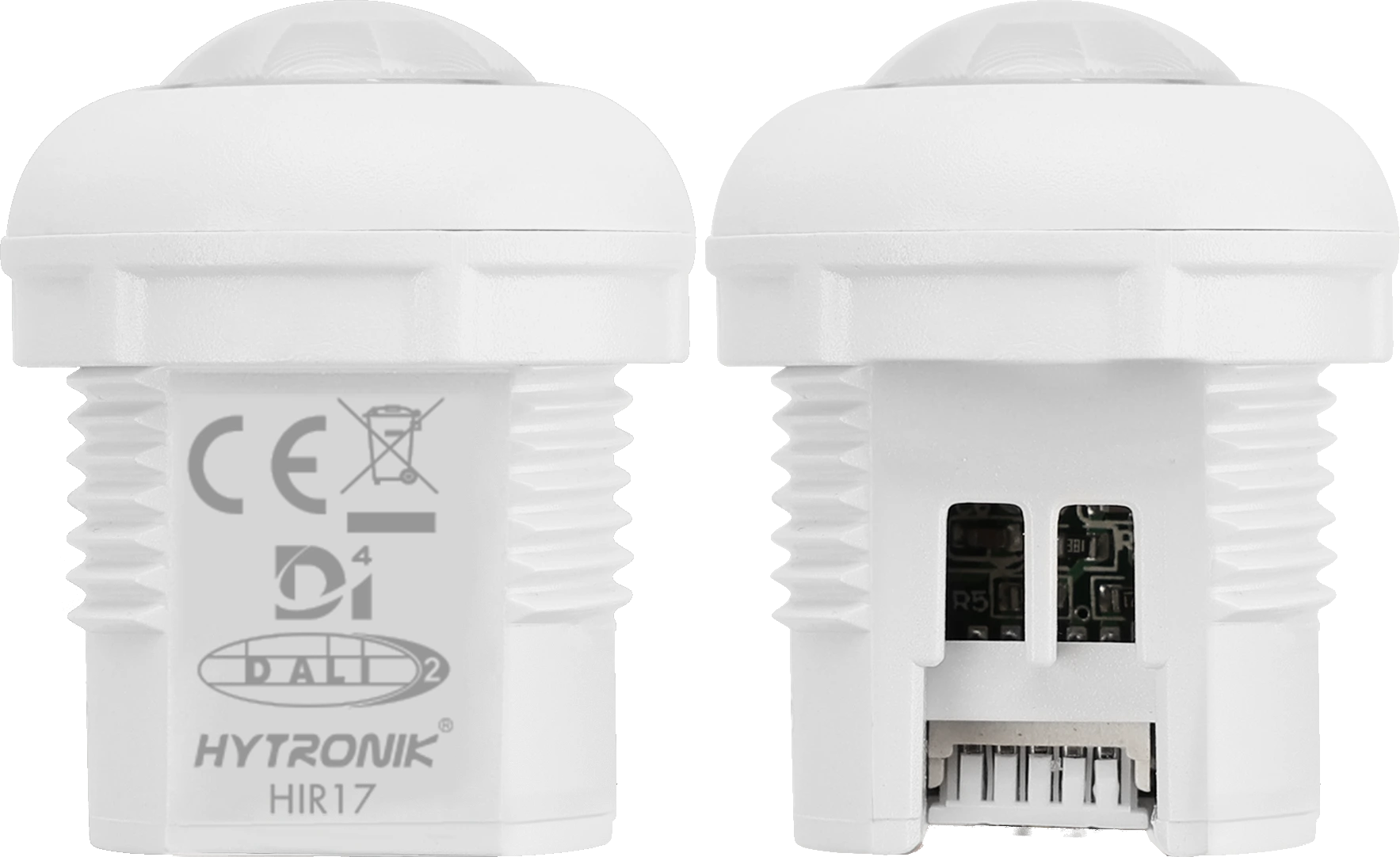

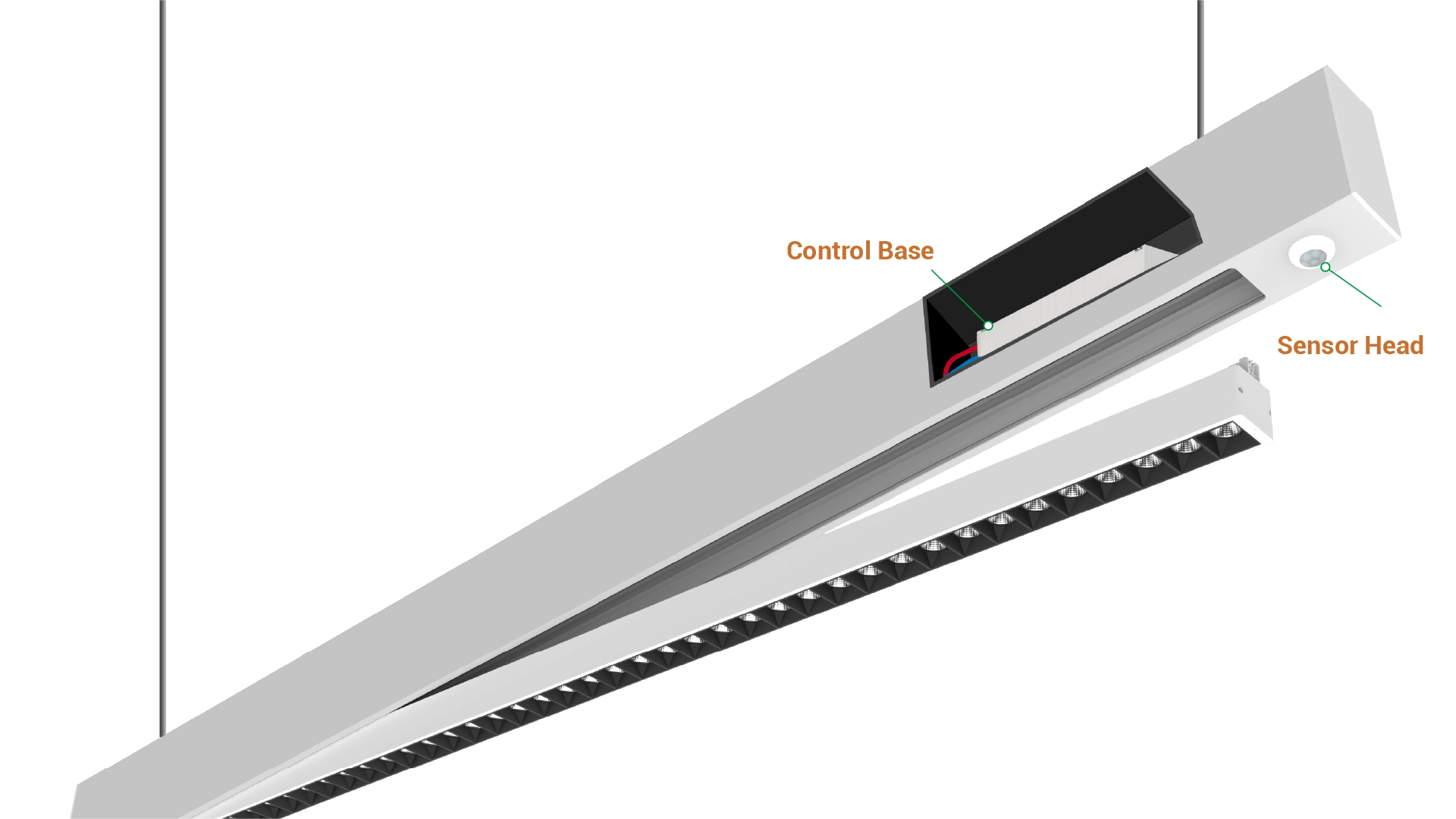

HIR17 is a compact PIR Lowbay sensor head designed for use with linear control bases such as HCD038/P, HCD038, and selected drivers via RJ12 connection. It supports Tri-level Control and Daylight Harvesting for efficient lighting management. With a 12m detection range at 3m height and IR remote programmability, HIR17 offers versatile Plug’n’Play integration for modern luminaires. Operates on 5V DC.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i, Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 22.2300 mm |
| Operating voltage range: | 5 VDC |
| Output Voltage: | 5VDC |
| Product height: | 31.8000 mm |
| Product length: | 31.8000 mm |
| Product weight: | 16.0000 g |
| Product width: | 26.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir17.pdf
