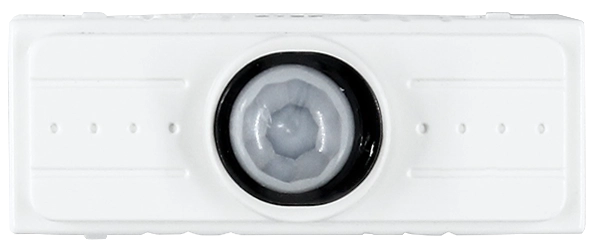

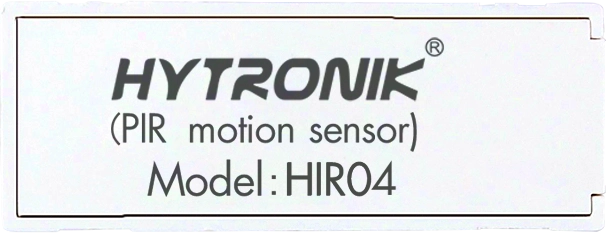

HIR04
PIR Lowbay | Photocell Advance | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- All-in-one: Daylight harvest + Tri-level + Photocell Advance
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "HIR04"
This PIR sensor features passive infrared (PIR) detection with tri-level dimming, Photocell AdvanceTM for enhanced sensitivity, and pro-active lux switching and daylight harvesting capabilities. It is suitable for installations up to 3m high with a detection range up to Ø = 6m. Sensor settings can be adjusted via the HRC-11 handset.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 6x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 5 VDC |
| Product height: | 19.3000 mm |
| Product length: | 44.5000 mm |
| Product weight: | 16.0000 g |
| Product width: | 17.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Login

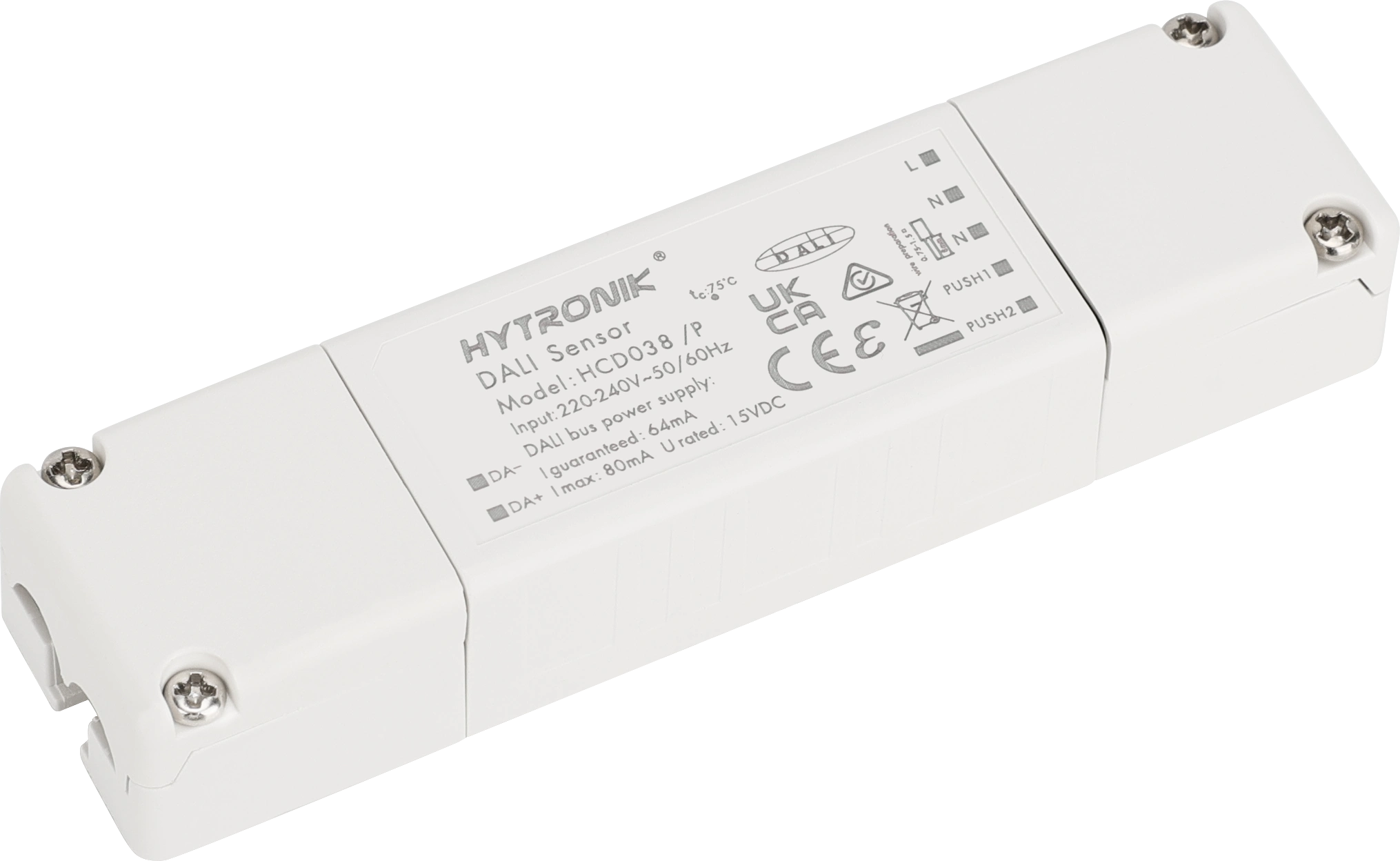

Compatible products (for full functionality)
