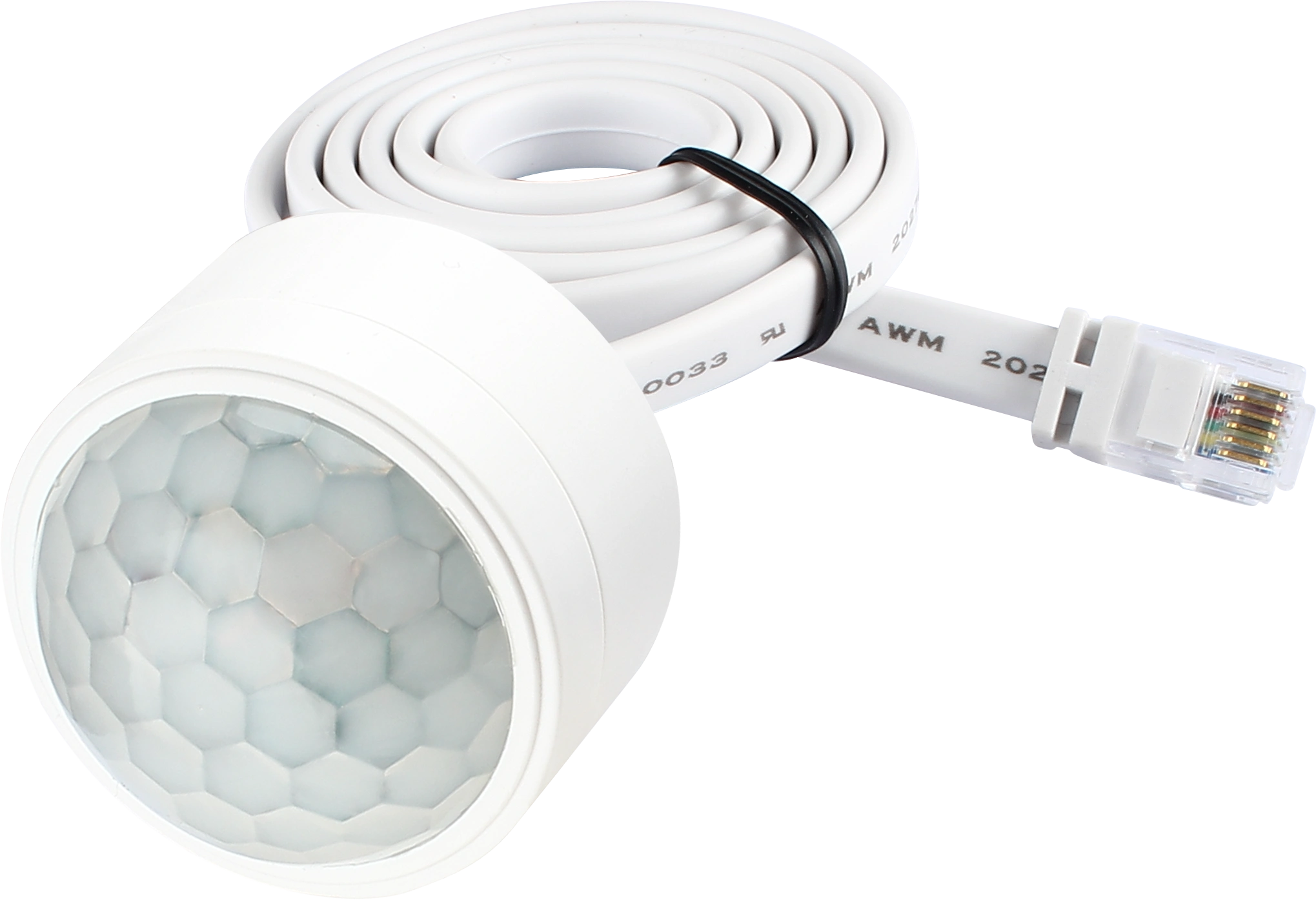

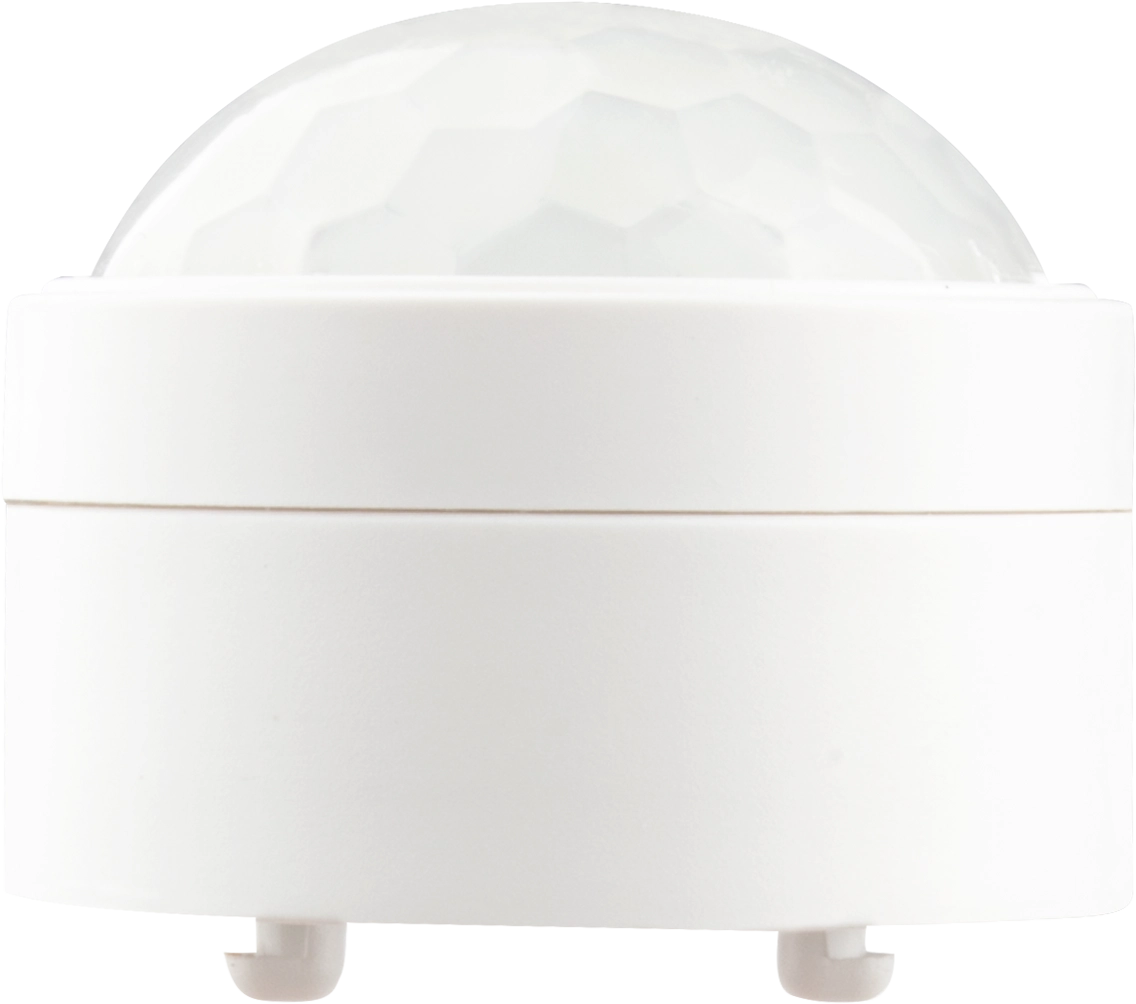

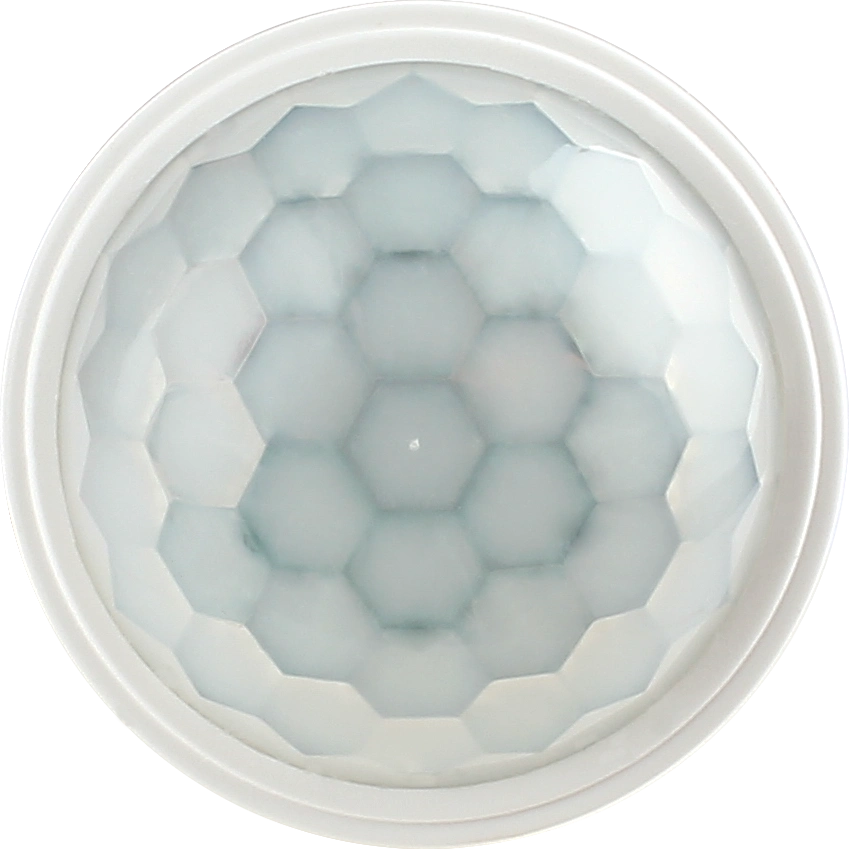

HIR09/S
PIR Lowbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Surface mount installation
- Offices
- Classrooms
Product information "HIR09/S"
This PIR sensor features passive infrared (PIR) detection with a conduit thread of M13 * 1.5mm. It includes daylight harvesting, a photocell for light sensing, and active lux switching capabilities. Sensor settings can be adjusted via the HRC-11 handset, and it is IP65 rated for the lens/facia part.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 17.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 32.6000 mm |
| Product length: | 36.3000 mm |
| Product weight: | 30.0000 g |
| Product width: | 36.3000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
Datasheets
Product datasheet: hir09-s.pdf
