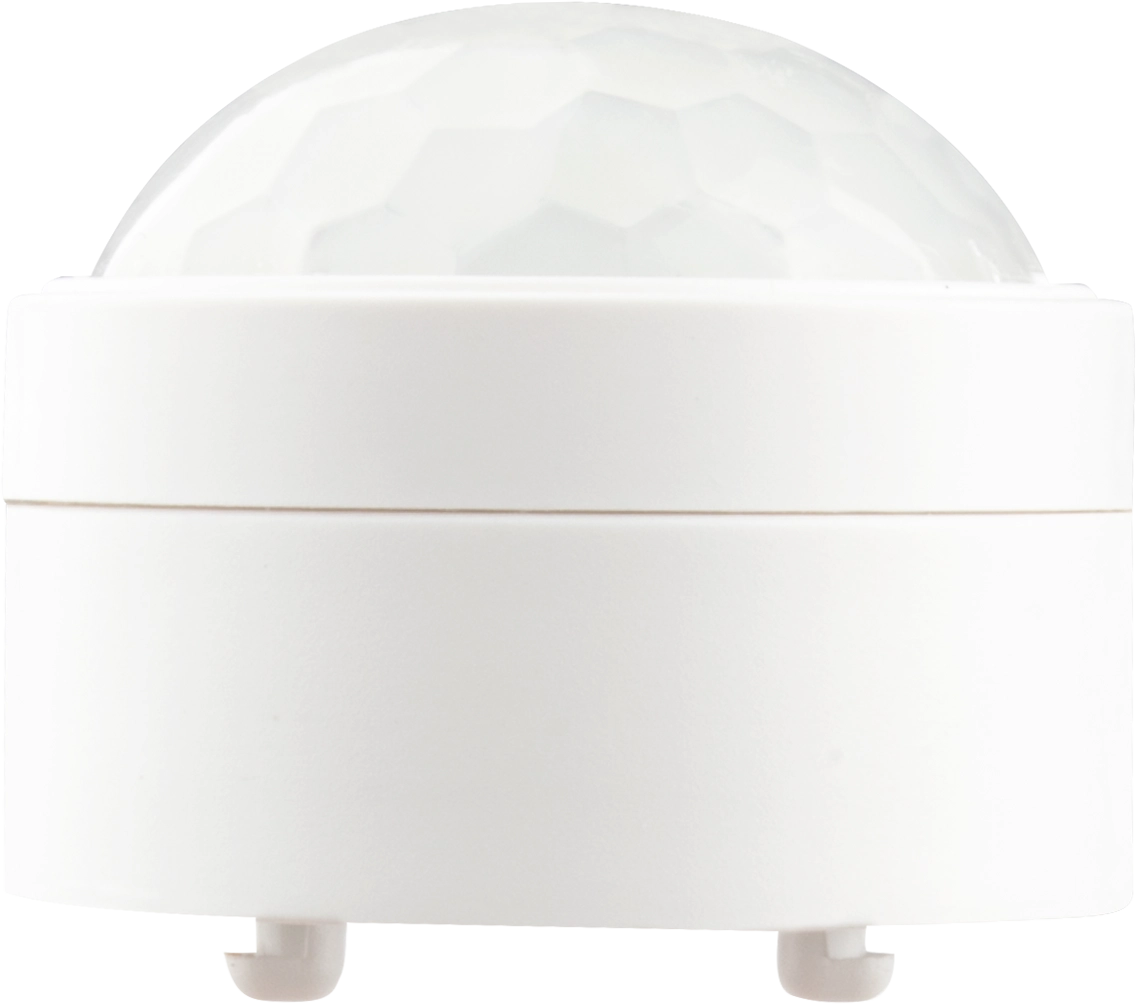

HIR19/S
PIR Highbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Surface mount installation
- Office/Commercial Lighting
- Classrooms
Product information "HIR19/S"
HIR19/S is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 17.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 32.6000 mm |
| Product length: | 36.3000 mm |
| Product weight: | 35.0000 g |
| Product width: | 36.3000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir19-s.pdf
