HIR19/F
PIR Highbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Flush mount installation for built-in luminaire
- Office/Commercial Lighting
- School/Classrooms
Product information "HIR19/F"

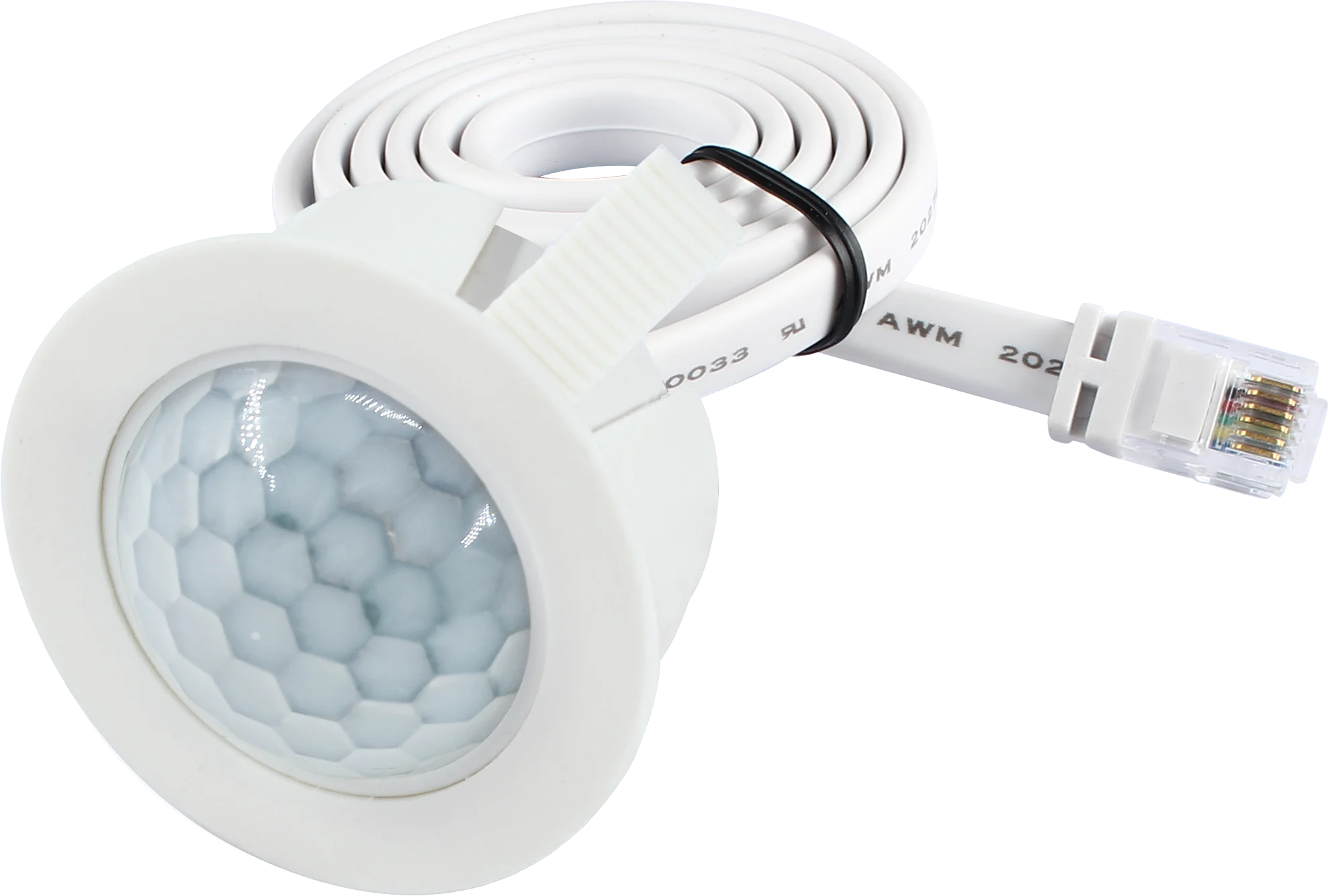

This sensor is designed for flush mount installation, it features tri-level dimming. It allows easy sensor settings adjustment via handset HRC-11 and offers IP65 protection on the facia part for durability in various environments.
| Commissioning Methods: | IR Remote Controller |
|---|---|
| Connector Type: | RJ12 |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 39.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 26.5000 mm |
| Product length: | 48.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 48.0000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hir19-f.pdf
