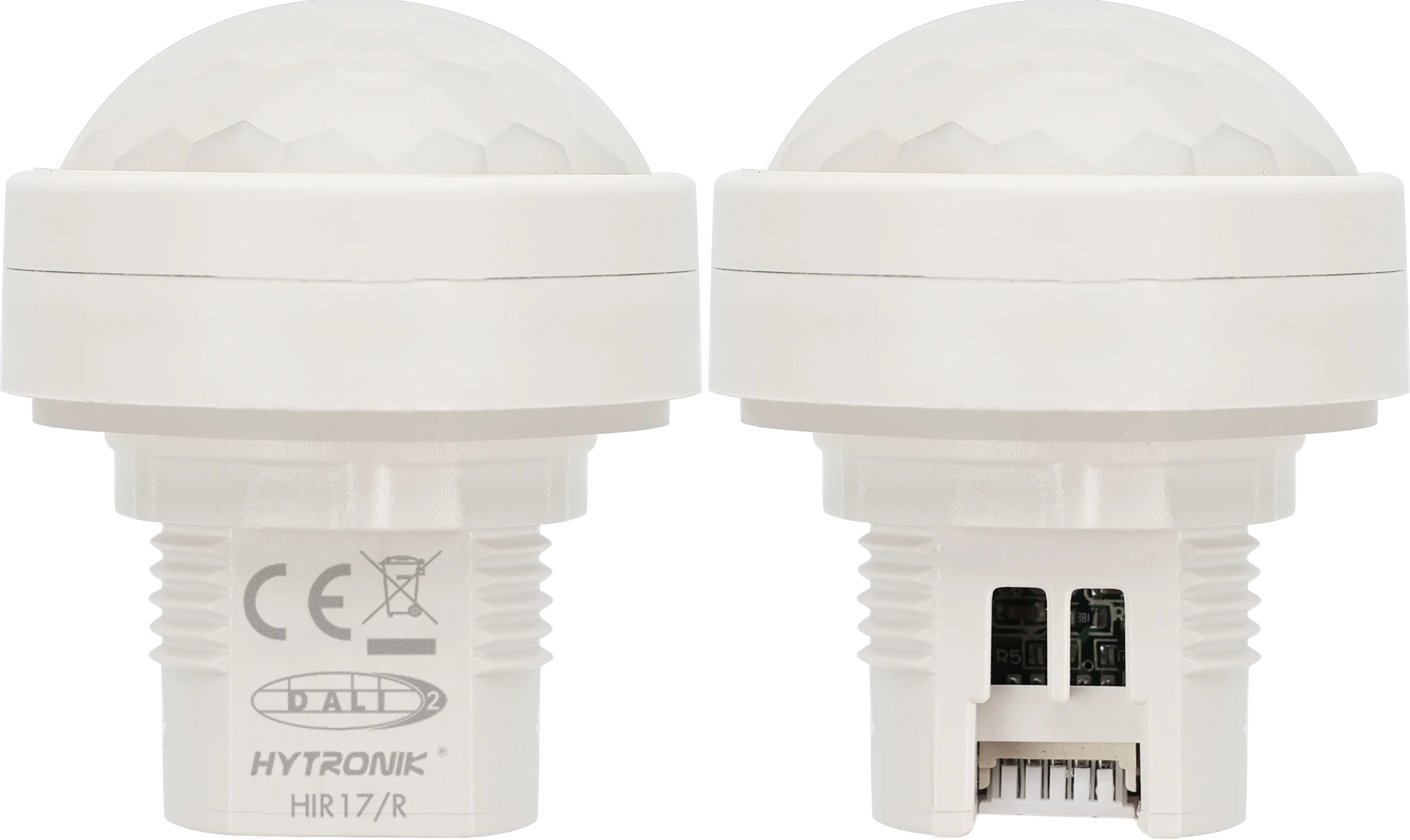

HIR17/R

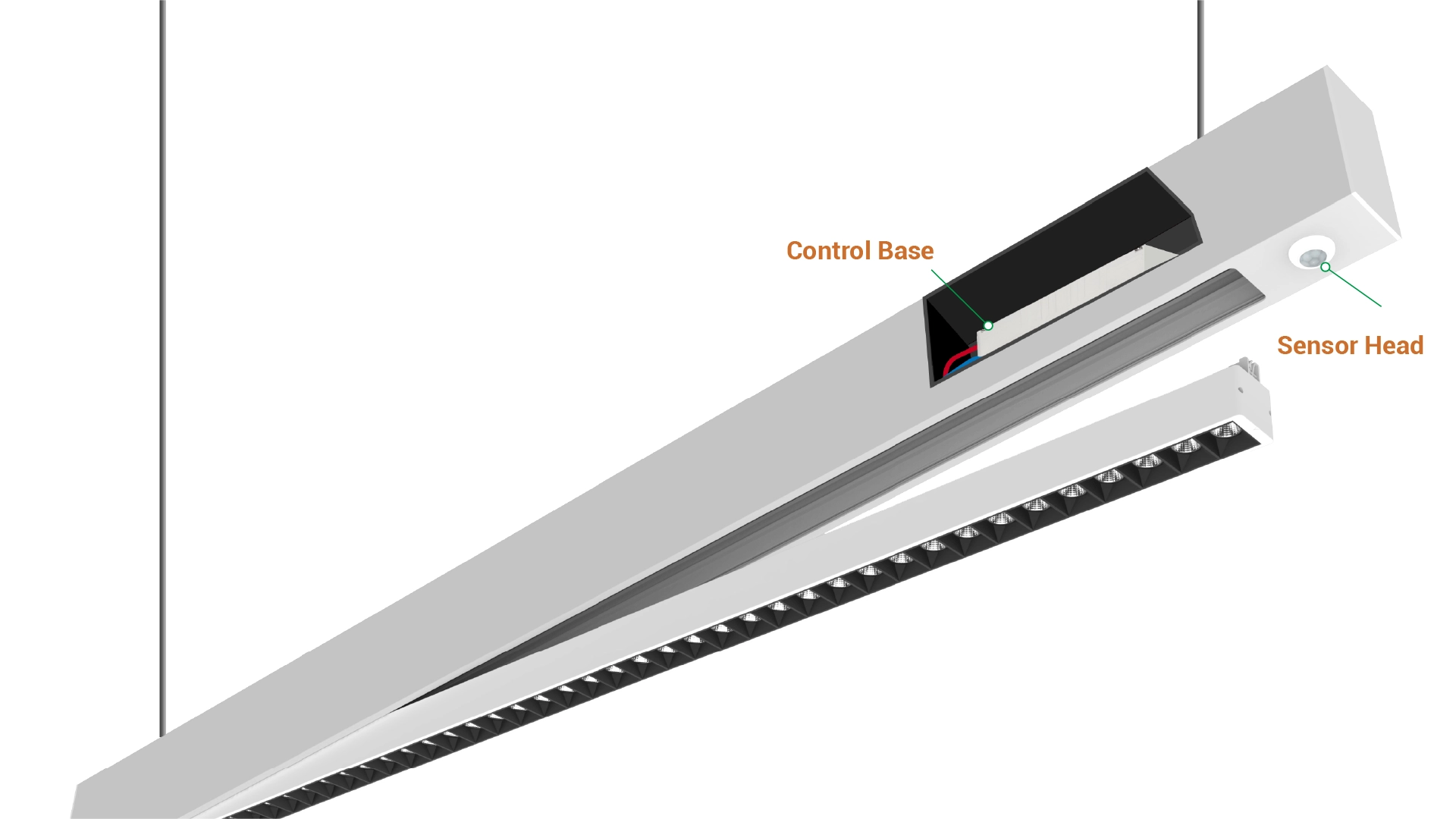

PIR Midbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Tunable white control
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Conduit thread: M 22x1.5mm
- Office/Commercial Lighting
- School/Classrooms
Product information "HIR17/R"
This PIR sensor features a conduit thread of M22 * 1.5mm and is designed for tri-level dimming and daylight harvesting. It supports DT8 drivers with tunable white control and includes a photodiode (PD) and active lux switching. Sensor settings can be adjusted via the handset HRC-11, and it is IP65 rated for protection of the lens/facia part.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 22.0000 mm |
| Operating voltage range: | 5 VDC |
| Output Voltage: | 5VDC |
| Product height: | 43.4000 mm |
| Product length: | 36.0000 mm |
| Product weight: | 21.0000 g |
| Product width: | 36.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir17-r.pdf
