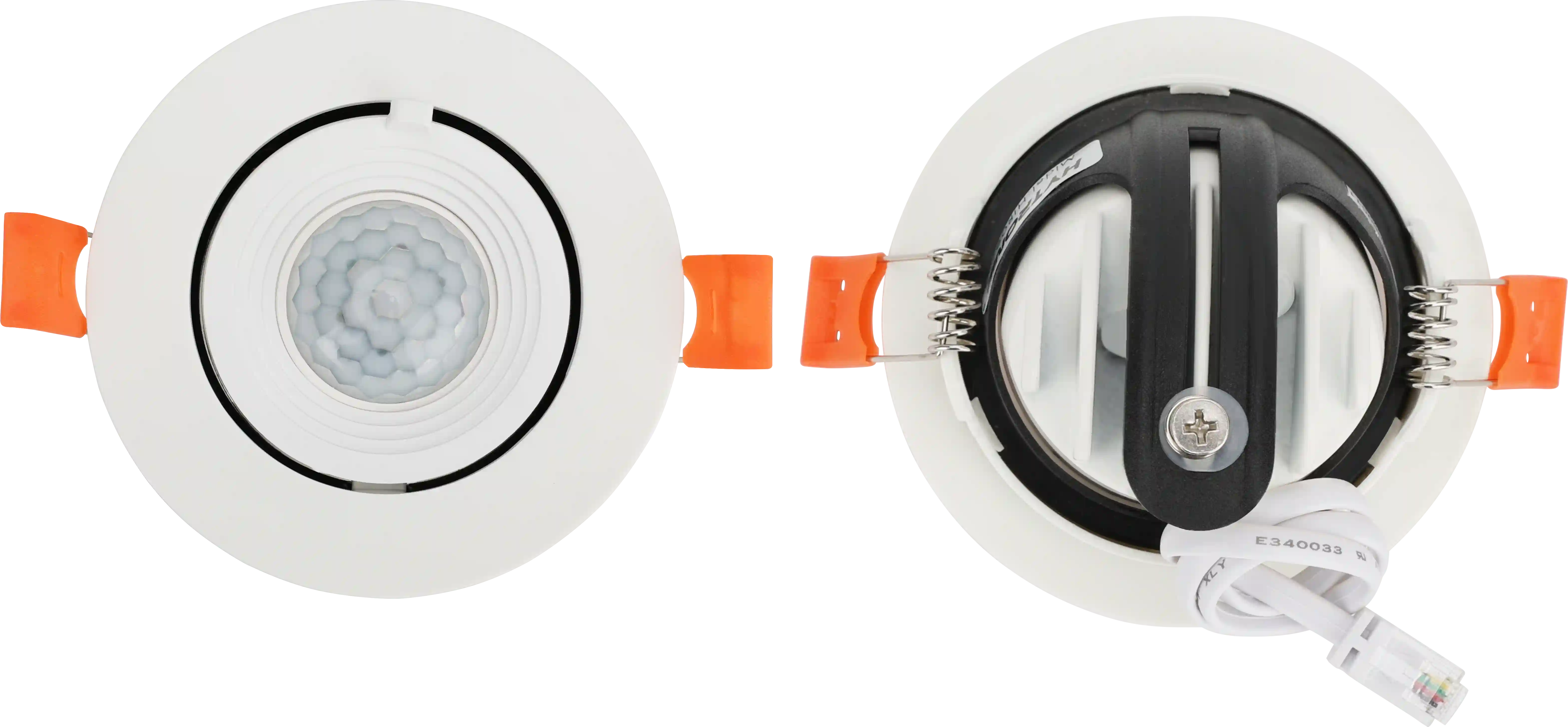

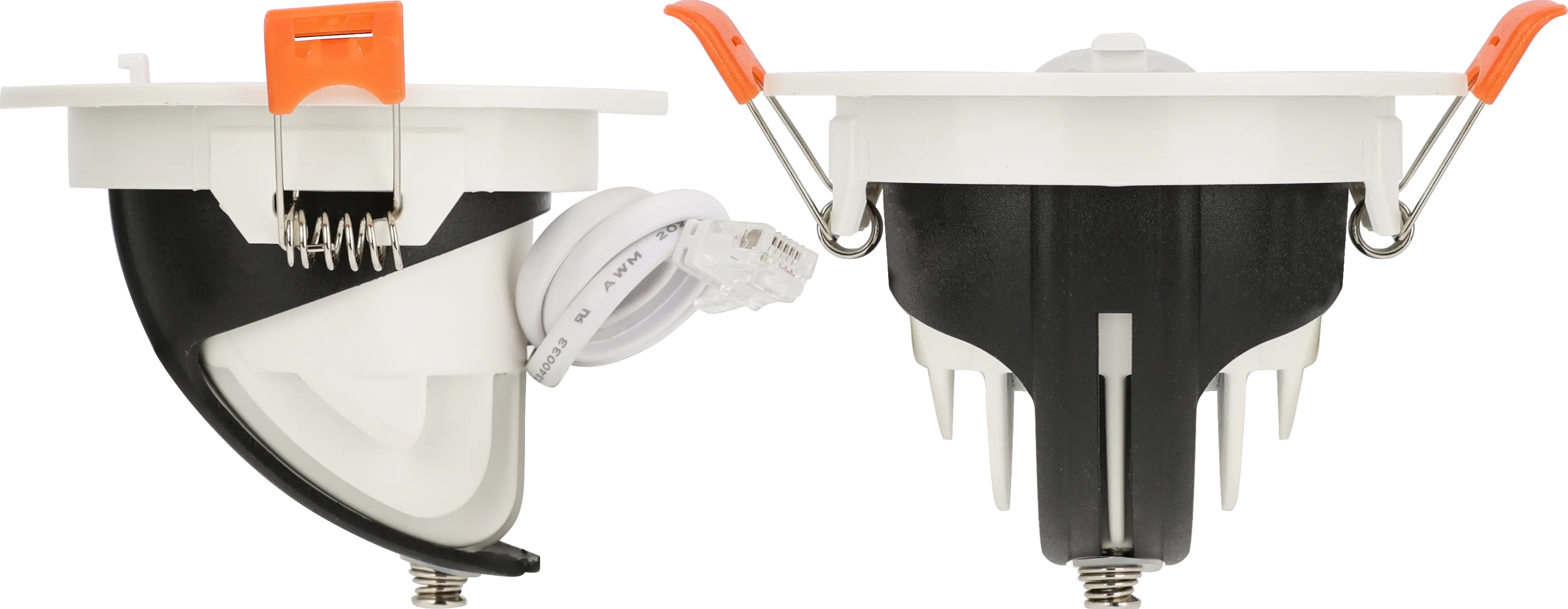

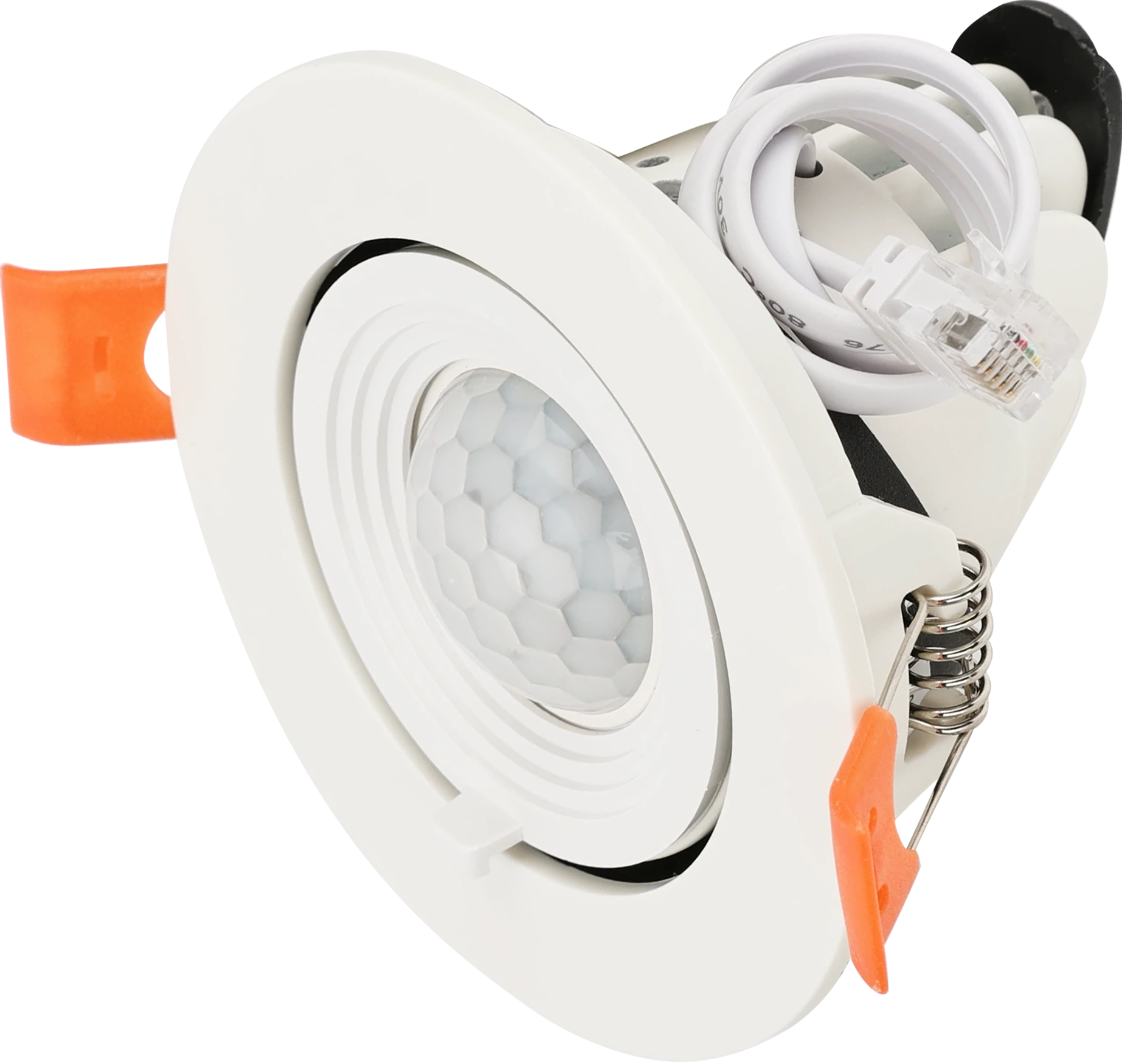

HIR19/AA
PIR Highbay | Adjustable Angle | RJ12 connector to control body
BENEFITS
- Compact: Flush mount plug&play sensor design
- Simple: Tri-level dimming control with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Corridors / Walkways application
- Corridor/Hallway
- Classrooms,/Offices
Product information "HIR19/AA"
Featuring an adjustable angle design, this PIR sensor offers tri-level dimming, photocell functionality, and active lux switching. It enables convenient settings adjustment via handset HRC-11 and boasts IP65 protection for reliable performance in diverse conditions.
| Commissioning Methods: | IR Remote Controller |
|---|---|
| Connector Type: | RJ12 |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 24x15 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 74.0000 mm |
| Operating Voltage: | 5 VDC |
| Product height: | 75.5000 mm |
| Product length: | 90.0000 mm |
| Product weight: | 117.0000 g |
| Product width: | 90.0000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir19-aa.pdf
