HIR09/F
PIR Highbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with Photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Flush mount installation
- Offices
- Classrooms
Product information "HIR09/F"

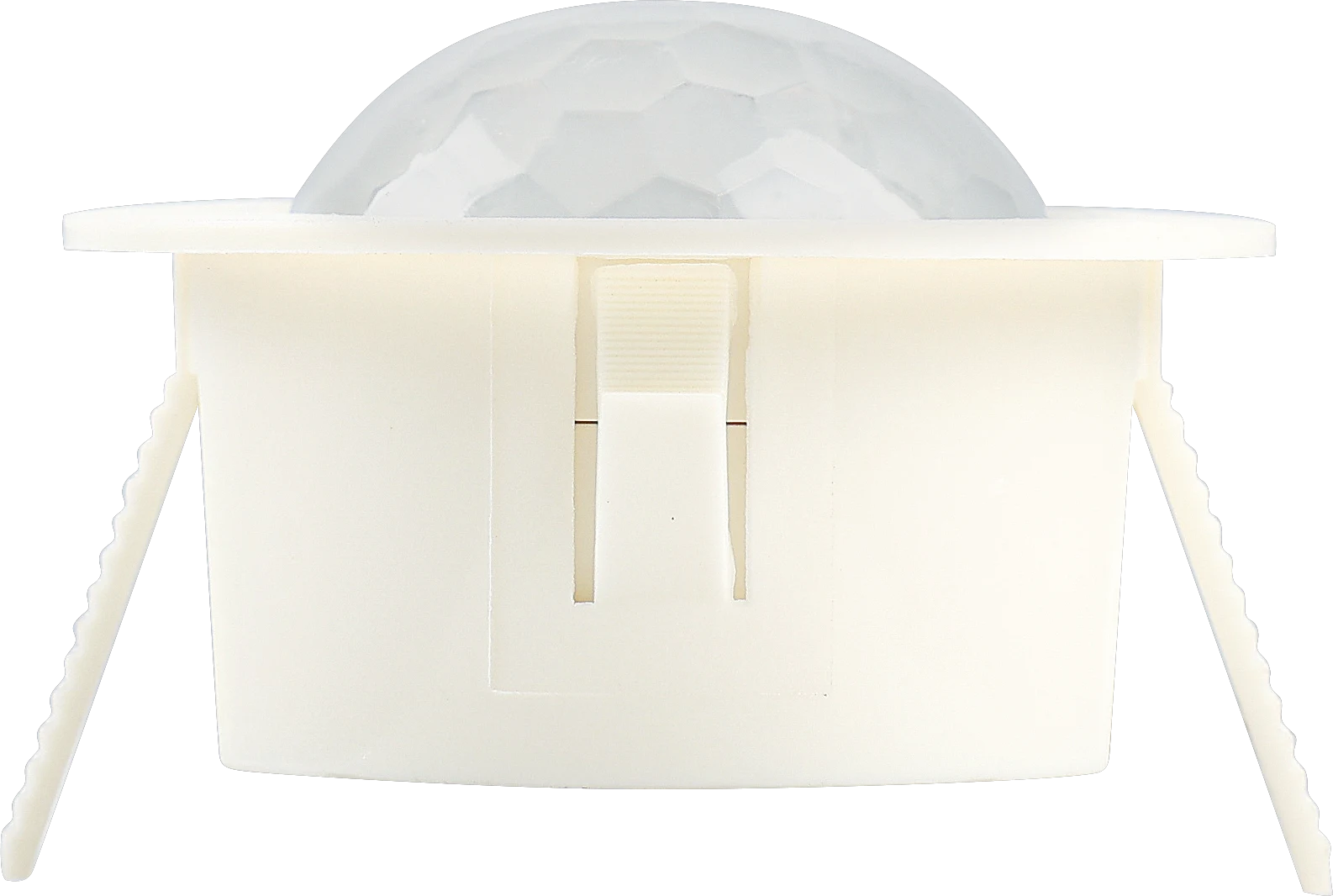

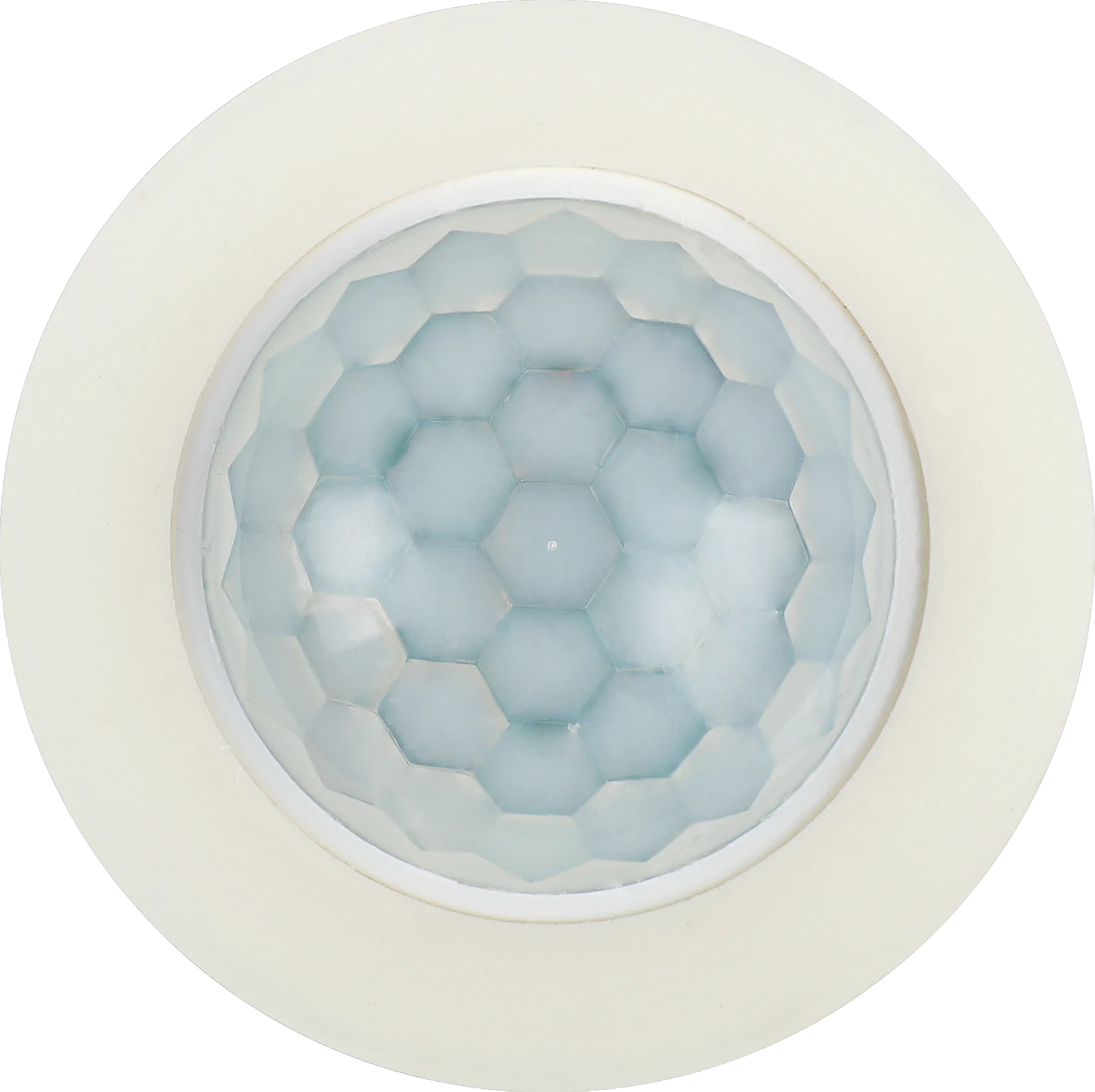

This PIR sensor features passive infrared (PIR) detection and is designed for flush mount installation. It includes daylight harvesting, a photocell for light sensing, and active lux switching capabilities. Sensor settings can be adjusted via the HRC-11 handset, and it is IP65 rated for protection of the lens/facia part.
| Commissioning Methods: | Remote Controller |
|---|---|
| Connector Type: | RJ12 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | High-bay |
| Operating Voltage: | 5 VDC |
| Product height: | 48.0000 mm |
| Product width: | 35.4000 mm |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
