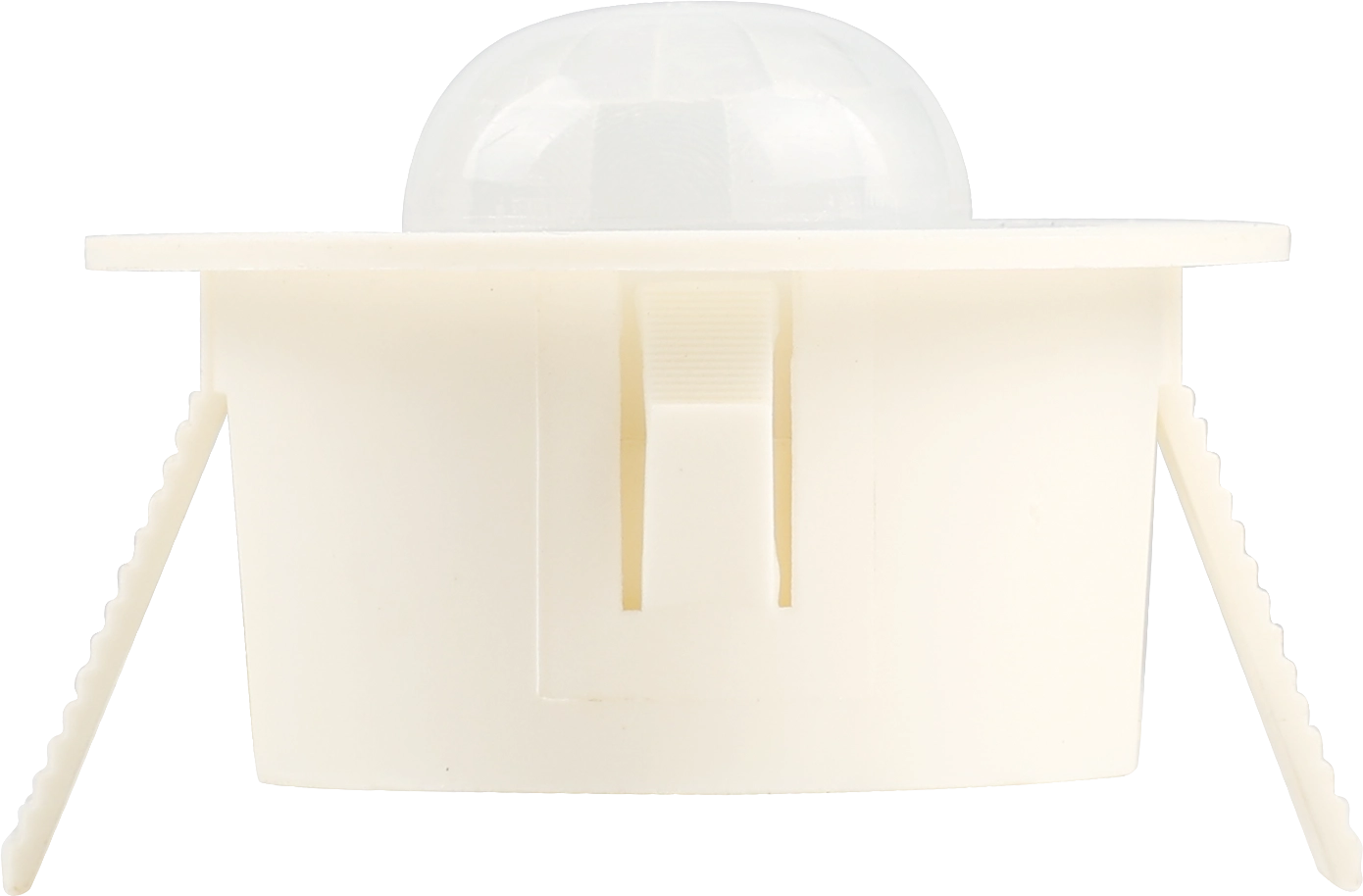

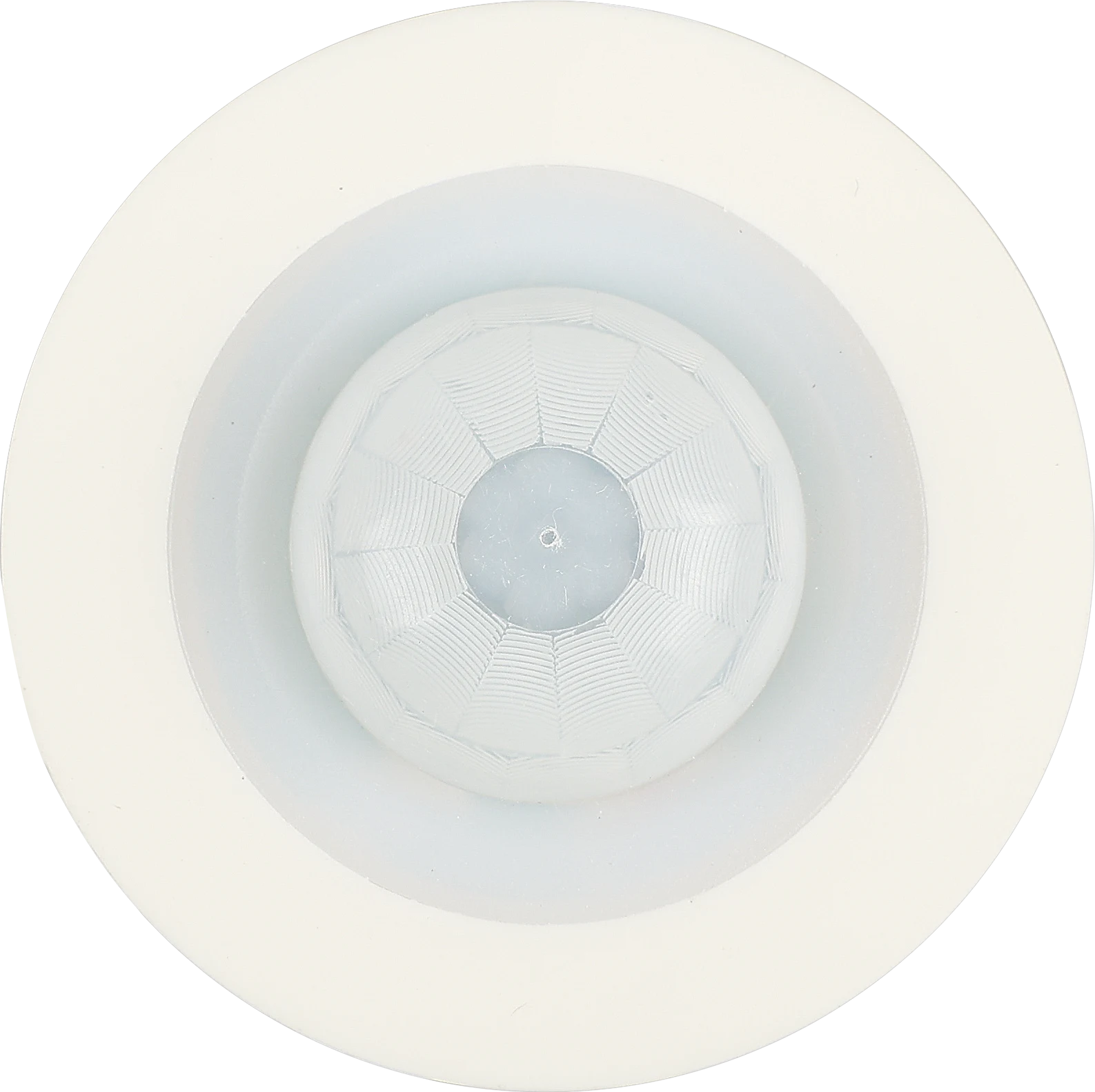

HIR01/FM
PIR Lowbay | Daylight Harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Daylight harvest with photocell
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS

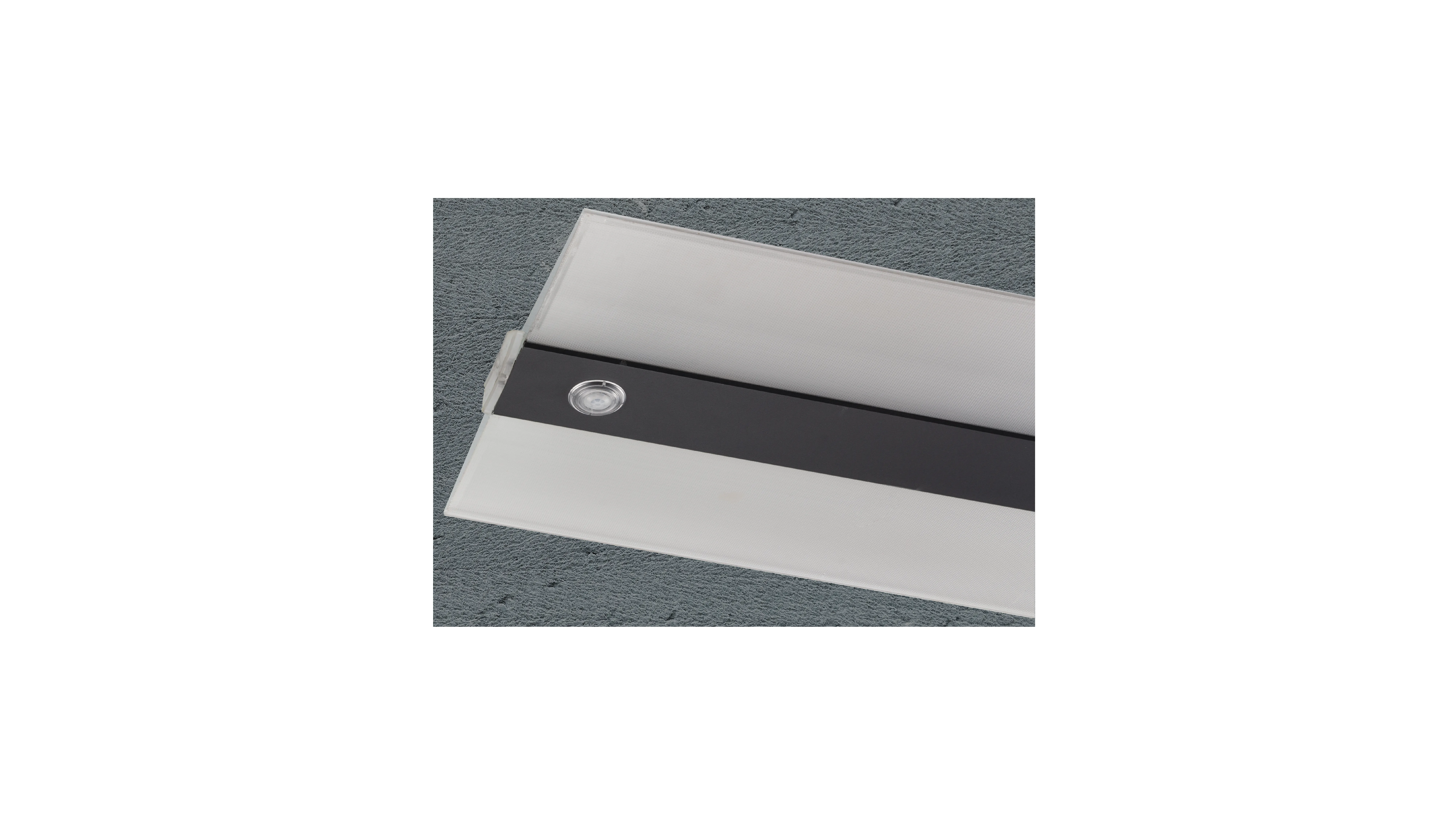

- Flush mount application
- Classrooms
- Offices
Product information "HIR01/FM"
HIR05/FM is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HC038V/BT；HCD038/BT；HC438V/BT；HCD438/BT； HCD038/CA； HCD438/CA. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 6x3 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Mounting Height: | Low-bay |
| Mounting hole: | 41.0000 mm |
| Operating Voltage: | 5 VDC |
| Product height: | 20.3000 mm |
| Product width: | 48.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | No |
