HPAD-TSJASE1
Bluetooth Touch Tablet | Gateway Integrated | Switch Boxes
BENEFITS
- Compact: Enabling easy installation in standard switch boxes
- Innovative: Colour dimming + Scenes control + Environmental metrics
- Flexible: Allowing quick setup and customization via app
APPLICATIONS
- Wall switch mounting boxes
- Industrial
- Office

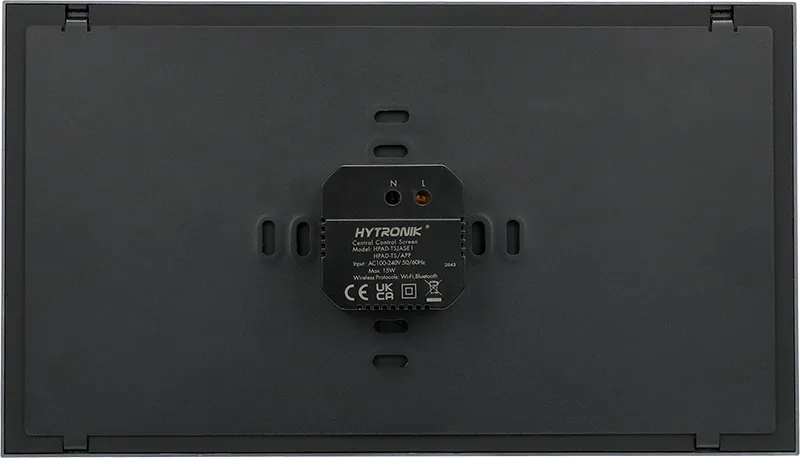

Product information "HPAD-TSJASE1"

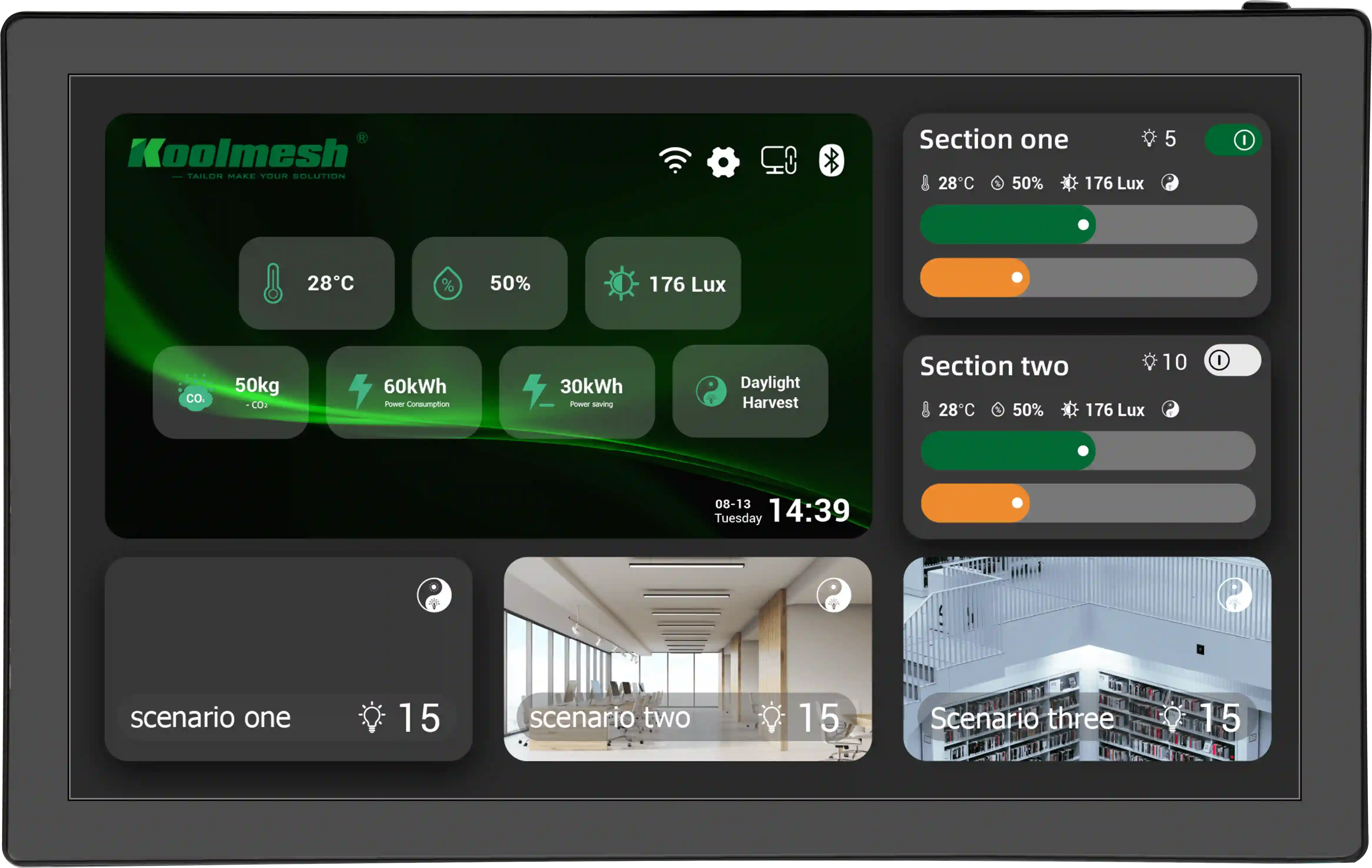

HPAD-TSJASE1 is a capacitive-touch Bluetooth control panel that brings intuitive interaction and advanced gateway capabilities to smart lighting systems, offering users a unified interface for monitoring and control. It enables smooth dimming, tunable white adjustment, scene recall and luminaire grouping, while also displaying key environmental data such as temperature, humidity and lux for more informed lighting decisions. Commissioning and customization are fully supported through the Koolmesh app for fast, flexible setup. Designed for direct installation into a standard switch box with no wall modification, it weighs just 1 kg and operates with reliable mains power, making it ideal for offices, schools, and industrial environments.
| Ambient temperature max.: | 40 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Touch Screen |
| Commissioning Methods: | App & Web (Bluetooth) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 5 % |
| IP Rate: | IP20 |
| Operating Voltage: | 100-240VAC |
| Product height: | 36.0000 mm |
| Product length: | 240.5000 mm |
| Product weight: | 1.0000 kg |
| Product width: | 159.0000 mm |

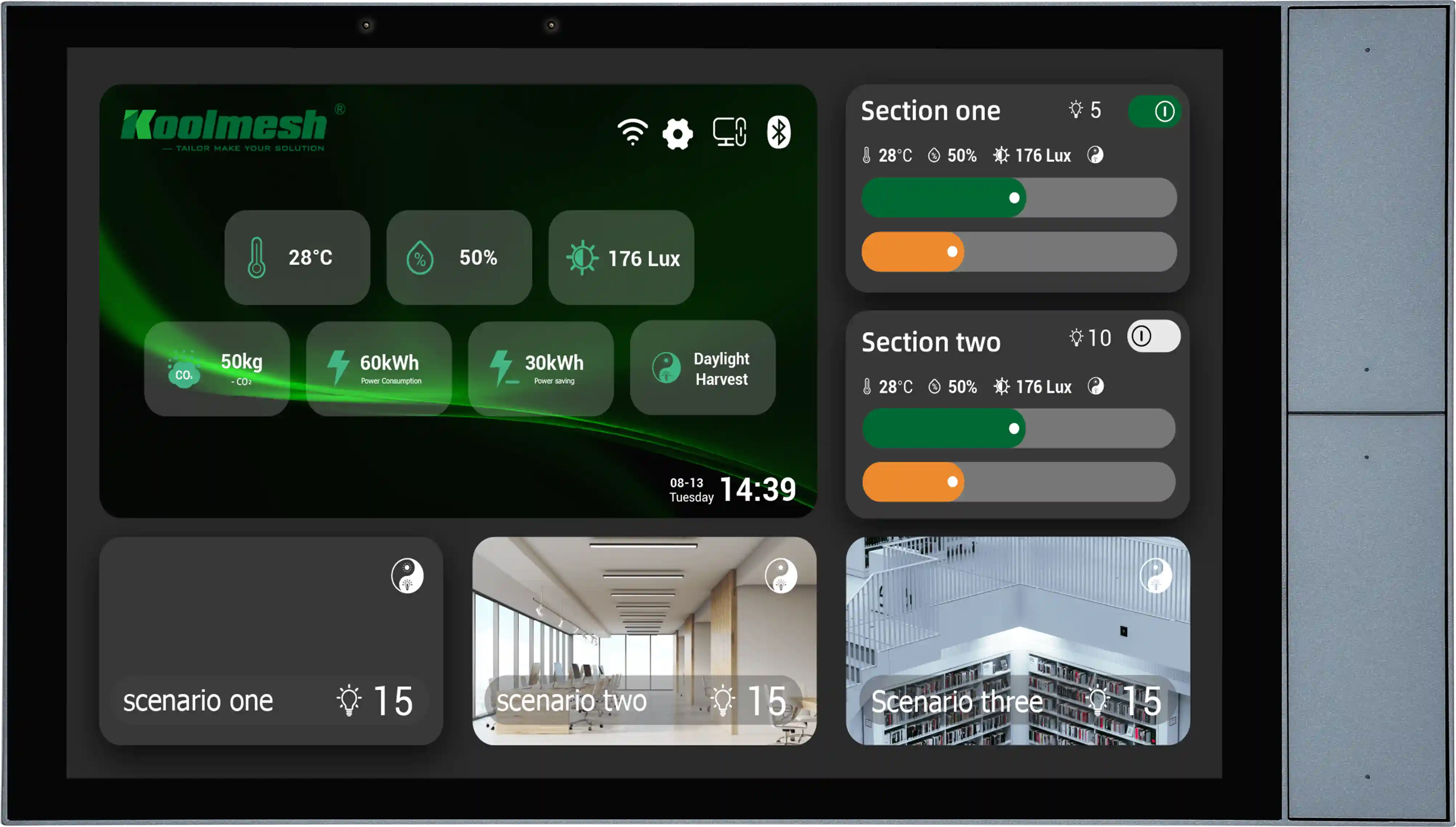

| Push Button Input: | 4 |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hpad-tsjase1.pdf
