Active / Make to Stock

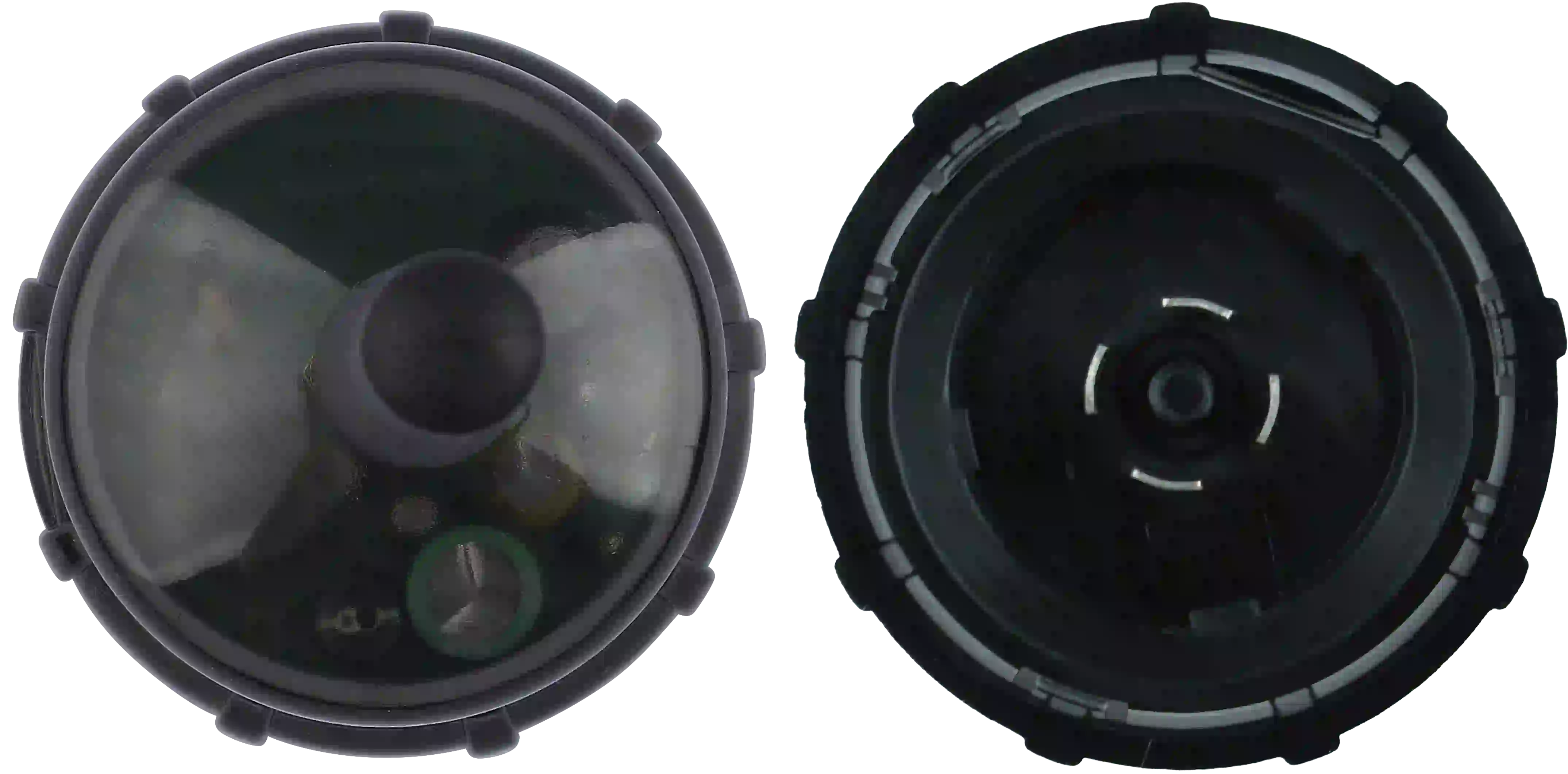

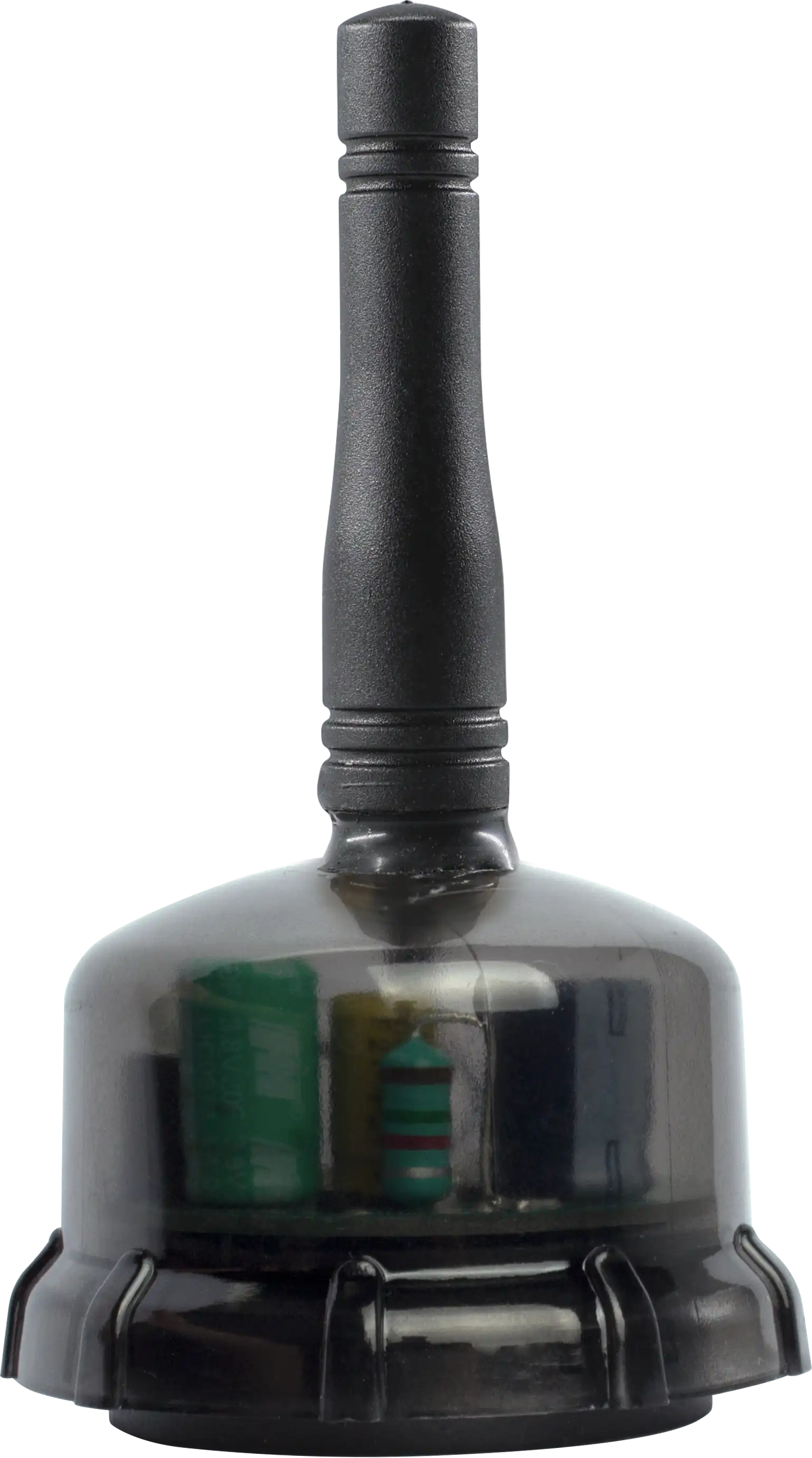

HBTD15V
Bluetooth Dimmer | 0-10V | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 design for easy luminaire integration
- Reliable: RTC backup ensures stable timing during power loss
- Wireless: External antenna enabling extended Bluetooth range
APPLICATIONS
- Warehouse
- Logistic

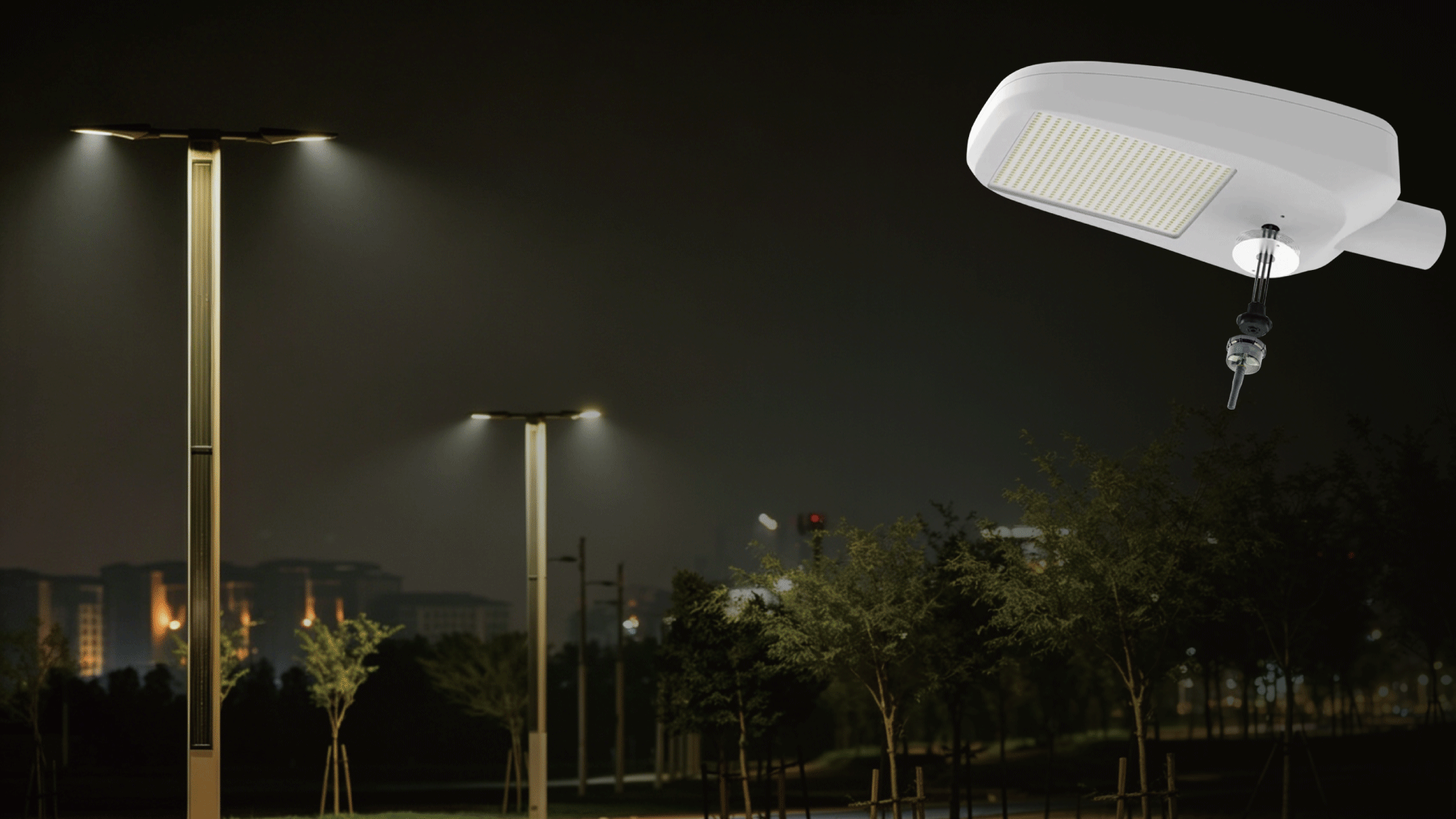

- Outdoor/Street lights
Product information "HBTD15V"
HBTD15V is a Bluetooth broadcast dimmer with 0–10V output, compliant with Zhaga Book 18 and designed to enable precise dimming for 0–10V lighting systems. The external Bluetooth antenna extends the broadcast range for more reliable wireless communication. All configuration and commissioning can be completed quickly via the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Zhaga Book 18 Standard |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-50m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | 0-10V |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP65 |
| Operating voltage range: | 12-36 VDC |
| Output Voltage: | 0~10 V |
| Product Status: | Active / Make to Stock |
| Product height: | 90.0000 mm |
| Product length: | 50.5000 mm |
| Product weight: | 42.0000 g |
| Product width: | 50.5000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | Yes |
| Zhaga: | Yes |
Datasheets
Product datasheet: hbtd15v.pdf
Login
Bluetooth Network Components

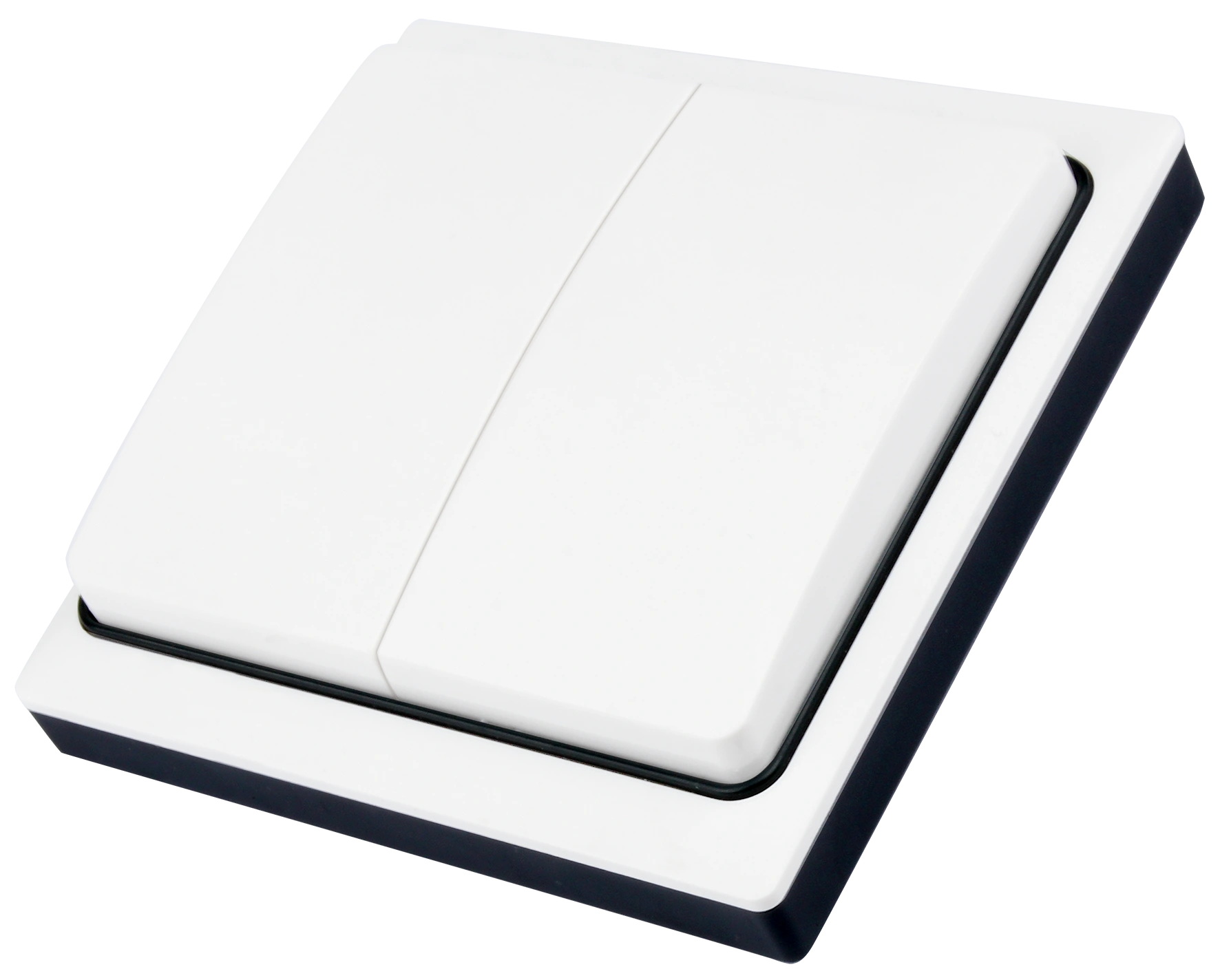

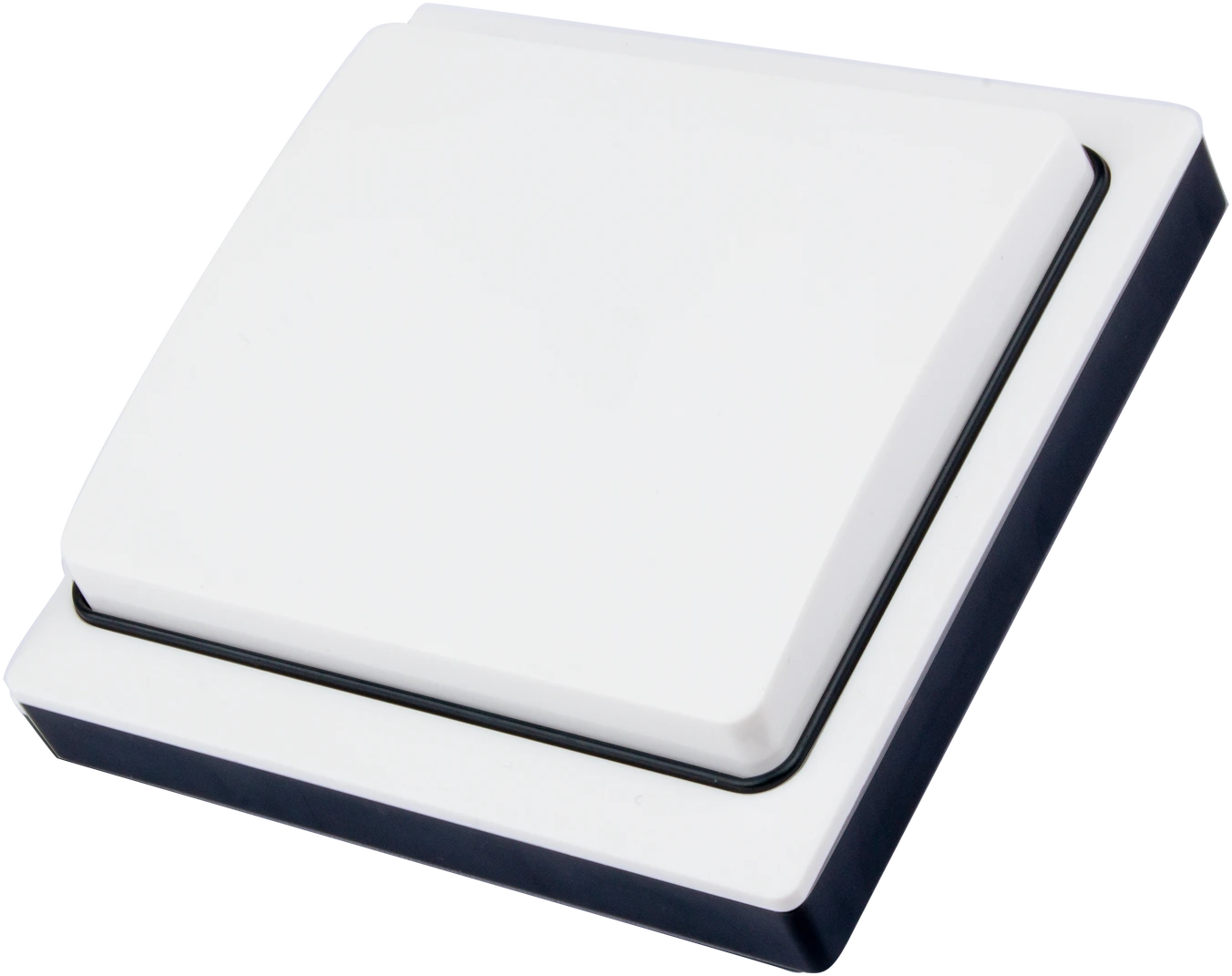

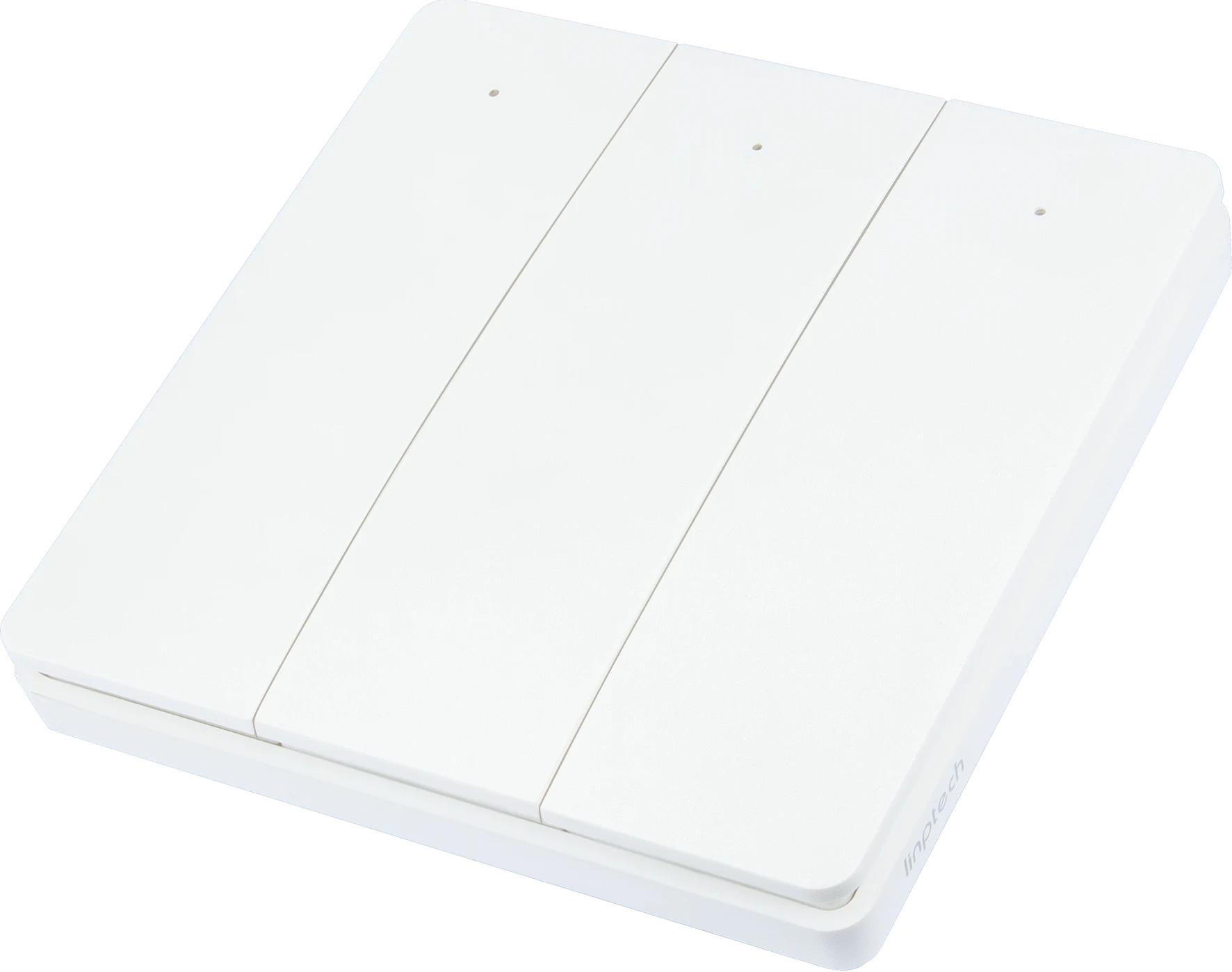

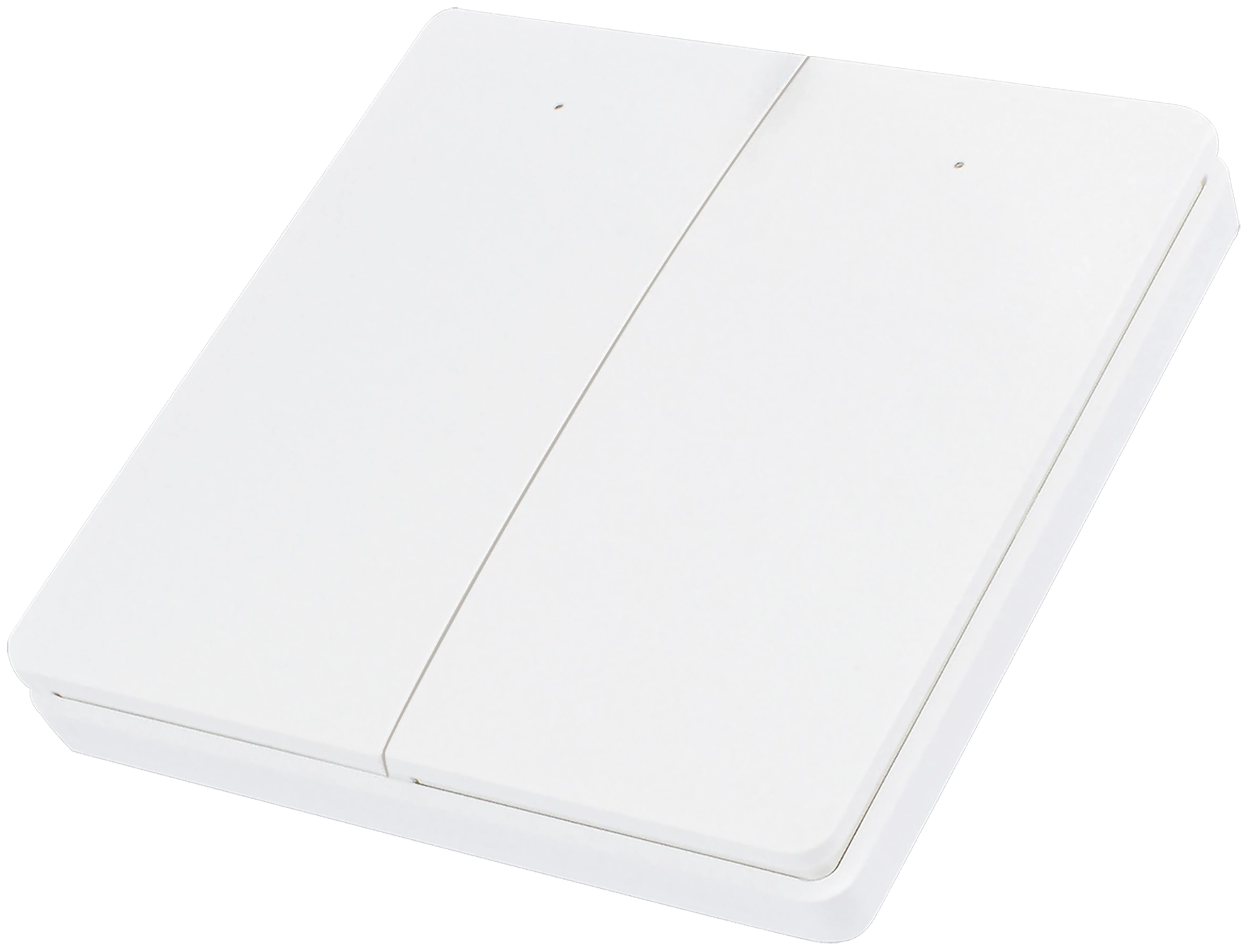

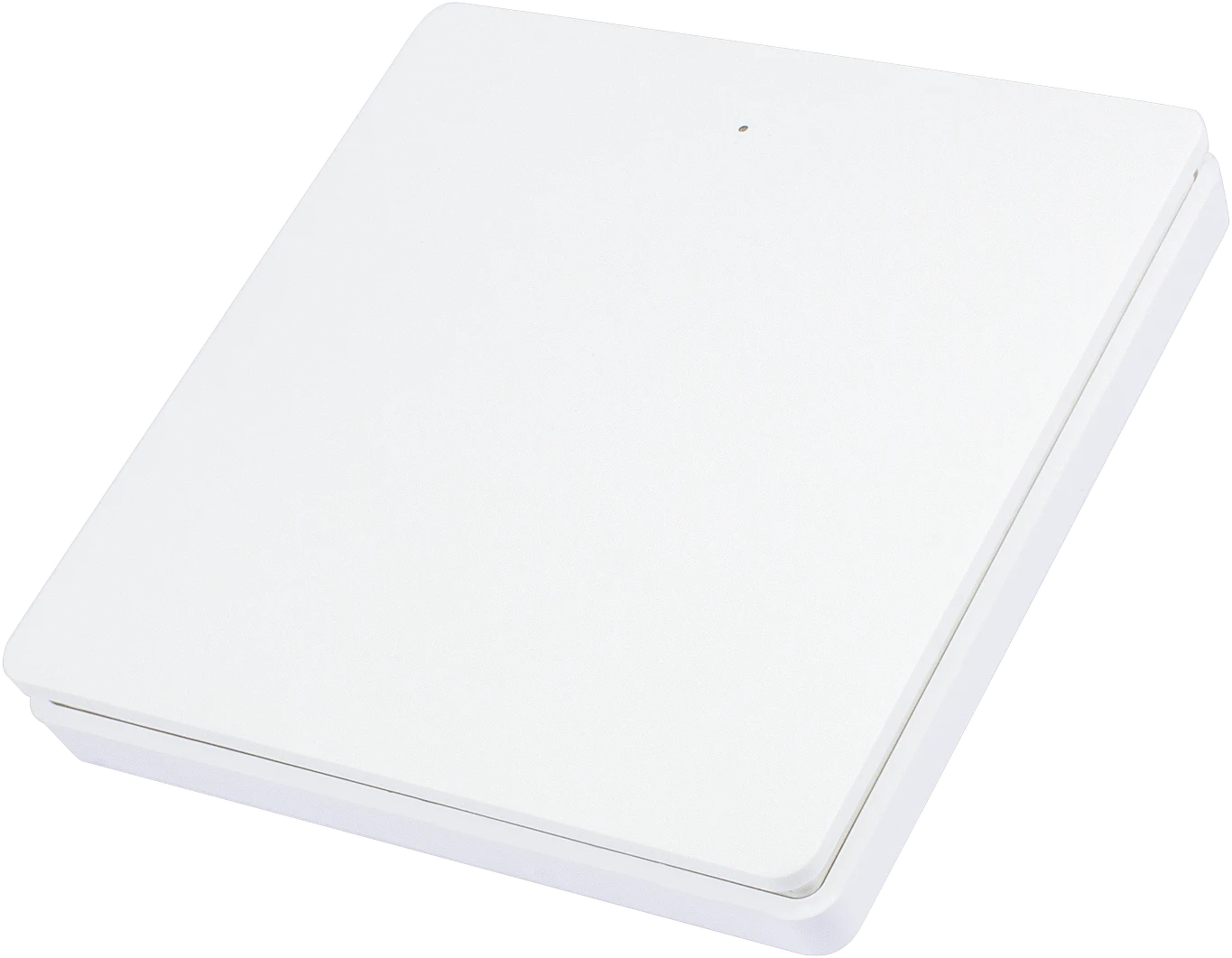

Compatible products (for full functionality)
