Active / Make to Stock
HBTD15
Bluetooth DALI Dimmer | Zhaga Book 18 | Wireless Lighting Control
BENEFITS
- Accurate: Dual photocells provide more stable daylight control
- Reliable: RTC backup ensures stable timing during power loss
- Wireless: External antenna enabling extended Bluetooth range
APPLICATIONS

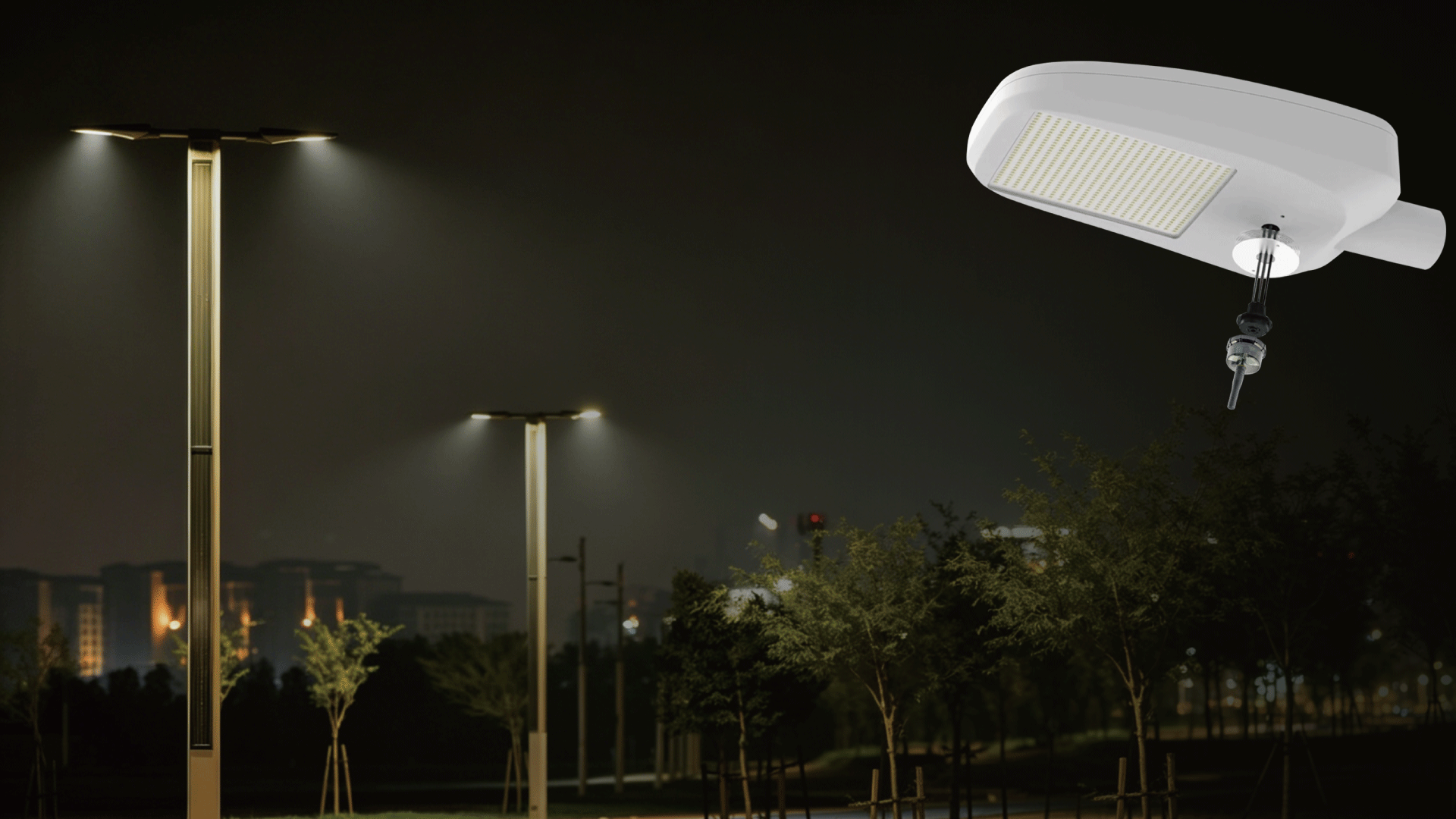

- Street Lighting
- Warehouses & Sport arenas
- Parkings & Industrial
Product information "HBTD15"

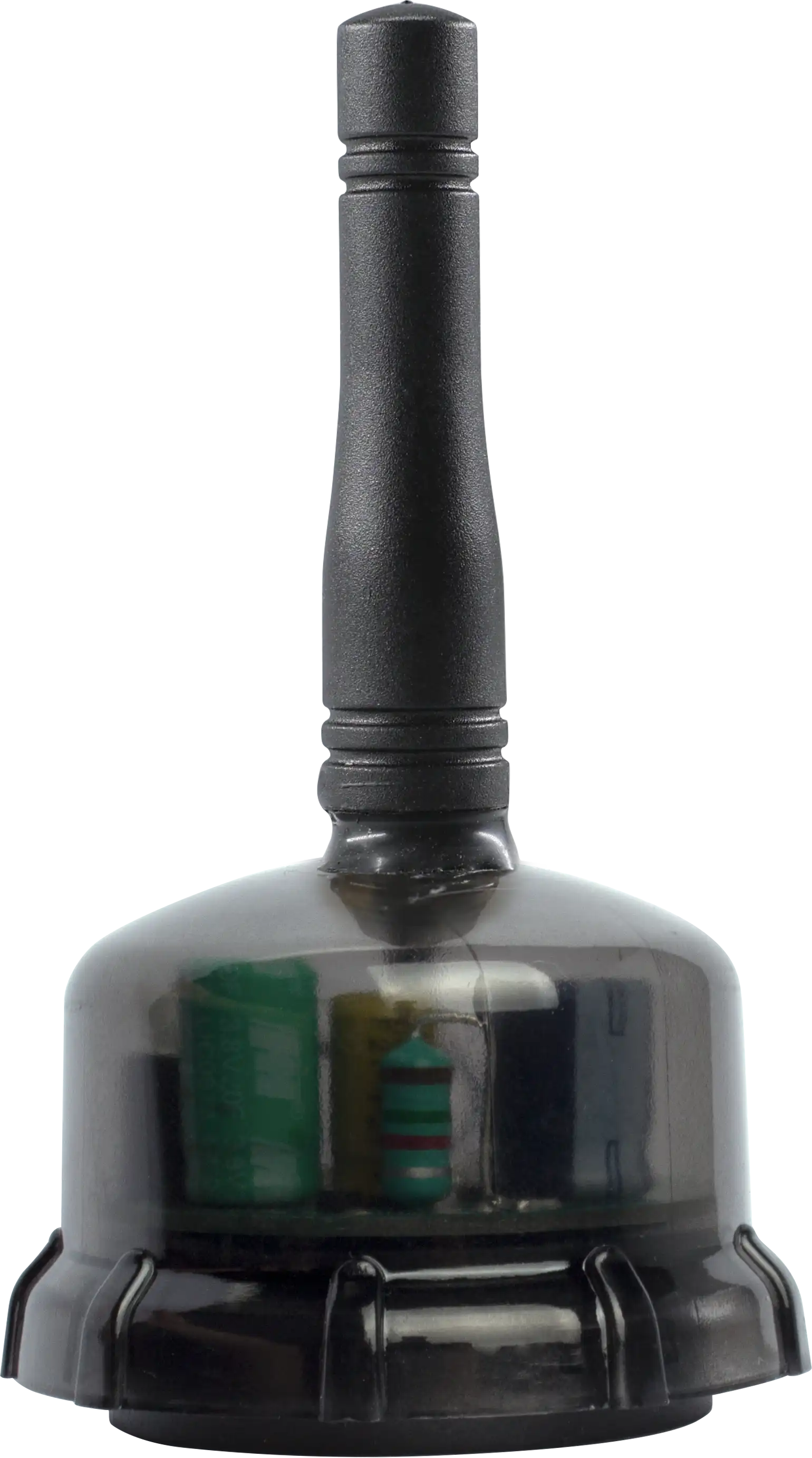

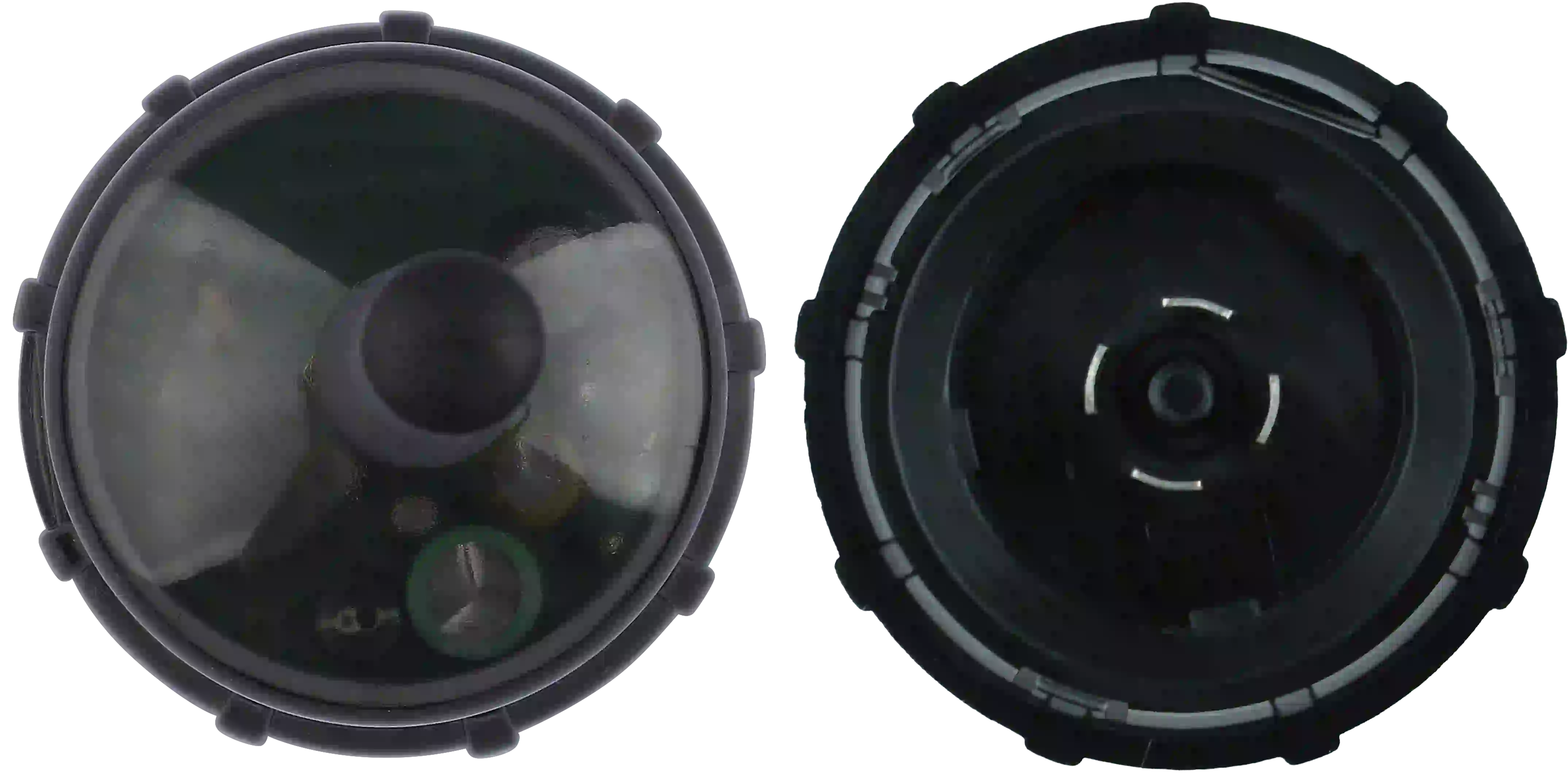

HBTD15 is a Zhaga Book 18 Bluetooth-to-DALI broadcast dimmer for DALI-2 and D4i systems, supporting DT6 dimming, DT8 tunable white and daylight-based control. Photocell Advance enables open-loop daylight regulation and reliable dusk-to-dawn operation. Powered by a 12–36 VDC auxiliary supply, it features IP65 protection, an external Bluetooth antenna and built-in RTC for outdoor and industrial applications. All parameters can be configured via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Zhaga Book 18 Standard |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| DALI Bus Current Consumption: | 2.0000 mA |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP65 |
| Product Status: | Active / Make to Stock |
| Product height: | 90.0000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 42.0000 g |
| Product width: | 50.8000 mm |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | Yes |
Datasheets
Product datasheet: hbtd15.pdf
