HBIR38DC
PIR Lowbay | SELV（low-volt） DC | Ceiling mounting
BENEFITS
- Flexible: External RJ45 cable
- Independent: SELV（low-volt）12VDC
- User-Friendly: Simple Magnetic Reset Switch
APPLICATIONS
- Low-volt (SELV) application
- Connecting Hytronnik's SCB series products
- Offices/Schools
Product information "HBIR38DC"

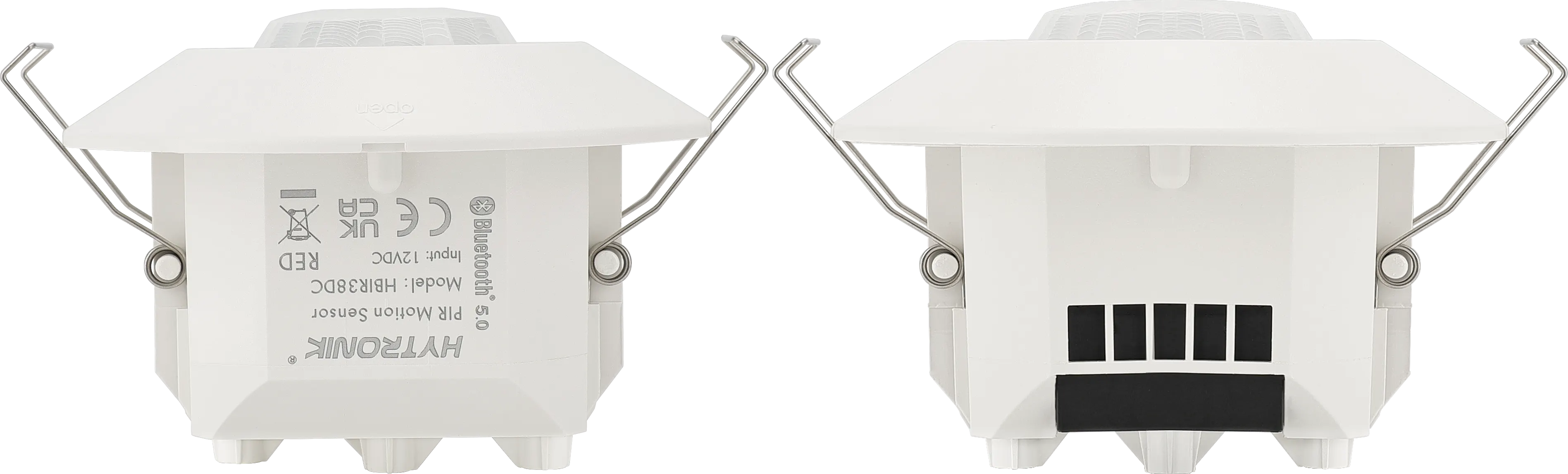

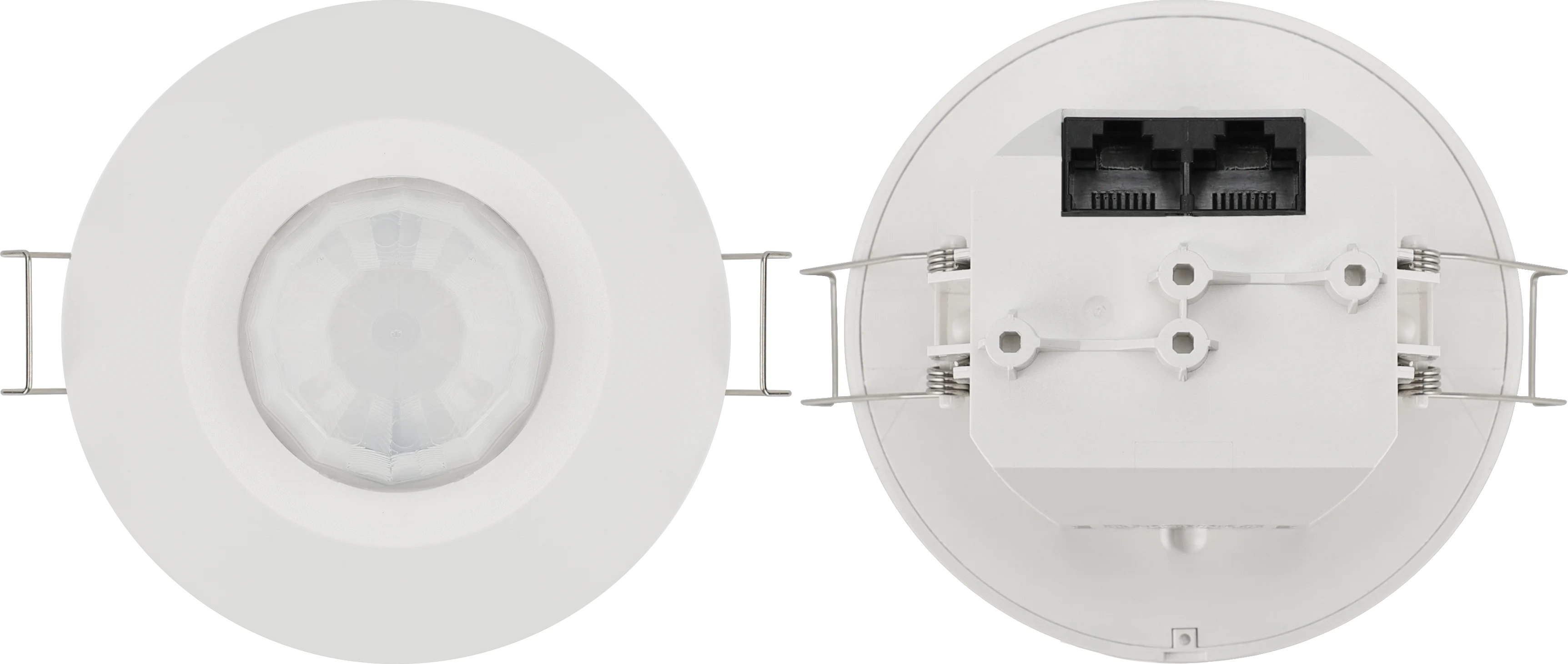

HBIR38DC is a Bluetooth PIR motion sensor equipped with an RJ45 network port. It connects to SCB01/BLE or SCB02/BLE via an external RJ45 cable and is powered by a 12V DC supply from the SCB01/BLE or SCB02/BLE. With Bluetooth wireless connectivity, communication between devices is more convenient.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ45 |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | No Output (Bluetooth Signal Only) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Product height: | 73.3000 mm |
| Product length: | 8.5000 mm |
| Product weight: | 83.0000 g |
| Product width: | 8.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hbir38dc.pdf
