Active / Make to Stock

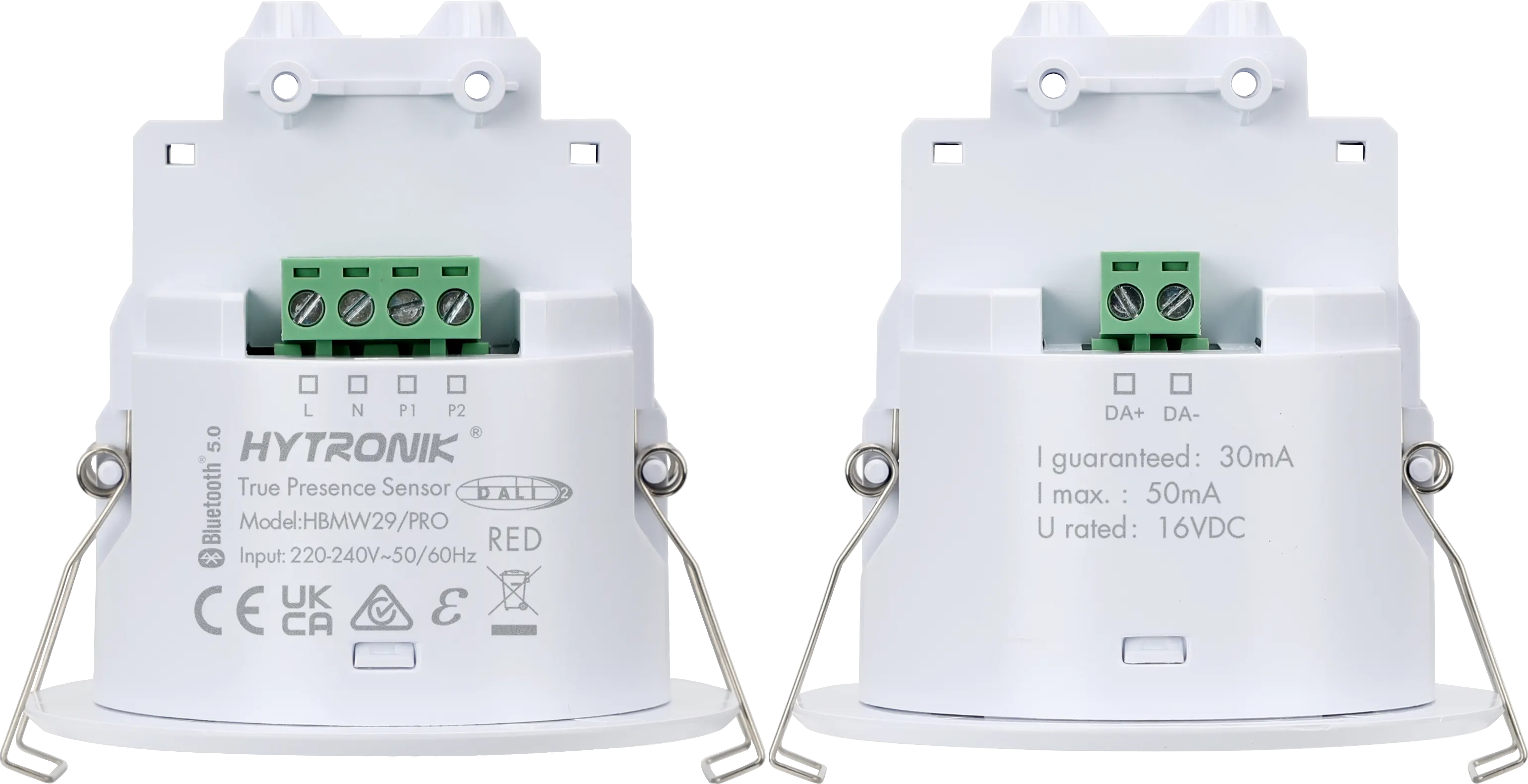

HBMW29/PRO
Bluetooth Occupancy Sensor | Built-in DALI PSU | D4i Support
BENEFITS
- High accuracy: True occupancy technology for sensitive detection
- Flexible: Adjustable motion & static sensitivity function
- Wireless: Bluetooth Mesh reduces extra control wiring
APPLICATIONS
- Quiet Indoor Spaces
- Offices · Meeting Rooms · Libraries
- Focus Work Areas · Reading Areas · Healthcare Rooms
Product information "HBMW29/PRO"
HBMW29/PRO is a Bluetooth DALI microwave occupancy sensor with Hytronik True Occupancy detection, suitable for offices, meeting rooms and other indoor spaces where occupants may remain seated for long periods. It can detect subtle human movement to maintain reliable occupancy status and reduce unnecessary light switch off. Powered DALI Broadcast supports direct DALI lighting control, while Bluetooth Mesh reduces additional control wiring. It also supports daylight control, DT8 lighting and D4i data collection. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -25 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW), Microwave True Occupancy |
| Detection angle: | 360° |
| Detection range (Diameter): | 8x3 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 101.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 63.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbmw29-pro.pdf
Installation Manual
User manual: installation-manual-hbmw29-pro.pdf
