HIR60/R
PIR Midbay | Bluetooth to DALI | Zhaga Book 20 Standard
BENEFITS
- Compact: Super small size Zhaga Book 20 sensor
- Intelligent: Enabling Tri-level & Daylight harvesting & HCL
- Flexible: Allowing wireless setup via app
APPLICATIONS

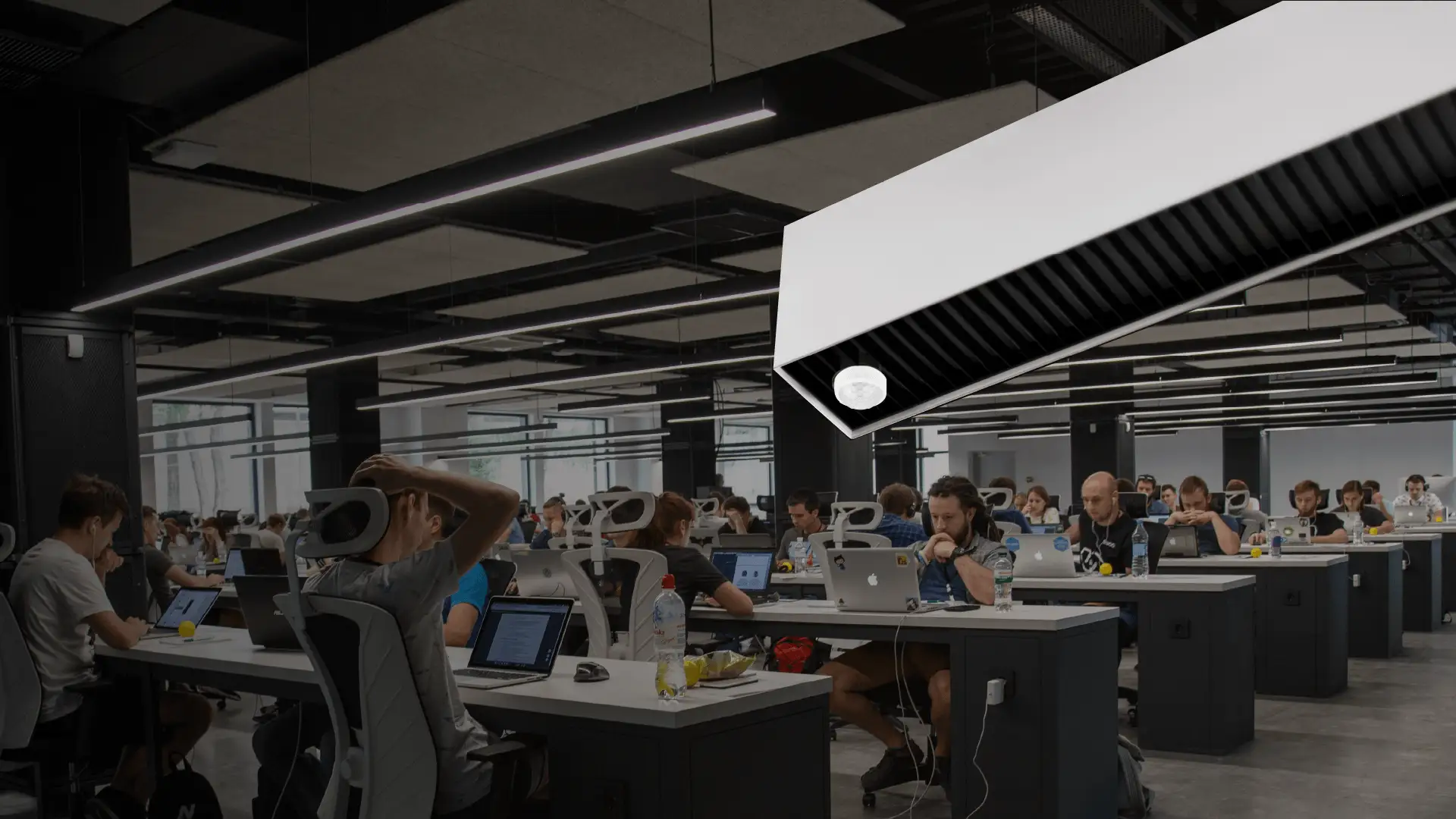

- For linear luminaires up to 8/12m height
- Warehouse/ Logistic
- Production
Product information "HIR60/R"

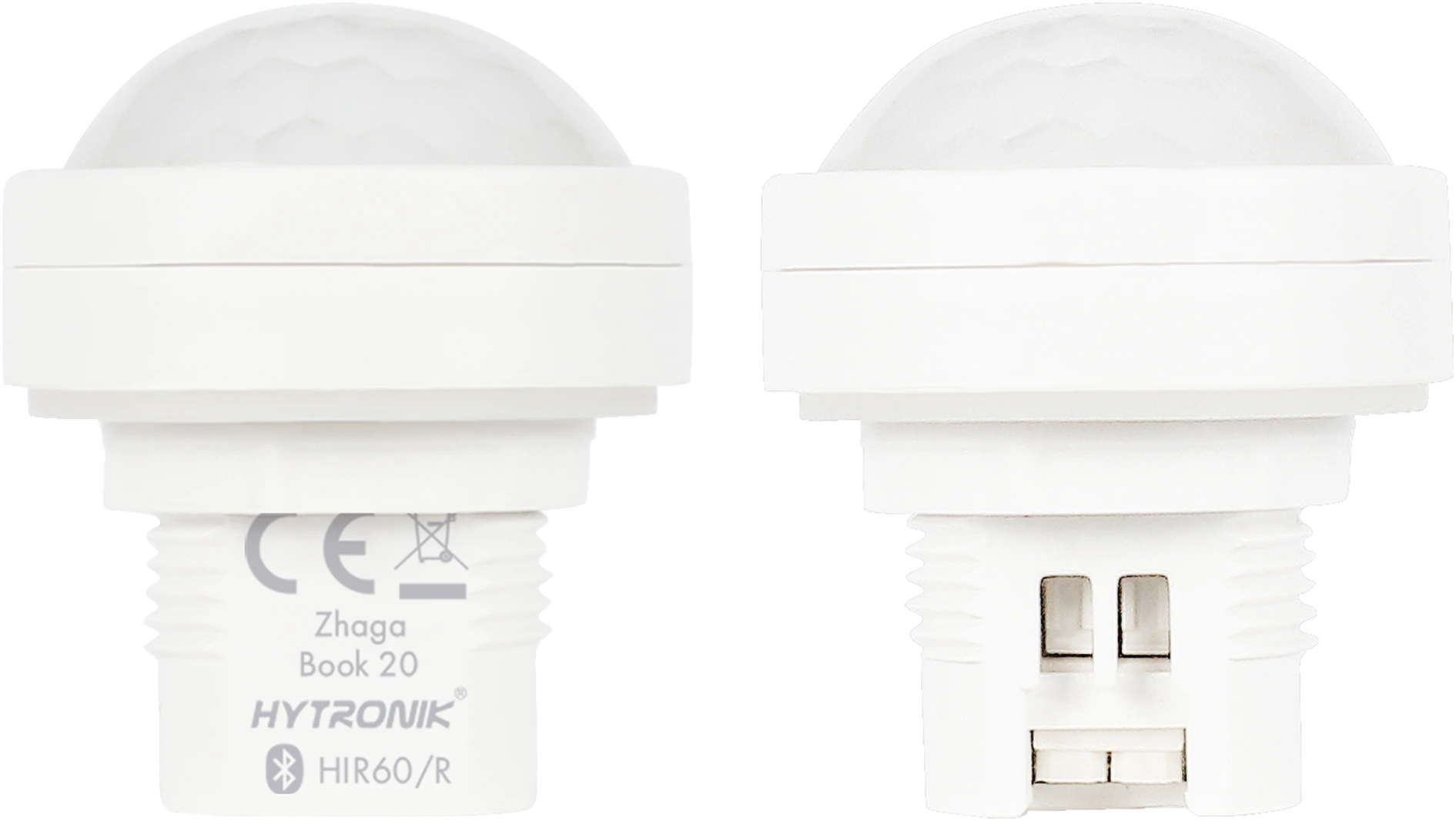

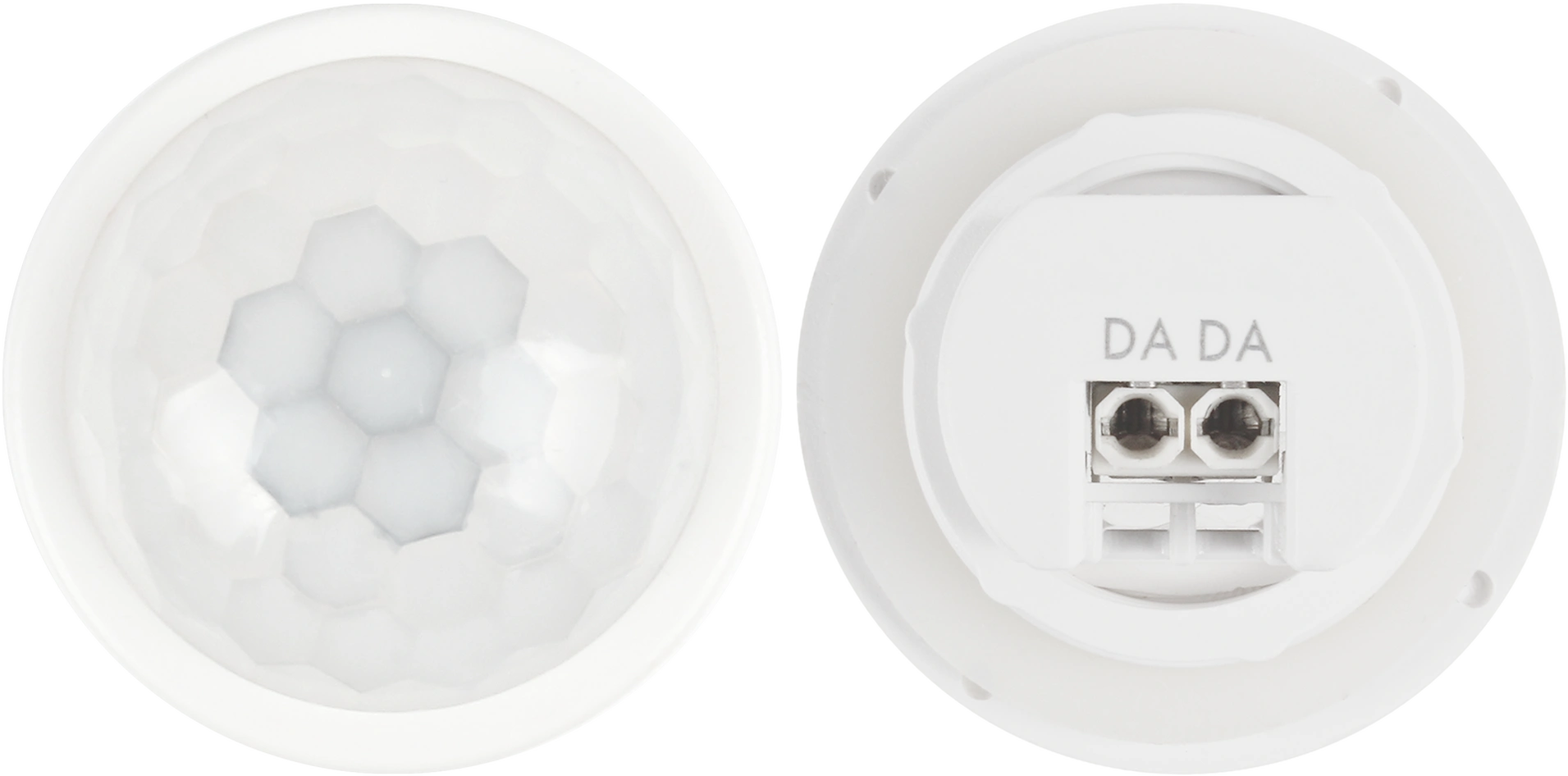

HIR60/R is a Bluetooth DALI PIR motion sensor designed for mid-bay applications, complying with Zhaga Book 20 standards for seamless and standardized integration with compatible LED luminaires. With an enlarged sensor cover and optimized optics, it enables reliable motion detection and wider coverage at higher mounting heights. The sensor supports tri-level dimming, daylight harvesting, and Human Centric Lighting (HCL), providing enhanced visual comfort and energy efficiency. Through the Koolmesh system, it enables smart Bluetooth commissioning and networked control for DALI luminaires. The device also supports reading luminaire, energy, and diagnostics data provided by connected D4i drivers. All settings can be configured wirelessly via the Koolmesh app, ensuring fast, flexible, and efficient commissioning and maintenance.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 20 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 22.2300 mm |
| Operating Voltage: | 9.5-22.5 VDC |
| Product height: | 43.4000 mm |
| Product length: | 21.7000 mm |
| Product weight: | 22.0000 g |
| Product width: | 36.7000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | Yes |
