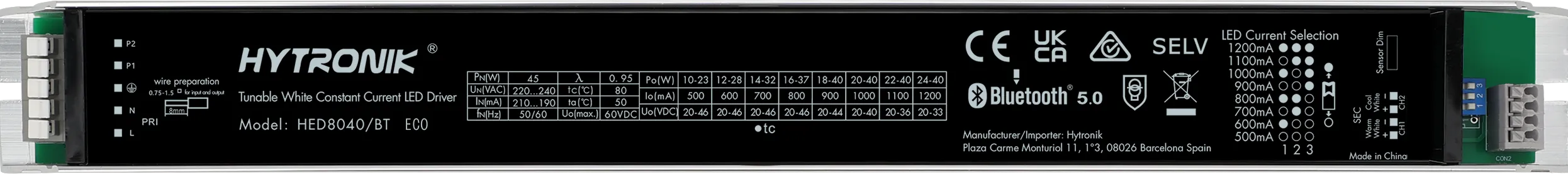

HED8040/BT ECO
Bluetooth LED Driver 40W (CC) | Tunable white | Built-in
BENEFITS
- Compact: Constant current LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Product information "HED8040/BT ECO"
HED8040/BT is a Bluetooth dimming and color tuning LED driver with 40W max power output. It has a Switch-Dim interface via a Push switch. It is ideal for direct projects or new luminaire designs for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | Yes |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.2000 mm |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | 26 - 44W |
| Product height: | 27.0000 mm |
| Product length: | 330.0000 mm |
| Product width: | 32.0000 mm |
| Tri-level (Corridor function): | No |
