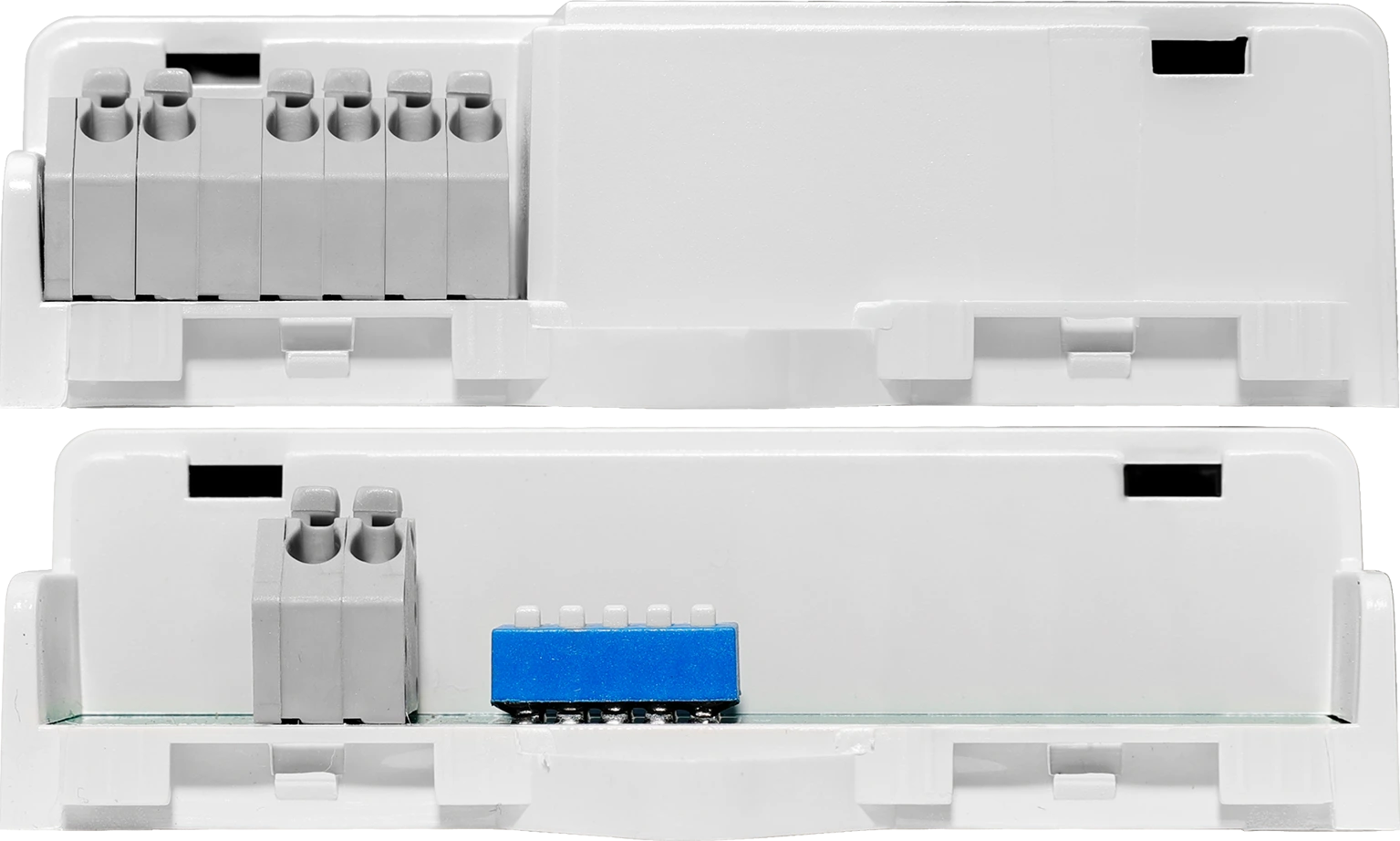

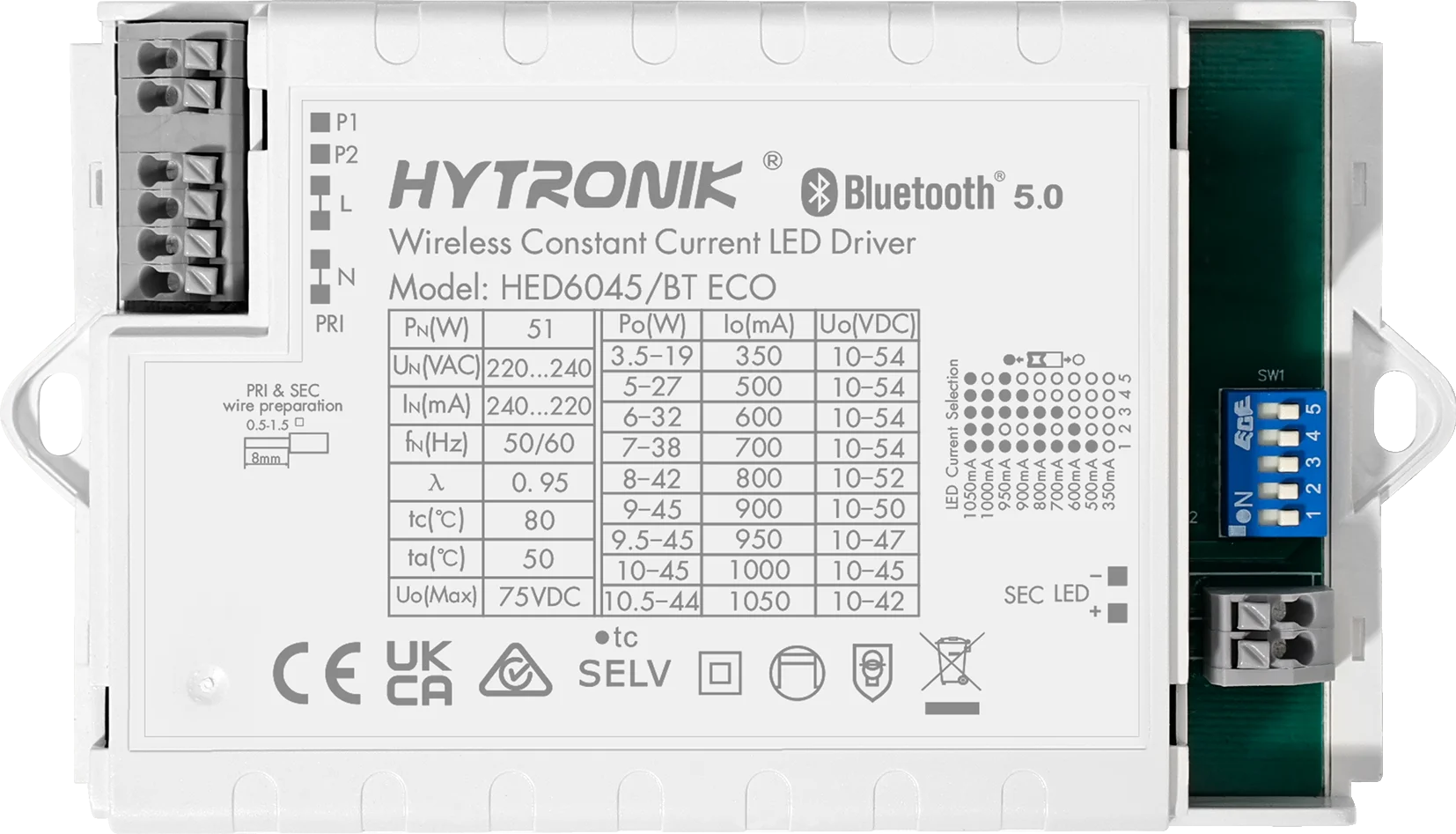

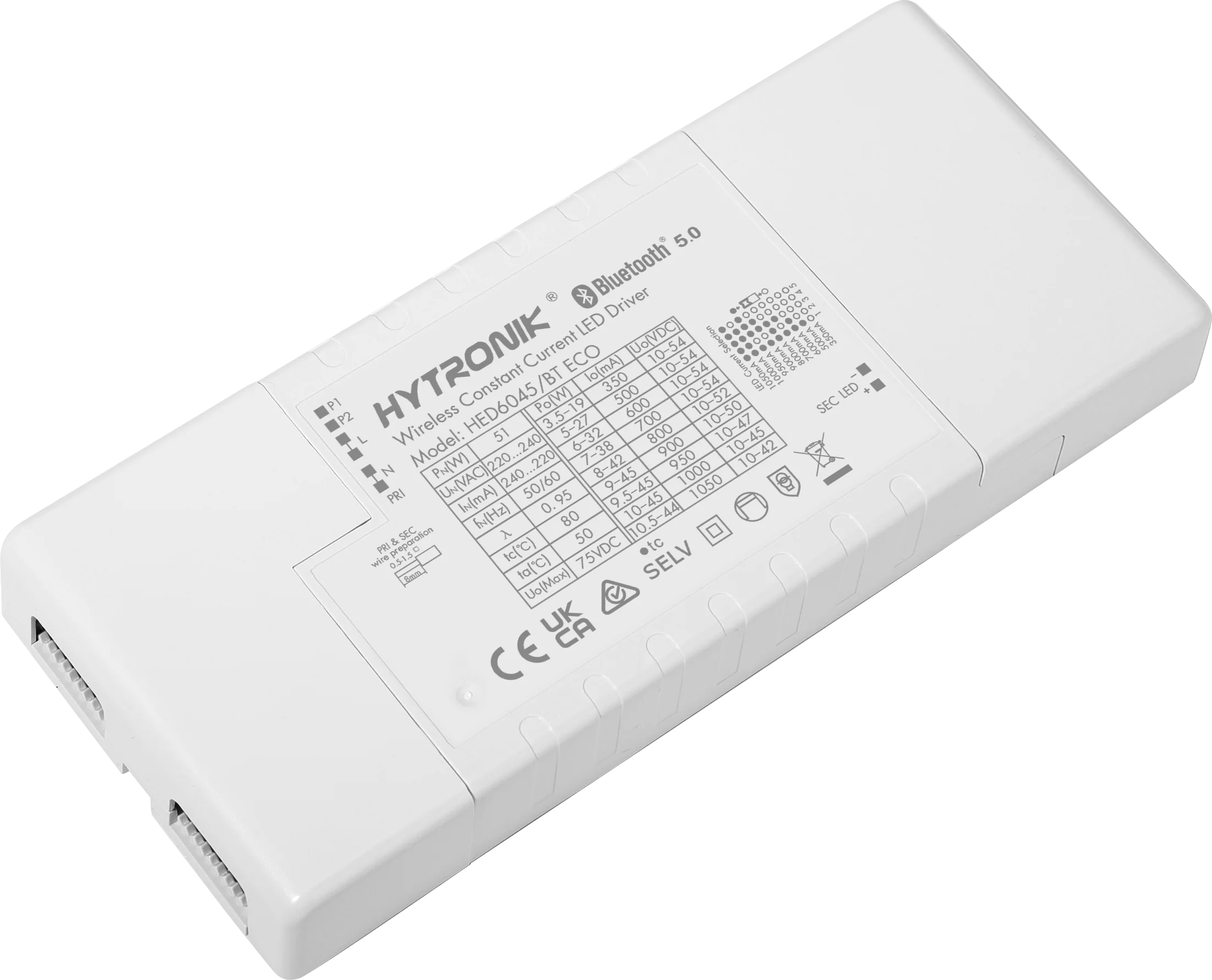

HED6045/BT ECO
Bluetooth LED Driver 45W (CC) | Dimmable | Built-in/Stand-alone
BENEFITS
- Compact: Linear LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Product information "HED6045/BT ECO"
HED6045/BT ECO is a Bluetooth dimmable LED driver, with maximum power output of 45W. It comes with Switch-Dim interface by using Push switch (retractive switch) and of course Bluetooth dimming interface. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth), DIP-switch |
| Dimming (Output) Interface: | Relay On/Off |
| Driver Type: | Dimming Only |
| Efficiency: | 80.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Stand-alone |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≥45W |
| Output Voltage: | 10-54V |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product weight: | 171.0000 g |
| Product width: | 79.2000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed6045-bt-eco.pdf
