Active / Make to Stock
HIR66
PIR Lowbay | Bluetooth/DALI-2 | Mini Design
BENEFITS
- Mini-sized: Perfect for luminaire integration
- 3 in 1: Daylight harvest + Tri-level + Tunable white control / HCL
- Wireless: Enabling fast Bluetooth Mesh commissioning
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "HIR66"

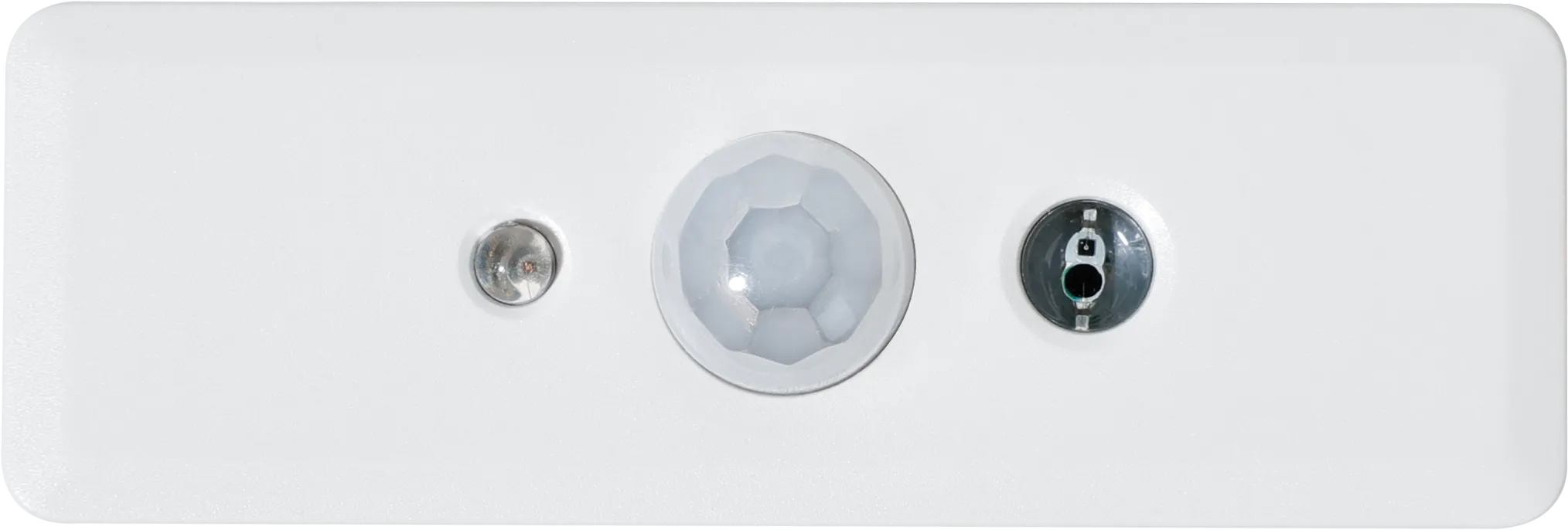

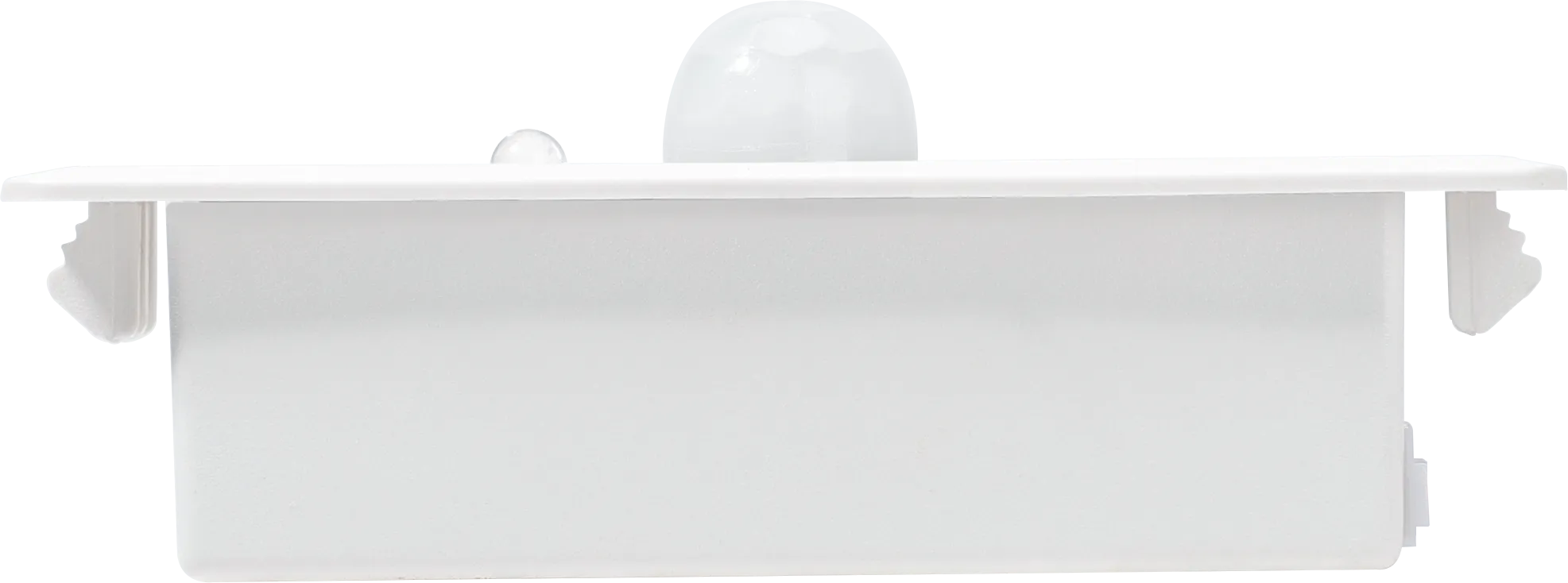

HIR66 is a compact, luminaire-integrated PIR motion and daylight sensor that brings smart Bluetooth Mesh commissioning and control to DALI / DALI-2 luminaires via the Koolmesh system. Designed for discreet integration in low-bay luminaires up to 3 m, it supports modern DALI-2 drivers including DT6, DT8 and D4i. The sensor enables presence-based control, daylight harvesting and tunable white including Human Centric Lighting (HCL), with Photocell Advance ensuring stable and accurate daylight regulation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth), DALI Master/Application Controller |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 8x3 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | Standard Low-bay |
| Mounting Height: | Low-bay |
| Operating voltage range: | 9.5-22.5 VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 19.5000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 10.0000 g |
| Product width: | 19.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir66.pdf
