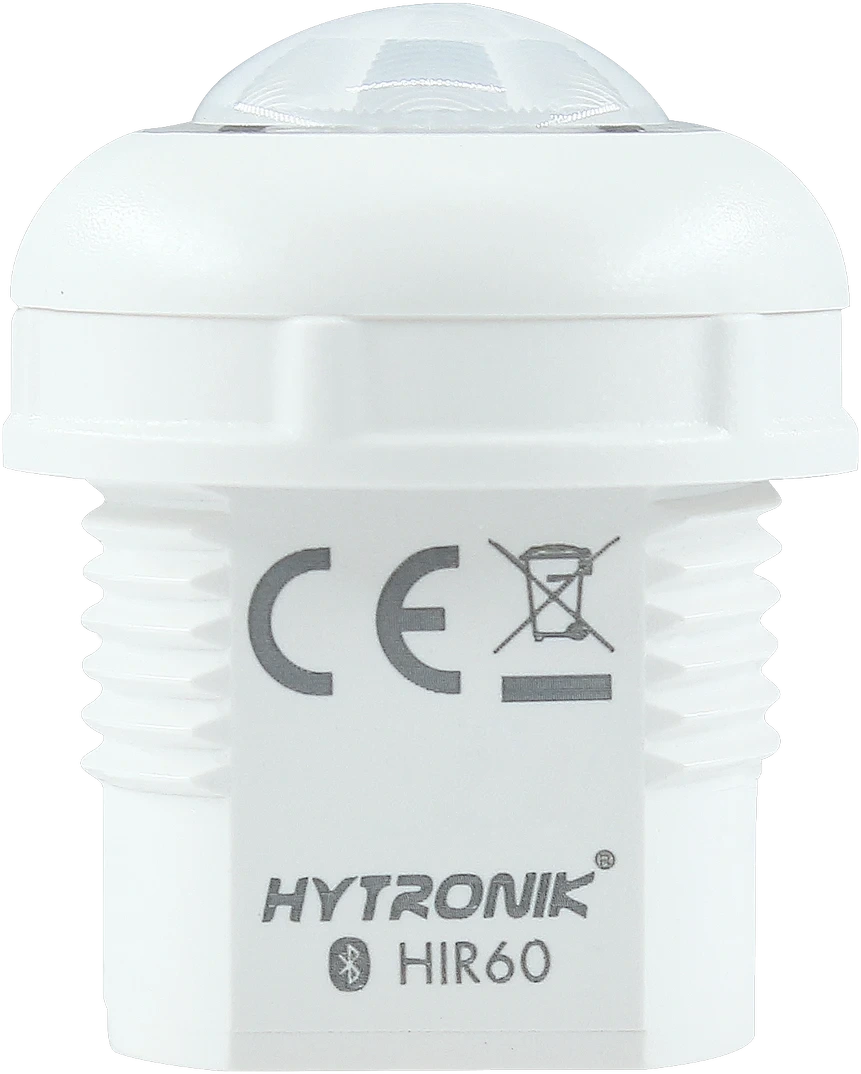

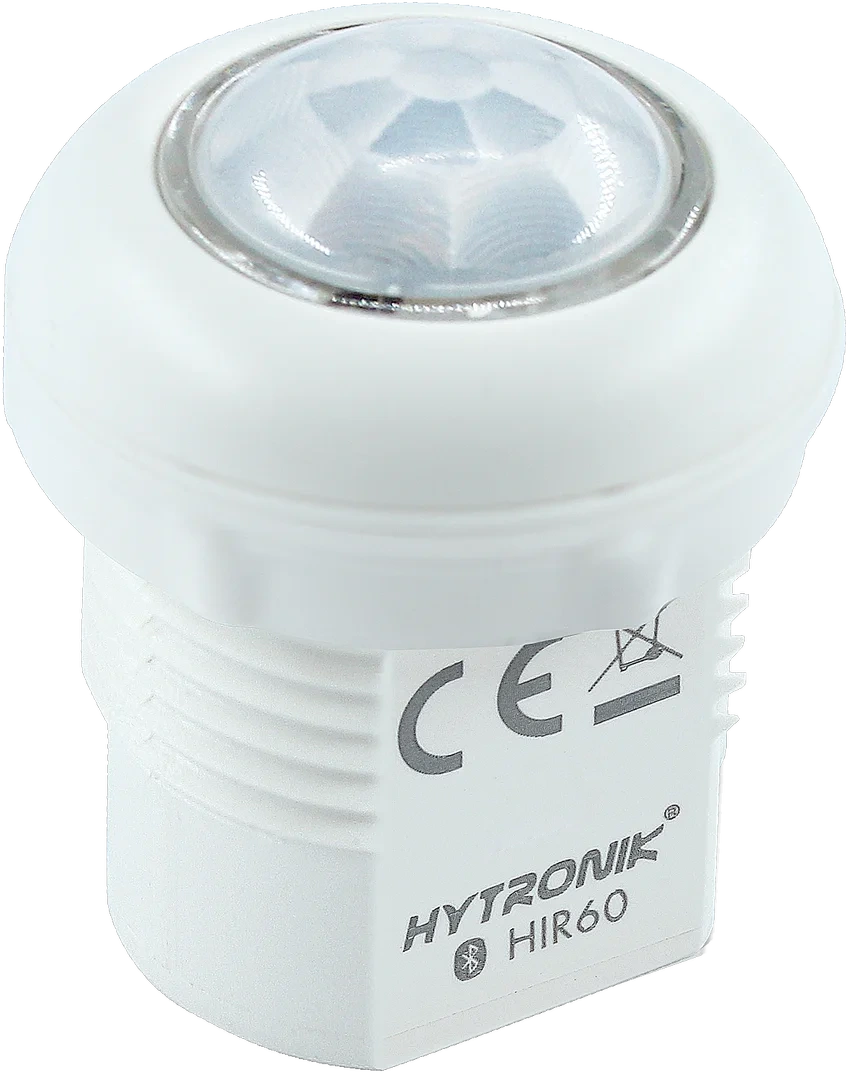

HIR60
PIR Lowbay | Bluetooth to DALI | Zhaga Book 20 Standard
BENEFITS
- Compact: Super small size Zhaga Book 20 sensor
- Intelligent: Enabling Tri-level & Daylight harvesting & HCL
- Flexible: Allowing wireless setup via app

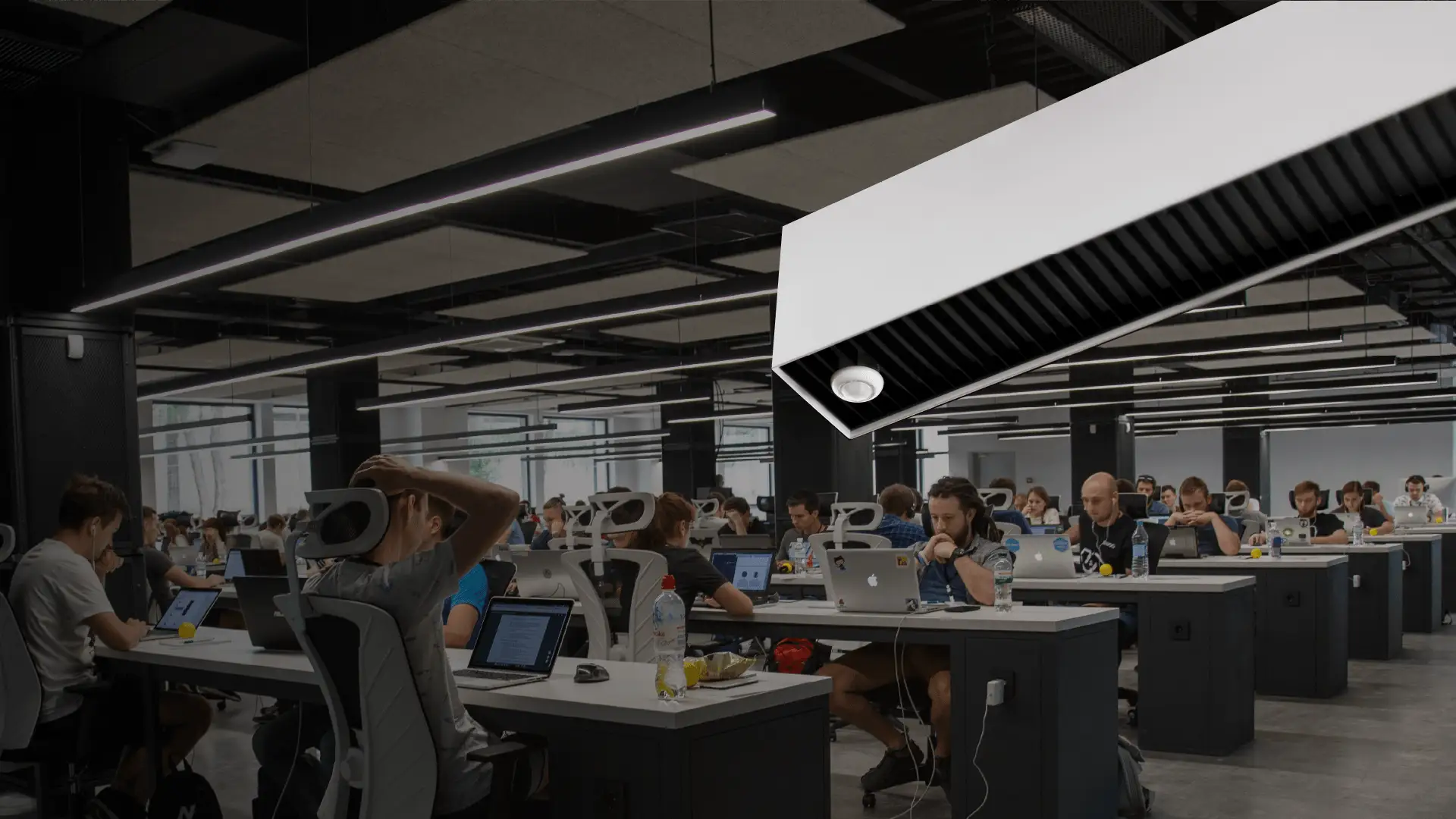

APPLICATIONS
- For linear luminaires up to 3m height
- Office rooms
- School
Product information "HIR60"
HIR60 is a compact Bluetooth DALI PIR motion sensor that complies with Zhaga Book 20 standards, allowing seamless and standardized integration with compatible LED luminaires. The sensor supports tri-level dimming, daylight harvesting, and Human Centric Lighting (HCL), providing enhanced visual comfort and energy efficiency. Through the Koolmesh system, it enables smart Bluetooth commissioning and networked control for DALI luminaires. The device also supports reading luminaire, energy, and diagnostics data provided by connected D4i drivers. All settings can be configured wirelessly via the Koolmesh app, ensuring fast, flexible, and efficient commissioning and maintenance.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |

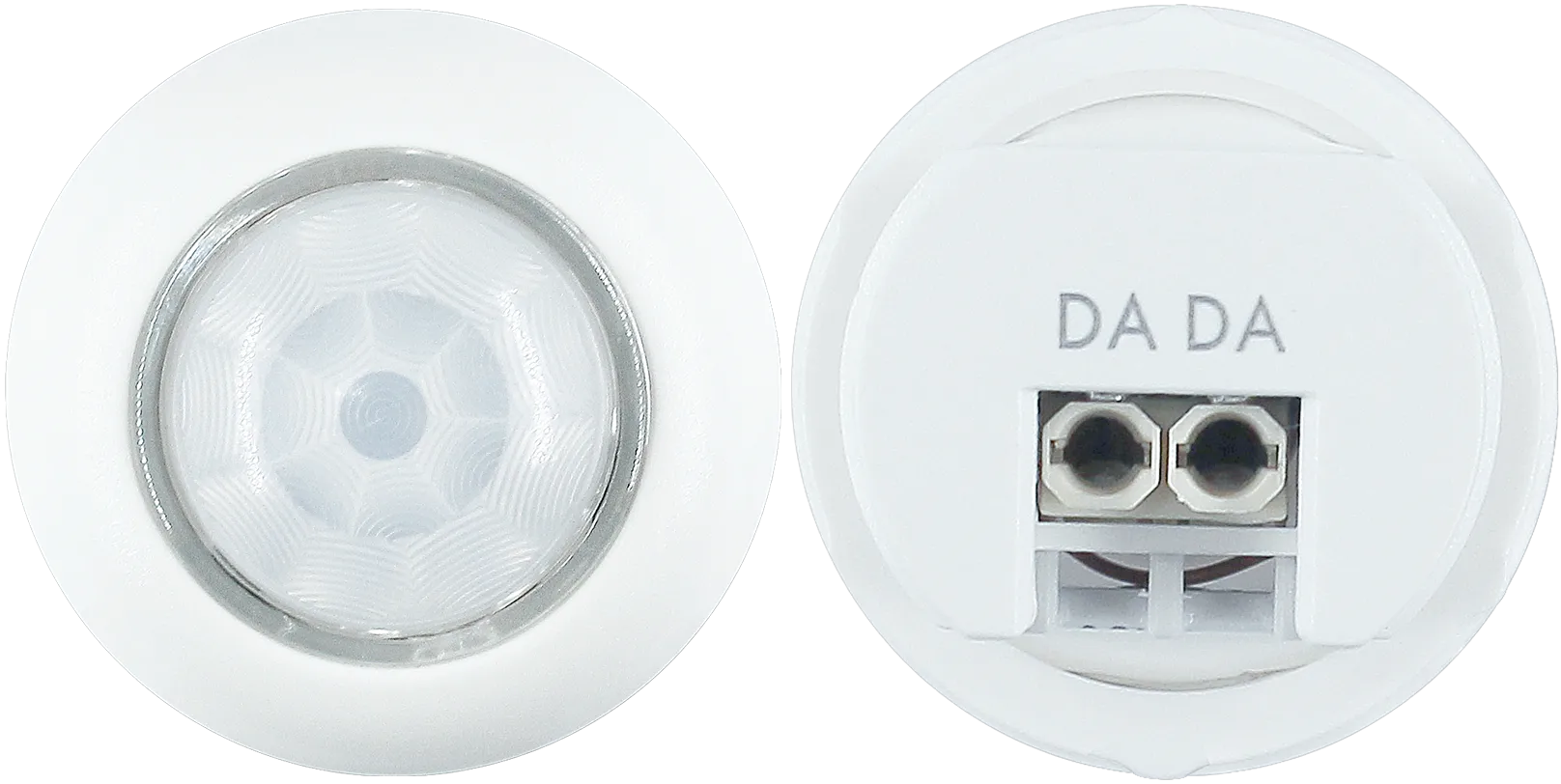

| Connector Type: | Zhaga book 20 |
| DALI-2 D4i type: | Typ D |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 22.2300 mm |
| Operating Voltage: | 9.5-22.5 VDC |
| Product height: | 31.8000 mm |
| Product length: | 21.7000 mm |
| Product weight: | 20.0000 g |
| Product width: | 26.0000 mm |
| Push Button Input: | 0 |
| Required DALI Current: | 30.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir60.pdf
