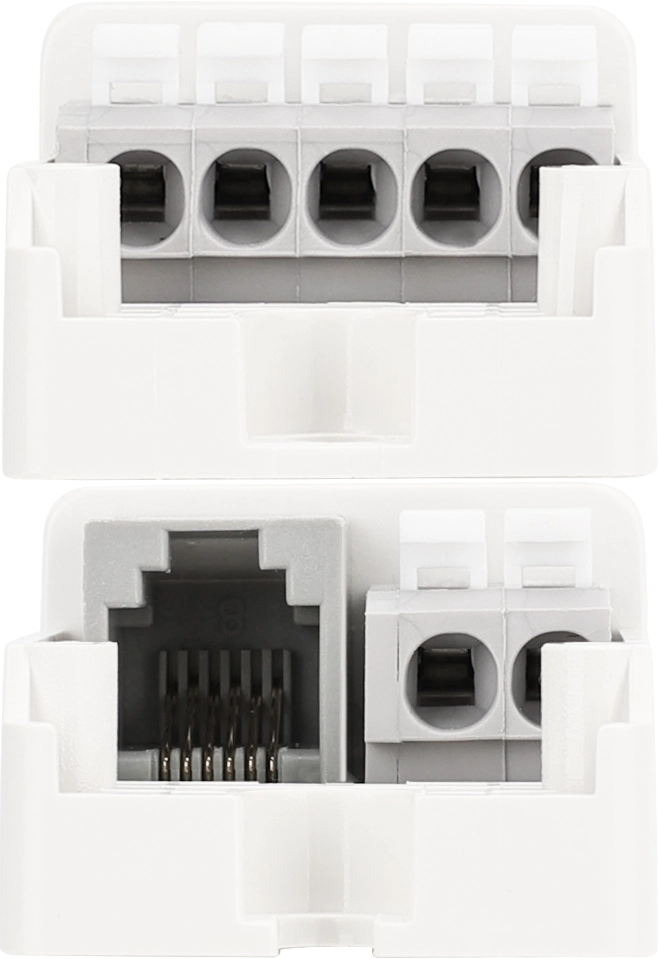

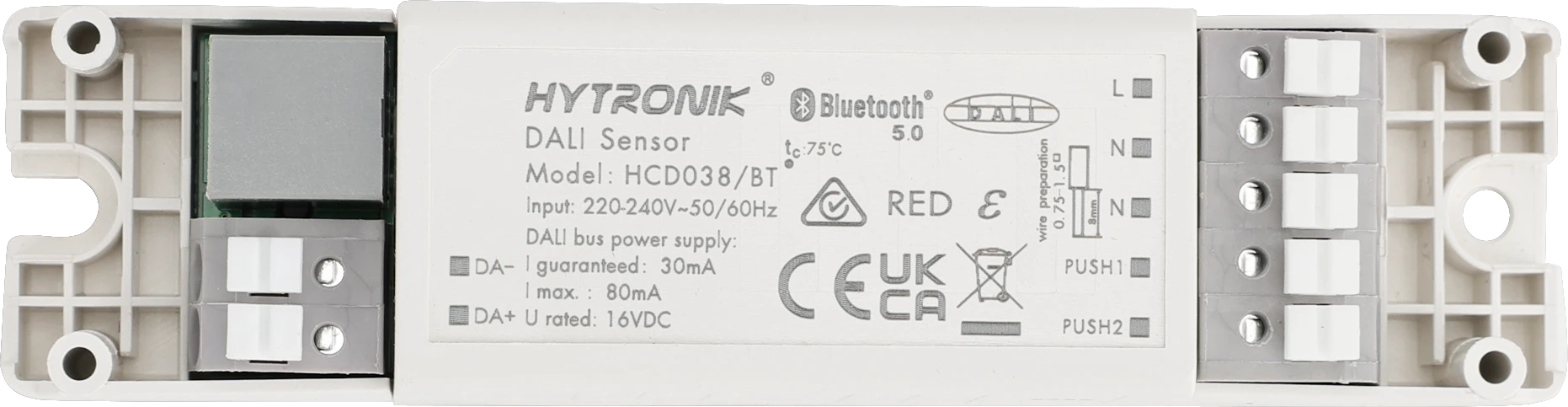

HCD038/BT
Bluetooth DALI Control unit | Built-in PSU | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief
- Integrated: Built-in 30 mA DALI PSU simplifying system design

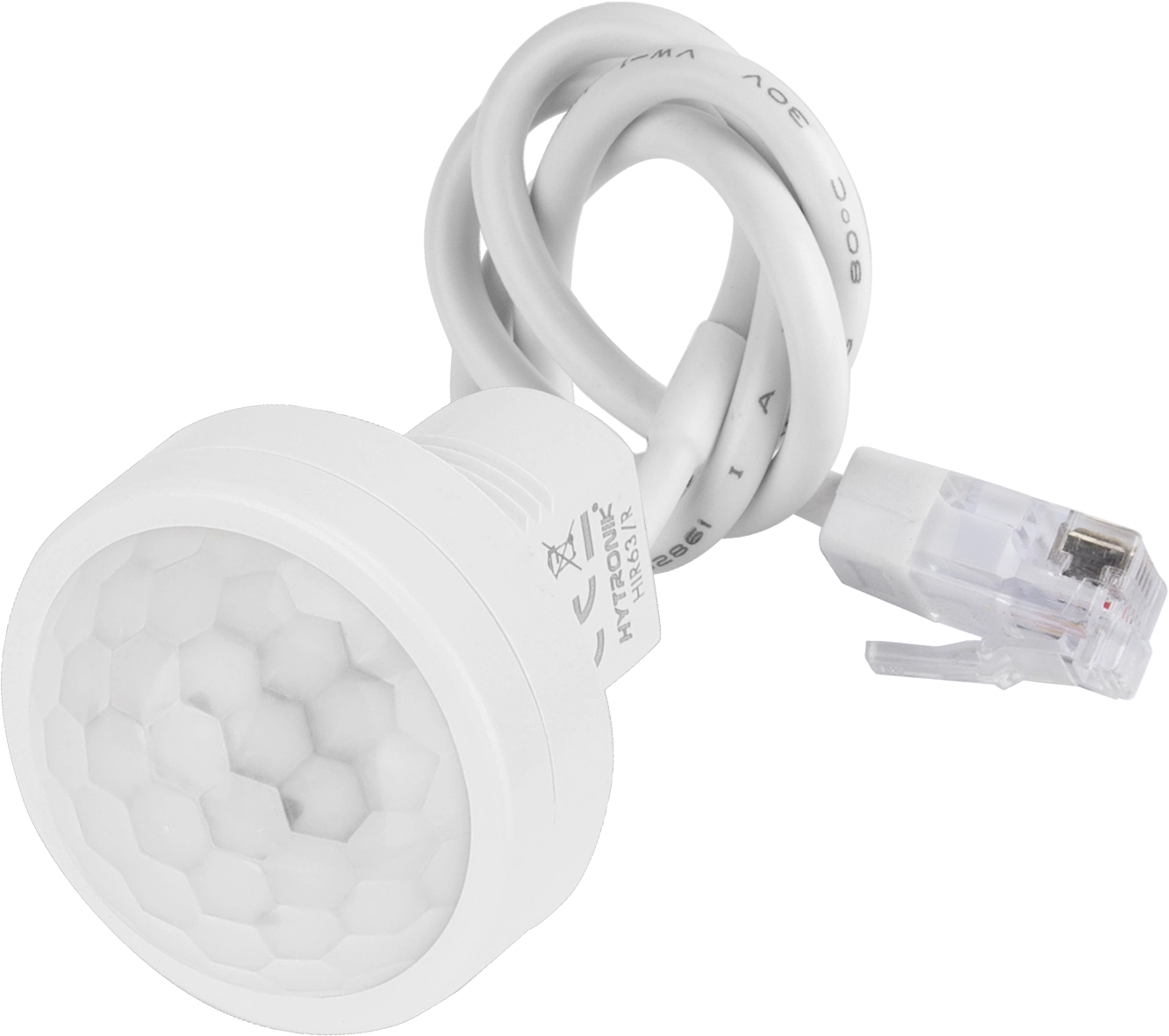

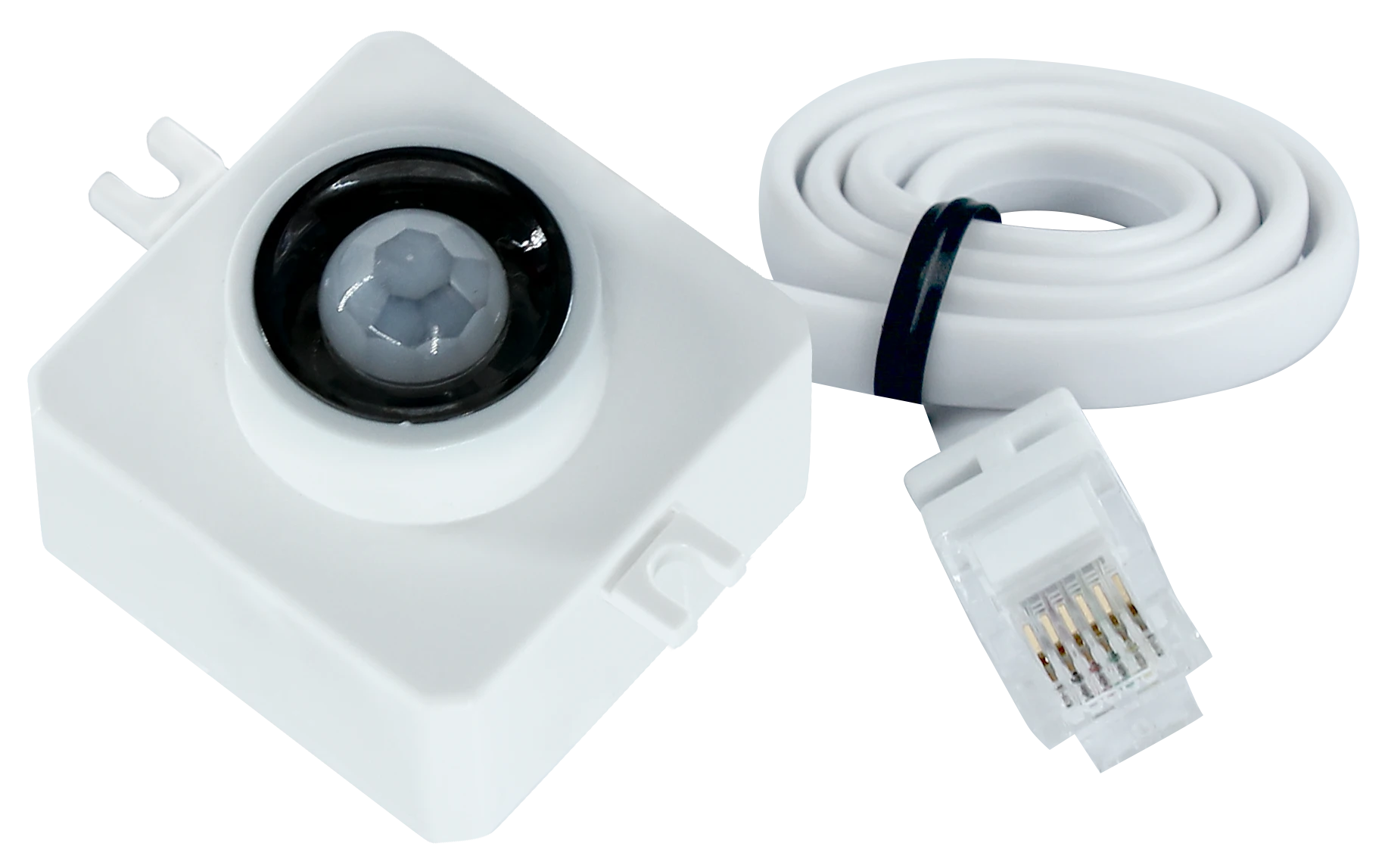

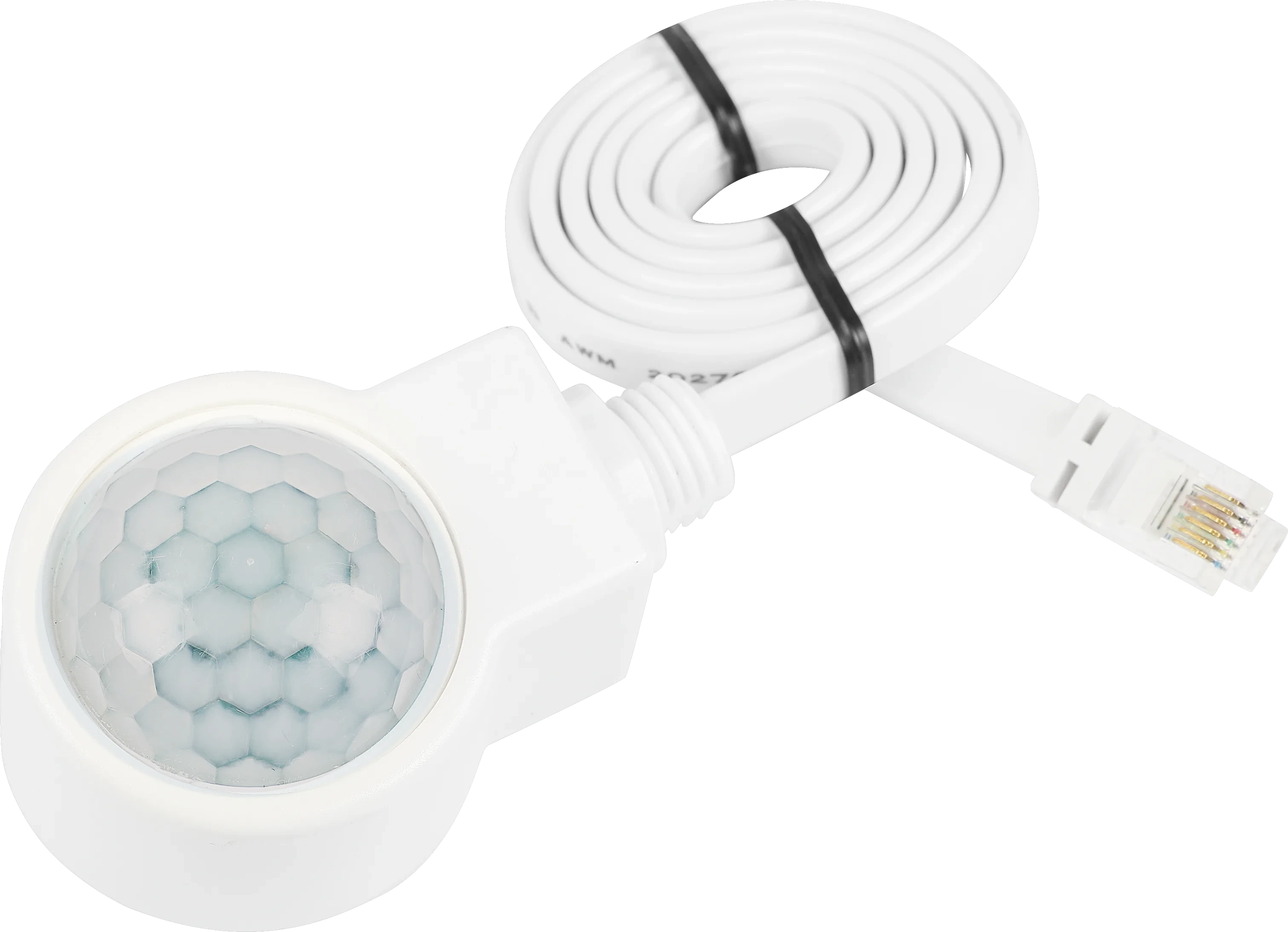

- Flexible: Compatible with plug-and-play microwave and PIR sensor heads
APPLICATIONS

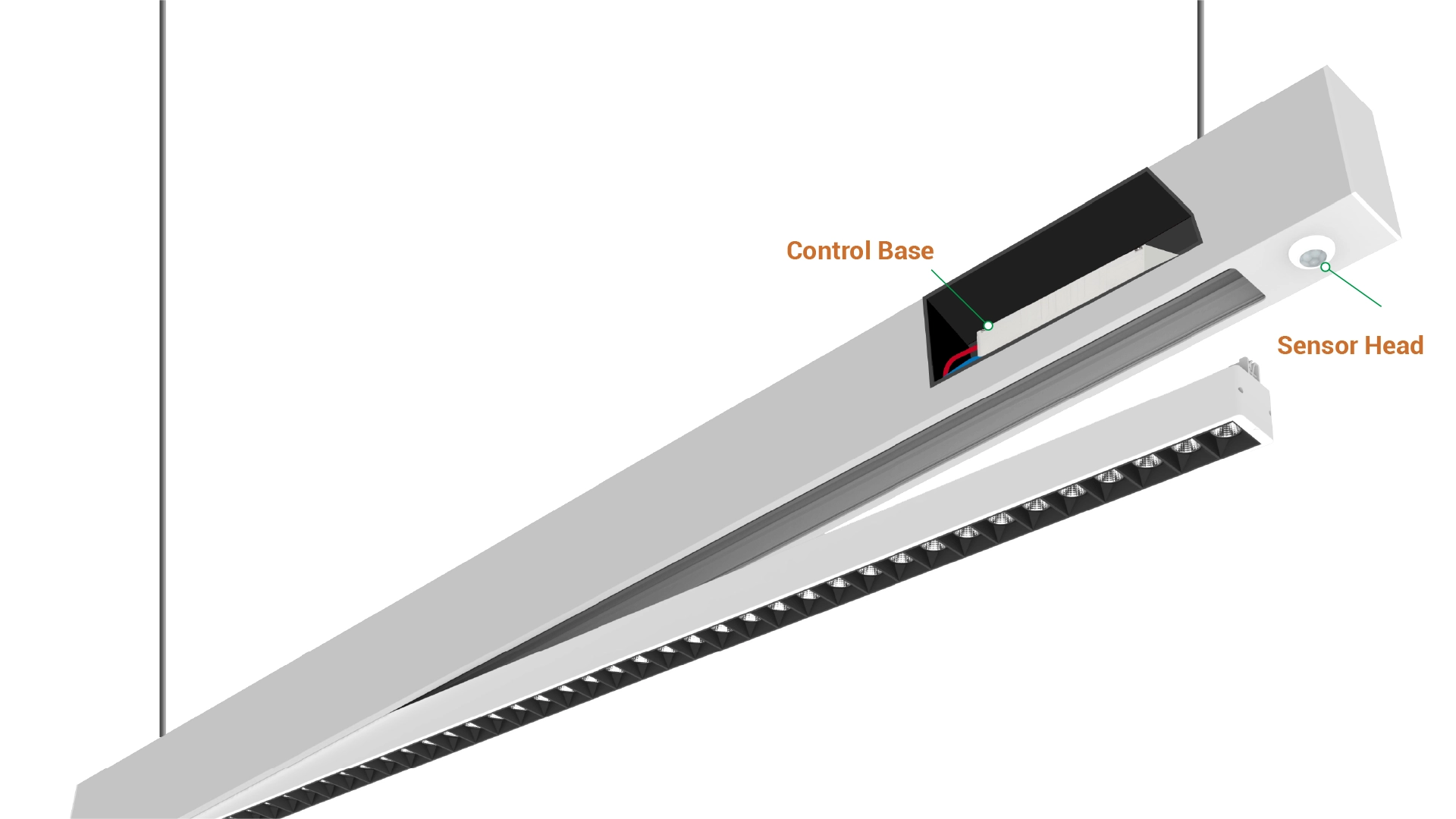

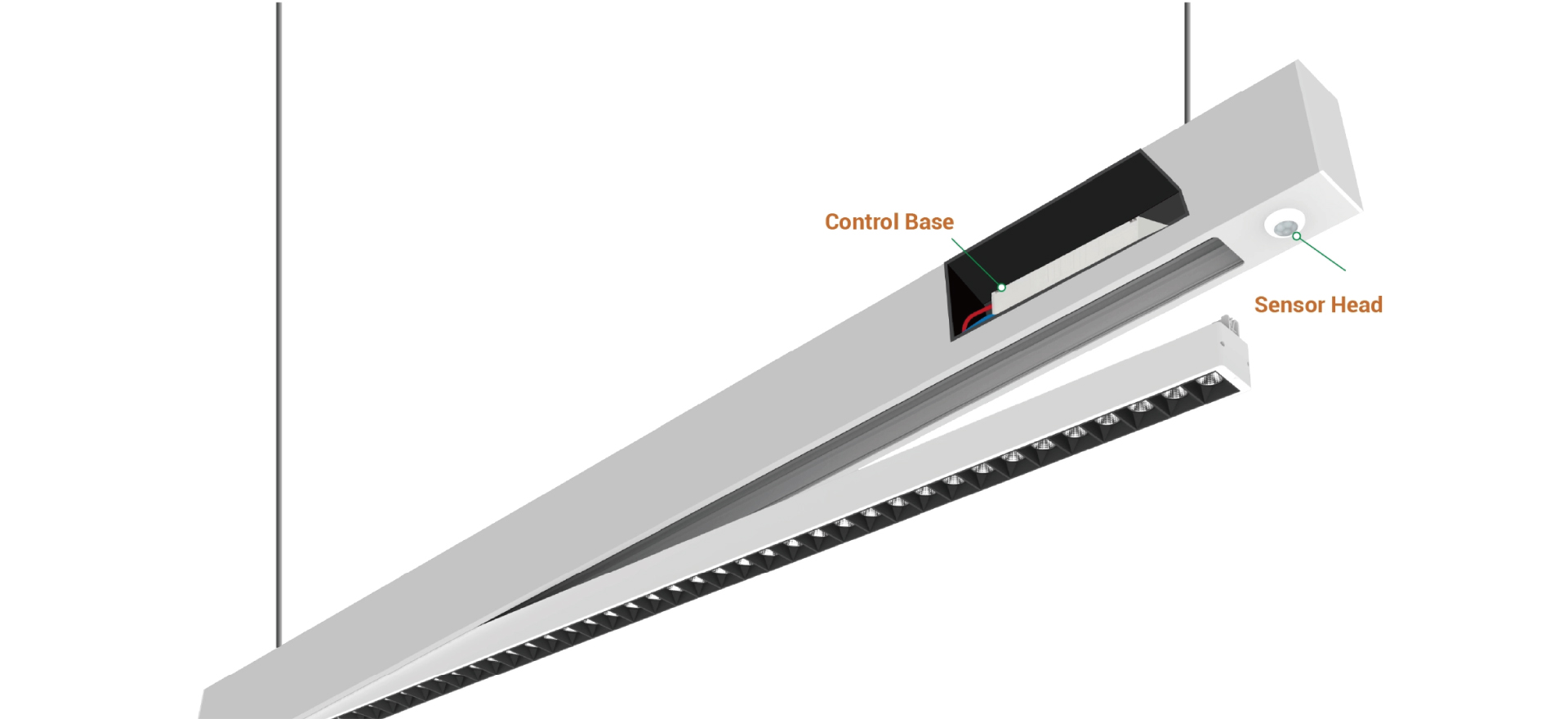

- Master luminaire with sensor
- Classrooms
- Offices
Product information "HCD038/BT"
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| DALI Bus Current Consumption: | 3.0000 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 46.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd038-bt.pdf
Installation Manual
User manual: installation-manual-hcd038-bt.pdf
Login
Bluetooth Network Components

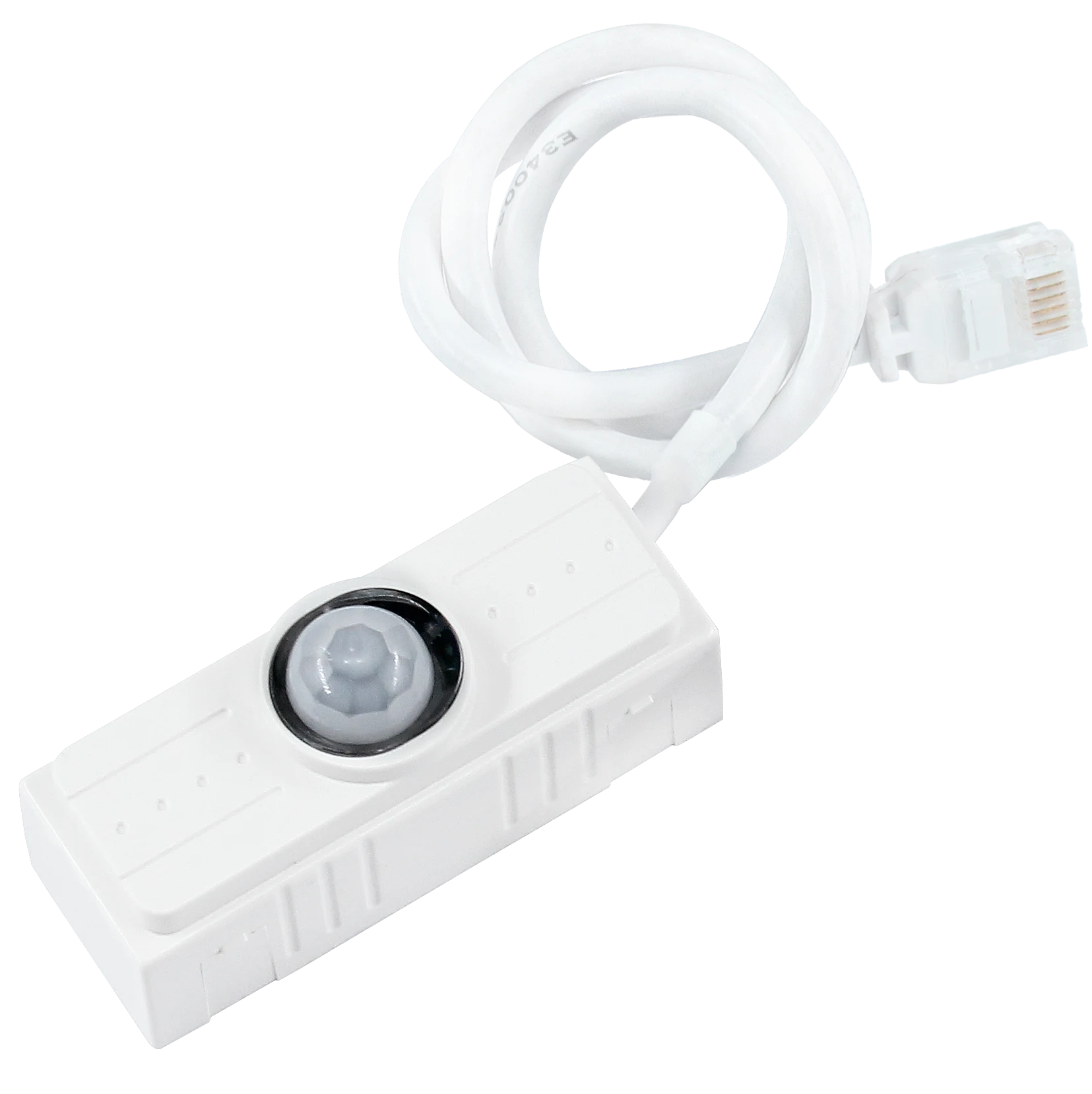

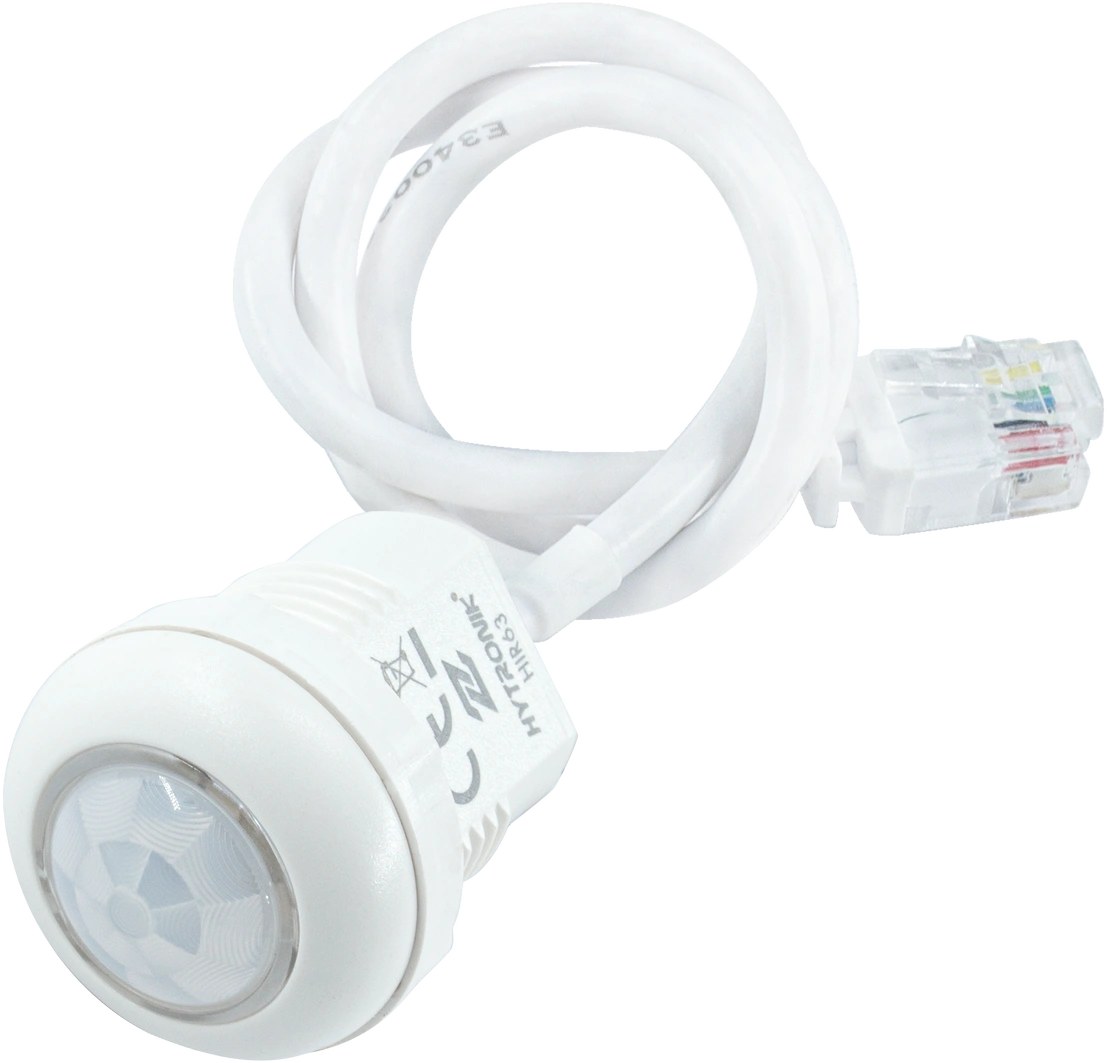

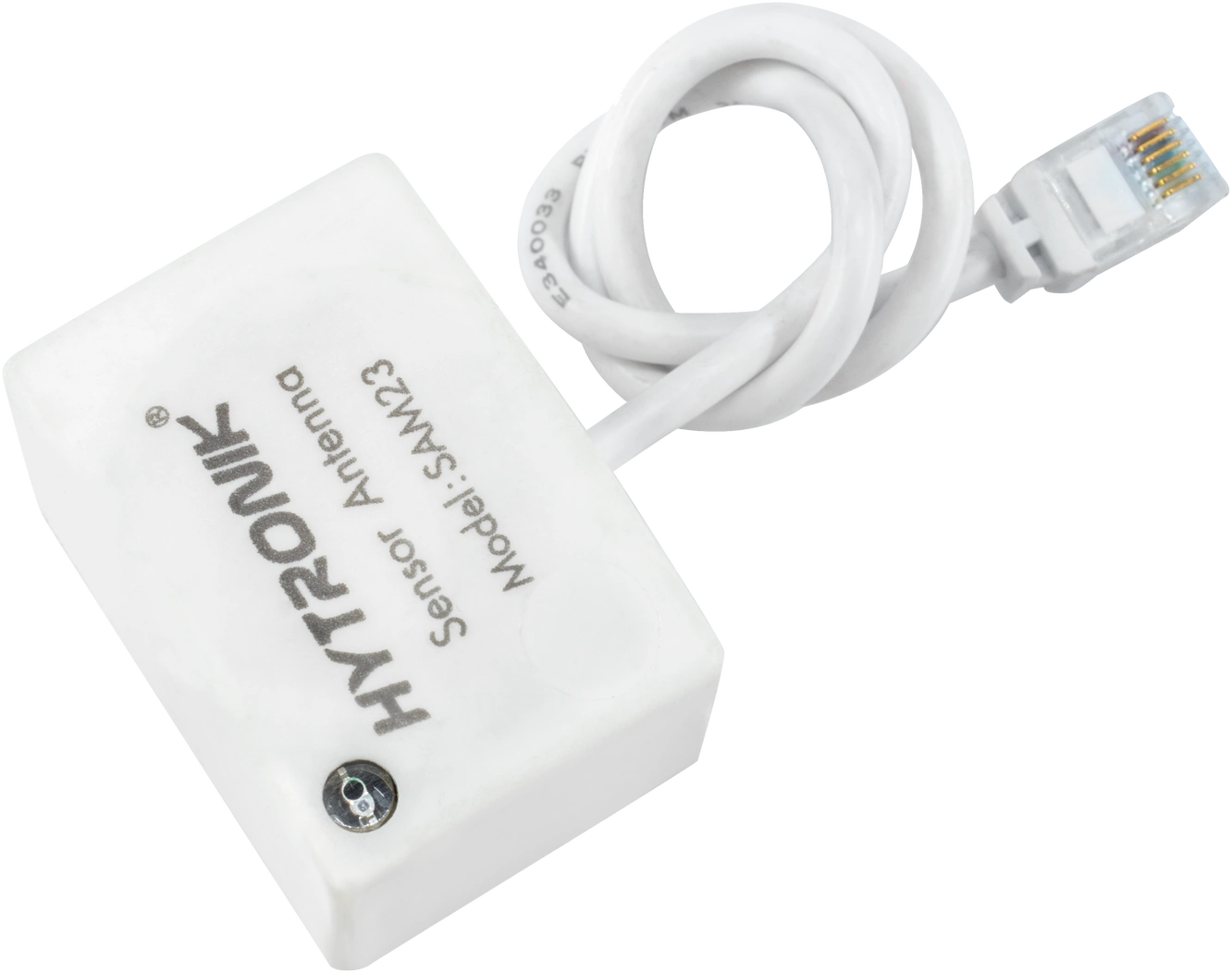

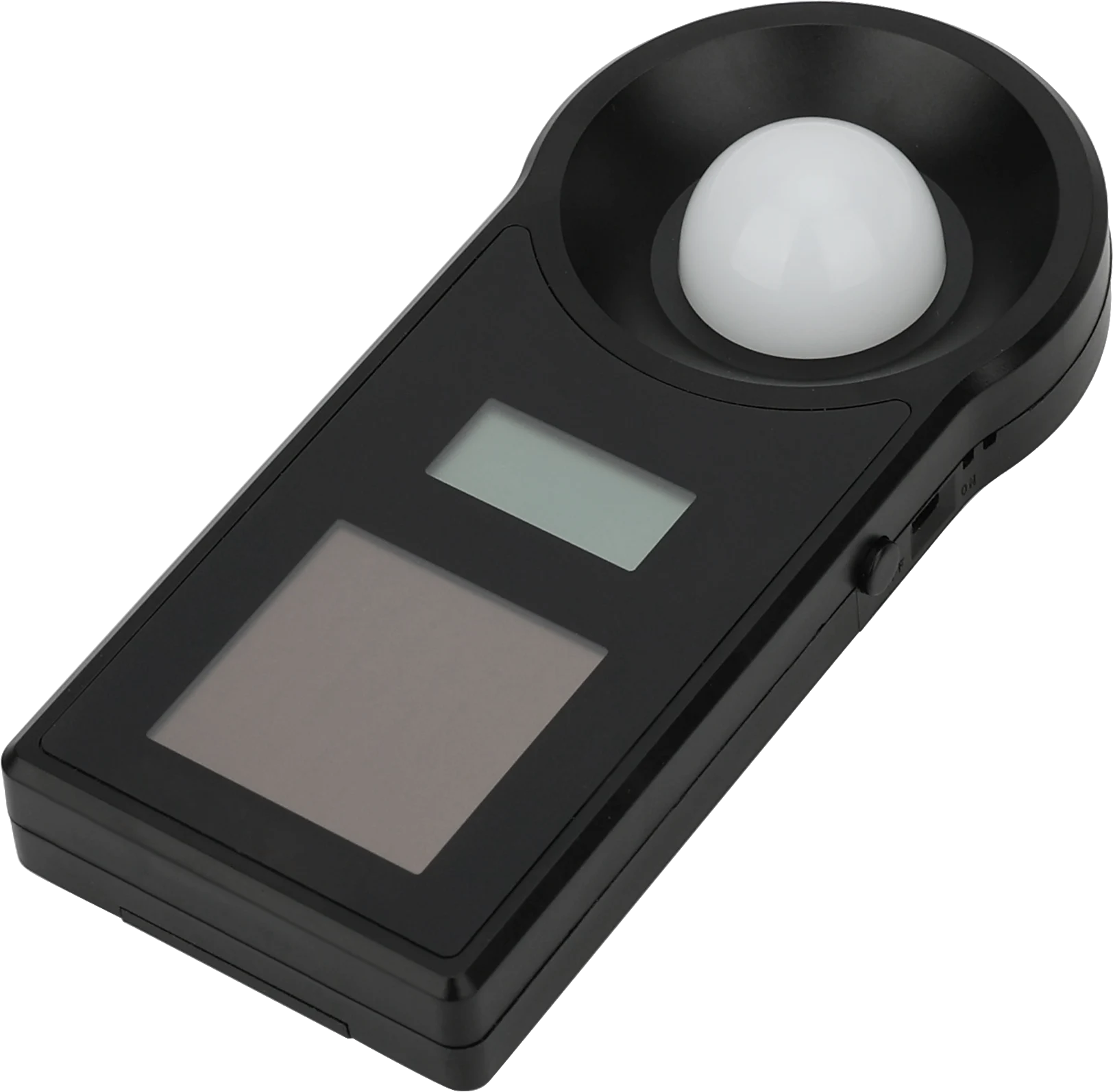

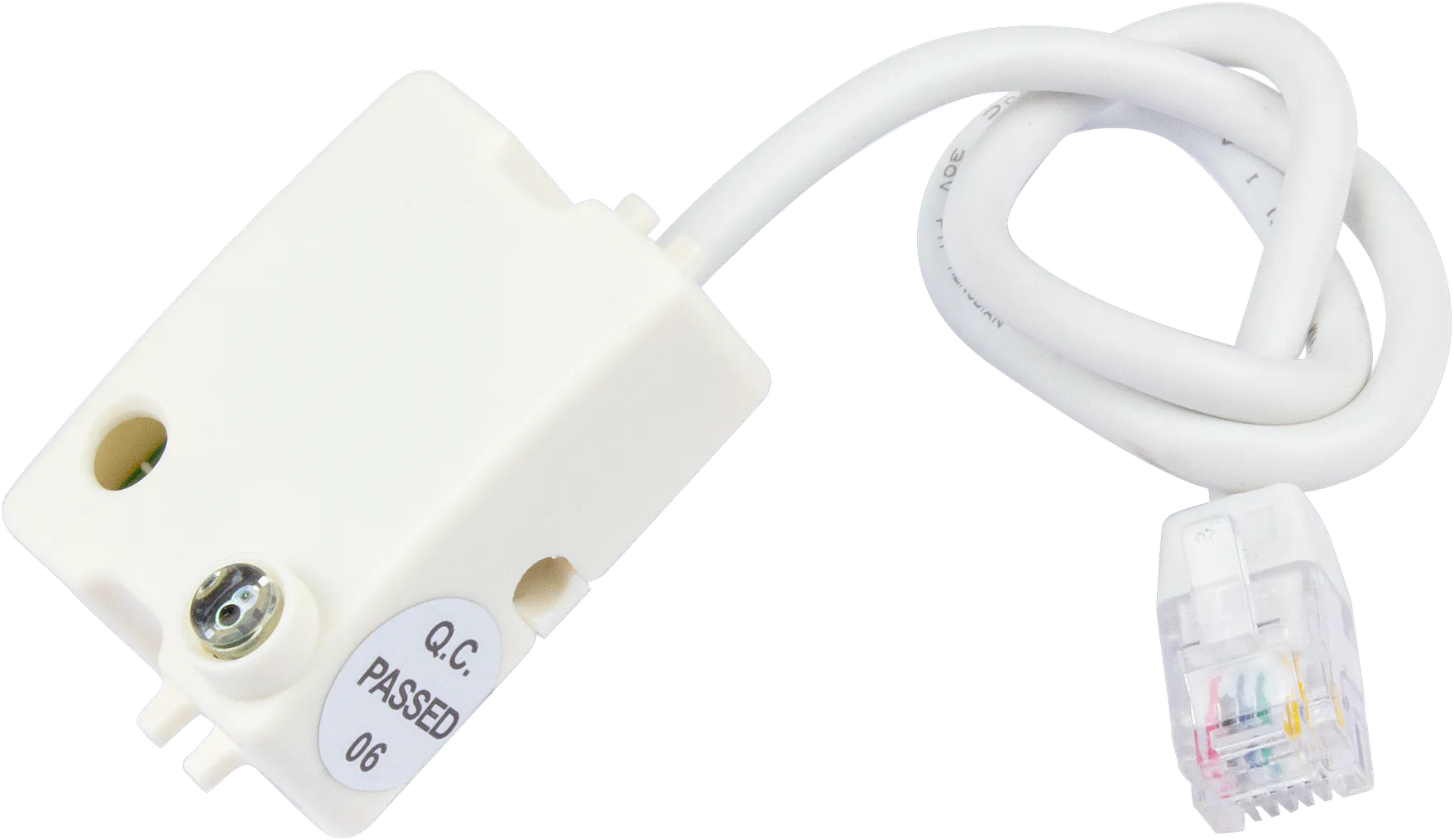

Compatible products (for full functionality)
