HBIR29/AA
PIR Lowbay | Bluetooth DALI +Circadian Rhythm | Adjustable Angle
BENEFITS
- Adjustable: Max.,70 degree angle + 360 degree rotatable for detection
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS

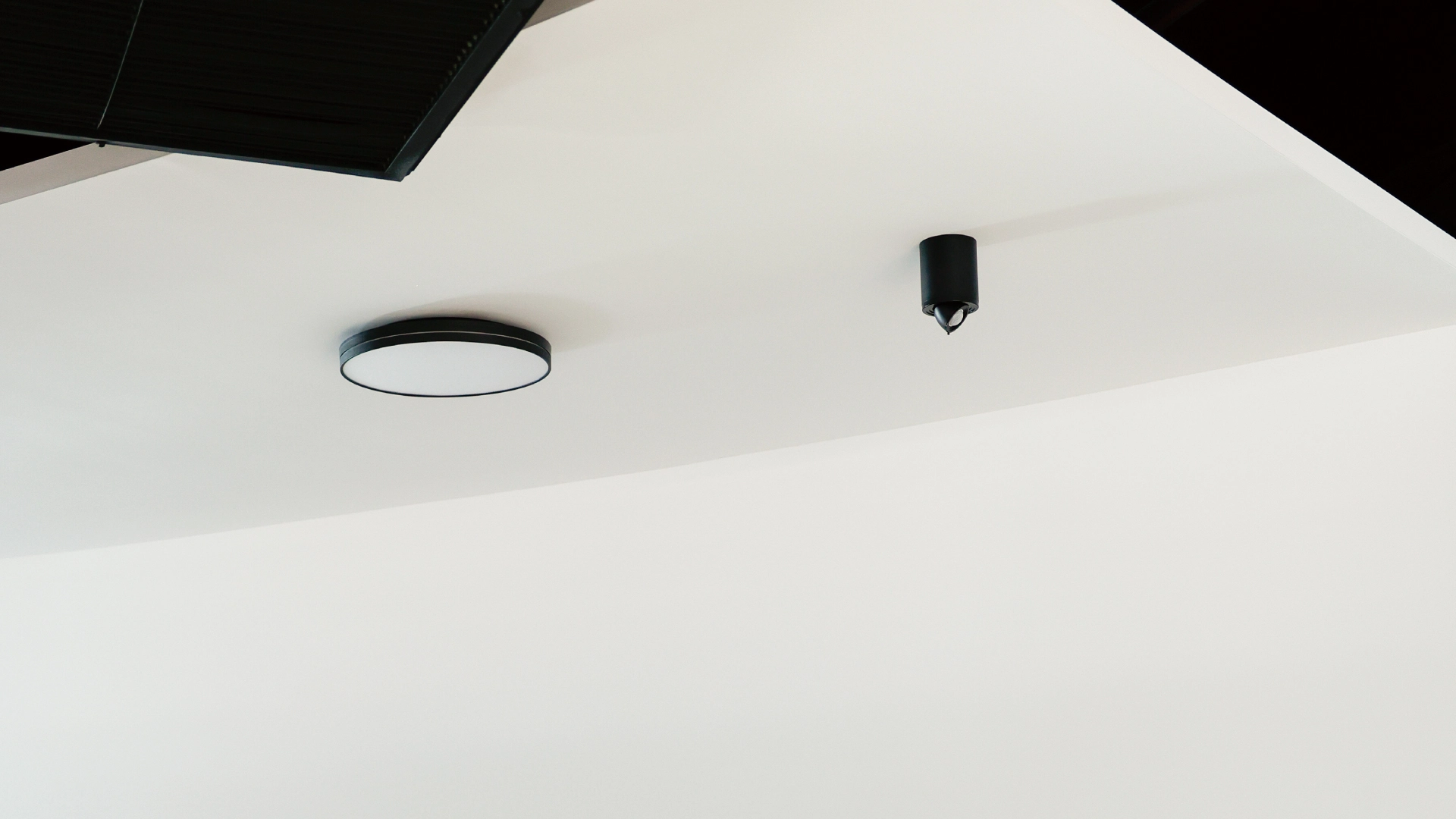

- For wall/surface mount application
- Corridor, Hallway
- Classrooms, Offices
Product information "HBIR29/AA"

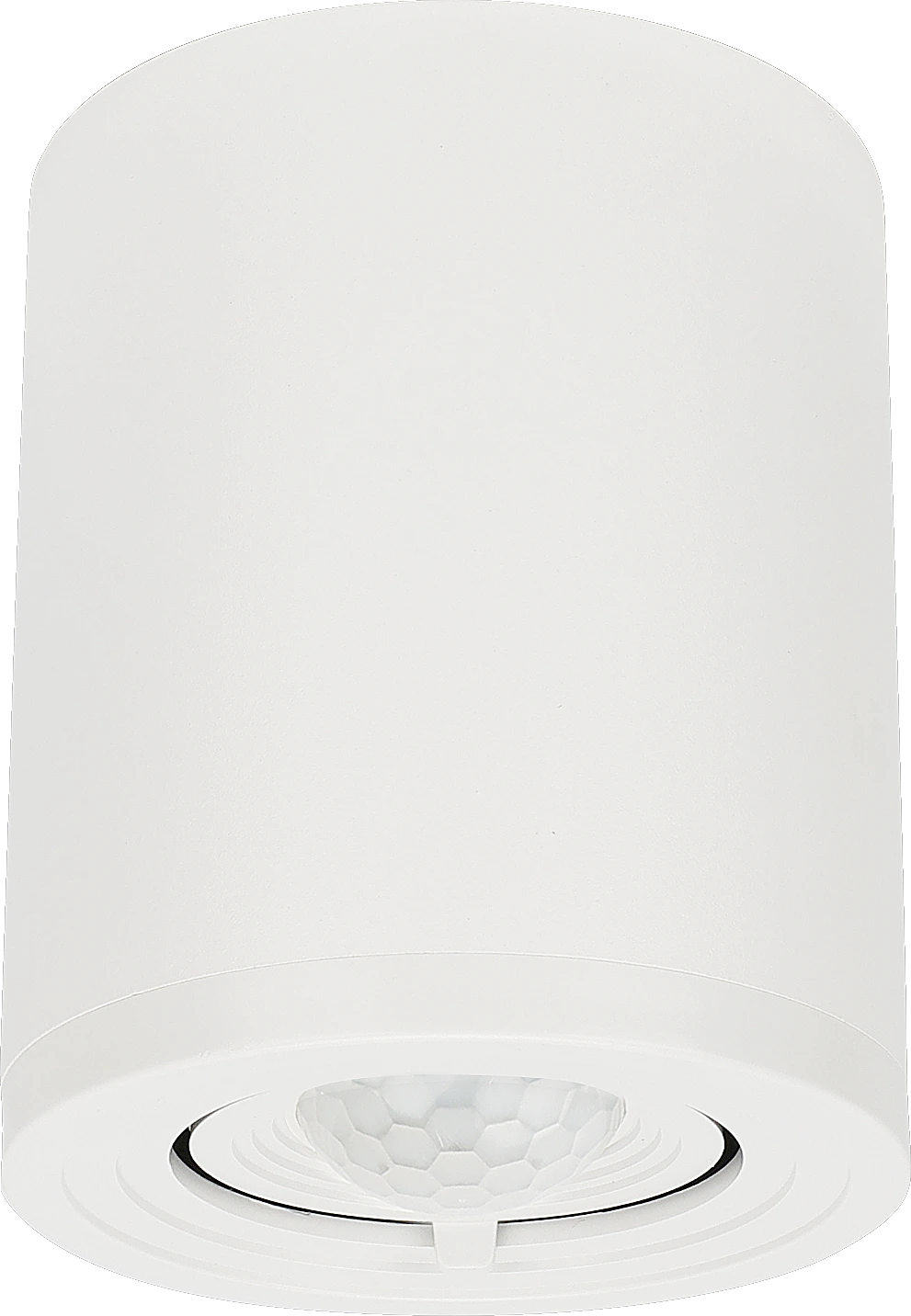

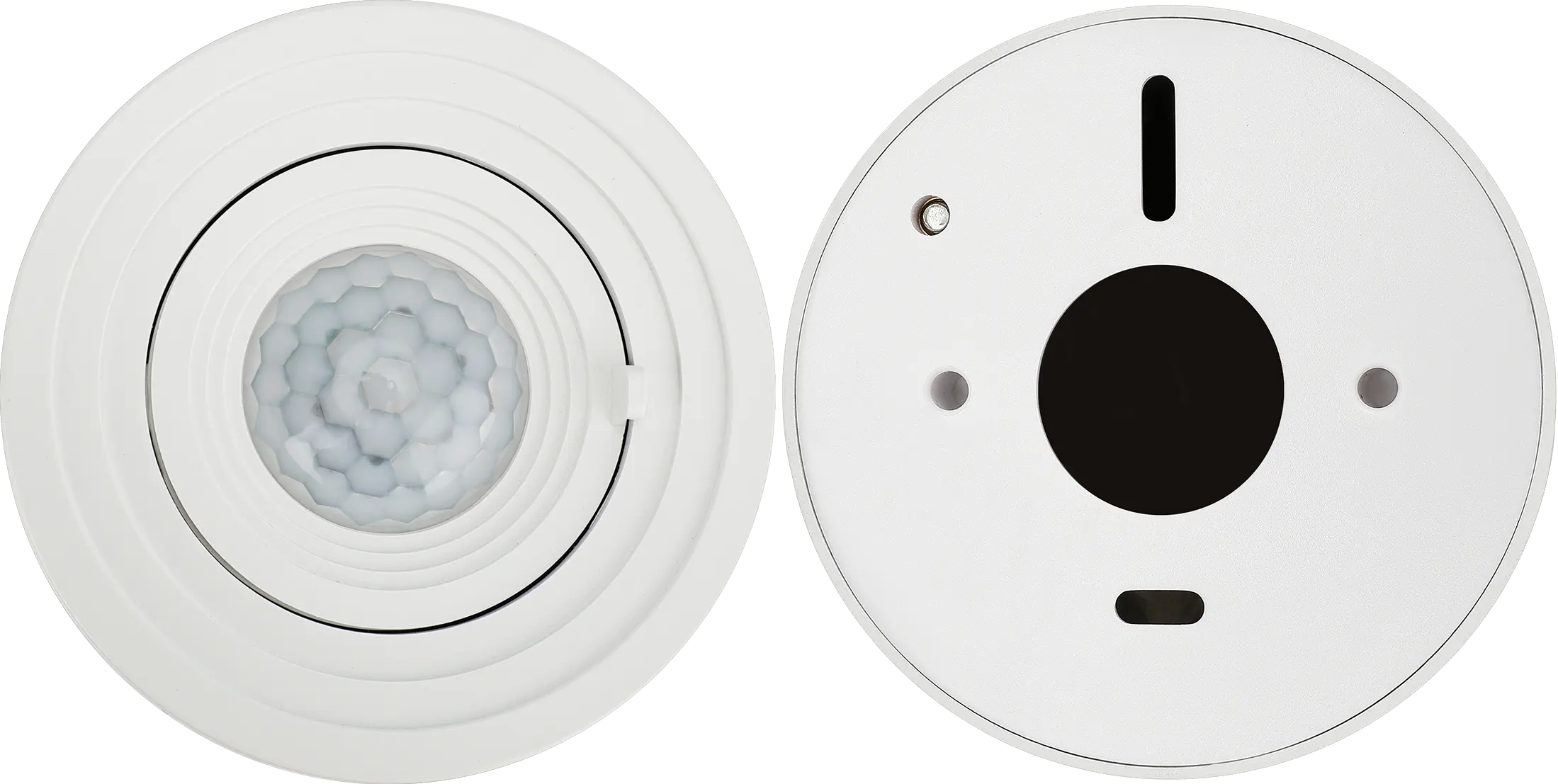

HBIR29/AA is a Bluetooth PIR motion sensor with circadian rhythm and built-in DALI output (90mA). Designed in a metal surface mount box, it features adjustable detection angles, capable of 360-degree rotation and extending up to 70 degrees for maximum angle adjustment .Using Bluetooth mesh networking via the Koolmesh app simplifies luminaire communication, ideal for retrofit projects and ensuring easy installation and cost savings.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 12x3 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 115.0000 mm |
| Product length: | 94.0000 mm |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Required DALI Current: | 90.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Zhaga: | No |
Login

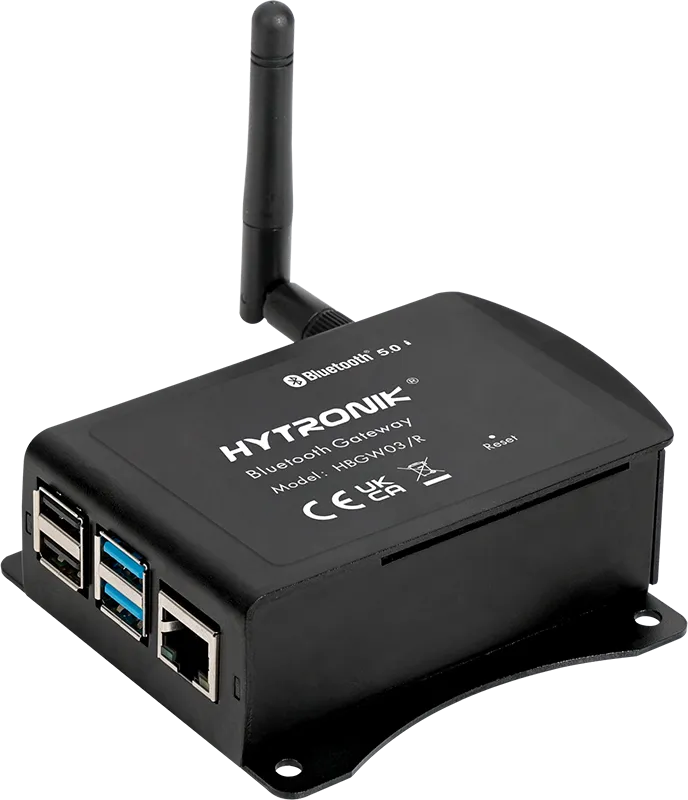

Bluetooth Network Components
