HCD038
Control unit | DALI with PSU | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: Multi sensor options for DALI control, one push
- Support: available to control DT8 LED drivers
APPLICATIONS

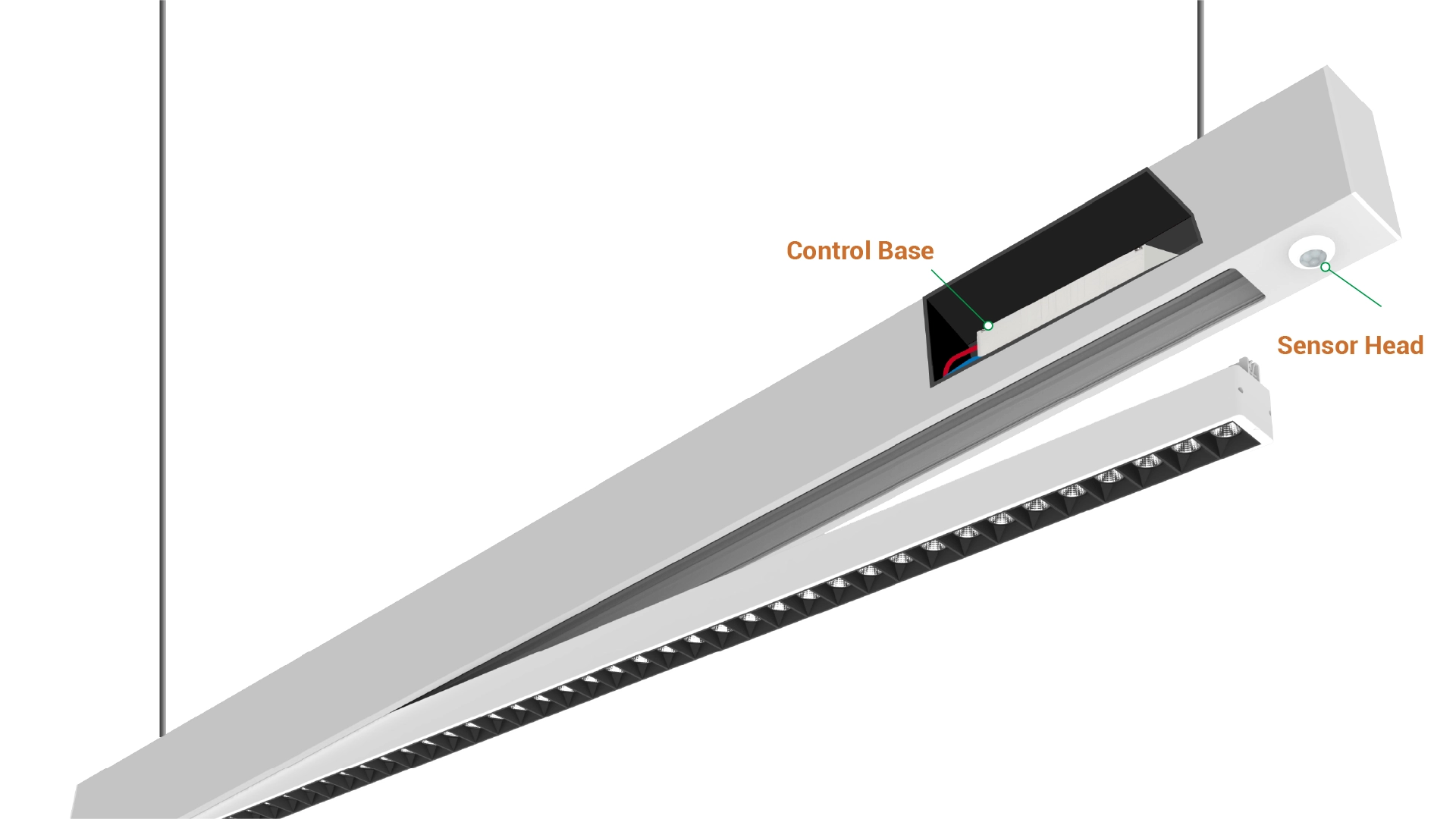

- Master luminaire with sensor
- Classrooms
- Offices
Product information "HCD038"
HCD038 is a DALI control unit with 30mA DALI power supplies built in. It works with a wide range of microwave and PIR sensor heads. It's ideal for metal luminaire designs because the Bluetooth module is placed inside the sensor head instead of control unit, so that the Bluetooth signal transmission is viable. it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd038.pdf
Installation Manual
User manual: installation-manual-hcd038.pdf
