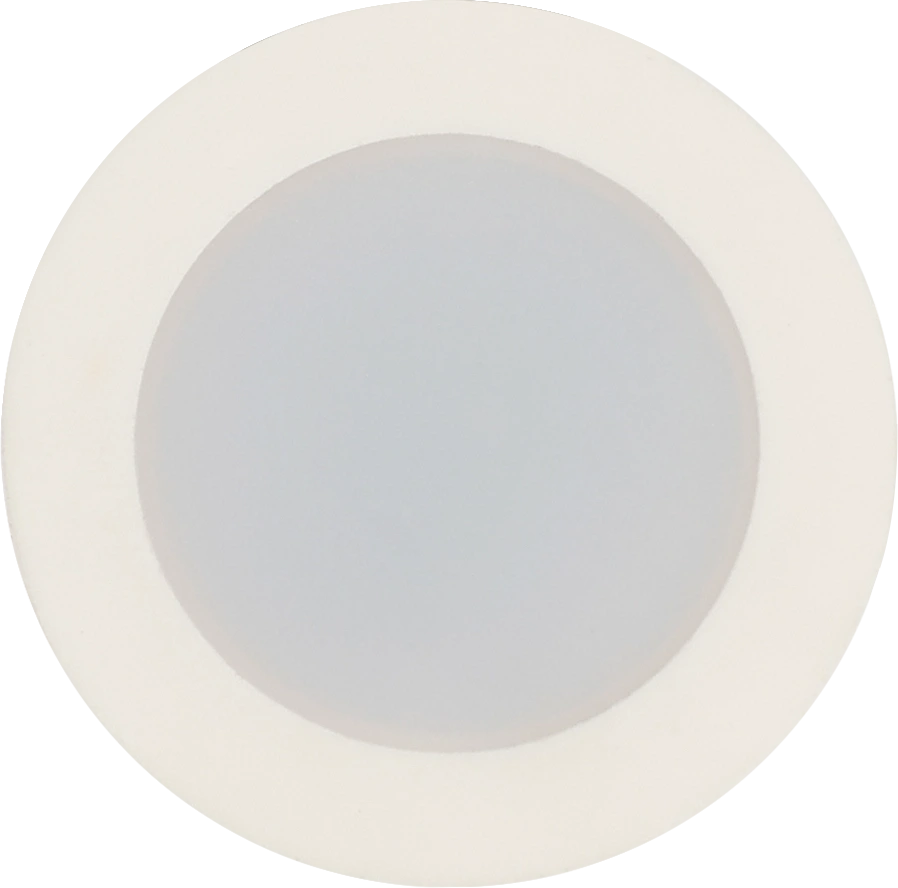

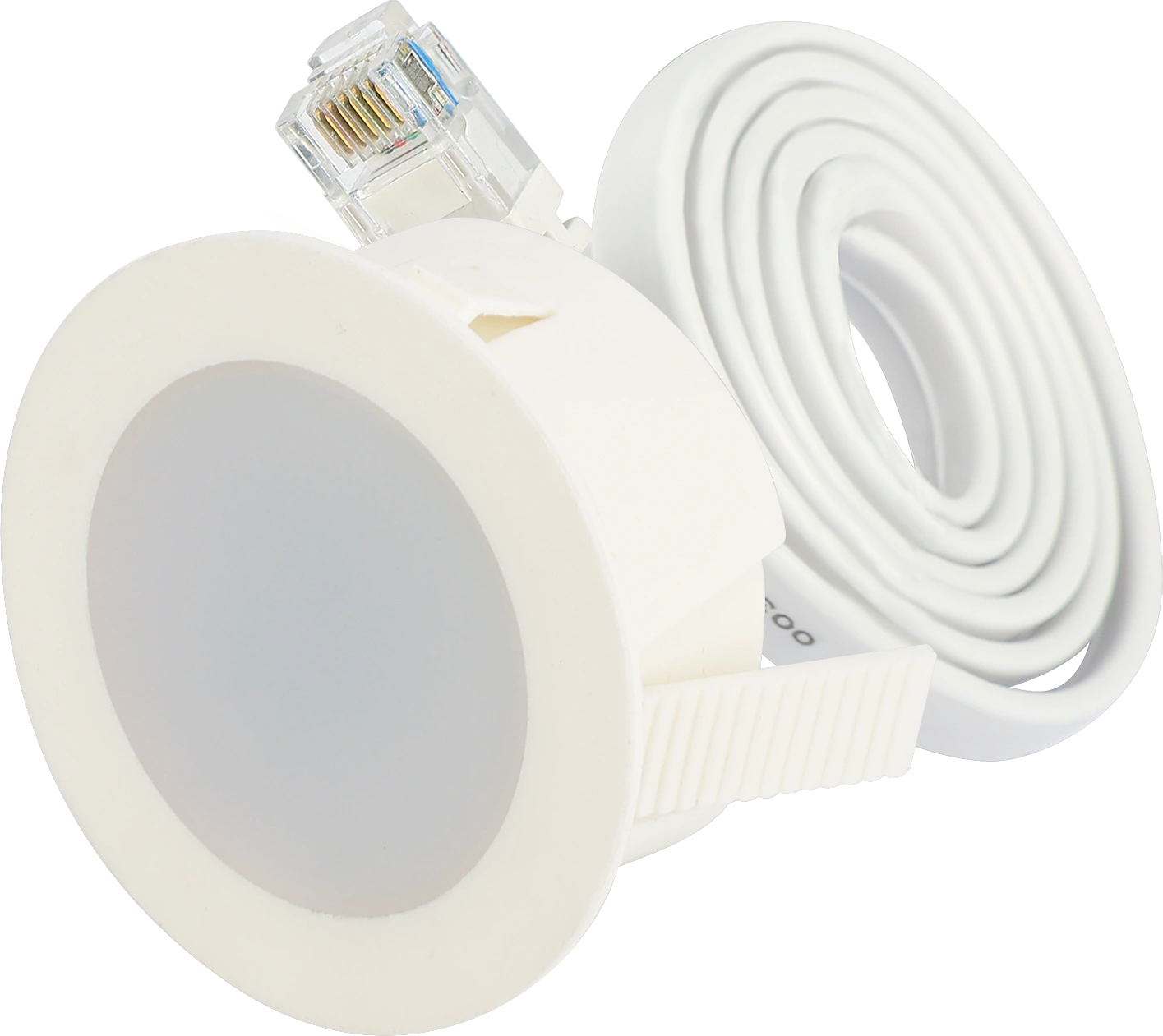

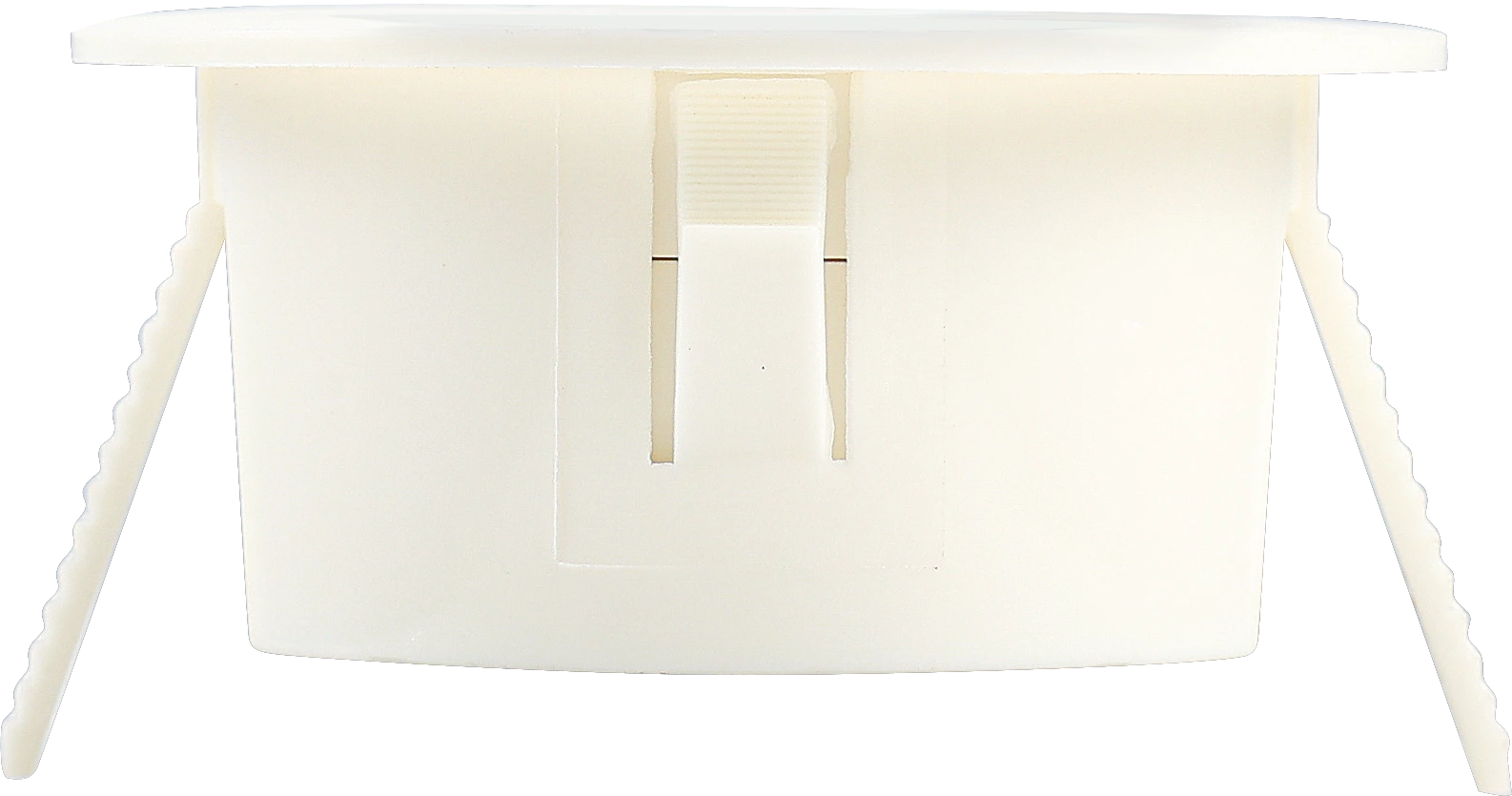

SAM7/FM
HF Lowbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- For luminaires with a height of up to 6m
- School/Classrooms
- Office/Commercial Lighting
Product information "SAM7/FM"
This sensor features microwave (HF) detection and is designed for flush mount installation. It includes tri-level dimming, a robust HF antenna design to combat wireless interference, photocell functionality, and active lux switching. It supports installation heights up to 6m and detects Ø = 12m. Sensor settings can be adjusted using the HRC-11 handset.
| Commissioning Methods: | IR Remote Controller |
|---|---|
| Connector Type: | RJ12 |
| Detection Methods: | Microwave (MW) |
| Features: | Tri-level (Corridor Function) |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Mounting Height: | Low-bay |
| Mounting hole: | 41.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 26.5000 mm |
| Product length: | 48.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 48.0000 mm |
| Voltage Type: | DC |
Datasheets
Product datasheet: sam7-fm.pdf
