Active / Make to Stock
HIR62/R

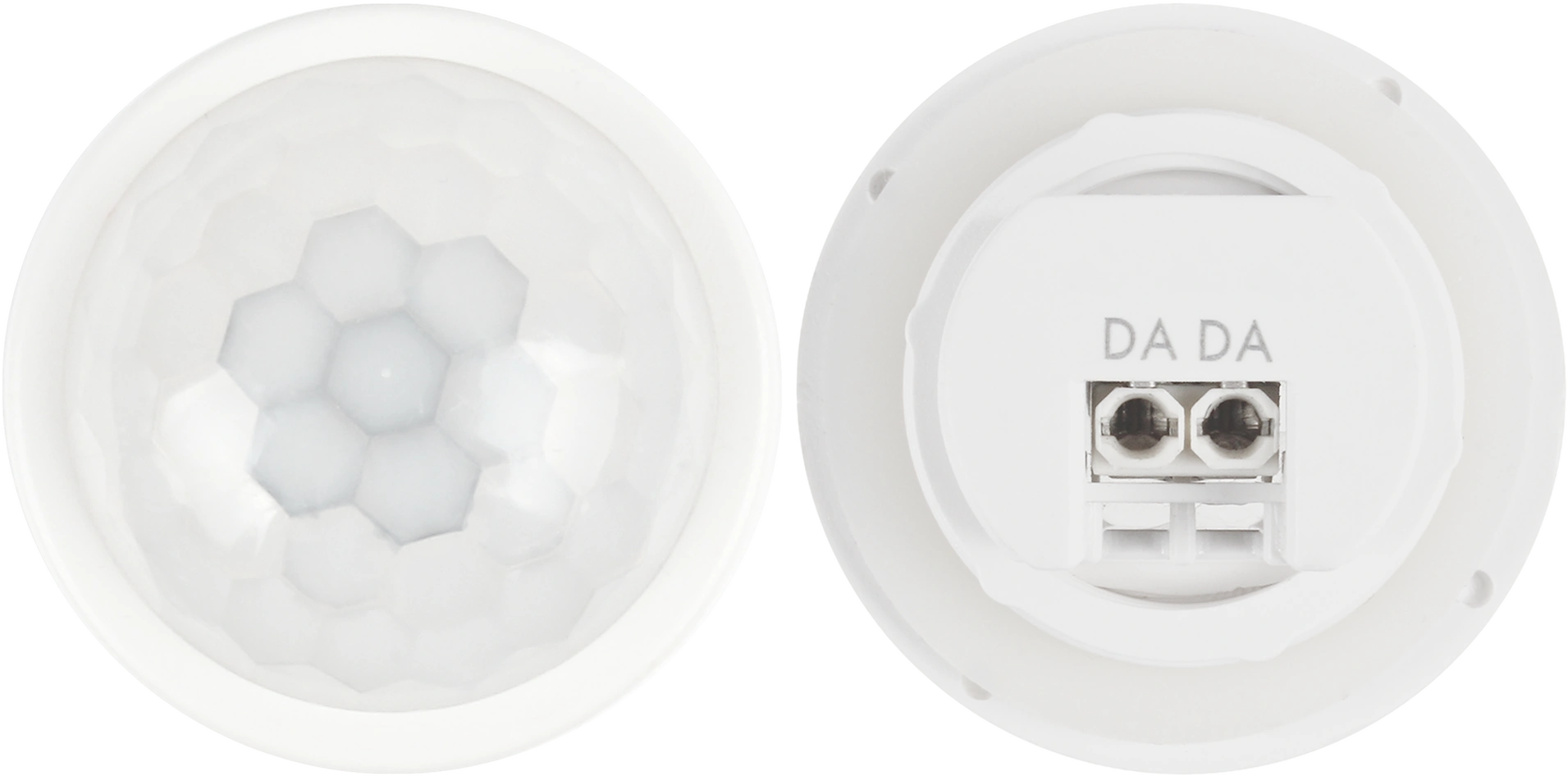

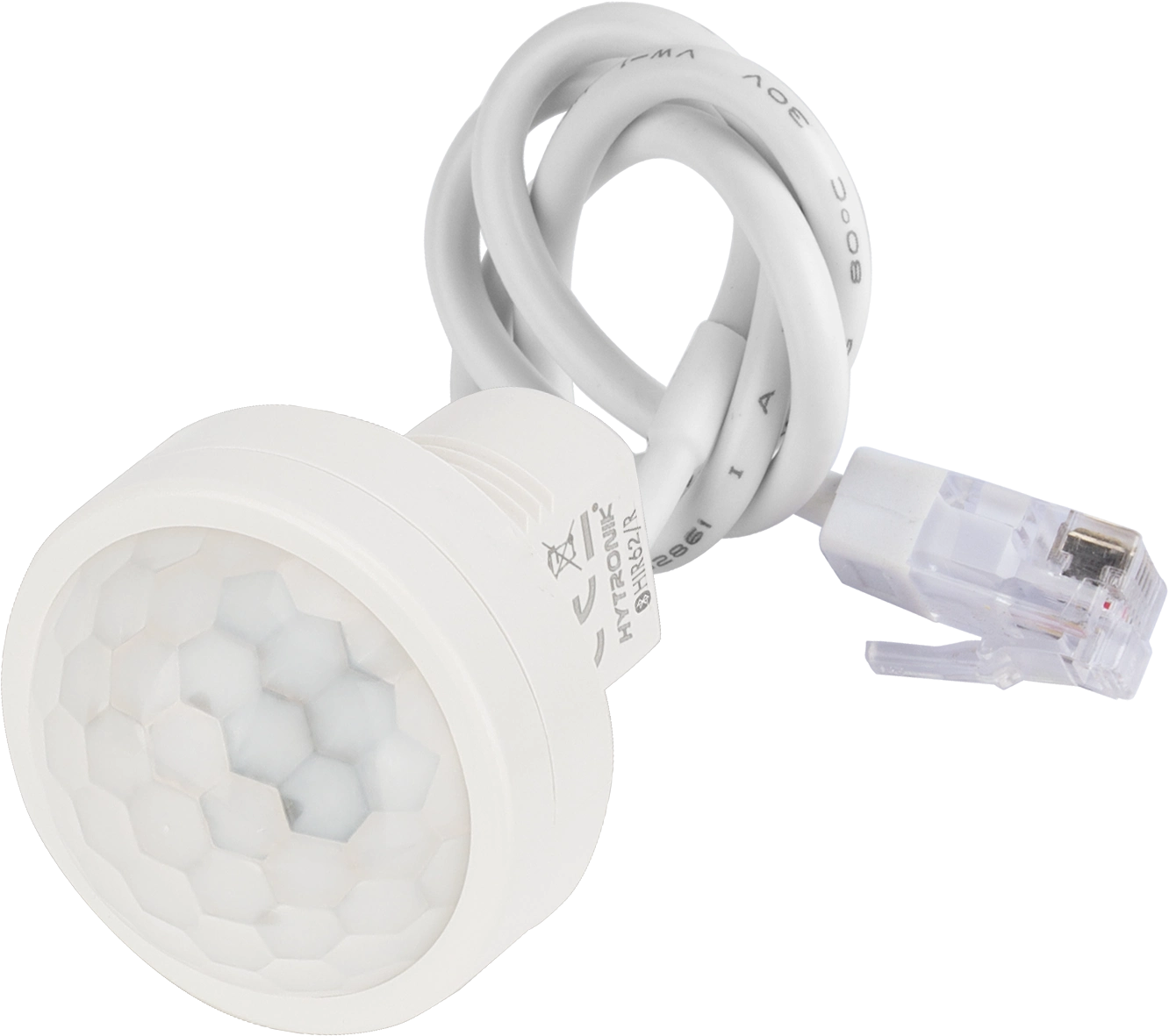

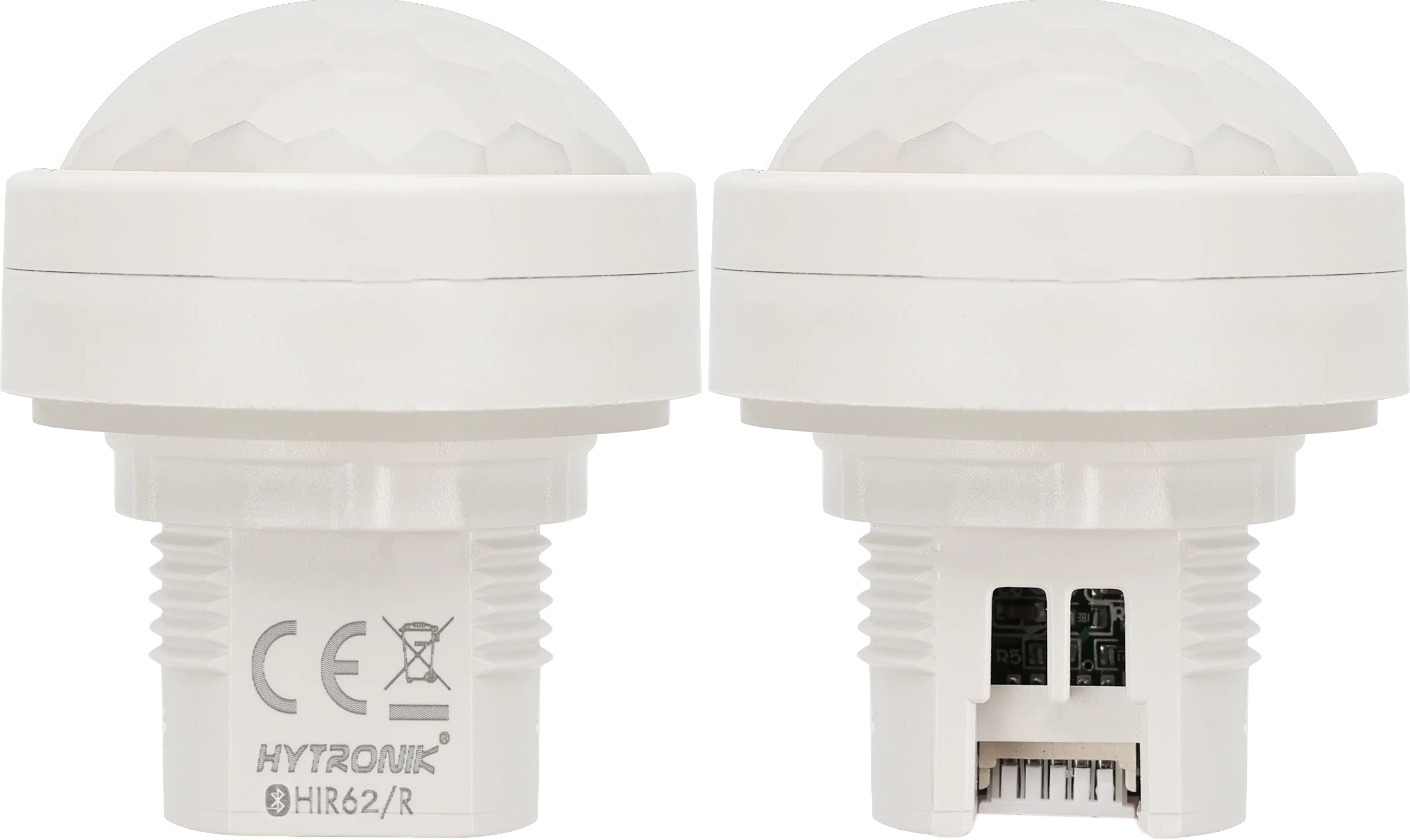

Bluetooth PIR Midbay Sensor Head | RJ12 connector | Conduit Screws
BENEFITS
- Flexible: Easy upgrade or extension of sensing functions
- Wireless: Adds Bluetooth control to conventional lighting systems
- Plug-and-play: Enabling fast installation and replacement
APPLICATIONS
- Conduit thread: M 22x1.5mm
- Warehouse/ Logistic
- Production/ Industry
Product information "HIR62/R"

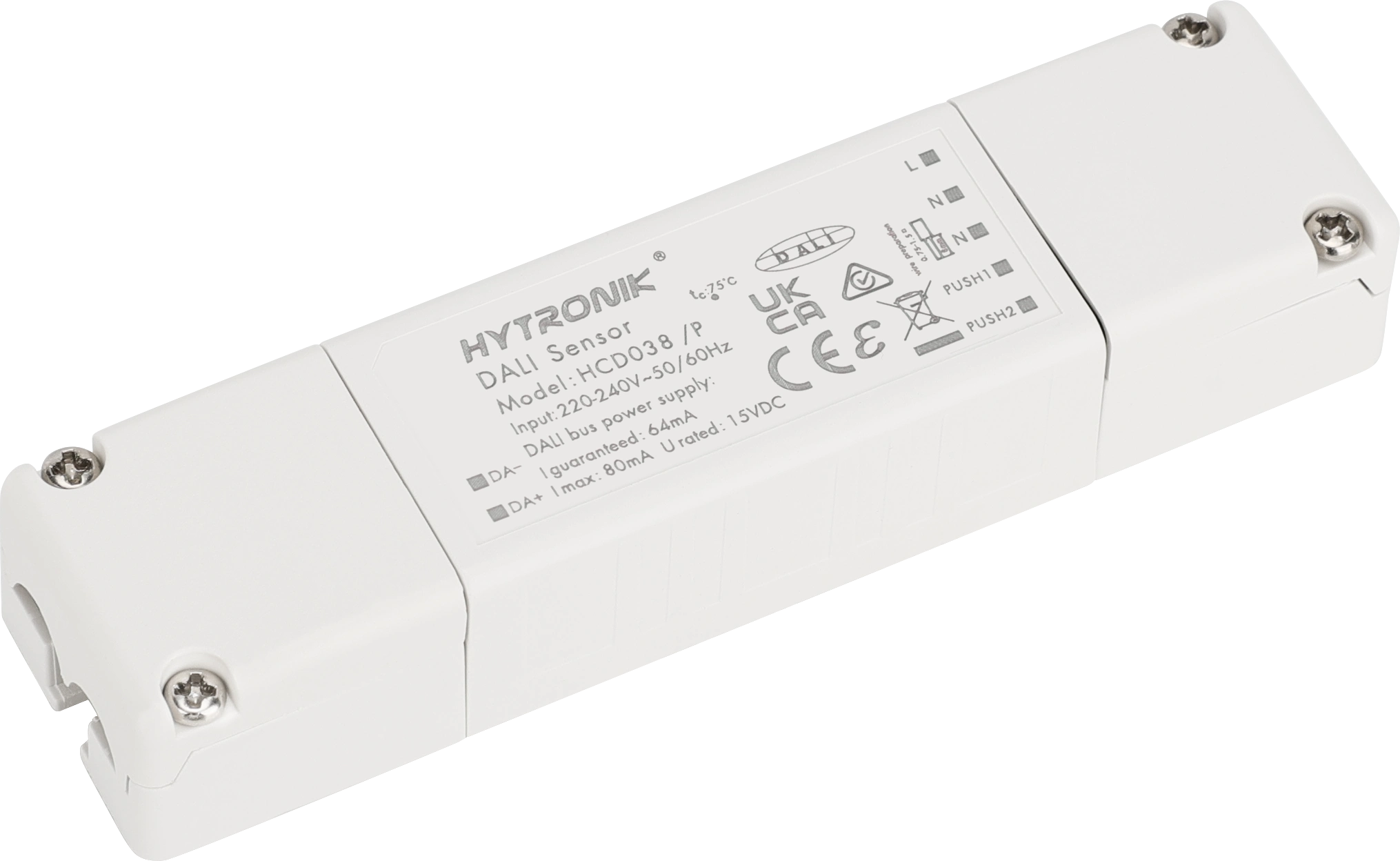

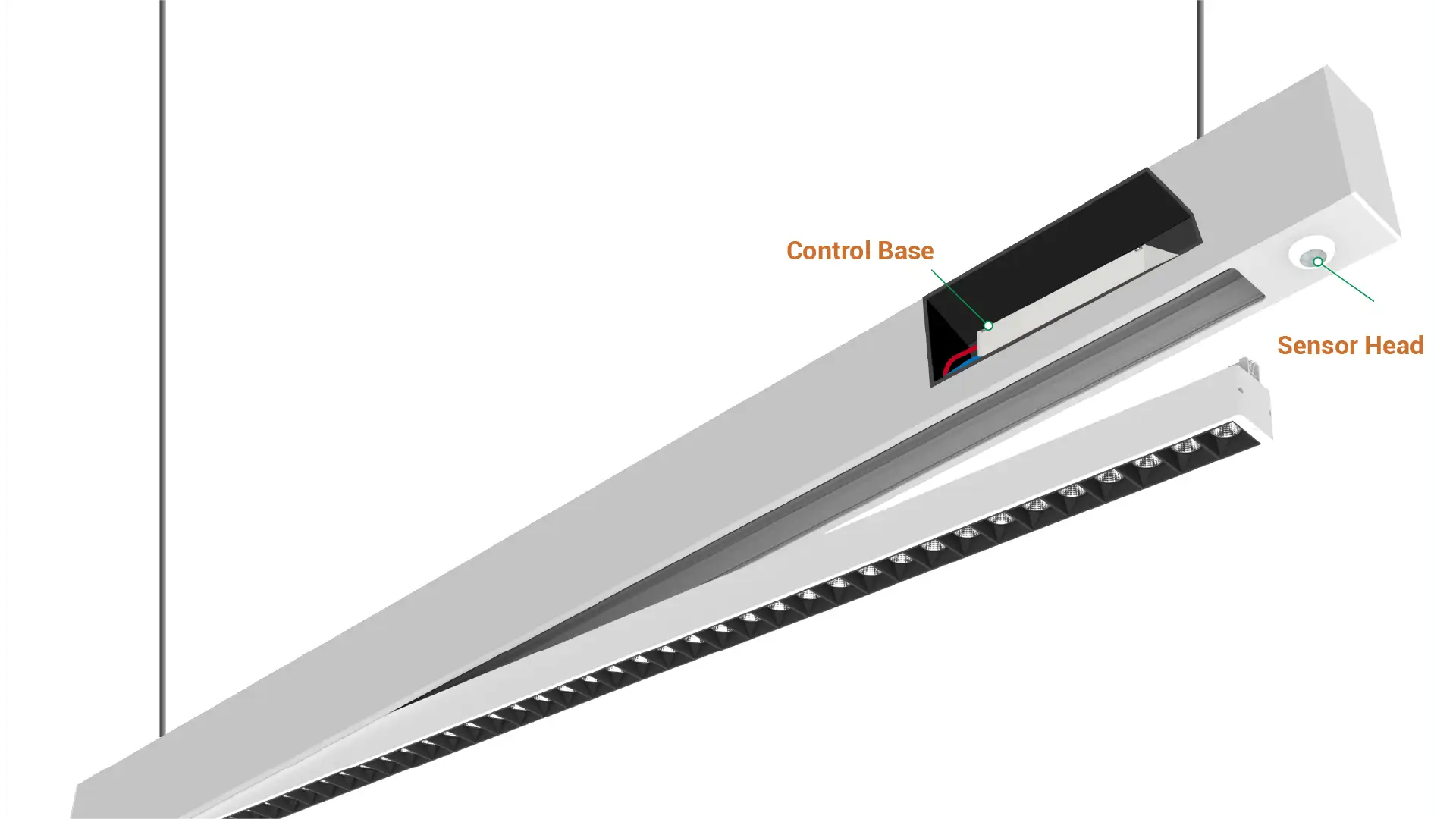

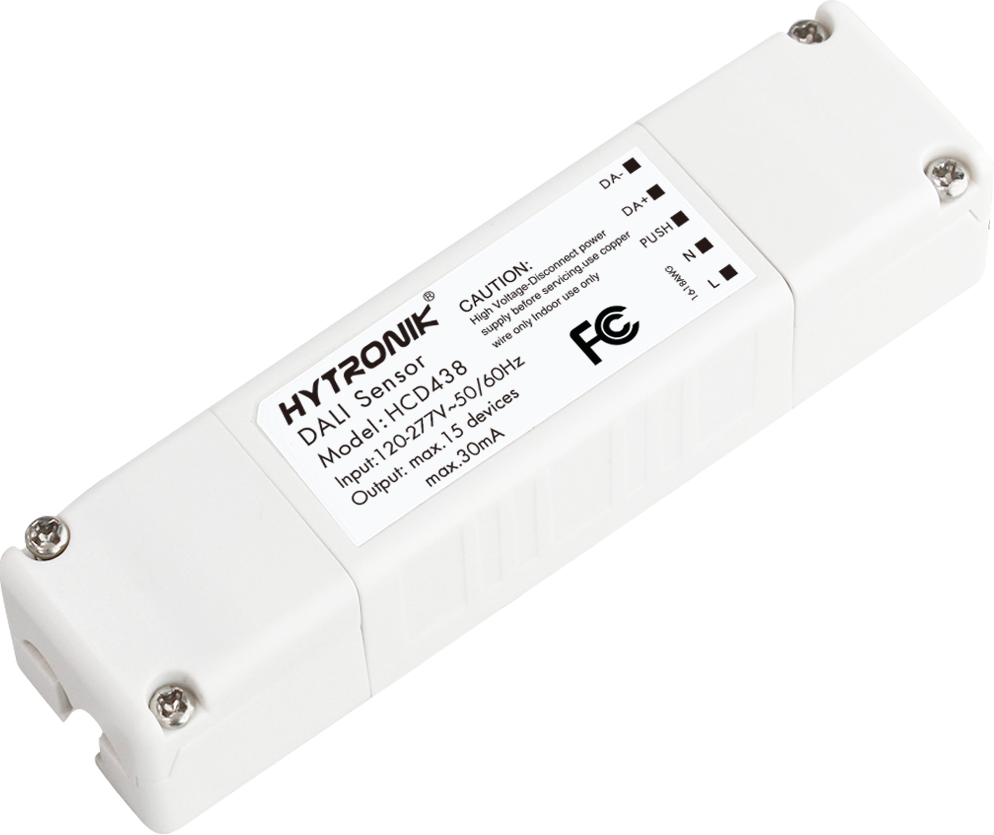

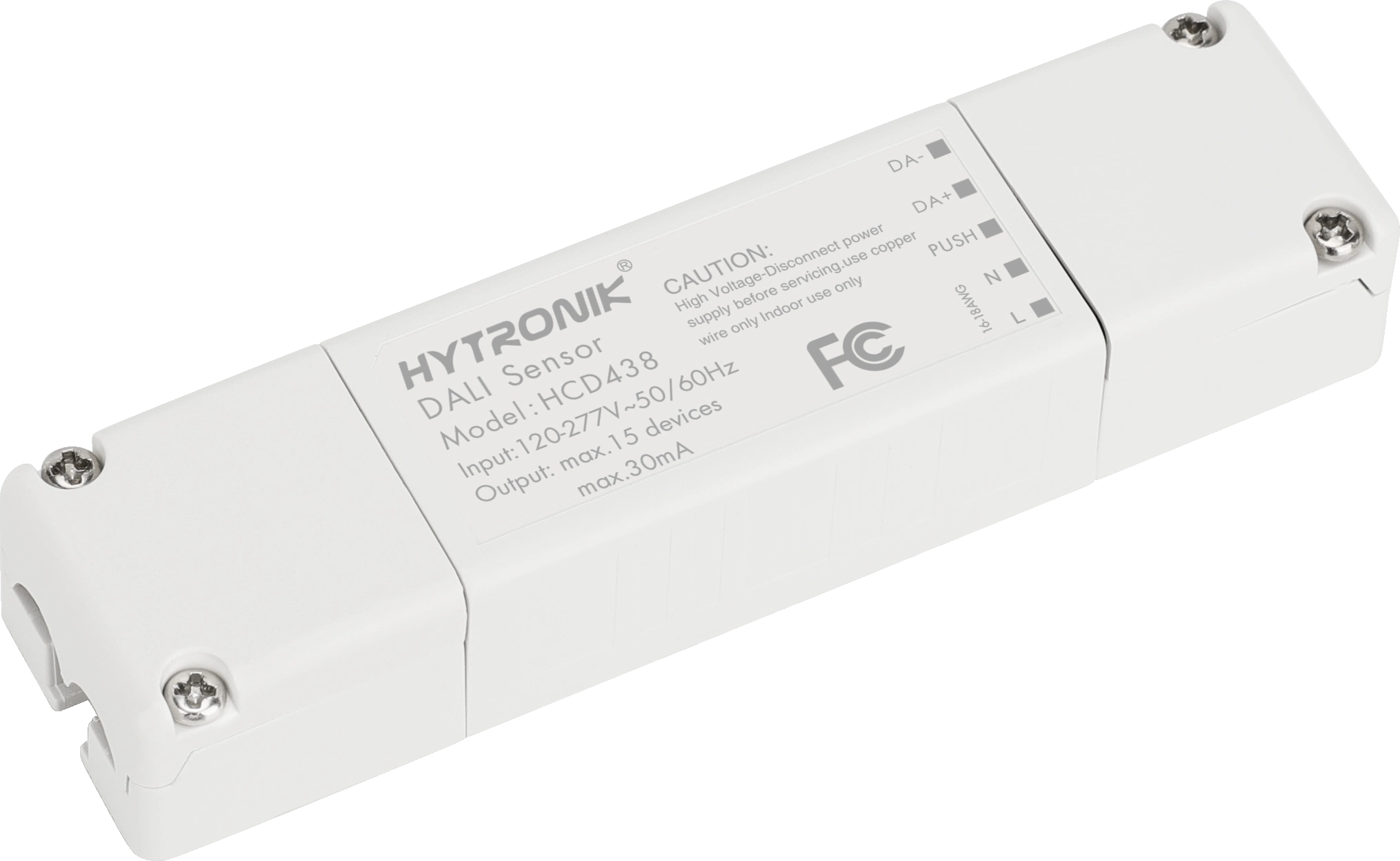

HIR62/R is a plug-and-play Bluetooth infrared sensor head for reinforced mid-bay applications with a typical mounting height of 6 m, designed to work with non-Bluetooth control bases and drivers such as HCD038/P, HCD038, and HCD438. This solution enables conventional lighting systems to be upgraded to Bluetooth wireless control without replacing existing drivers or additional wiring, allowing dimming and daylight-based lighting control. The modular design allows easy extension or upgrading of sensing functions according to project requirements while maintaining system flexibility and simplifying installation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP 65 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 22.0000 mm |
| Operating voltage range: | 5 VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 43.4000 mm |
| Product length: | 36.0000 mm |
| Product width: | 36.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir62-r.pdf
