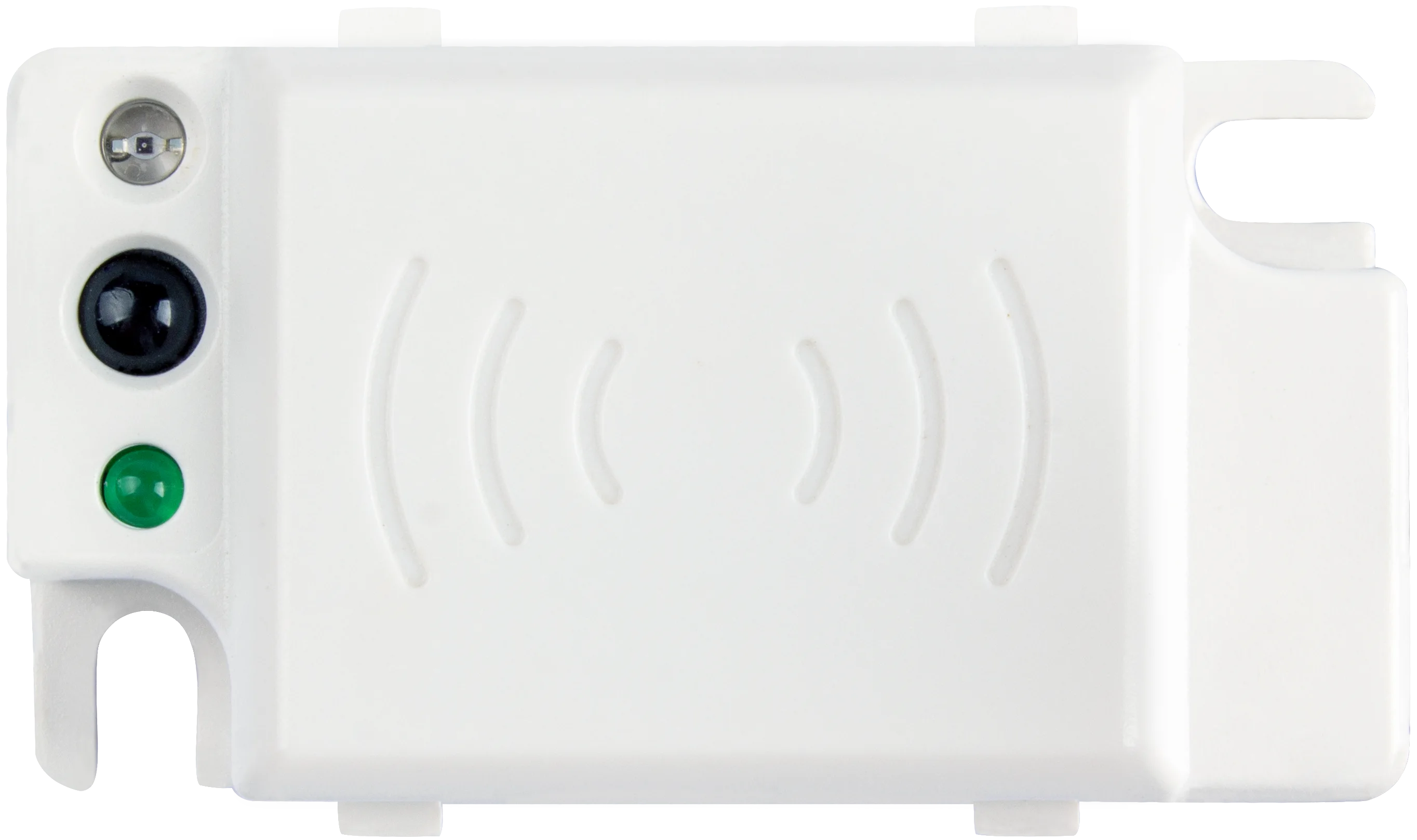

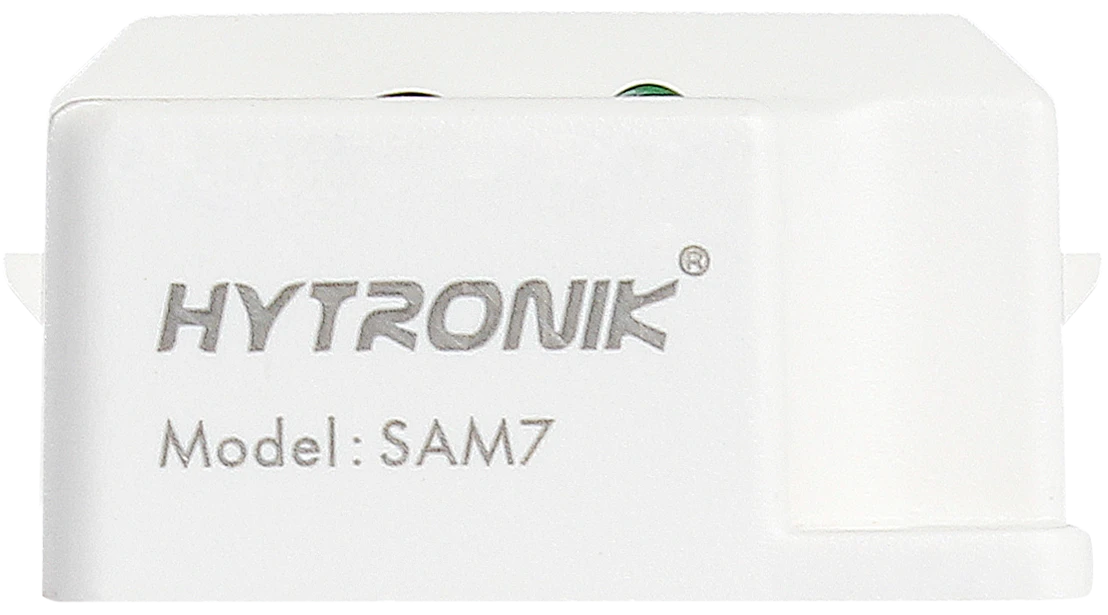

SAM7
HF Lowbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM7"
SAM7 is a High Frequency motion sensor.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 16.0000 mm |
| Product length: | 52.5000 mm |
| Product weight: | 20.0000 g |
| Product width: | 31.2000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: sam7.pdf
