Active / Make to Stock
HBT01

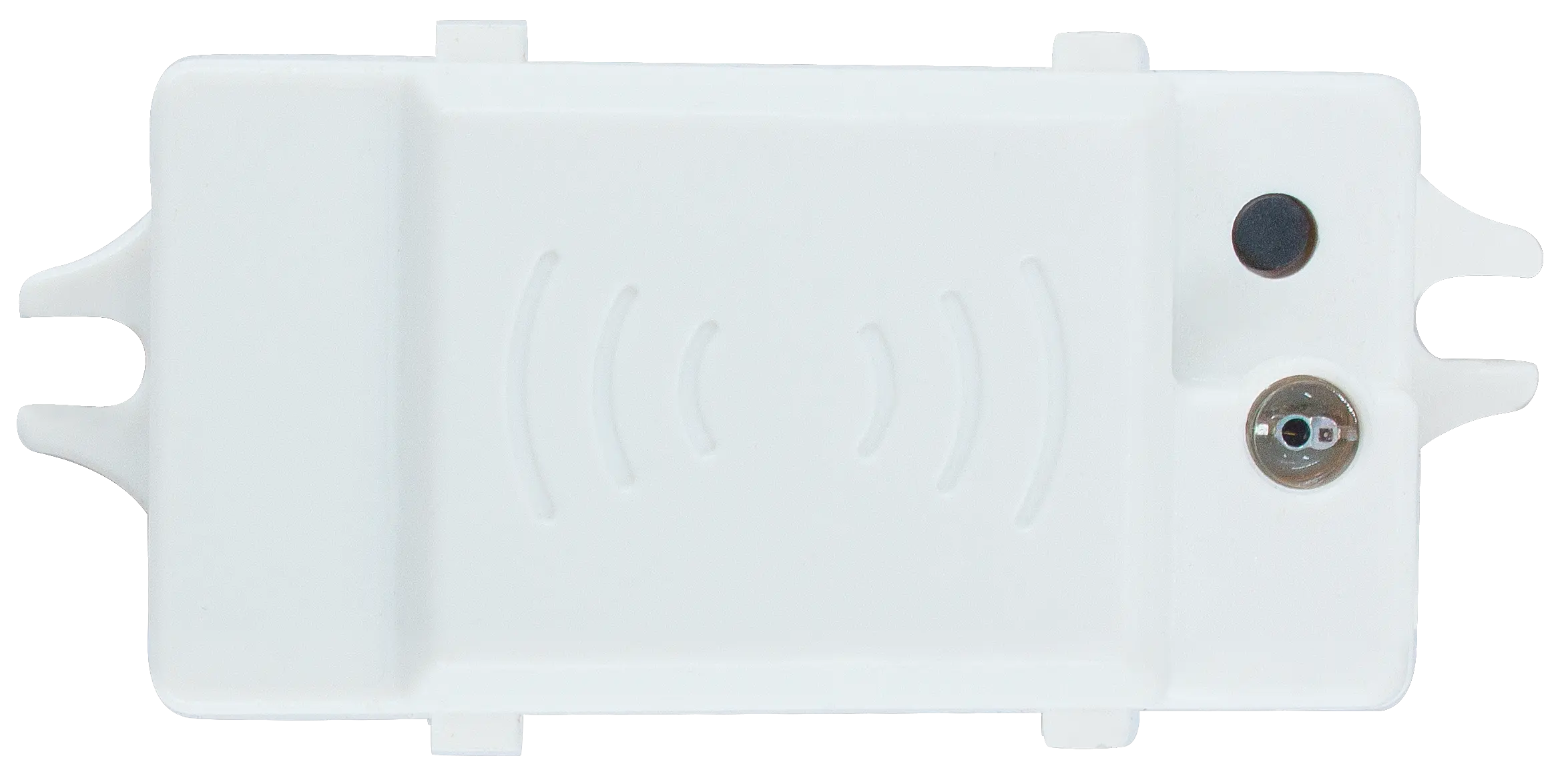

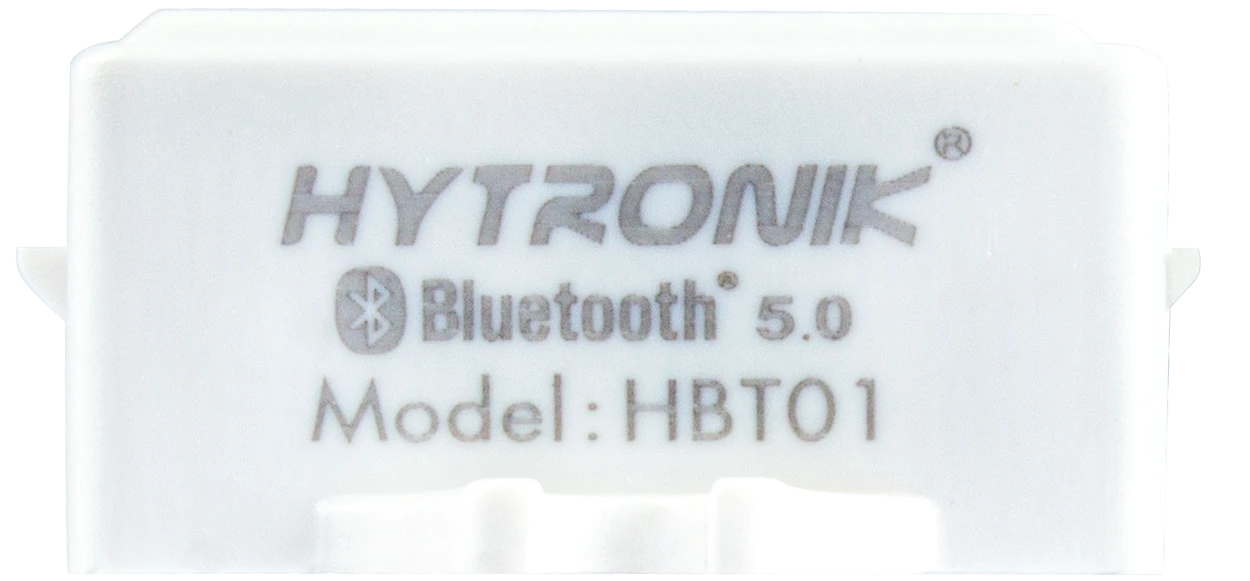

Bluetooth HF Lowbay | Photocell Advance | RJ12 connector to control body
BENEFITS
- Expandable: RJ12 Plug’n’Play adds sensing to compatible control units
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Wireless: App-based setup for fast commissioning
APPLICATIONS
- Linear Luminaires · Integrated Lighting Controls
- Occupancy Control · Daylight Harvest · HCL
- Offices · Classrooms · Commercial Spaces
Product information "HBT01"
HBT01 is a HF sensor head and compatible with the Tri-level Dimming、 Daylight Harvest and Human Centric Lighting. It can work with the linear shaped control base such as HC038V、 HCD038、HC438V、 HCD438 and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 8x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Mounting Height: | Low-bay |
| Mounting hole: | 29.0000 mm |
| Operating voltage range: | 5 VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 16.0000 mm |
| Product length: | 71.5000 mm |
| Product weight: | 30.0000 g |
| Product width: | 31.7000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hbt01.pdf
