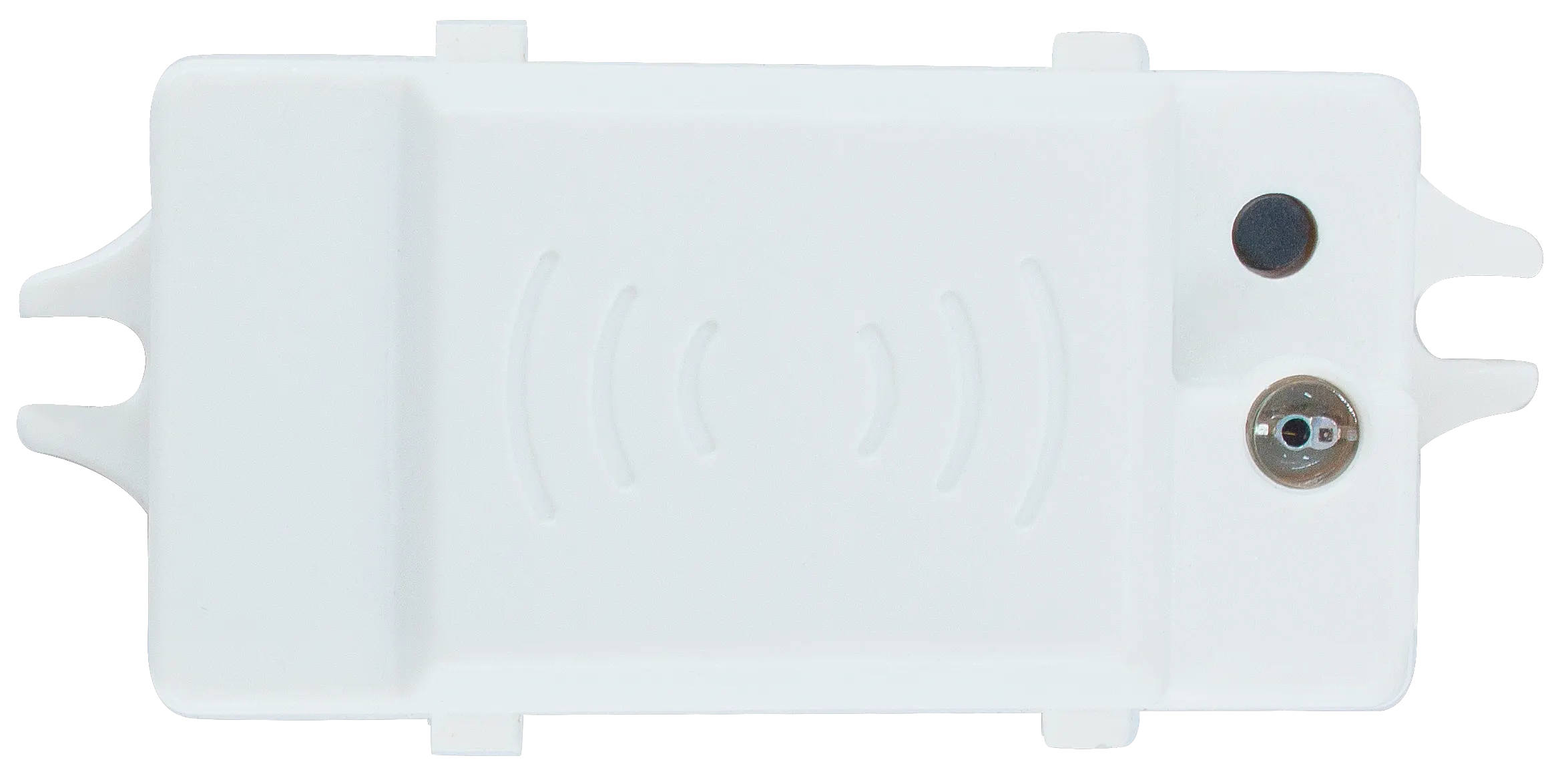

Top view of HBT02 BLE Receiver Photocell Advance RJ12 connector to control body

HBT02

Bluetooth Receiver | Photocell Advance | RJ12 connector to control body

BENEFITS

Compact: Standard rectangular Plug&Play sensor design
2 in 1: Daylight harvest + Ciradian Rhyhm
Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh

APPLICATIONS

Ideal for Integrated Luminaire Design
Optimized for Complex Daylight Conditions
Perfect for Commercial Building Applications

Download the data sheet

Product information "HBT02"

HBT02 is a Bluetooth receiving node with built-in Photocell Advanced sensing, enabling internal luminaire daylight control without external drilling. Paired with HCD038/P or HCD038 control bases, it enables plug-and-play integration and supports multiple dimming methods including DALI and 0-10V, providing flexible luminaire design options.

Ambient temperature max.:	55 °C
Ambient temperature min.:	-20 °C
Bluetooth Platform:	Nordic nRF52832
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
Connector Type:	Standard 2 cables
Daylight Harvest:	Yes
Daylight Sensor Option:	Photocell Advance
Detection Methods:	No motion (BLE Receiver)
Detection angle:	30° - 150°
Detection range (Diameter):	12x6
Features:	Daylight Harvest
Human Centric Lightning (HCL):	Yes
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Installation Type:	Built-in, Plug & Play Sensor Heads
Mounting Height:	Low-bay
Mounting hole:	4.2000 mm
Operating voltage range:	5 VDC
Product height:	16.0000 mm
Product length:	71.5000 mm
Product weight:	21.0000 g
Product width:	31.7000 mm
Storage temperature max.:	70 °C
Storage temperature min.:	-40 °C
Tri-level (Corridor function):	No
Voltage Type:	DC
Warming-up:	20 s
Zhaga:	No
