HIR13/C
Bluetooth PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Compact: Plug-and-Play sensor design with side-entry conduit
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth
APPLICATIONS
- Conduit thread: M 13x1.5mm
- School/Classrooms
- Office/Commercial Lighting
Product information "HIR13/C"

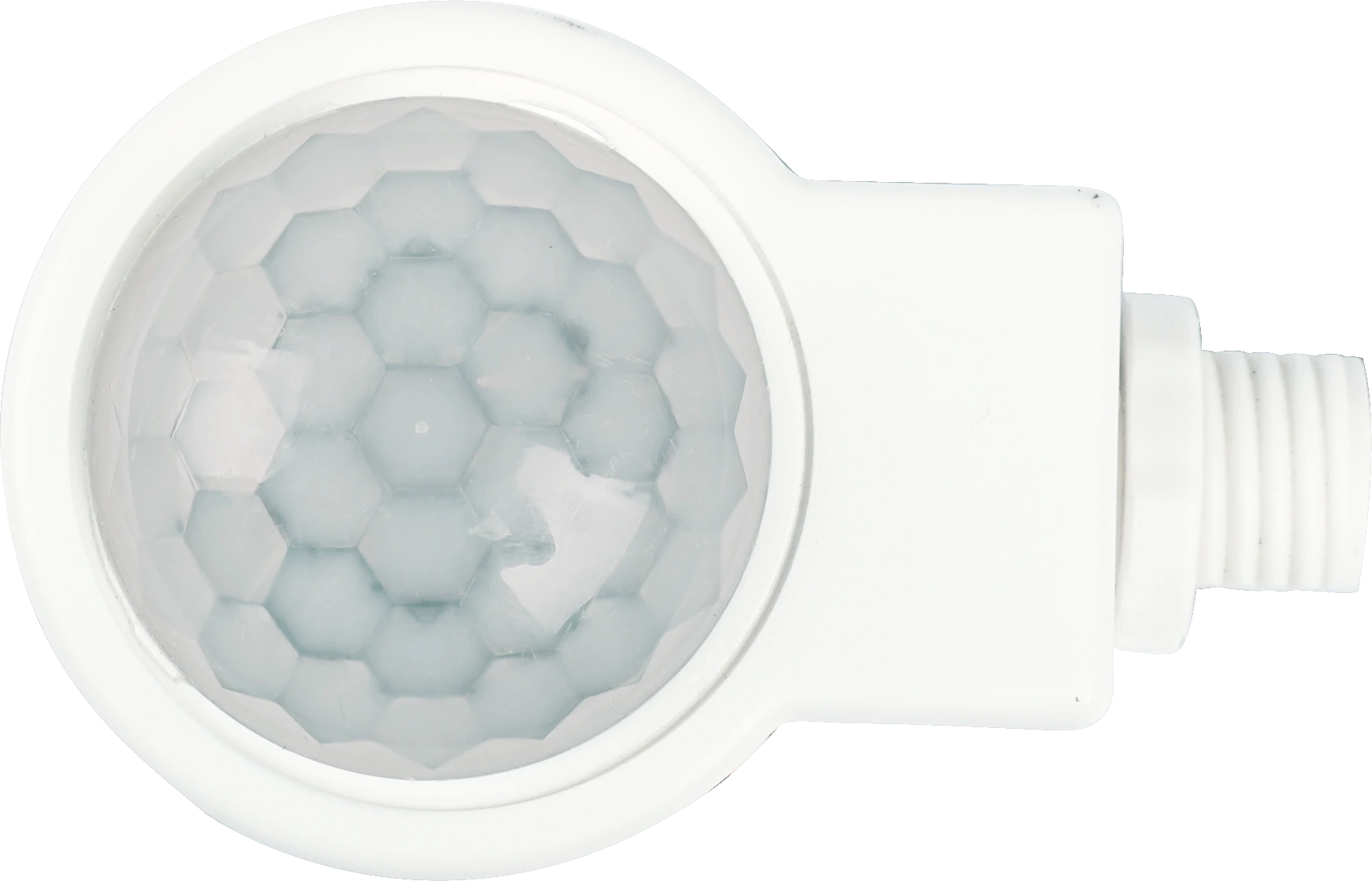

HIR13/C is a Blutooth PIR sensor head. It can work with the linear shaped control base such as HCD038/P and HCD038. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Conduit screws, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 14.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 33.9000 mm |
| Product length: | 63.0000 mm |
| Product weight: | 38.0000 g |
| Product width: | 40.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir13-c.pdf
