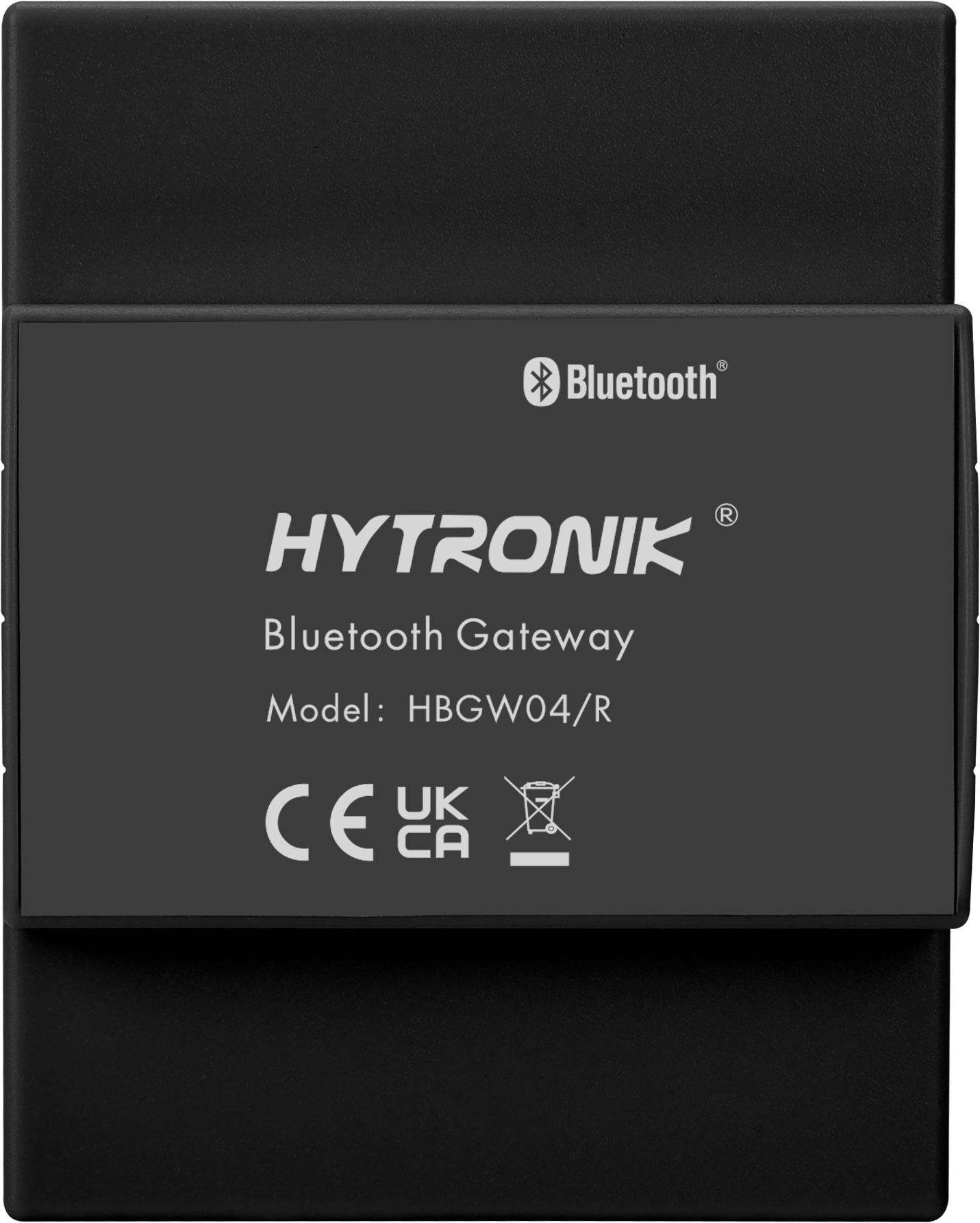

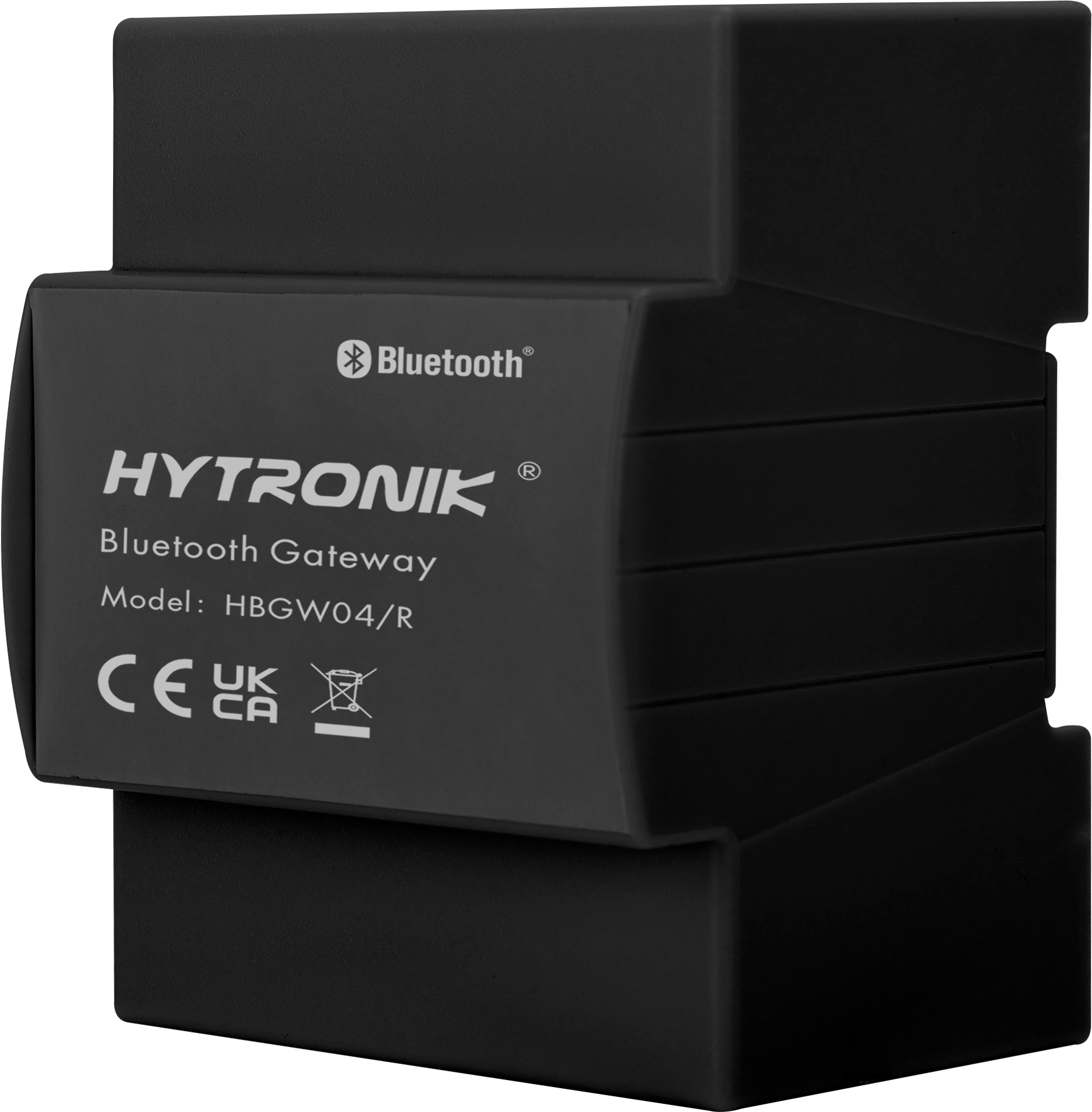

HBGW04/R
Multi-protocol BMS Gateway | Dual-band Wi-Fi and Ethernet | DIN-rail Mounting
BENEFITS
- Compact: Standard DIN-rail (DIN 35 mm) installation
- Flexible: Connects BLE Mesh lighting with BACnet, Modbus and MQTT-based BMS
- Efficiency: Transfers lighting status and sensor data to BMS platforms
APPLICATIONS
- Existing & New BMS Integration
- Smart Building Projects
- System Deployment & Maintenance
Product information "HBGW04/R"
HBGW04/R is a multi-protocol BMS gateway that connects Koolmesh BLE Mesh lighting systems with BACnet/IP, Modbus TCP/IP and MQTT-based building management platforms. It converts lighting devices, sensors, zones and scenes into accessible BMS data points, including lighting status, occupancy, daylight levels and device status, enabling centralized monitoring, control and energy management. By translating Koolmesh lighting data into standard BACnet objects and other supported protocol formats, the gateway enables seamless integration and data exchange with HVAC, energy management and other building systems. Local Web configuration, App-based commissioning and OTA firmware updates simplify system deployment, configuration and ongoing maintenance.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-50m |
| Bluetooth transmit power: | 19 dBm |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 80 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Product Status: | Coming Soon / In Development |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -10 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hbgw04-r.pdf
