Active / New
HBEW8040
Bluetooth RGBW Driver 42W (CC) | Full Color | Built-in/Stand-alone
BENEFITS
- Compact: Sunlight Spectrum and Chromaticity Tuning LED Driver
- Versatile: 3 Color Dimensions - RGBW + xyY + DUV
- Simple: Wireless setup for easy system integration

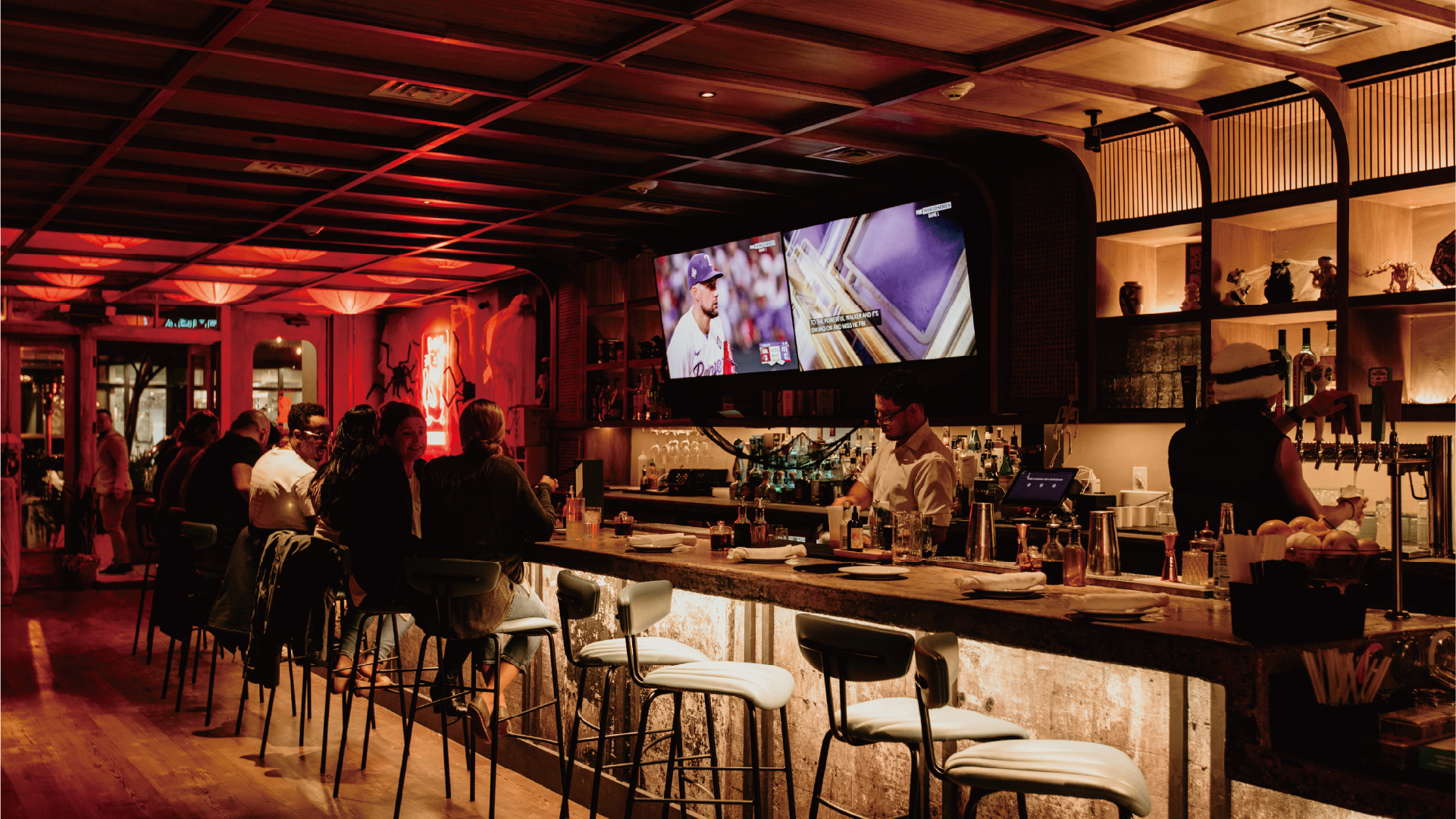

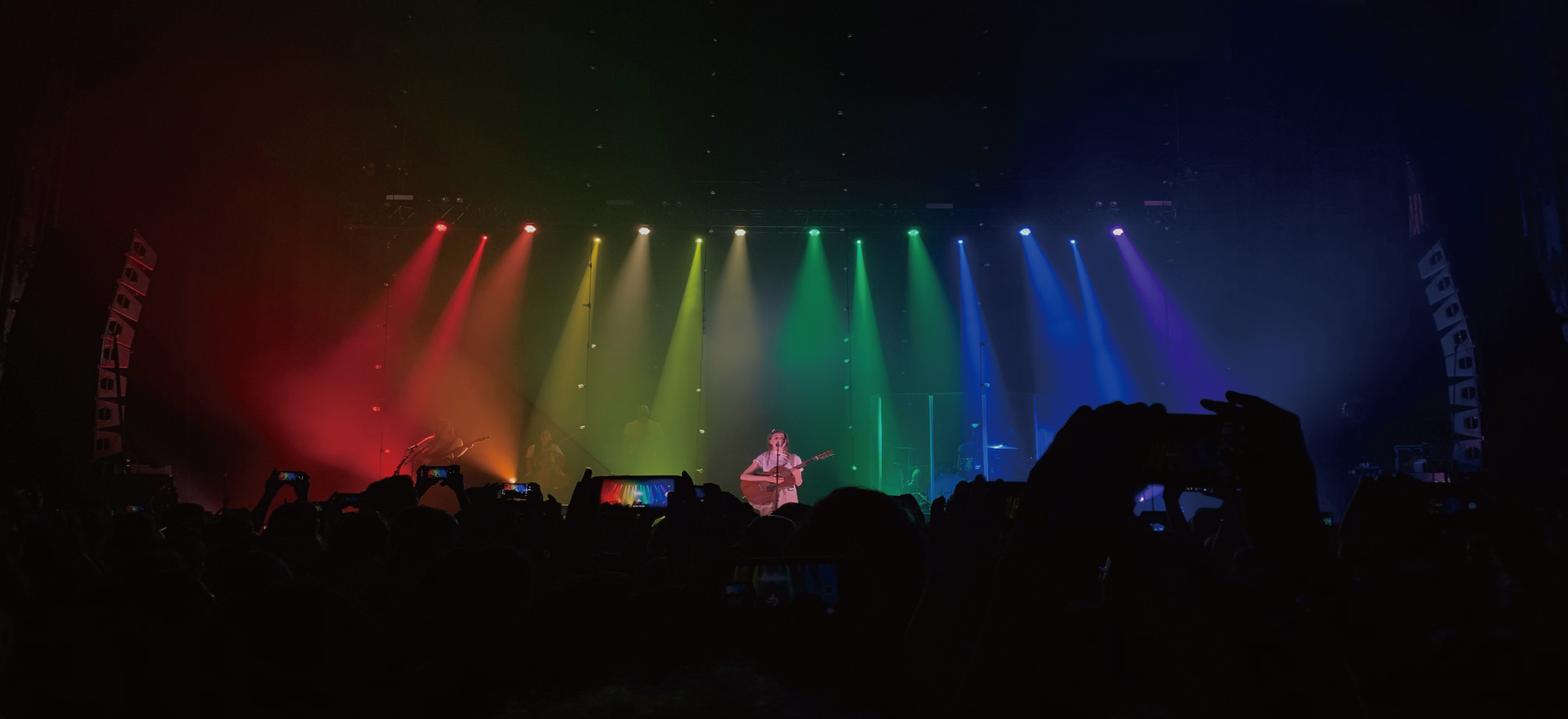

APPLICATIONS
- Supermarket/Shop
- Entertainment Venues (hotel, bar)
- Lounge
Product information "HBEW8040"
HBEW8040 is a Bluetooth RGBW LED driver designed for flexible smart lighting integration. It supports full-spectrum blackbody curve and DUV tuning, enabling precise colour adjustment while maintaining consistent brightness for dynamic lighting applications. Its modular design allows optional sensor head connection via an RJ12 interface, enabling lighting manufacturers to add motion sensing functionality when required without changing the driver design. Bluetooth Mesh networking enables wireless communication between luminaires without additional control wiring, reducing installation complexity and project costs.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | Bluetooth dimming |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88.0000 % |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Stand-alone |
| Mounting hole: | 3.9000 mm |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 15~40V |
| Product Status: | Active / New |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product weight: | 132.0000 g |
| Product width: | 79.2000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hbew8040.pdf
