Active / Make to Stock

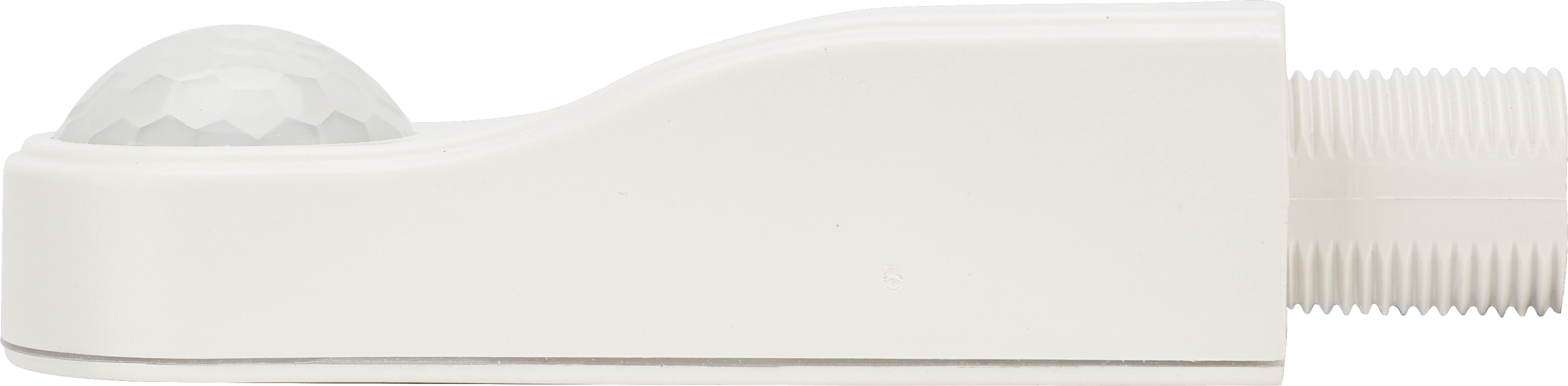

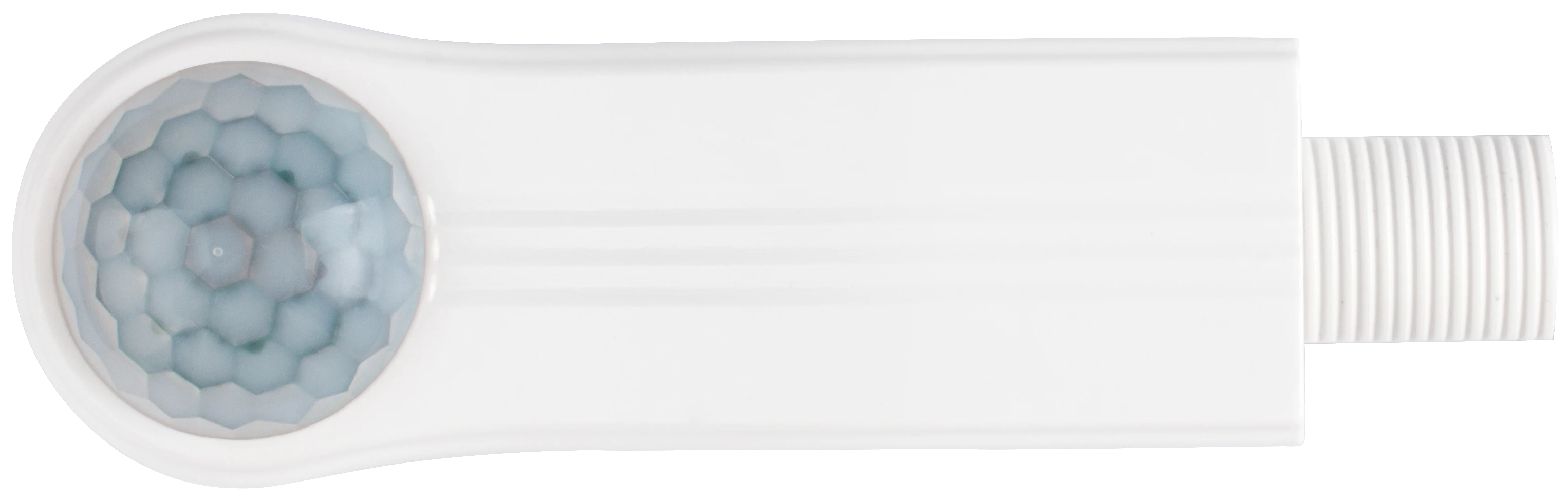

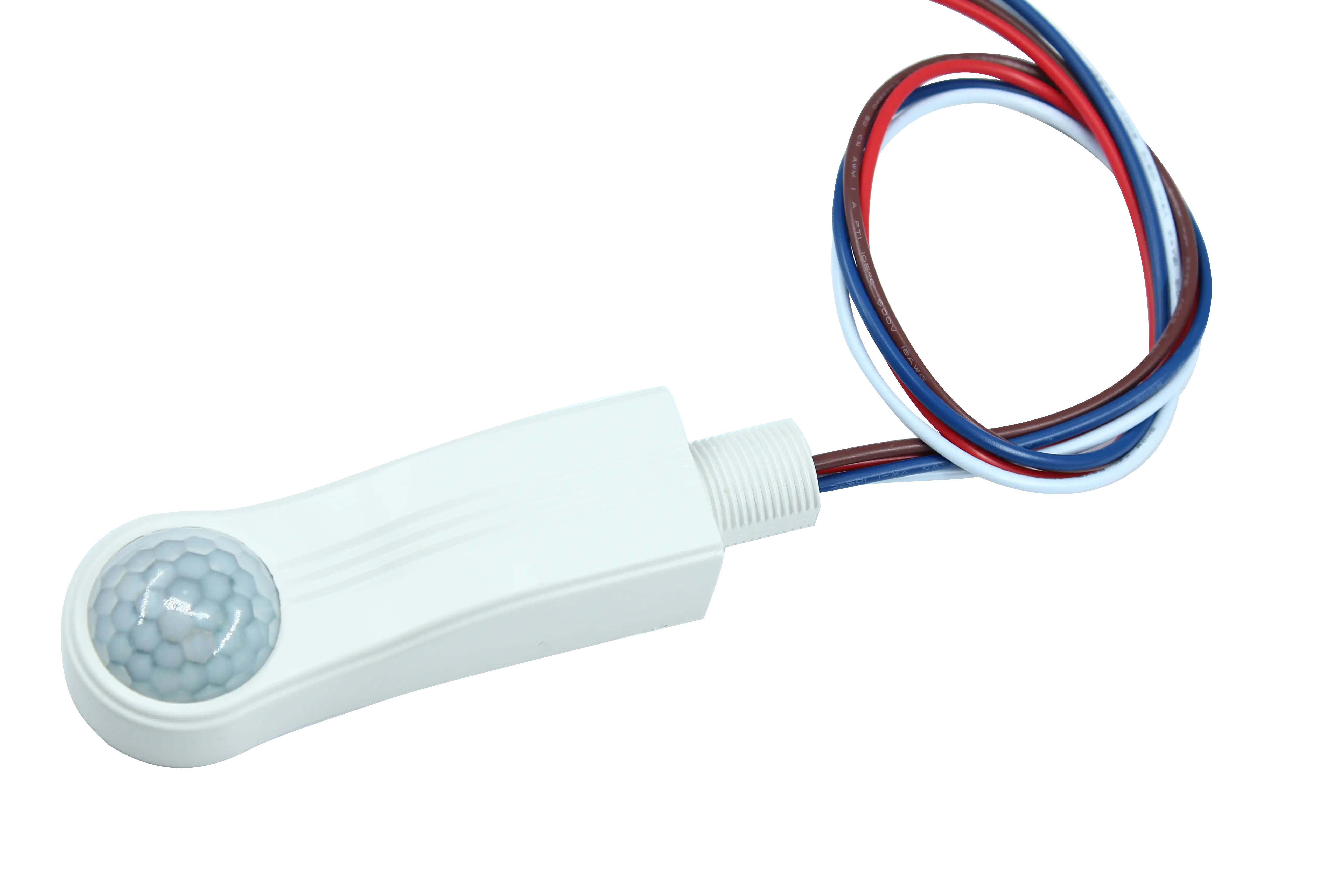

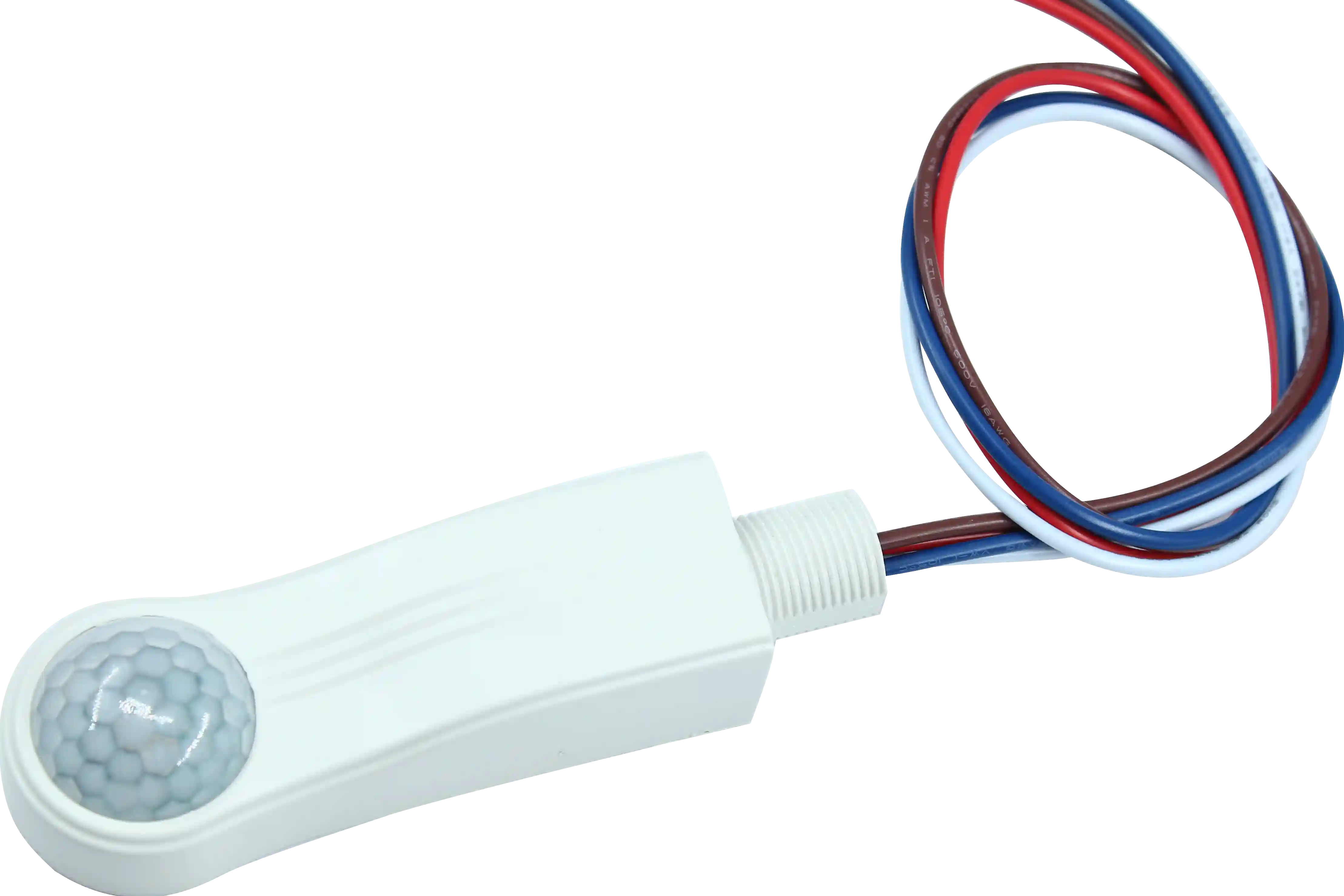

HCD049/BT
Bluetooth DALI PIR Highbay | Integrated 30mA PSU | Batten-fit/Bolt-on mount
BENEFITS
- Adaptable: Removable shielding accessory for different detection ranges
- Integrated: Built-in 30 mA DALI PSU simplifying system wiring
- Wireless: Bluetooth mesh enabling control without extra wiring
APPLICATIONS
- Batten-fit/Bolt-on mount style
- Wireless control integration
- Offices, Classrooms, Industry
Product information "HCD049/BT"

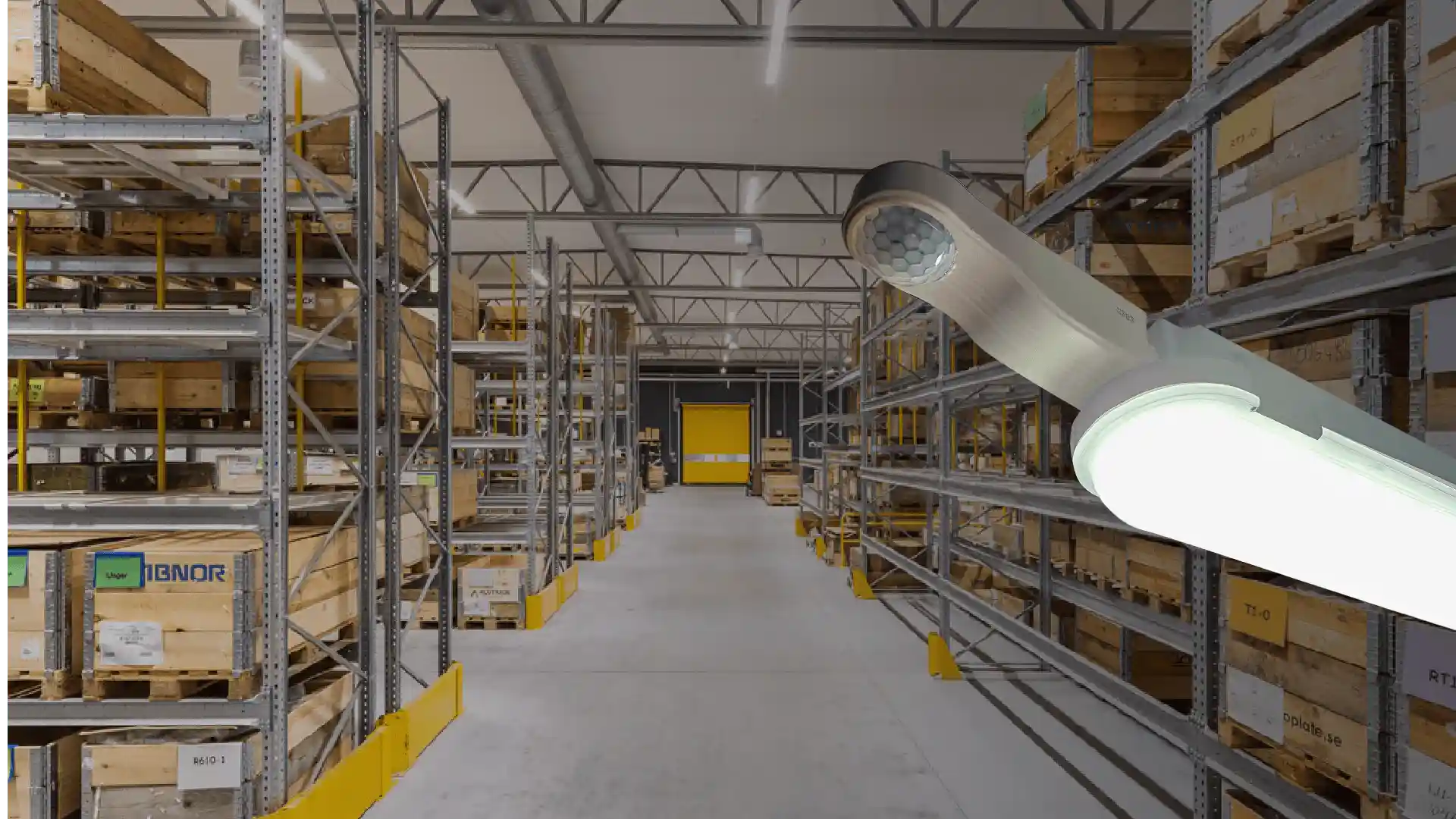

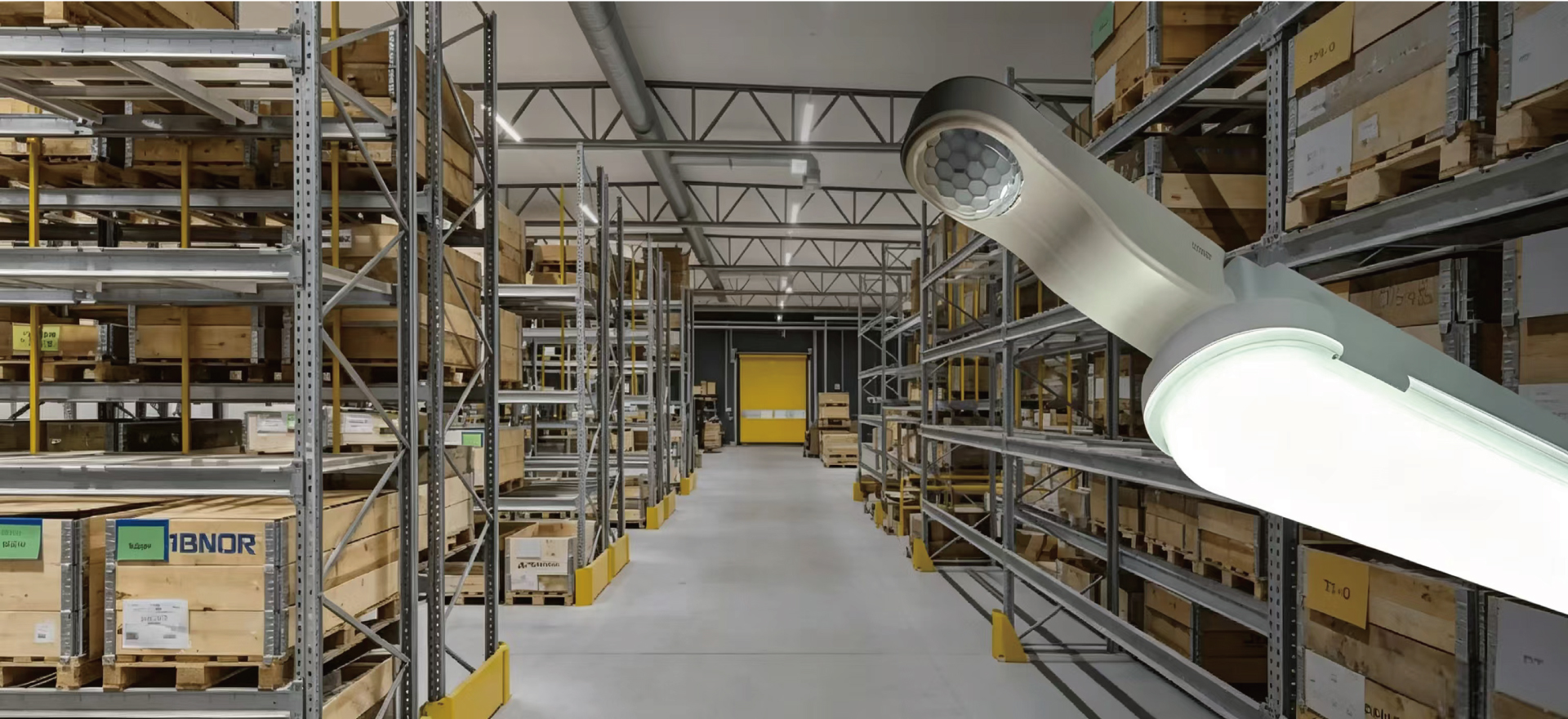

HCD049/BT is a Bluetooth DALI high-bay PIR motion sensor designed for professional luminaire manufacturers who want to integrate wireless lighting control directly into their luminaires. With a typical installation height of up to 15 m, a built-in daylight sensor, and a design optimized for batten-style luminaires, it provides a reliable solution for high-bay applications while simplifying luminaire integration. Bluetooth mesh networking enables wireless communication between luminaires without additional control wiring, helping reduce installation costs and improve system flexibility. All parameters and commissioning can be completed easily through the app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 16x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 40.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 28.2000 mm |
| Product length: | 107.0000 mm |
| Product weight: | 87.0000 g |
| Product width: | 34.0000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd049-bt.pdf
