HPAD-TS/APP
Bluetooth Touch Tablet | Switch Boxes | Smart Lighting Management
BENEFITS
- Compact: Enabling easy installation in standard switch boxes
- Innovative: Colour dimming + Scenes control + Environmental metrics
- Flexible: Allowing quick setup and customization via app
APPLICATIONS
- Wall switch mounting boxes
- Industrial
- Office
Product information "HPAD-TS/APP"

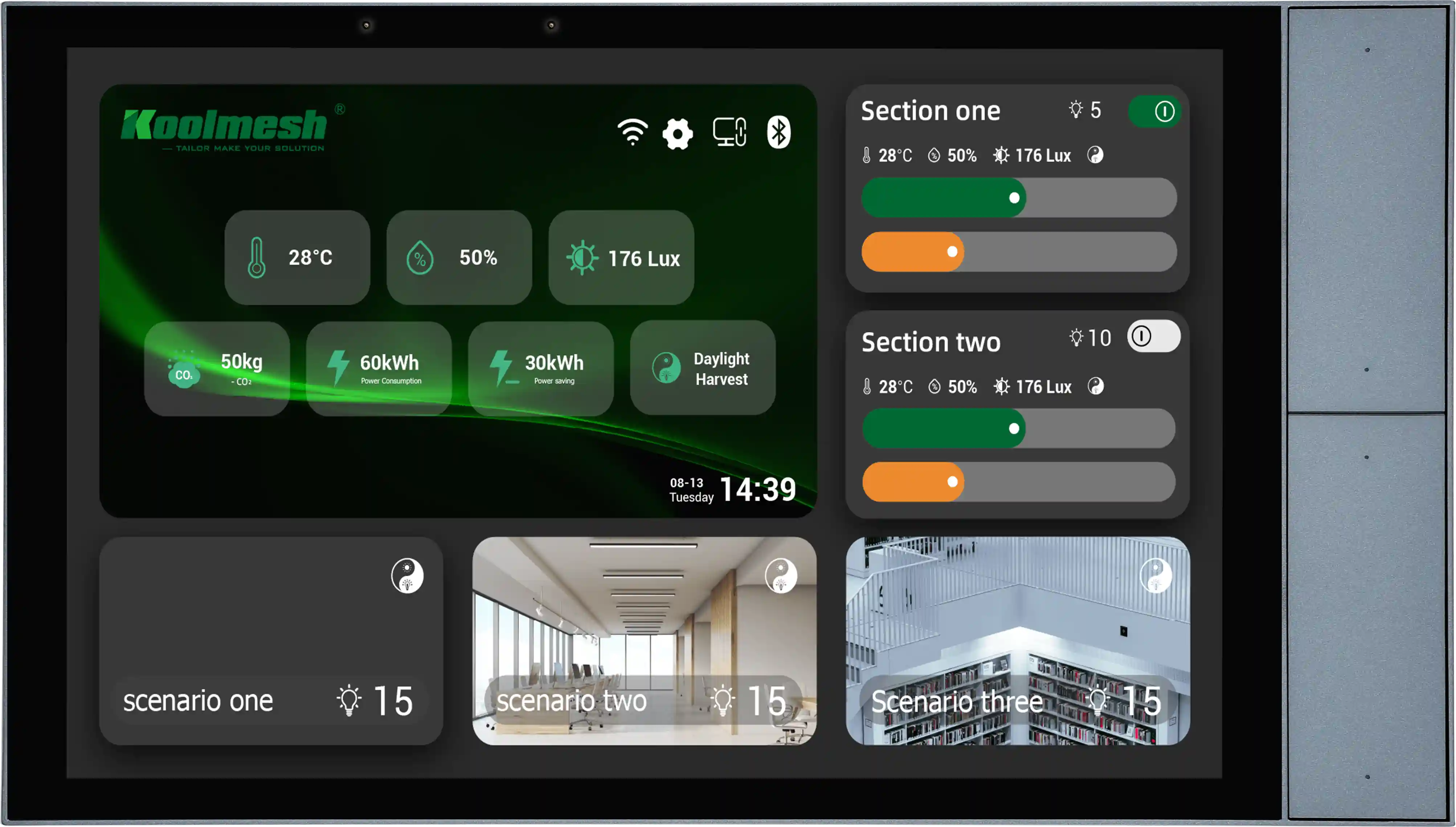

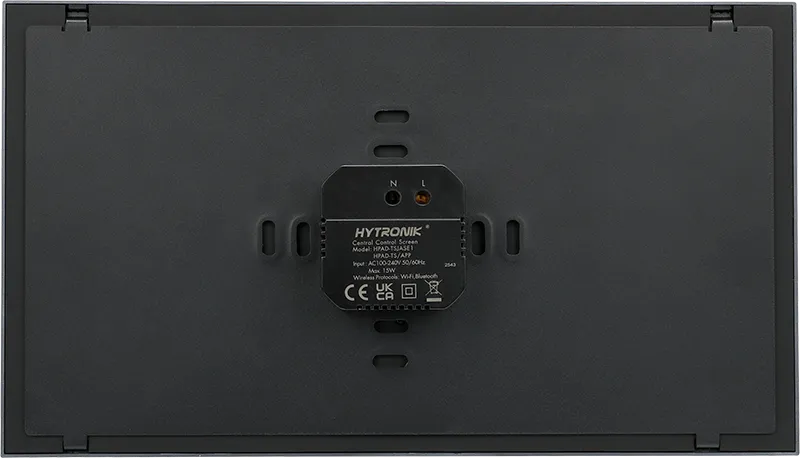

HPAD-TS/APP features responsive capacitive-touch control, designed specifically to operate with the Hytronik range of Bluetooth products. Weighing only 1 kg and installable directly into a standard switch box without wall modification, it is powered by mains for stable and uninterrupted operation. The device supports dimming, tunable-white adjustment, scene recall, and luminaire grouping, all easily configured through the Koolmesh app for fast and flexible commissioning. It also displays key environmental data such as temperature, humidity, and lux, providing intuitive and efficient lighting control for offices, schools, and industrial applications.
| Ambient temperature max.: | 40 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Wall Panel |
| Commissioning Methods: | App & Web (Bluetooth) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 5 % |
| IP Rate: | IP20 |
| Operating Voltage: | 100-240VAC |
| Product height: | 36.0000 mm |
| Product length: | 240.5000 mm |
| Product weight: | 1.0000 kg |
| Product width: | 159.0000 mm |
| Push Button Input: | 4 |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hpad-ts-app.pdf
