Active / Make to Stock

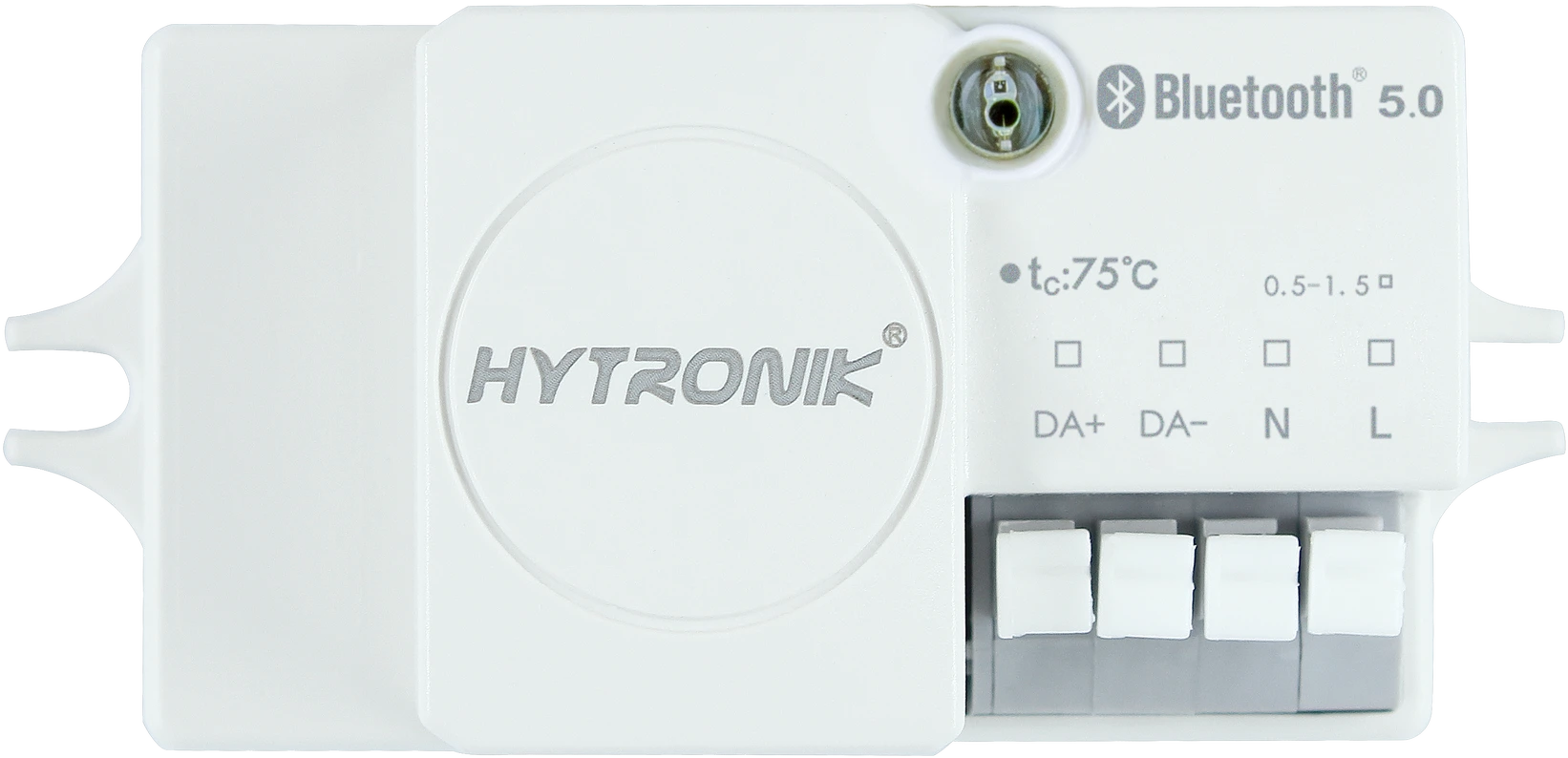

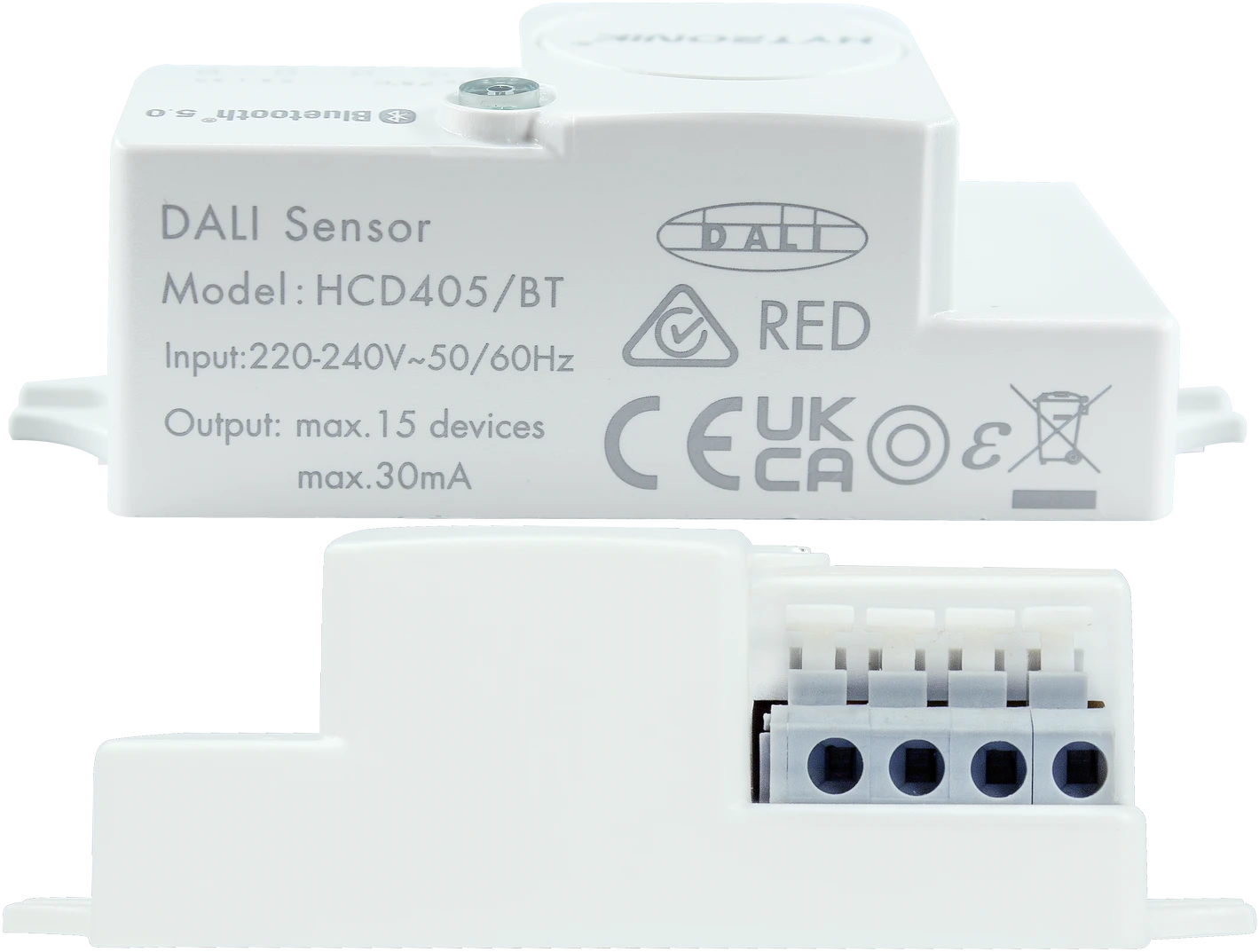

HCD405/BT
Bluetooth DALI HF Sensor | Integrated 30mA PSU | Photocell Advance
BENEFITS
- Compact: Sensor and 30mA DALI PSU in one compact unit
- All-in-one: Occupancy, Daylight and Human Centric Lighting
- Wireless: Bluetooth Mesh reduces extra control wiring
APPLICATIONS
- Round Luminaires · Ceiling Luminaires
- Occupancy Control · Daylight Harvest · HCL
- Offices · Meeting Rooms · Classrooms
Product information "HCD405/BT"
HCD405/BT is a compact Bluetooth DALI microwave sensor with an integrated 30mA DALI power supply, designed for built in luminaire control at mounting heights of up to 6 m. It combines occupancy sensing, Photocell Advance daylight control, tri level dimming and Human Centric Lighting functions, reducing the need for additional control components inside the luminaire. Bluetooth Mesh enables wireless communication between luminaires without additional control wiring. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10x3 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 24.9000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 35.0000 g |
| Product width: | 36.5000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd405-bt.pdf
Installation Manual
User manual: installation-manual-hcd405-bt.pdf
