Active / Make to Stock

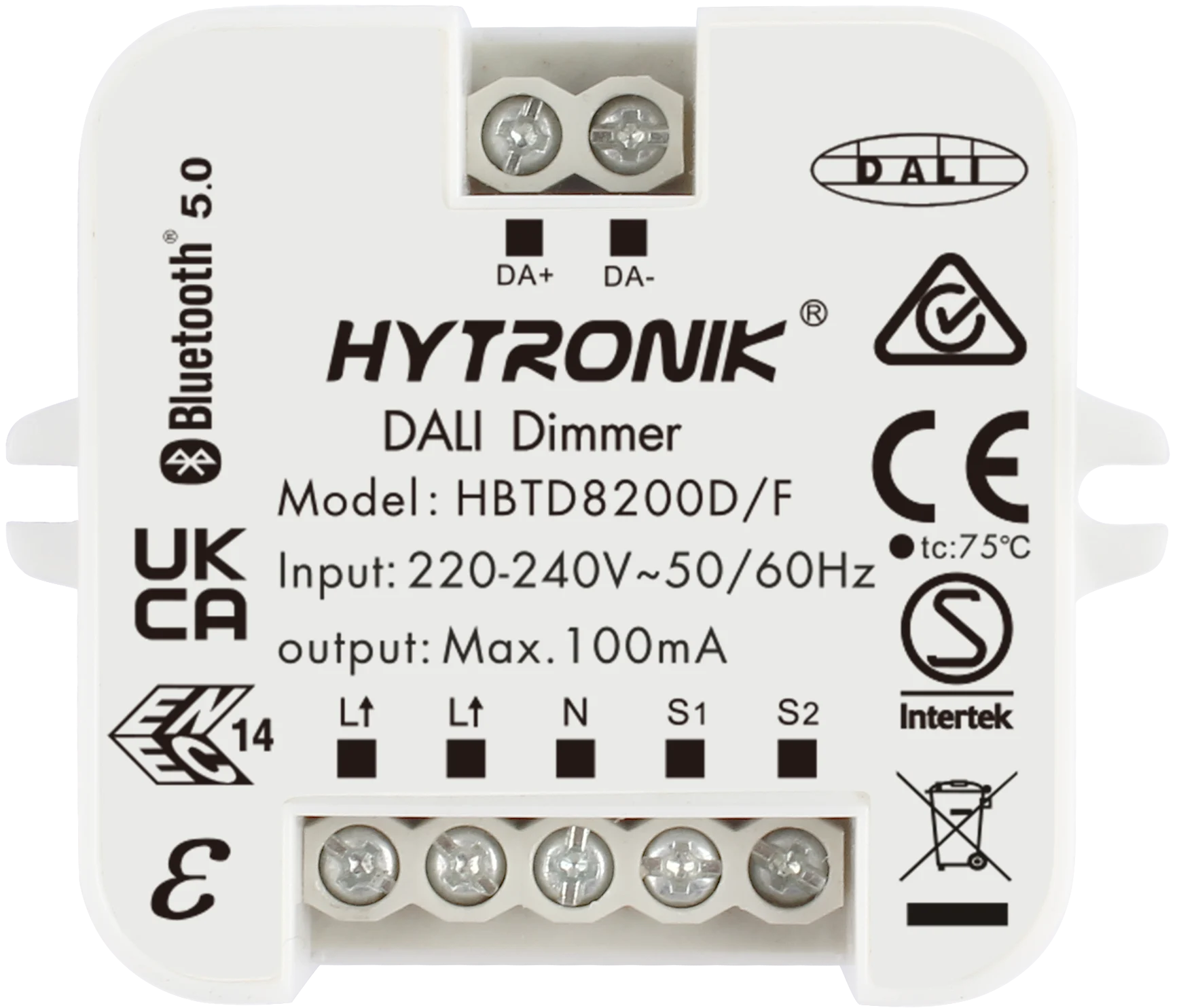

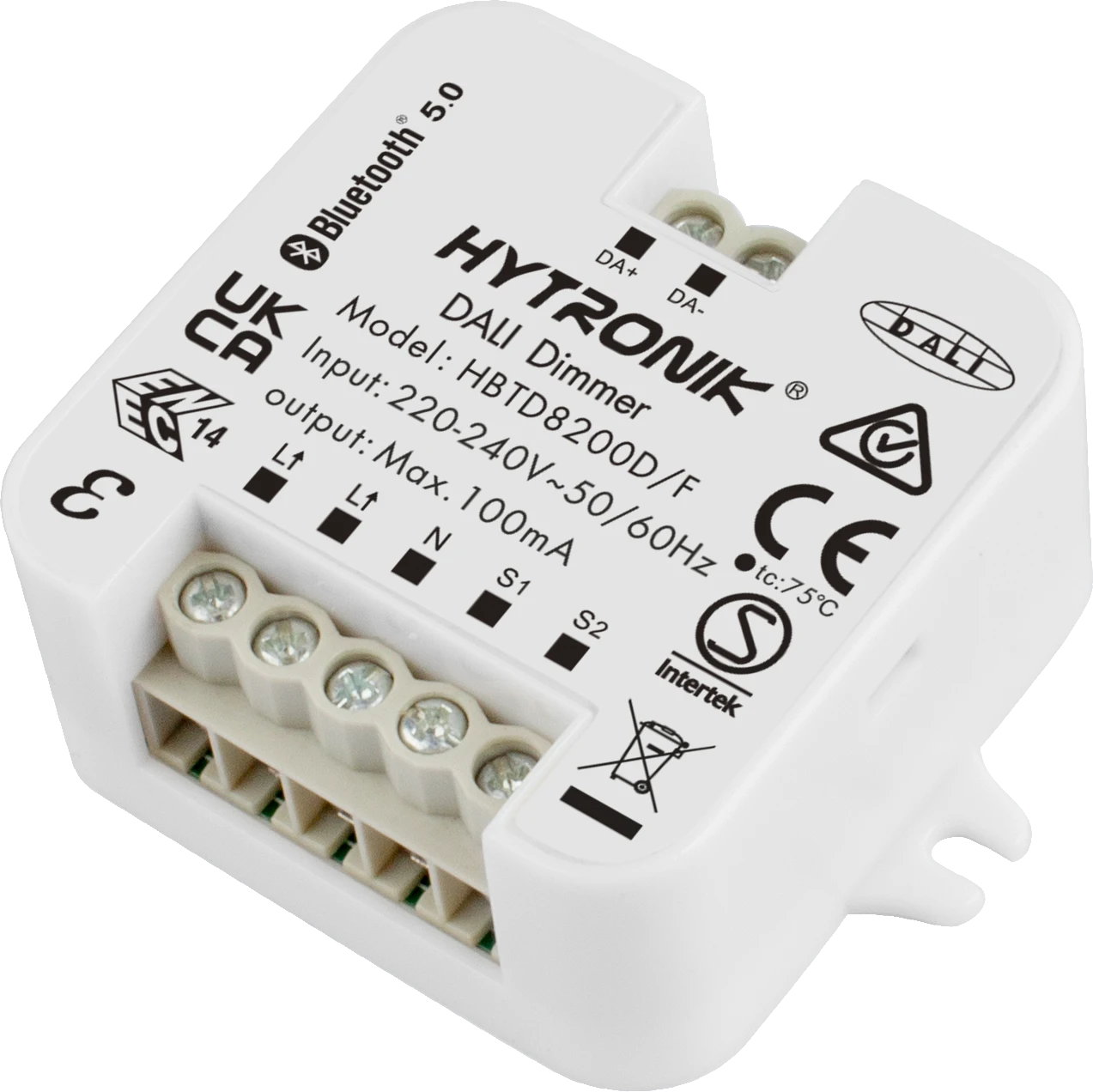

HBTD8200D/F
Bluetooth to DALI Converter | Integrated 80mA PSU | Push Input
BENEFITS
- Wireless: Bluetooth Mesh enables DALI control without extra wiring
- Integrated: Built in 80mA DALI PSU, no external DALI PSU required
- Flexible: Two Push inputs for manual control
APPLICATIONS

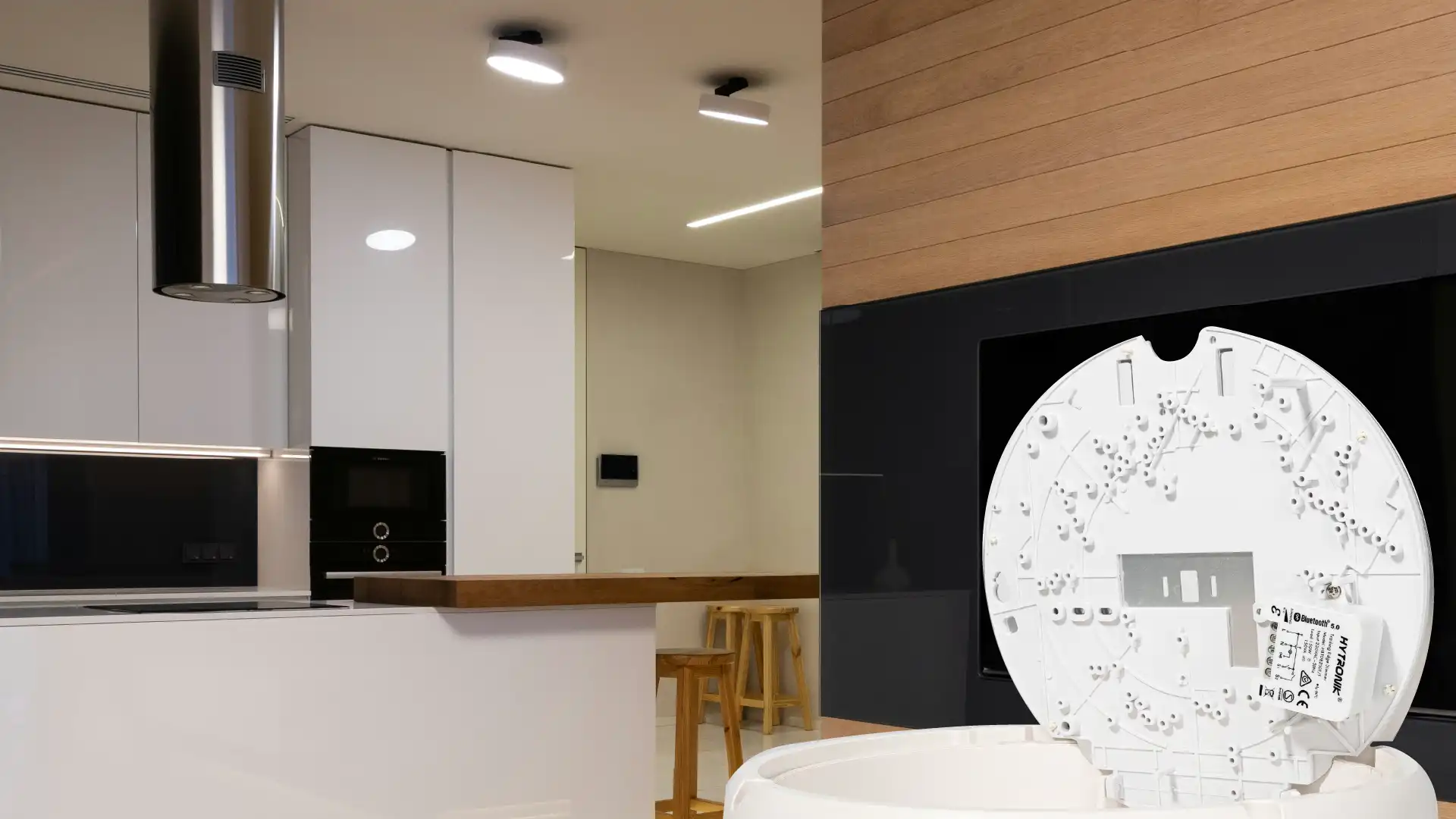

- Built in DALI Luminaires
- Wireless DALI Control · Push Control · Lighting Upgrades
- Offices · Classrooms · Healthcare Spaces
Product information "HBTD8200D/F"
HBTD8200D/F is a built in Bluetooth to DALI converter with an integrated 80mA DALI power supply, designed to add wireless control to DALI luminaires without an external DALI PSU. It converts Bluetooth Mesh commands into powered DALI broadcast control, allowing compatible DALI drivers to be controlled wirelessly while reducing additional system components. Two Push inputs provide convenient local manual control, while Bluetooth Mesh simplifies communication between luminaires without extra control wiring. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | DALI-to Bluetooth Converter/Translator Module |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 22.0000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 50.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200d-f.pdf
Installation Manual
User manual: installation-manual-hbtd8200d-f.pdf
