HBTD8200D/E
Bluetooth-to-DALI Converter | Integrated 10mA PSU | Screw Mounting
BENEFITS
- Smart: Converting Bluetooth control to DALI lighting
- Flexible: Dimming and tunable white control for varied lighting needs
- Flexible: Allowing push switch & app setup
APPLICATIONS
- Built-in luminaries
- Bluetooth receiver node
- Offices, Classrooms, Industry and Healthcare Spaces

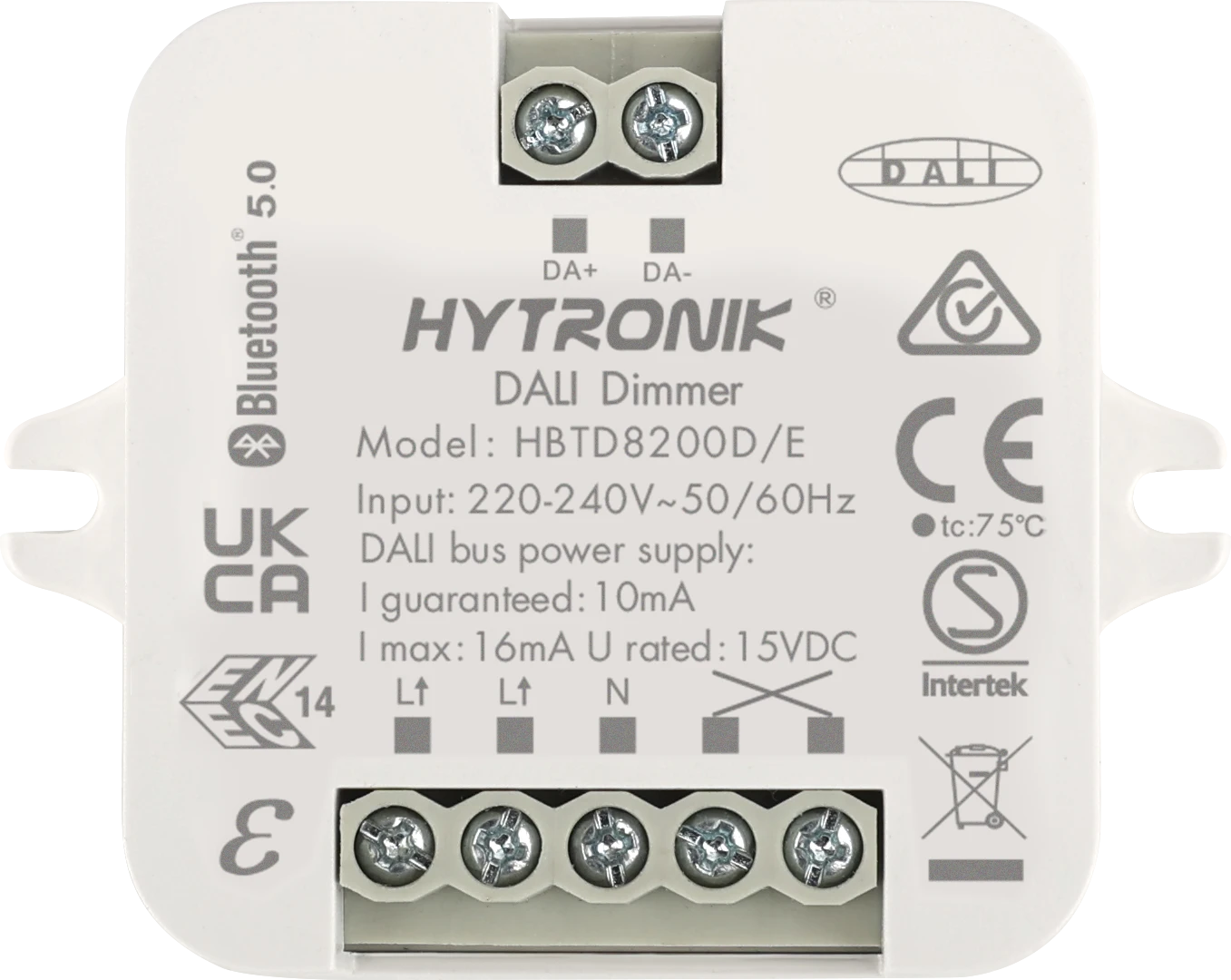

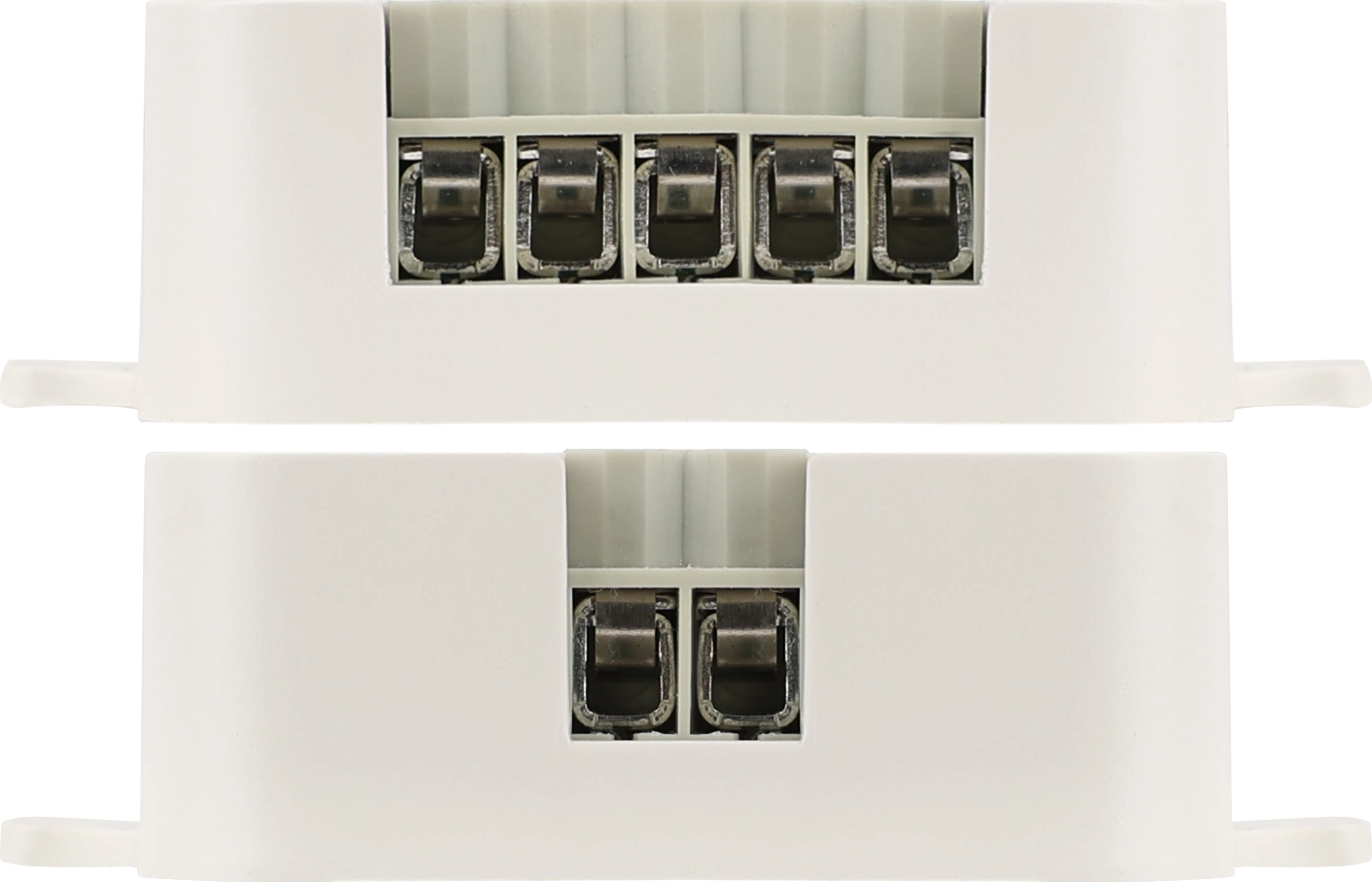

Product information "HBTD8200D/E"
HBTD8200D/E is a Bluetooth-to-DALI converter designed to add wireless control to individual DALI luminaires. It converts Bluetooth commands into DALI output, supporting smooth dimming and tunable white control for flexible lighting adjustment. Bluetooth Mesh enables wireless communication without additional control wiring, simplifying installation and lighting upgrade projects. Suitable for residential, commercial, and industrial lighting applications, it provides a practical solution for luminaire-level wireless control. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | DALI-to Bluetooth Converter/Translator Module |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50Hz |
| Product height: | 18.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 32.0000 g |
| Product width: | 58.0000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200d-e.pdf
Installation Manual
User manual: installation-manual-hbtd8200d-e.pdf
