Active / Make to Stock

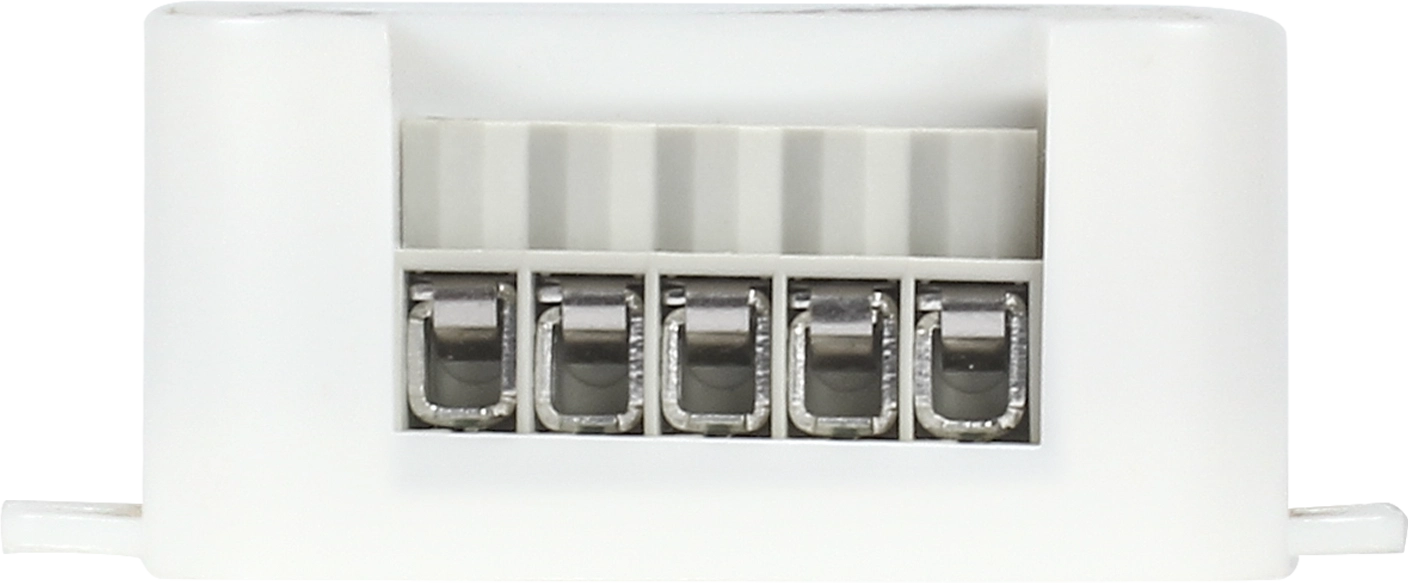

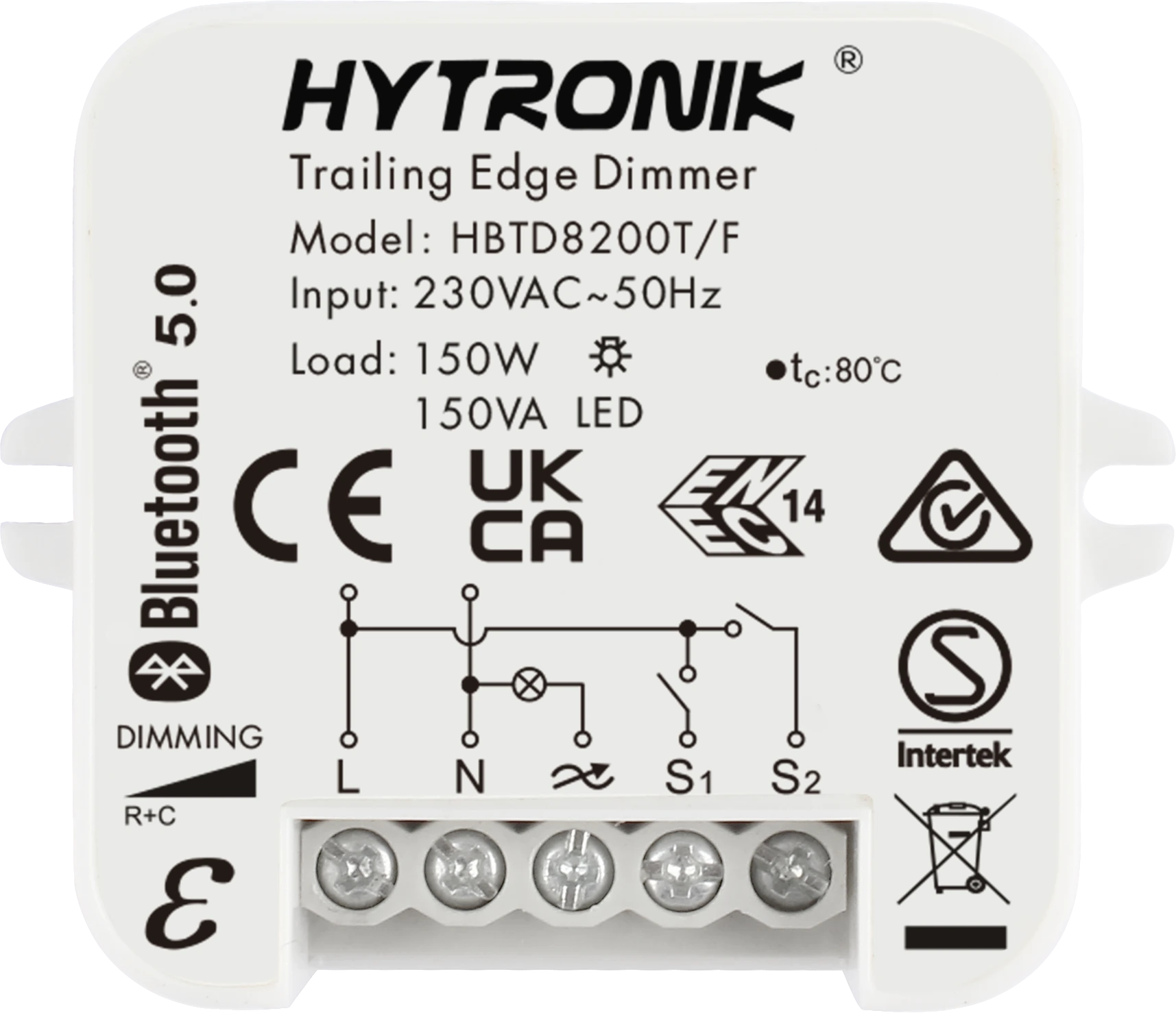

HBTD8200T/F
Bluetooth Receiver | Trailing Edge | Screw Mounting
BENEFITS
- Compact: Built in design for easy luminaire integration
- Powerful: Trailing edge dimming for loads up to 150VA
- Flexible: Two Push inputs for local dimming and scene control
APPLICATIONS
- Phase Dimmable LED Luminaires · Built in Control
- Wireless Dimming · Push Control · Scene Recall
- Offices · Meeting Rooms · Hotel Rooms
Product information "HBTD8200T/F"
HBTD8200T/F is a compact Bluetooth trailing edge dimmer designed for built in luminaire control, supporting capacitive loads up to 150VA. It adds wireless dimming control to compatible phase dimmable luminaires, while two Push inputs provide convenient local ON/OFF, dimming and scene control. Bluetooth Mesh enables wireless communication between luminaires without additional control wiring, making it well suited to both new installations and lighting retrofit projects. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Built-in Luminaire |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | Trailing edge (Phase control) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Load capacitive: | 150.0000 VA |
| Load resistive: | 150.0000 W |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 22.0000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 39.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hbtd8200t-f.pdf
Installation Manual
User manual: installation-manual-hbtd8200t-f.pdf
Login

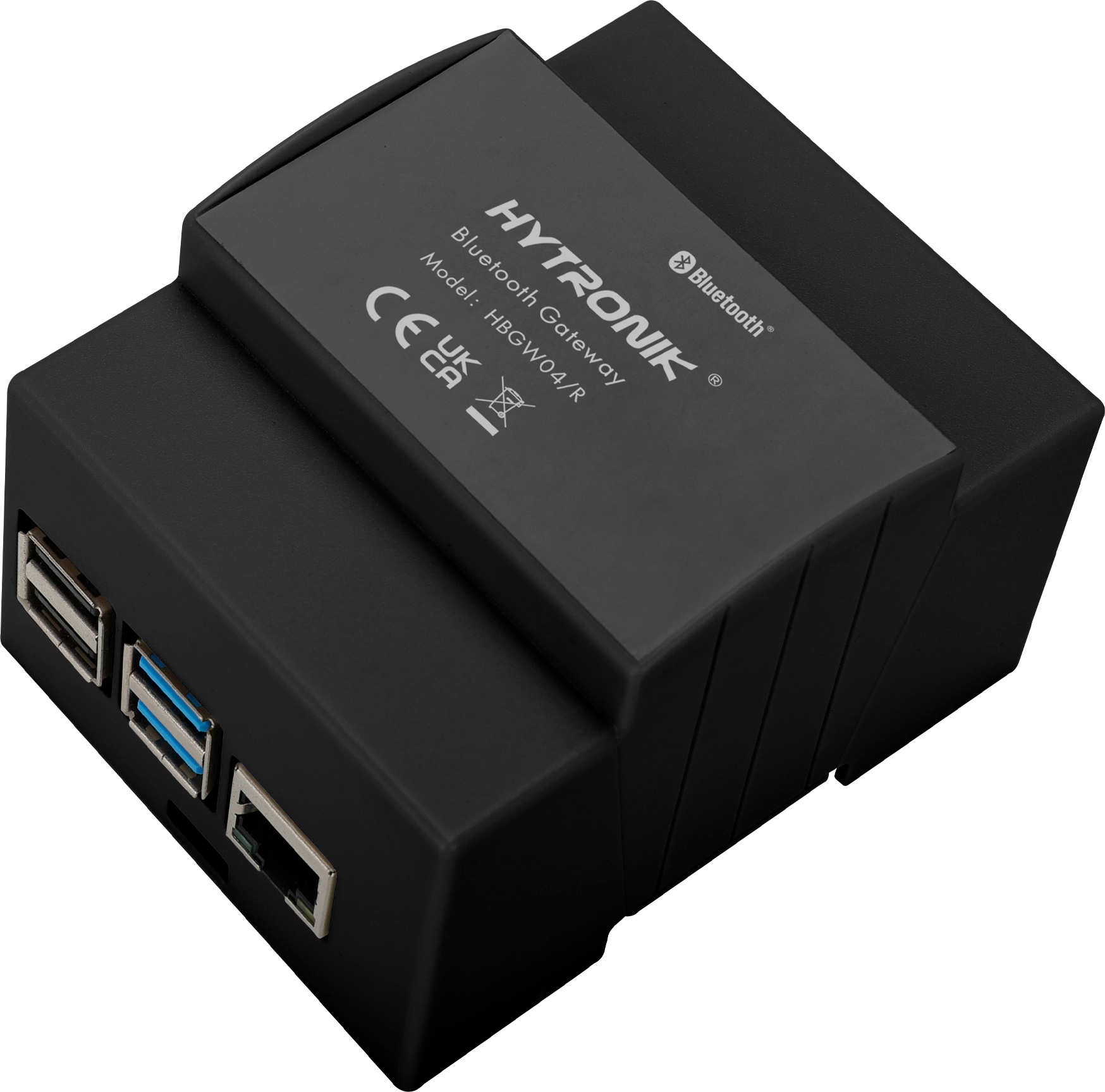

Bluetooth Network Components
