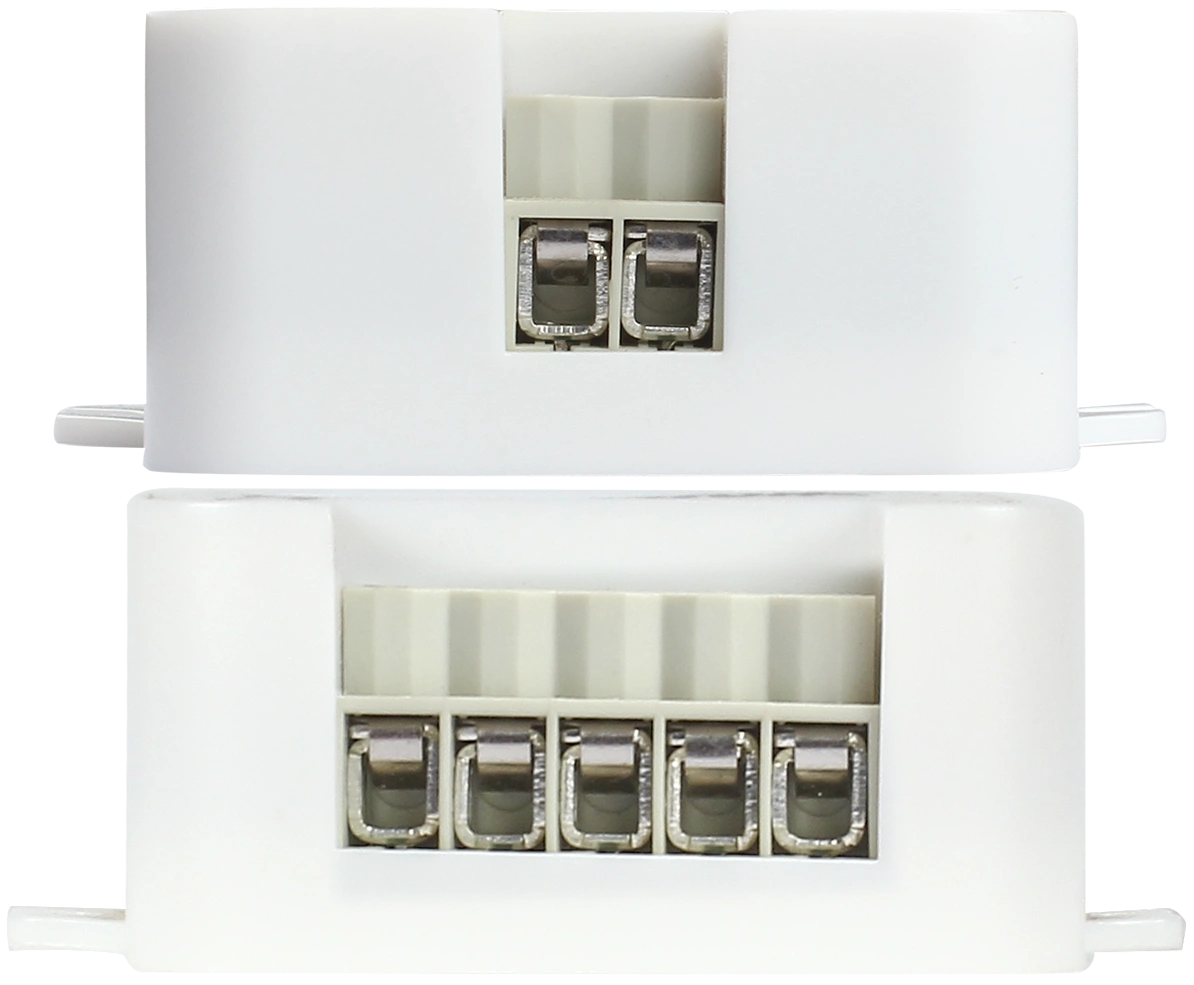

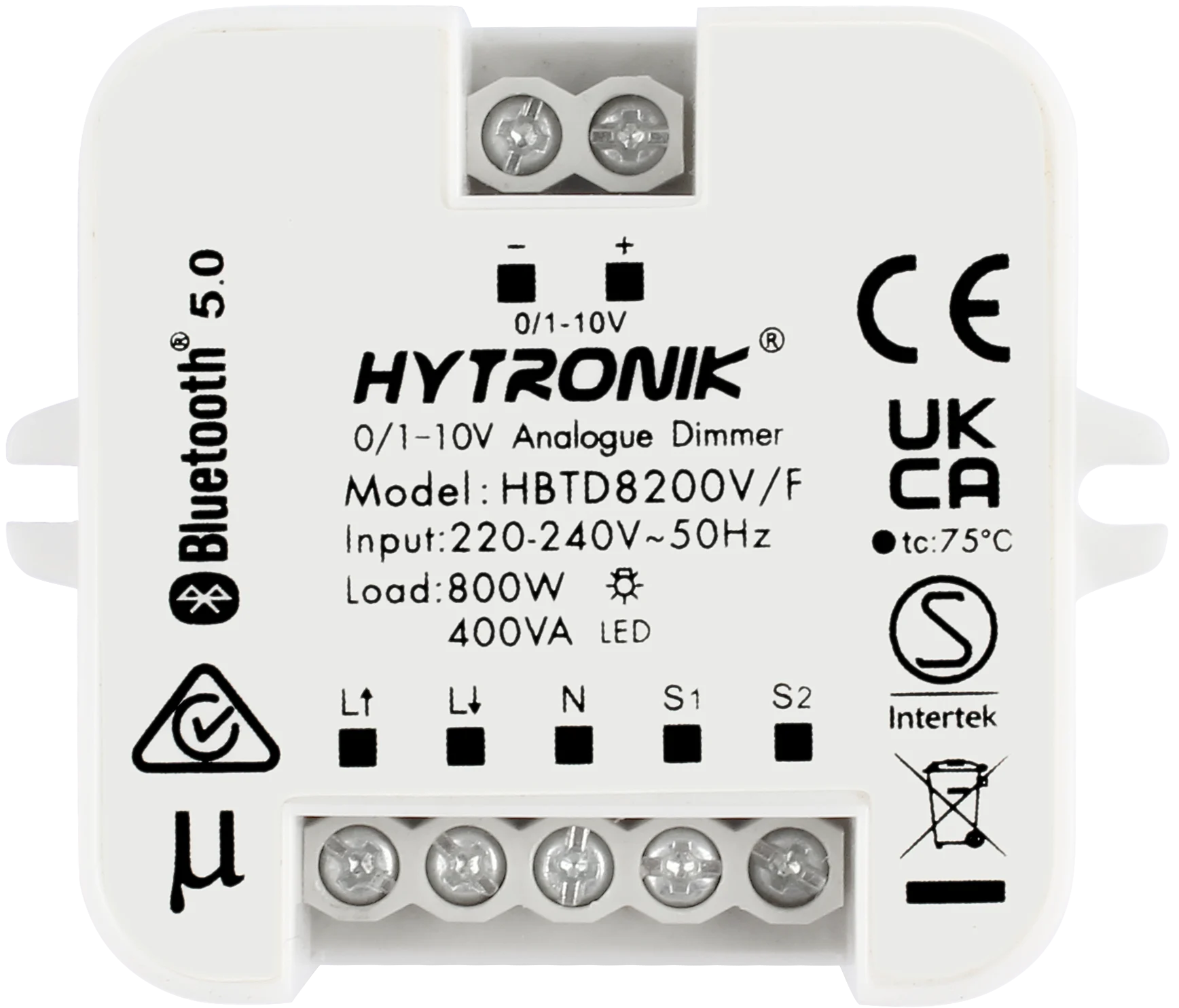

HBTD8200V/F
Bluetooth Receiver | 0/1-10V | With PUSH Interface | Screw Mounting
BENEFITS
- Compact: Two screw holes to be built inside luminaires
- Simple: 0/1-10V dimming control
- Flexible: 2 Push inputs for manual control
APPLICATIONS
- Built-in luminaires
- Offices, Classrooms
- Industry and Healthcare Spaces
Product information "HBTD8200V/F"
HBTD8200V/F is designed as Bluetooth built-in receiver node with trailing edge output. It can be used alongside our Bluetooth motion sensor range as Bluetooth receiver nodes. Or, it can also be used solely as Bluetooth control unit for each luminaire. Whether for home use, commercial or industrial applications, HBTD8200V/F do it all. Simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | -45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Built-in Luminaire |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | 0/1-10V |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 39.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200v-f.pdf
