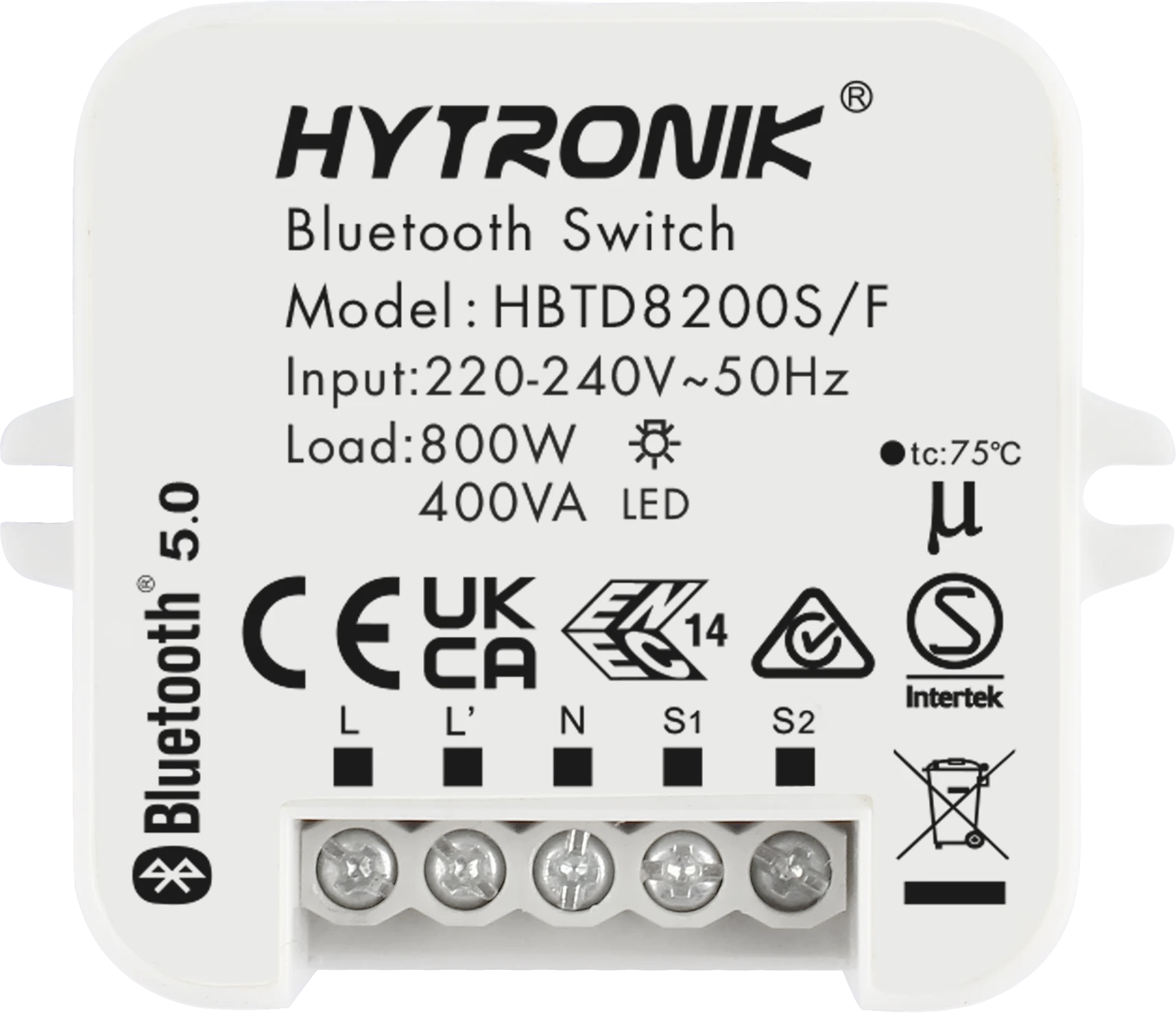

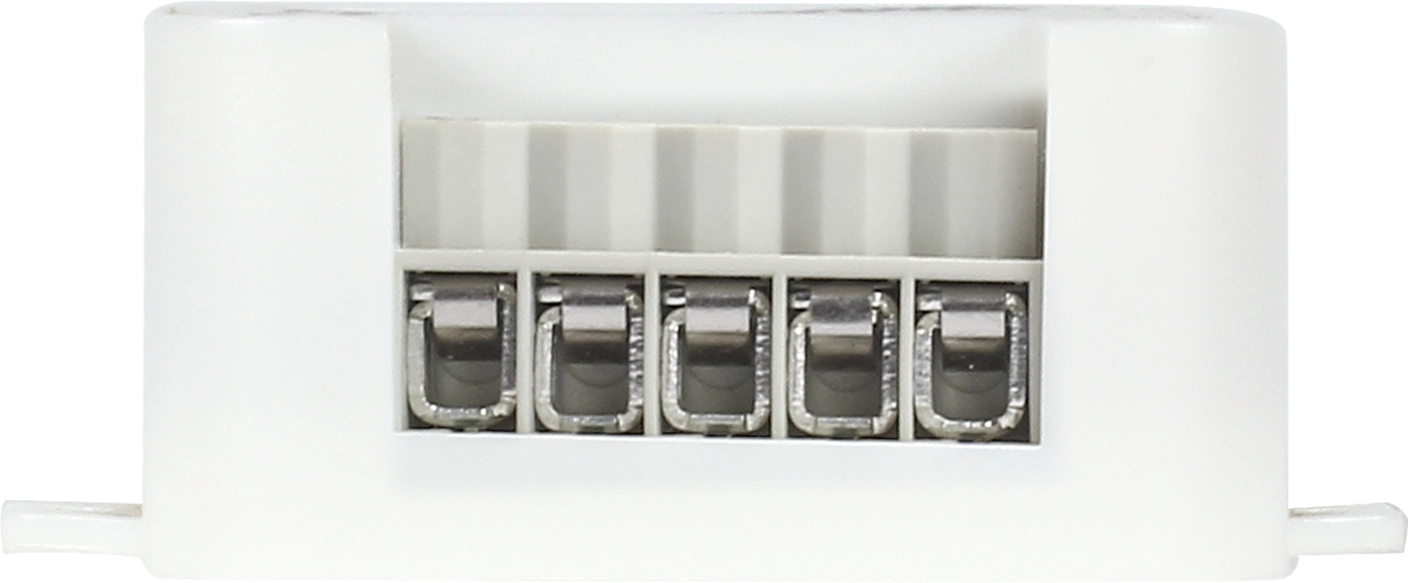

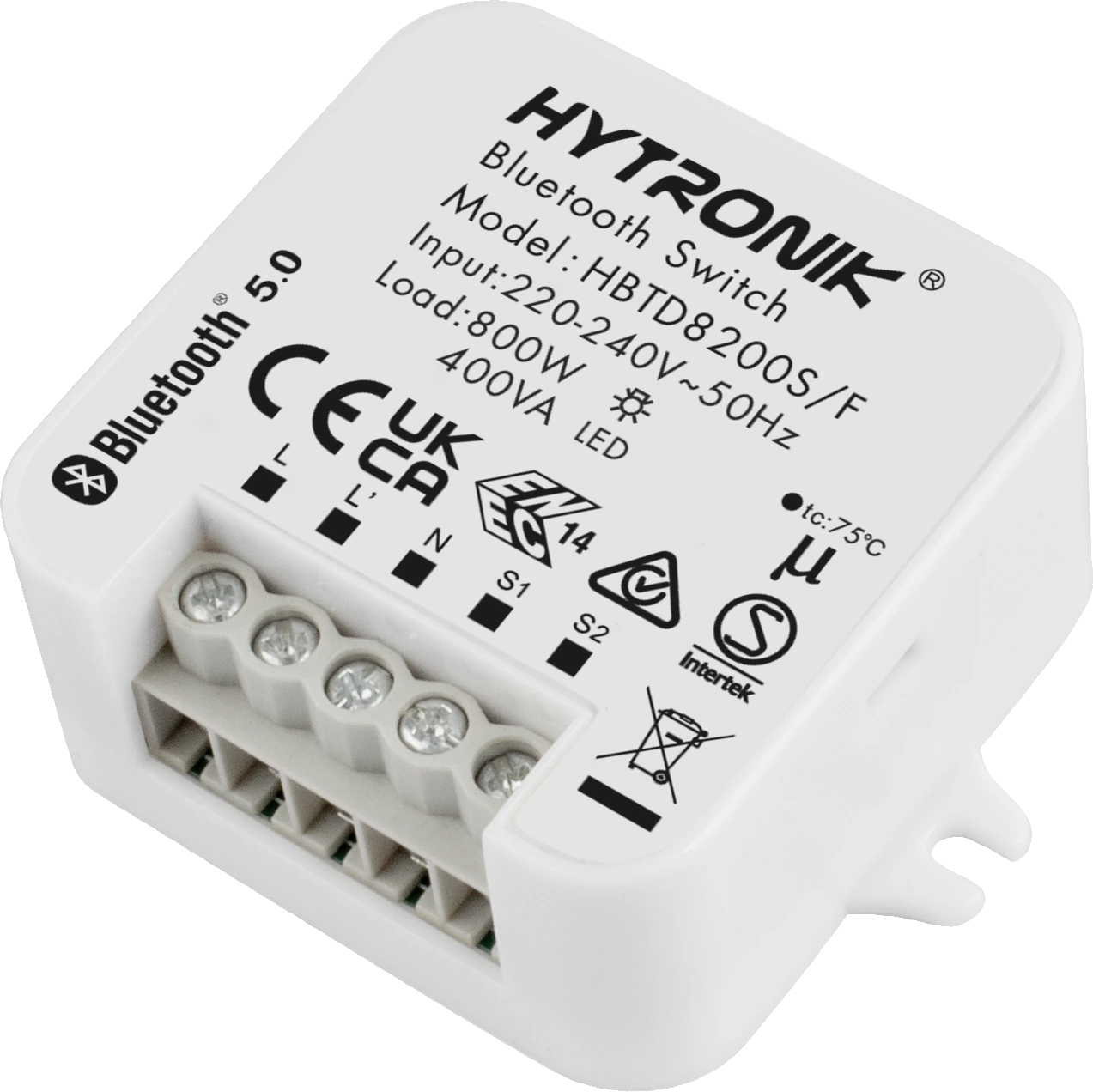

HBTD8200S/F
Bluetooth Receiver | Relay Control | Screw Mounting
BENEFITS
- Compact: Two screw holes to be built inside luminaires
- Autonomous: On/off control for up to 800W
- Flexible: 2 Push inputs for manual control
APPLICATIONS
- Bluetooth receiver node
- Offices, Classrooms
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBTD8200S/F"
HBTD8200S/F is designed as Bluetooth built-in
receiver node with relay control. They can be used alongside our Bluetooth
motion sensor range as Bluetooth receiver nodes. Or, they can
also be used solely as Bluetooth control unit for each luminaire.
Whether for home use, commercial or industrial applications,
HBTD8200S/F series does it all. Simple device setup and
commissioning can be done via Koomesh app.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Built-in Luminaire |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 7 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Relay On/Off |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 39.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -10 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200s-f.pdf
