Active / Make to Stock

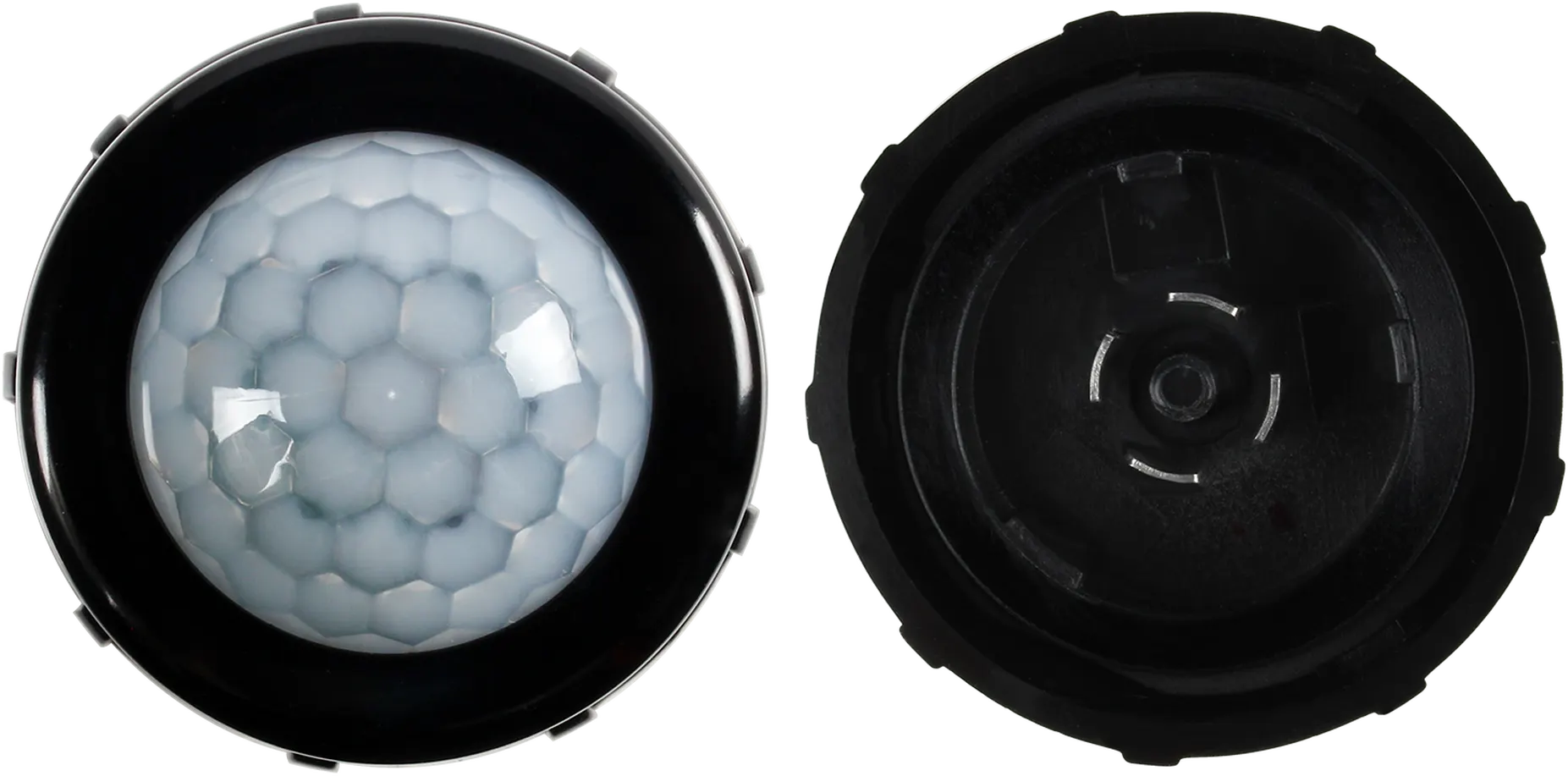

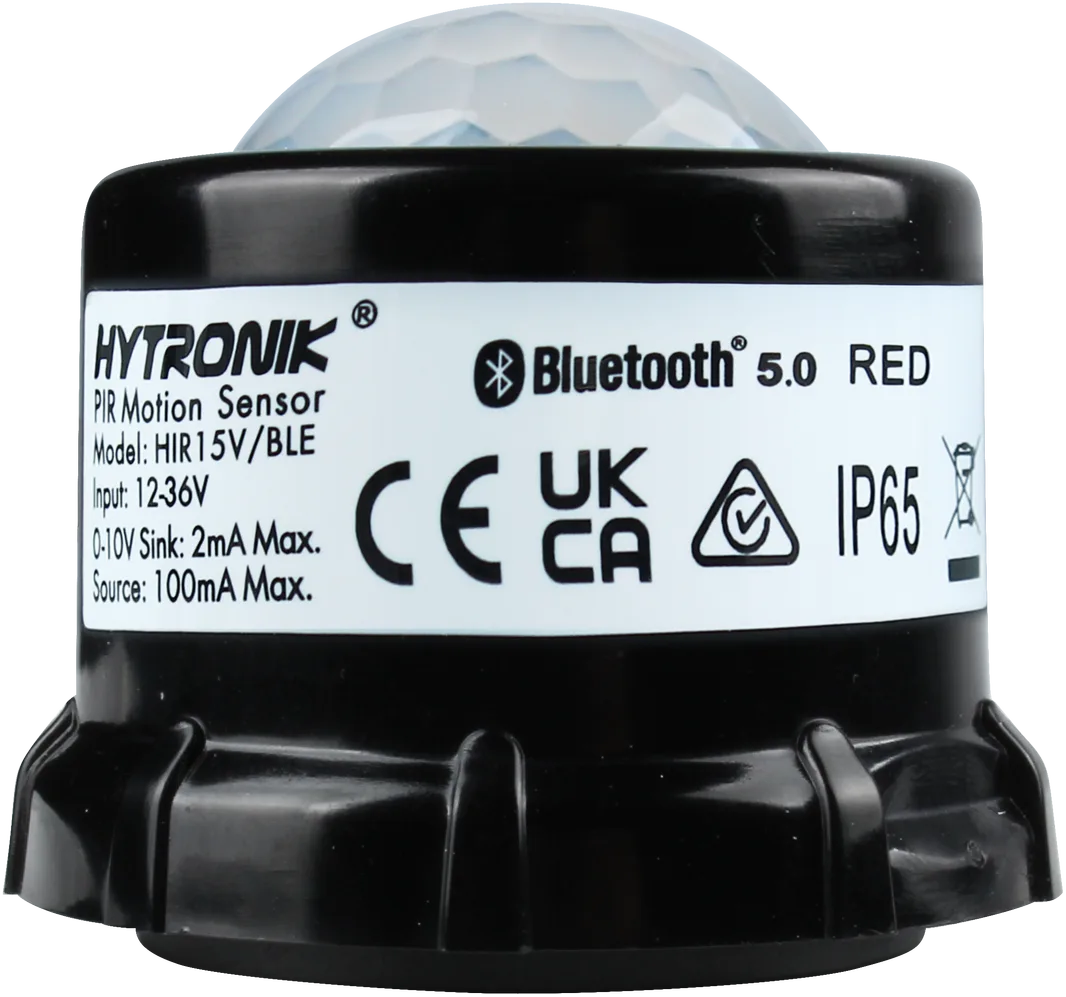

HIR15V/BLE
PIR Highbay | Bluetooth to 0-10V | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 interface with IP65 for reliable integration
- Adjustable: Shielding cap for flexible detection area control
- Wireless: App based commissioning for fast setup
APPLICATIONS

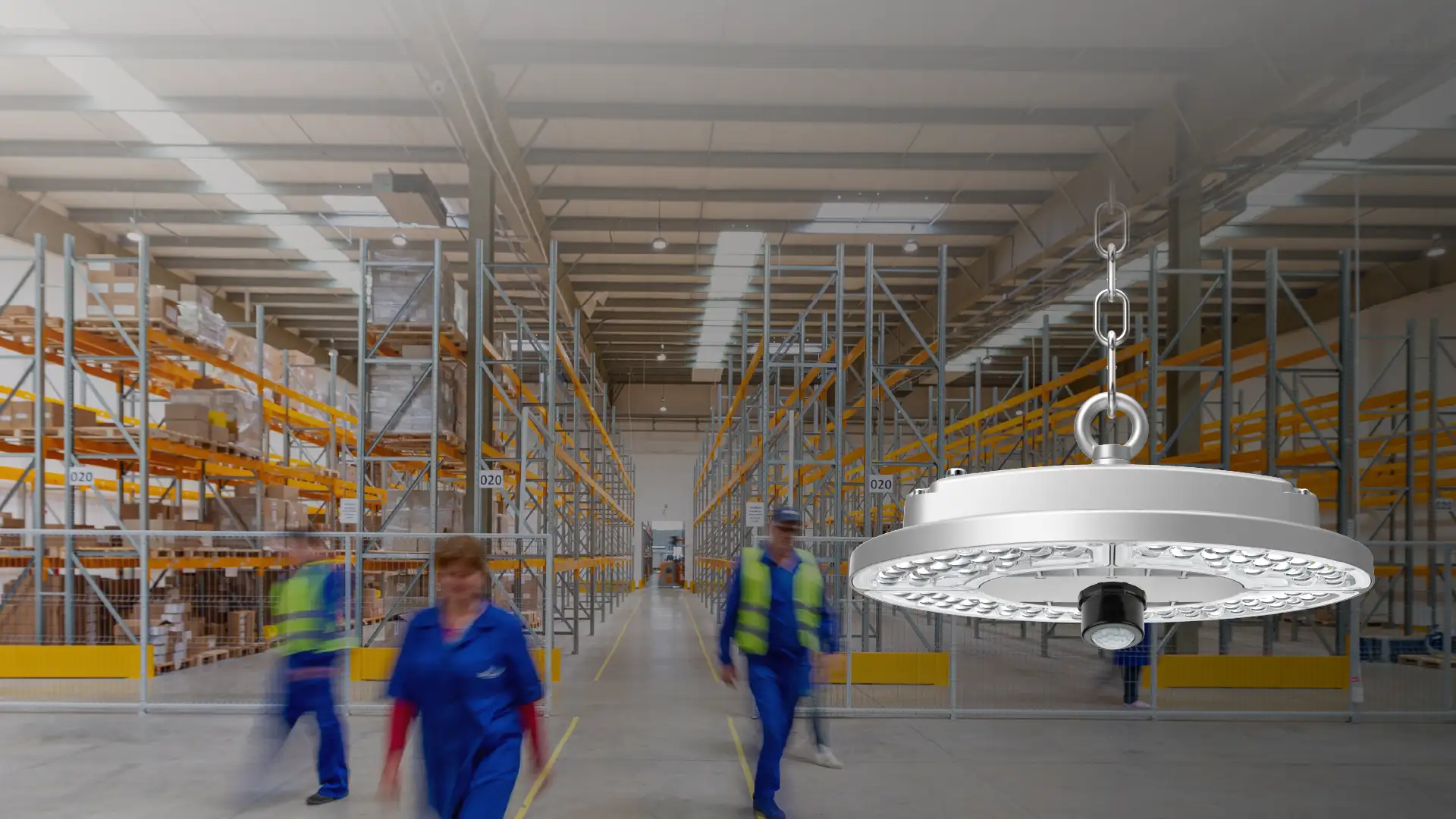

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "HIR15V/BLE"
HIR15V/BLE is a PIR motion and daylight sensor ready for Zhaga Book 18 receptacles, featuring 0–10V output and Bluetooth Mesh connectivity for luminaire-level lighting control. Designed for high-bay and area lighting applications with mounting heights up to 15 m, it offers IP65 protection for reliable operation in demanding installations. The sensor supports wireless commissioning via the Koolmesh system and provides accurate daylight-dependent regulation using Photocell Advance. Optional shielding accessories allow flexible adjustment of the detection area to suit different installation requirements.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 18 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | 0-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12-36 VDC |
| Output Voltage: | 0~10 V |
| Product Status: | Active / Make to Stock |
| Product height: | 43.8000 mm |
| Product length: | 50.4000 mm |
| Product weight: | 44.7000 g |
| Product width: | 50.4000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir15v-ble.pdf
