HBEM038
DALI/Bluetooth Converter | 30mA DALI Broadcast Output | Attachable sensor heads
BENEFITS
- Integrated: DALI/Bluetooth converter with built-in control base
- Professional: Powered-DALI to control Emergency and DALI/DALI-2 drivers
- Powerful: Customizable EM tests and settings via Koolmesh
APPLICATIONS
- Wireless Control
- DALI Emergency applications
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBEM038"

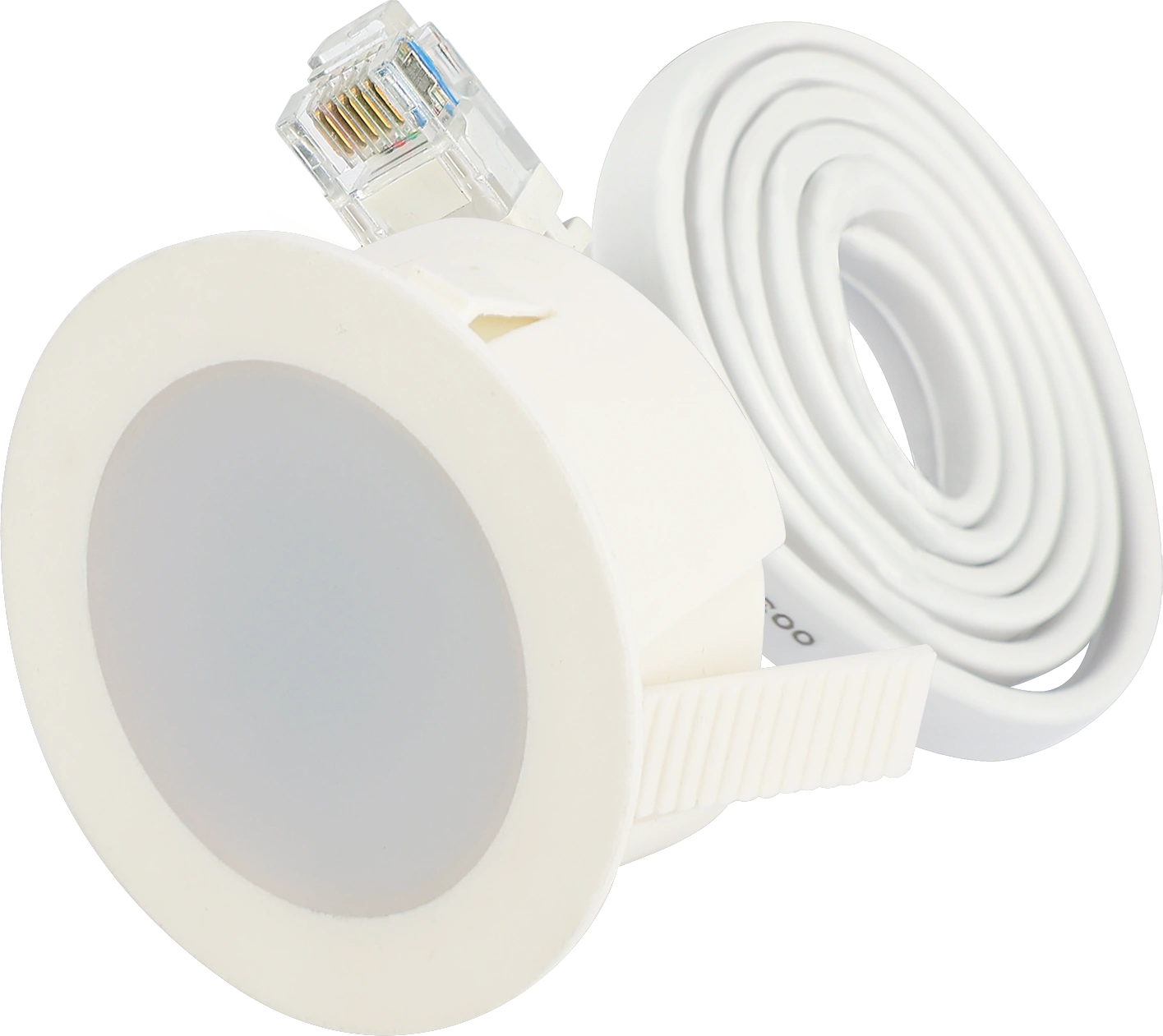

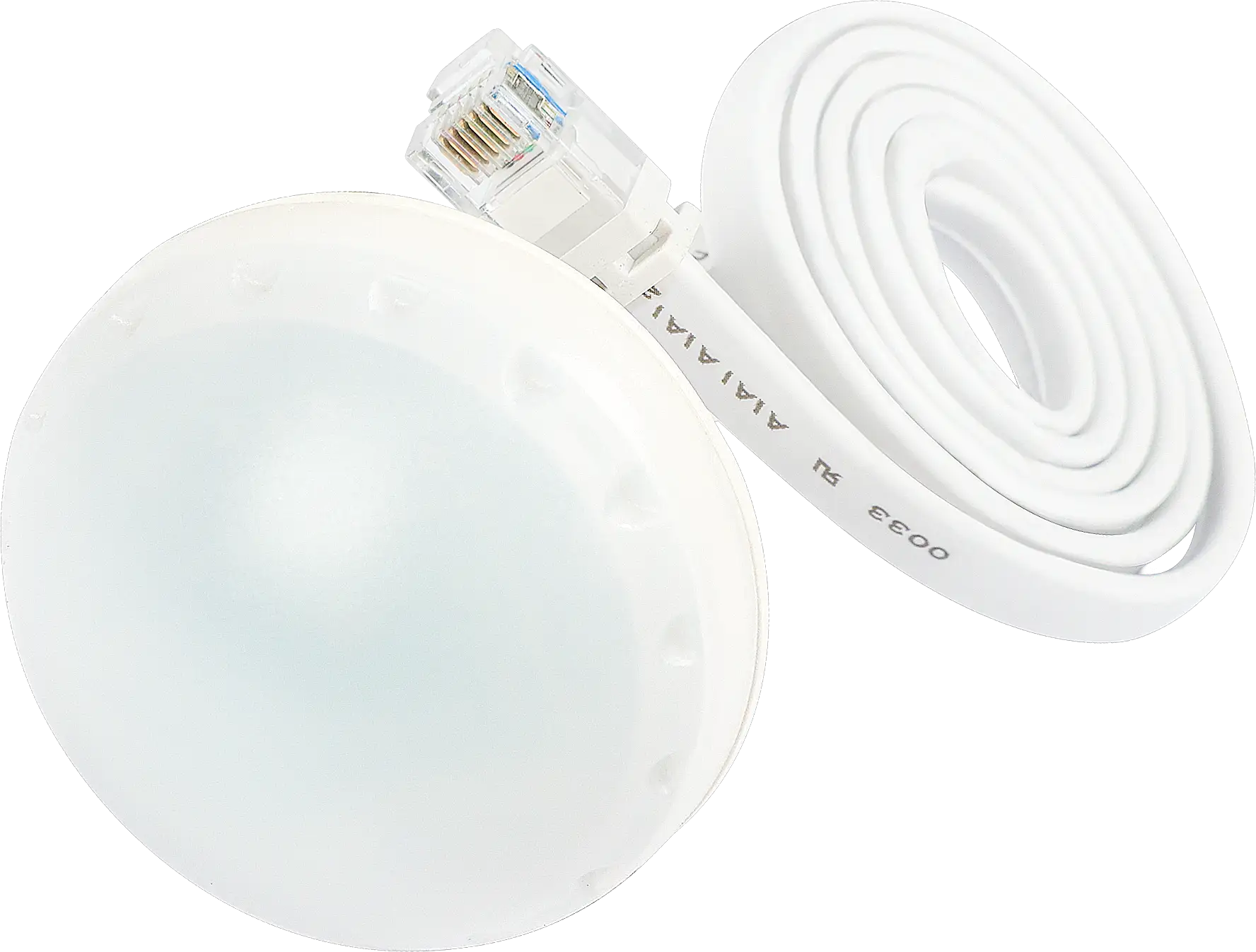

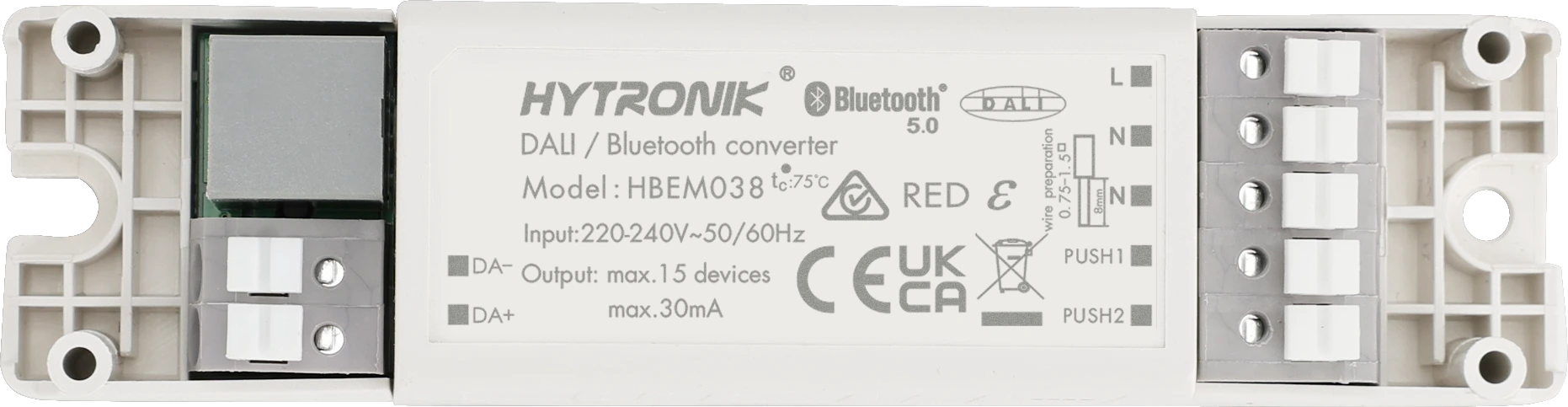

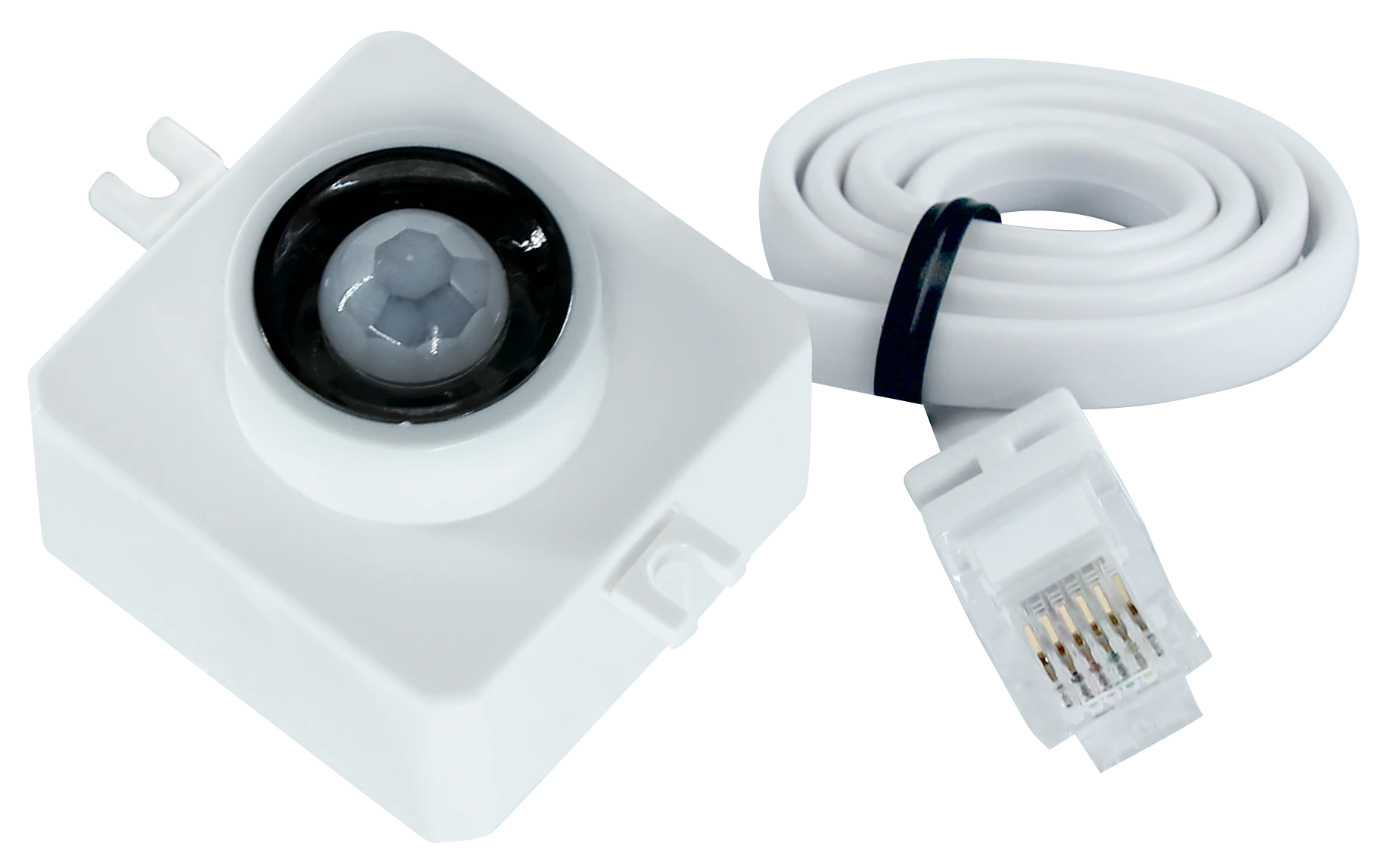

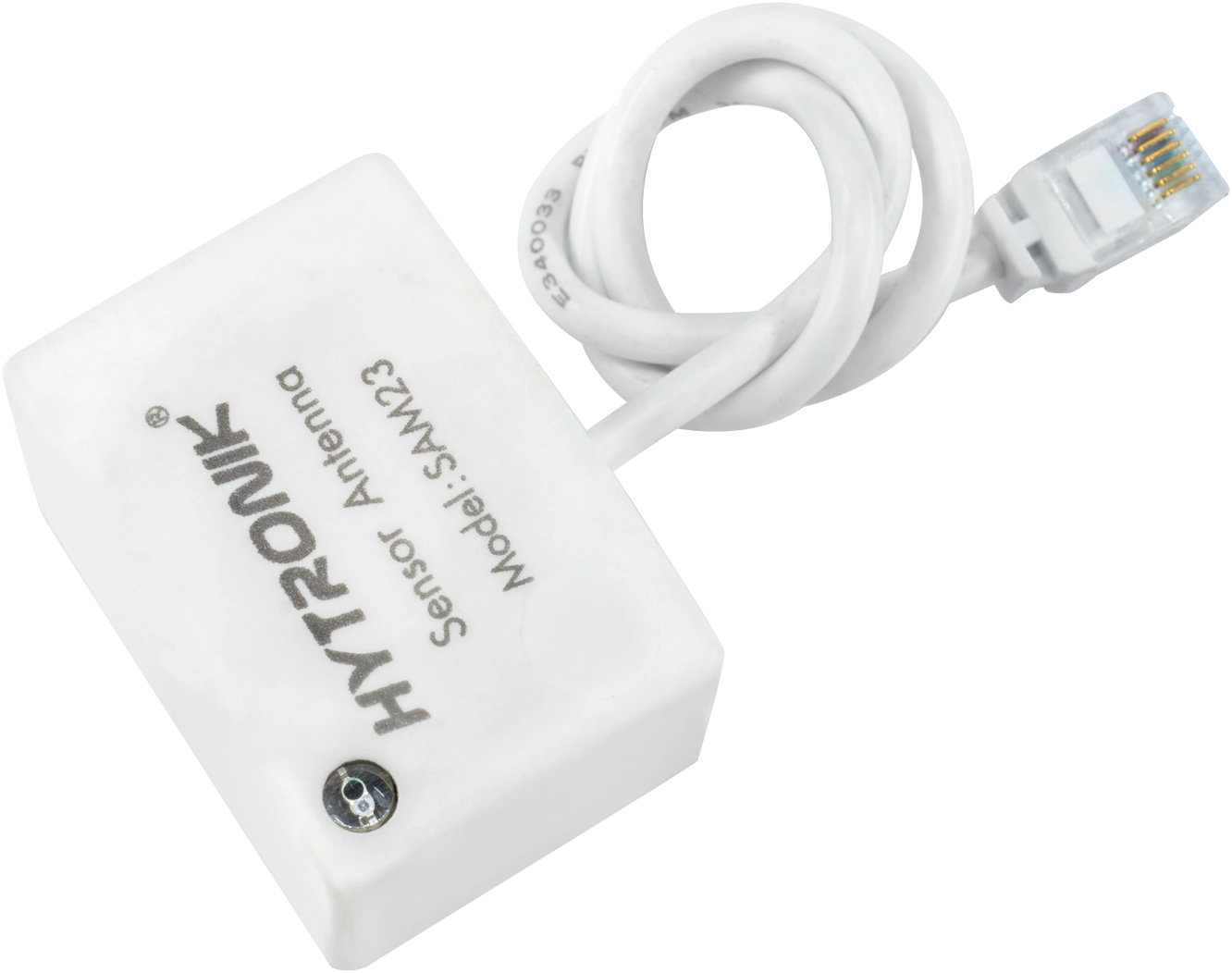

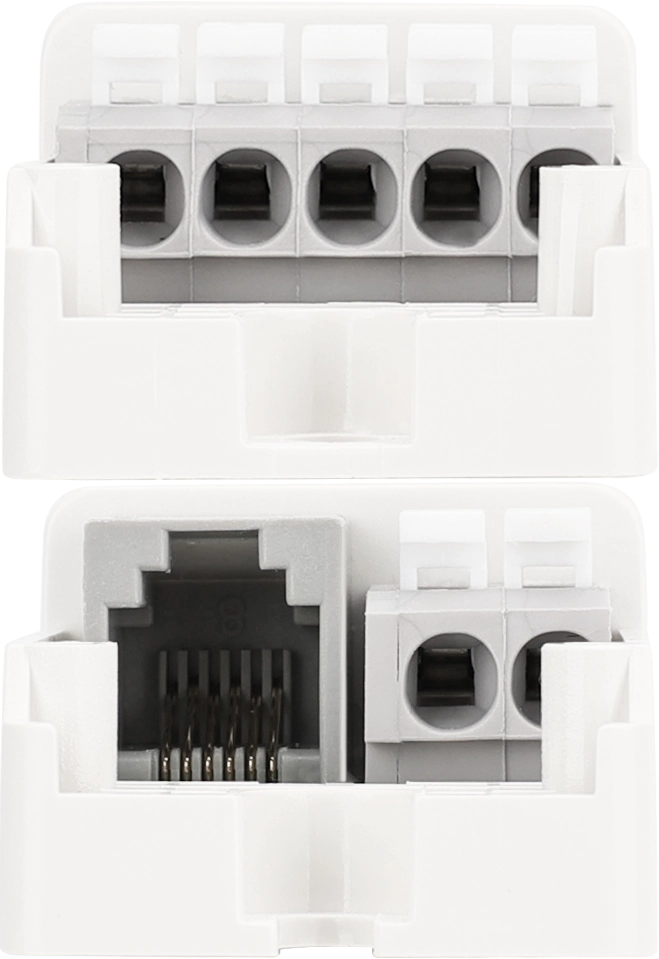

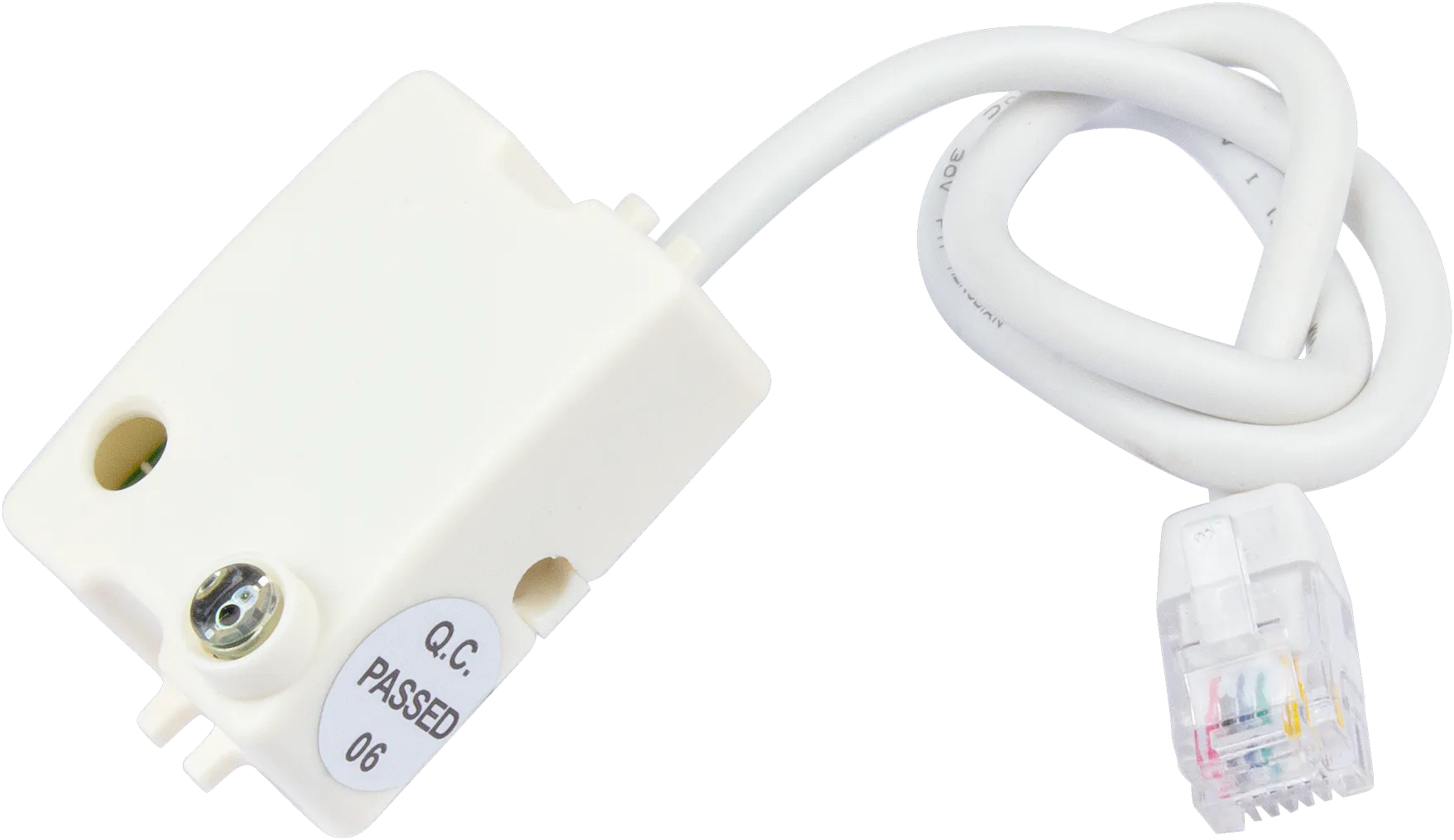

HBEM038 is a wireless DALI/Bluetooth convertor with 30mA DALI power supply built in, which converts a standard DALI/DALI2 emergency driver output to Bluetooth output. It can work with a wide range of microwave and PIR sensor heads by plug and play. In the meantime, it enables users to manage and customize monthly functional and annual duration tests based on the Koolmesh Emergency system.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | Bluetooth-to-DALI Emergency Converter/Translator |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | DALI |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 21.0000 mm |
| Product length: | 110.5000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hbem038.pdf
