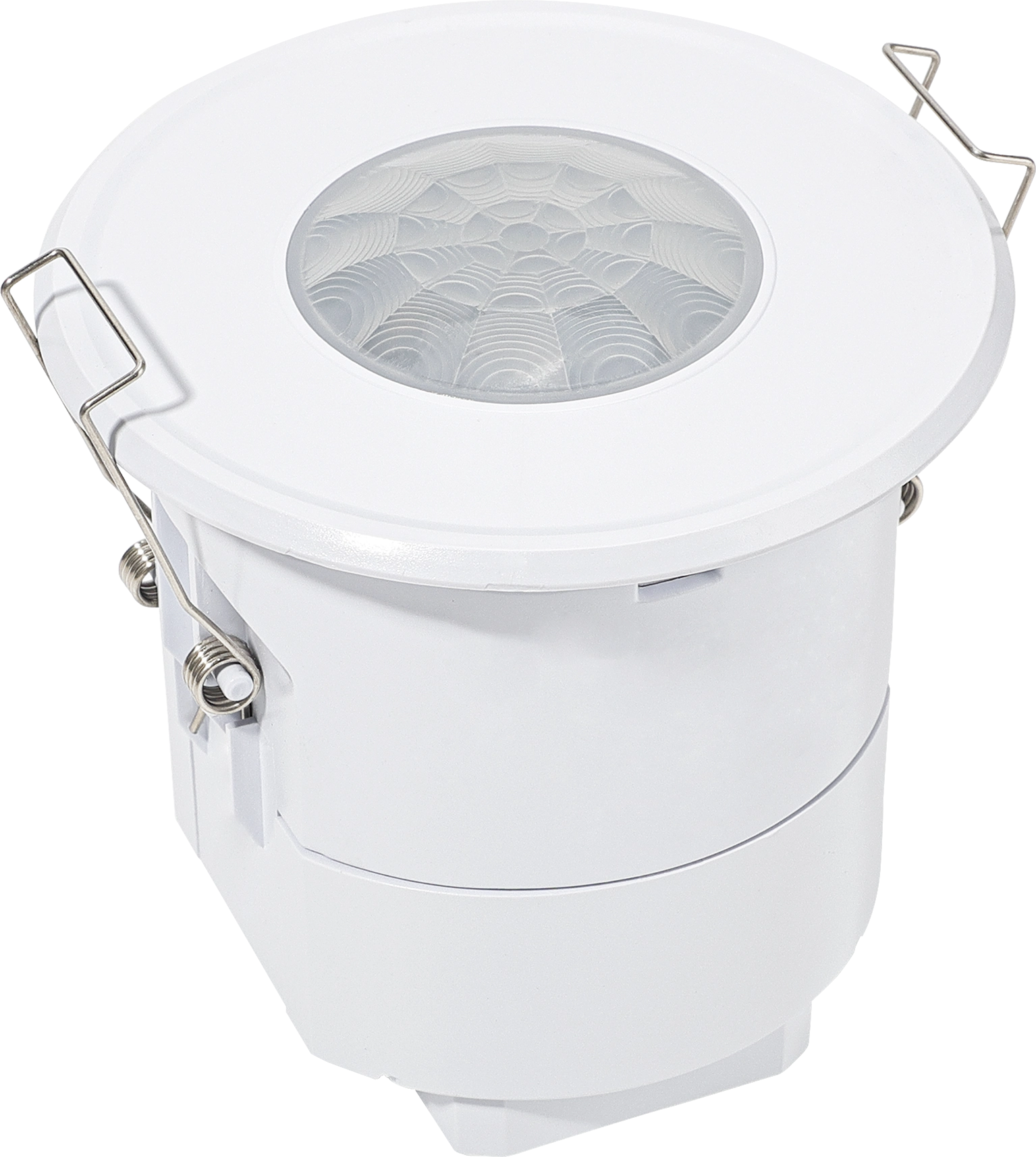

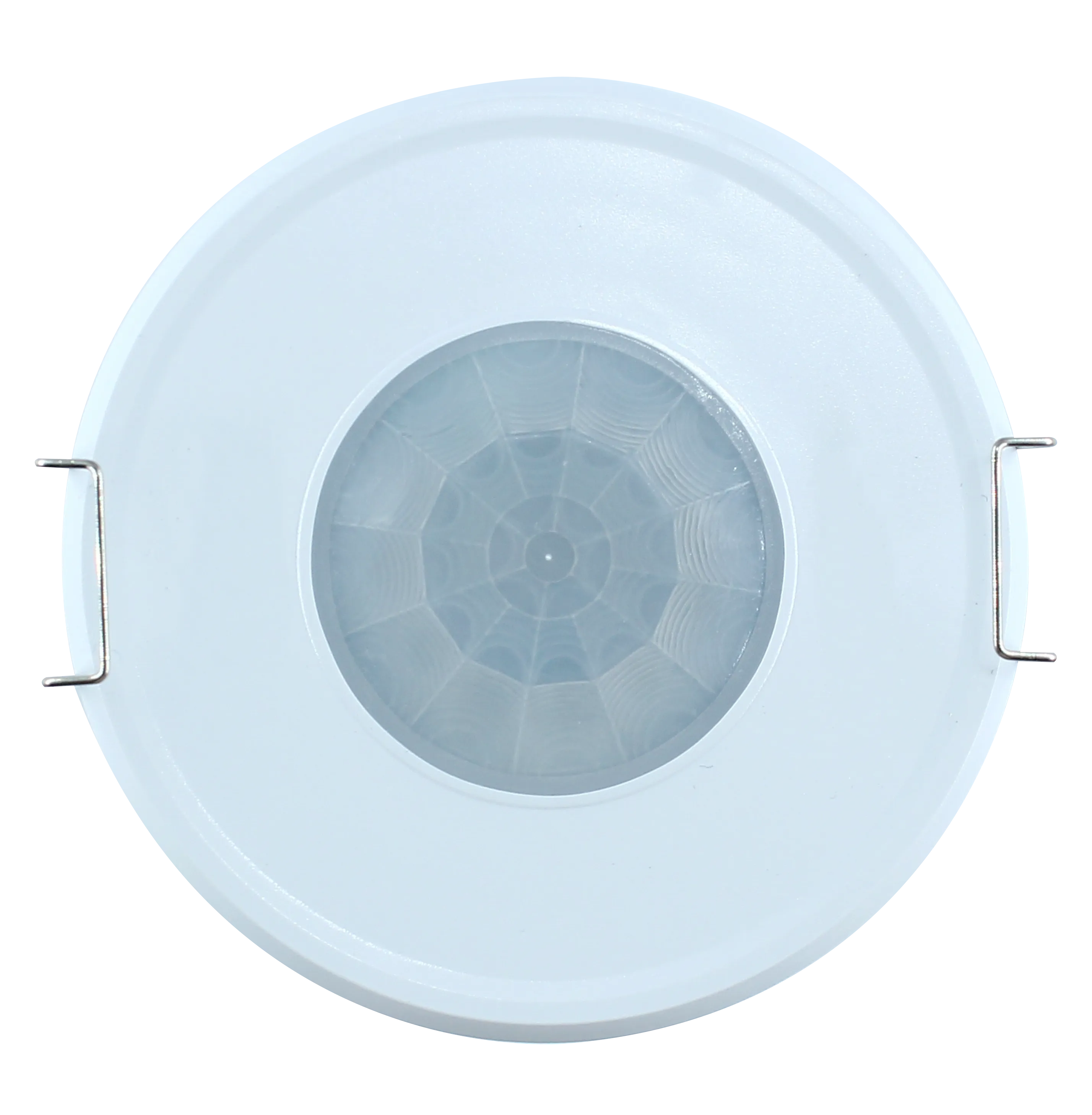

HBIR31

PIR Low-bay | Bluetooth DALI with PSU | Ceiling mounting

BENEFITS

Efficient: Standalone sensor for easy refurbishment
Simple: Tri-level control & Daylight harvest
Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh

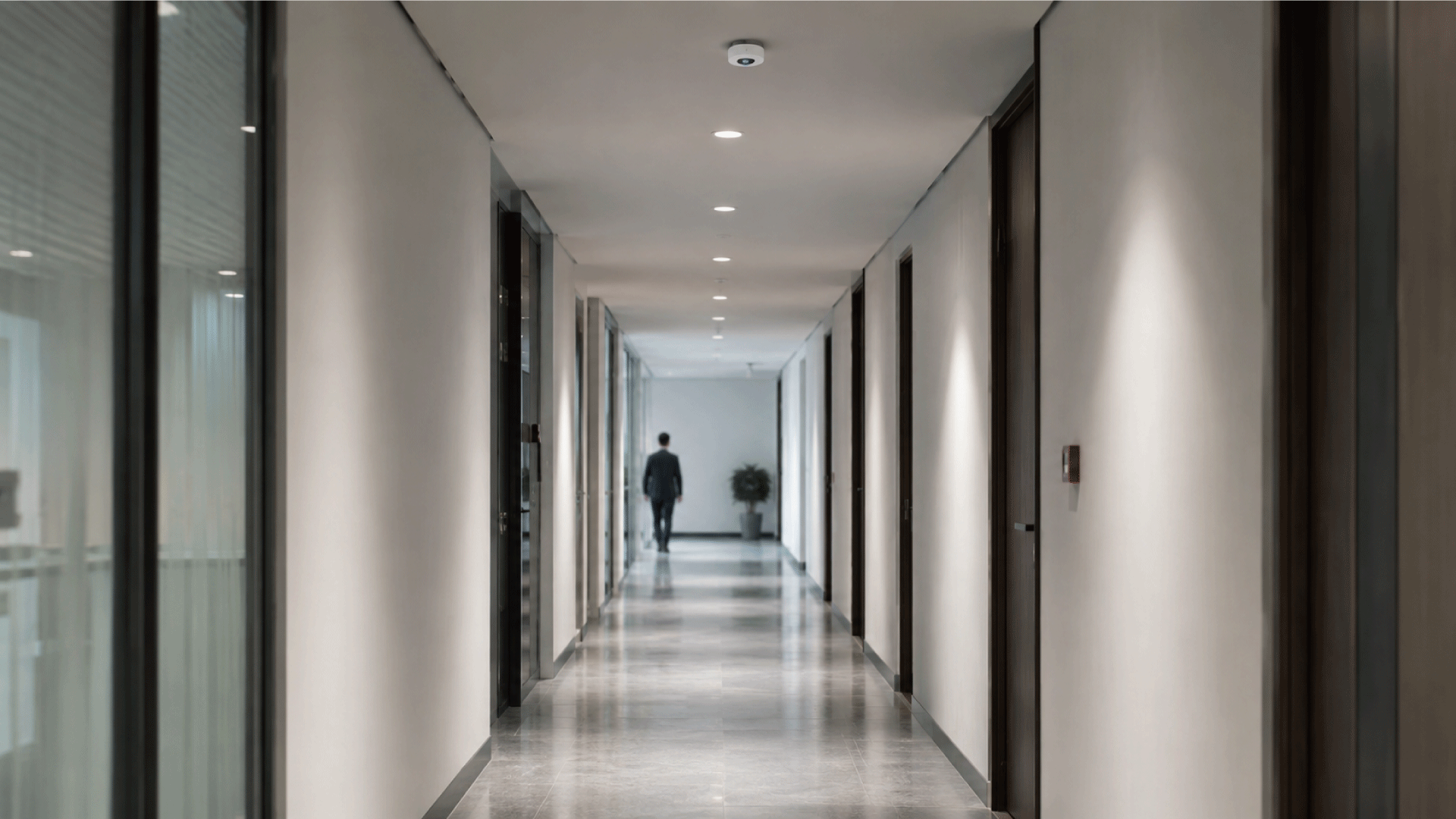

APPLICATIONS

Standalone installation for ceiling up to 6m
Office / Meeting rooms
Schools / Classroom

Product information "HBIR31"

HBIR31 is a Bluetooth PIR standalone motion sensor with 80mA DALI power supply built in, which can control up to 40 LED drivers. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects (especially for retrofit upgrade projects!). Meanwhile, simple device setup and commissioning can be done via Koolemsh app.

Ambient temperature max.:	50 °C
Ambient temperature min.:	-20 °C
Bluetooth frequency:	2.4 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth technology:	Nordic nRF52832
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
Connector Type:	Standard 2 cables
Daylight Harvest:	No
Daylight Sensor Option:	Ordinary Photodiode/Photocell
Detection Methods:	Passive Infrared (PIR)
Detection angle:	360°
Detection range (DxH):	9x6
Dimming (Output) Interface:	DALI & DALI-2
Features:	Daylight Harvest, Tri-level (Corridor Function)
Human Centric Lightning (HCL):	No
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Installation Type:	Stand-alone
Lens type:	Standard Low-bay
Maximum Mounting Height:	3.0000 m
Mounting Height:	Low-bay
Mounting hole spacing:	66.0000 mm
Operating Voltage:	220 - 240 VAC 50/60 Hz
Product height:	75.2000 mm
Product width:	78.0000 mm
Push Button Input:	2
Required DALI Current:	80.0000 mA
Storage temperature max.:	70 °C
Storage temperature min.:	-40 °C
Tri-level (Corridor function):	No
Voltage Type:	AC
Warming-up:	20 s
Zhaga:	No
