Active / New

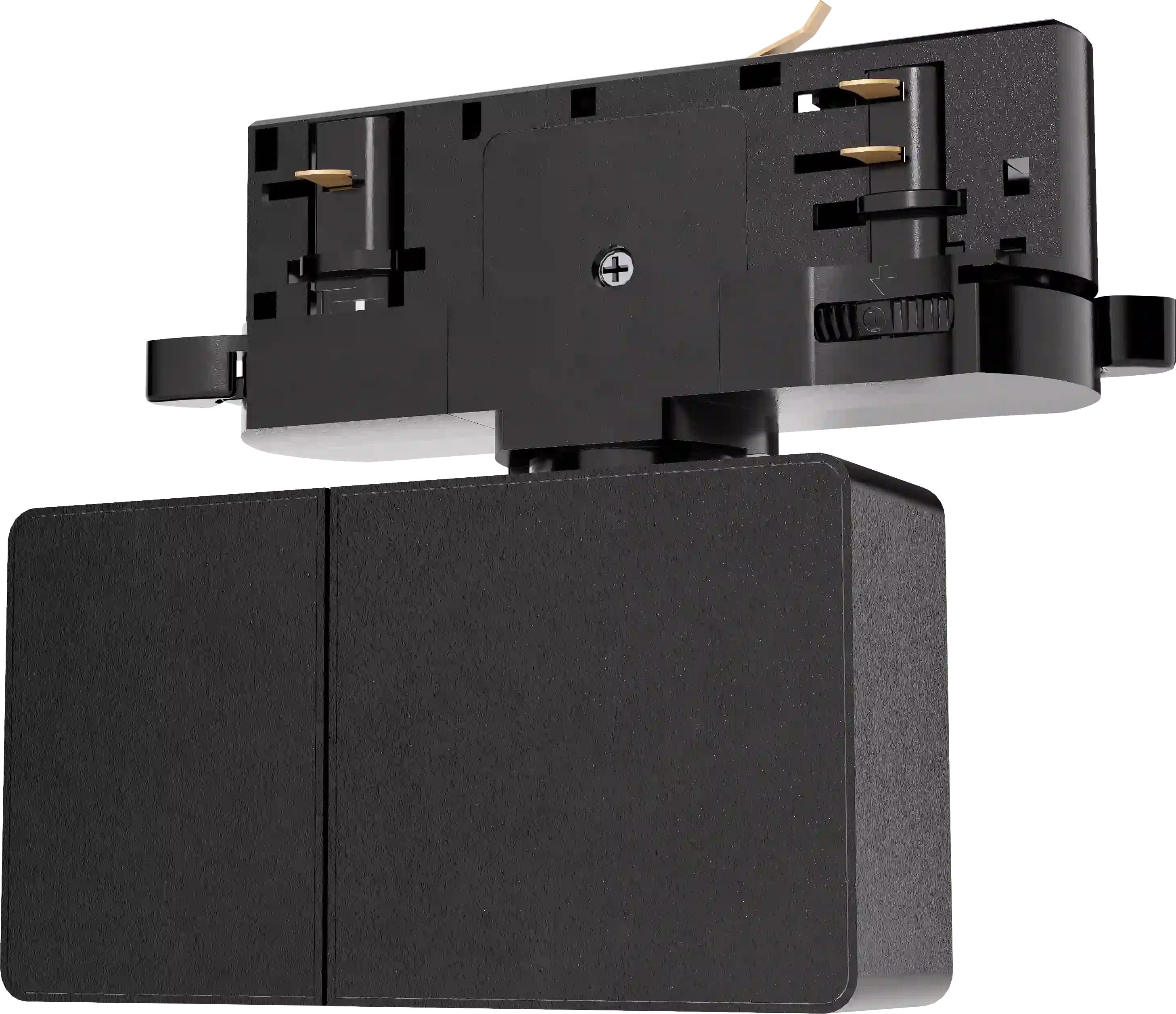

HBTD54/N
Bluetooth DALI Dimmer | 6 Wires 3 Circuits | Integrated 80 mA PSU
BENEFITS
- Compact: Enabling plug-in DALI to Bluetooth conversion for tracks
- Smart: Providing Bluetooth dimming, tunable white, and multi-circuit control
- Flexible: Allowing wireless setup and parameter adjustment via app
APPLICATIONS

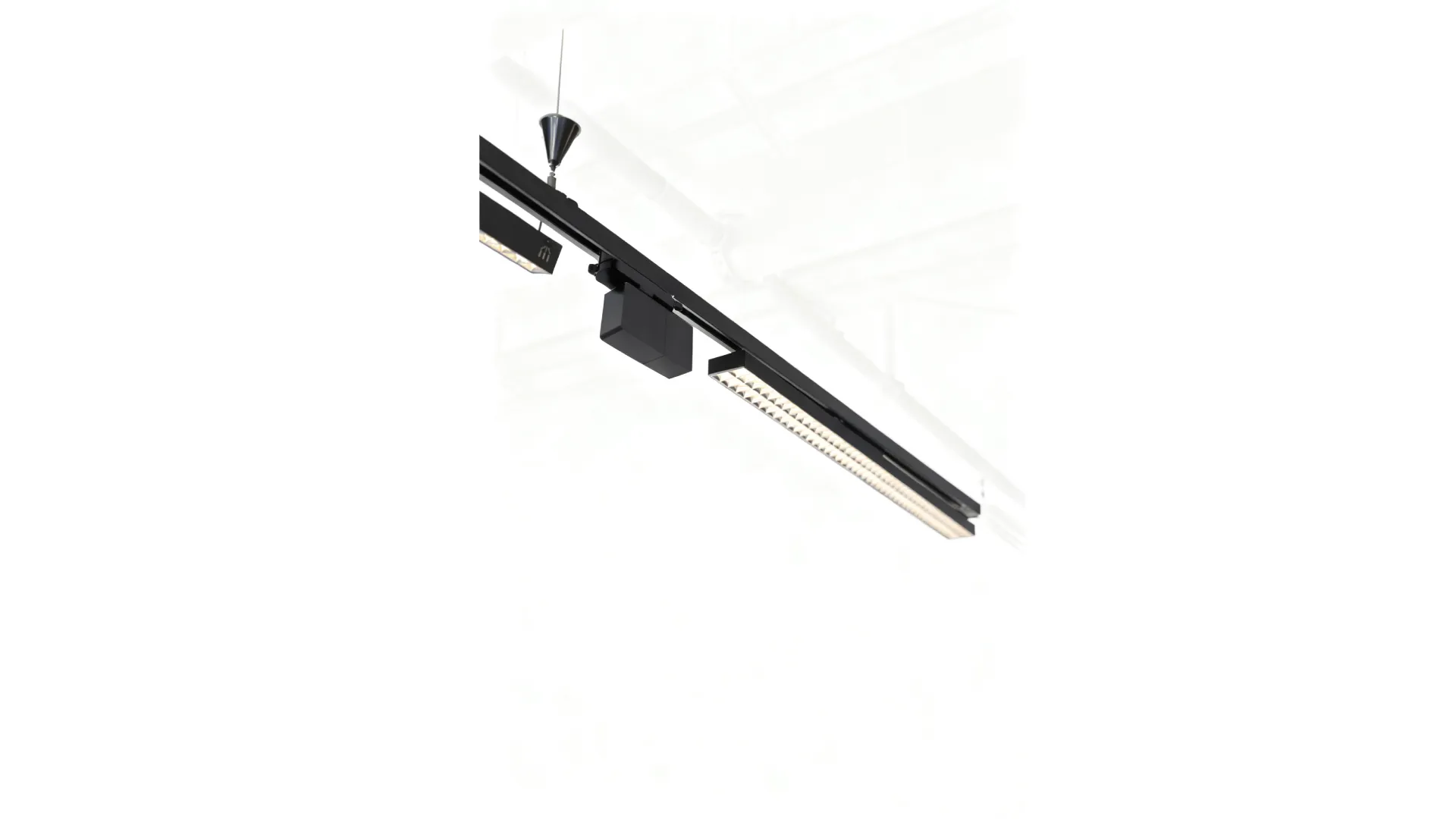

- Designed for Global, and Powergear track systems
- Offices, Retail stores, Warehouse
- Museums, Galleries
Product information "HBTD54/N"
HBTD54/N is a track dimmer that converts DALI signals into Bluetooth control, designed for track lighting systems to enable Bluetooth dimming and tunable white control for smart lighting upgrades. It supports independent or grouped control for up to three circuits and installs easily with simple plug-in insertion into the track without extra wiring. With Bluetooth Mesh technology, it allows wireless communication between luminaires, and all parameters can be conveniently configured via the Koolmesh app, making installation fast and flexible for commercial and residential track lighting applications.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Track Lighting |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 107.8000 mm |
| Product length: | 138.4000 mm |
| Product width: | 31.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd54-n.pdf
