HBIR31/UH

Bluetooth DALI PIR Highbay | Integrated 80mA PSU | Ceiling mounting

BENEFITS

Adaptable: Metal surface mount box options
Integrated: Built-in 80 mA DALI PSU for stable control
Flexible: Enables full parameter setup and commissioning via app

APPLICATIONS

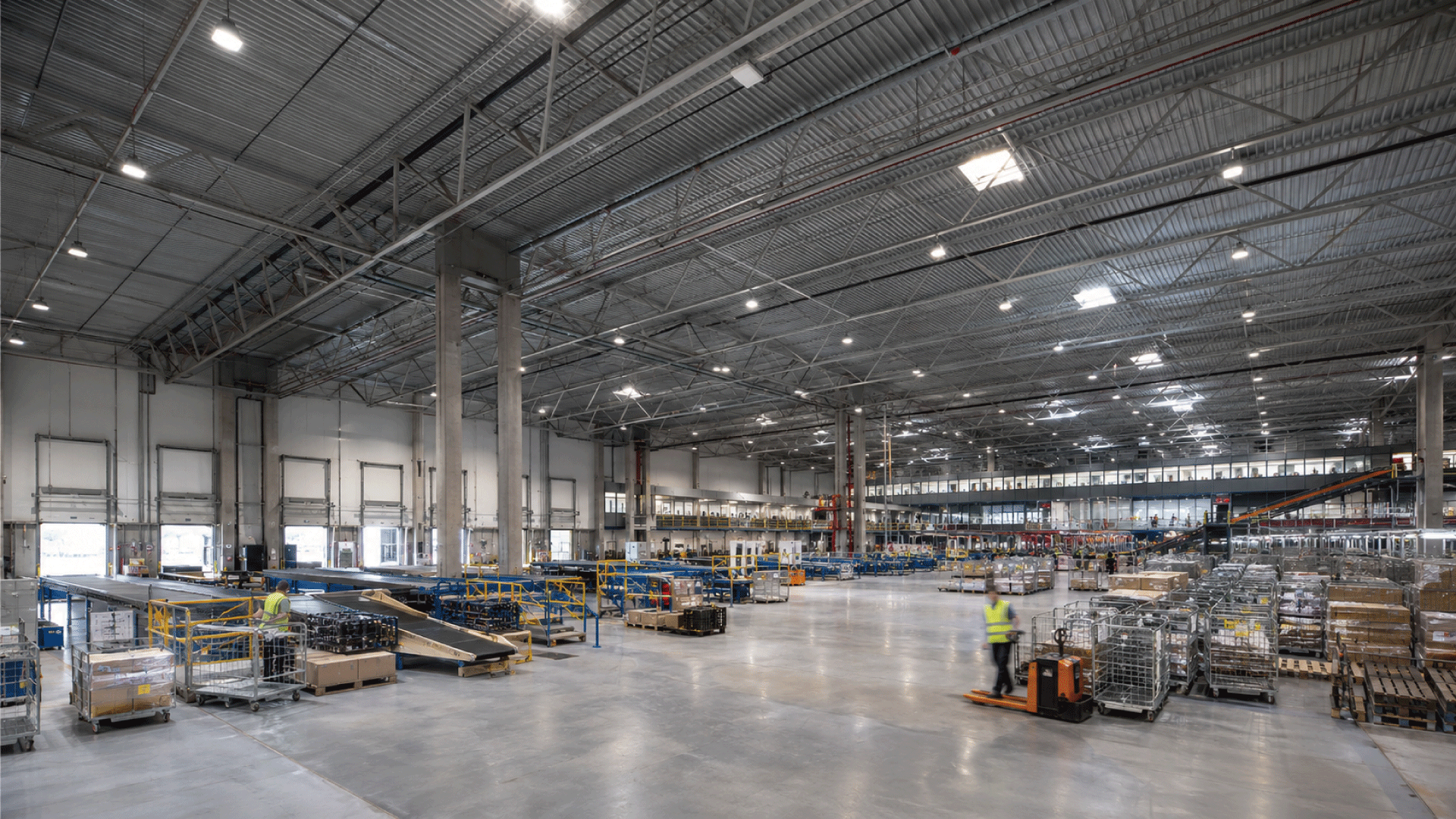

Large Logistics Warehouses
Industrial Plants
Sports Arenas

Download the data sheet

Product information "HBIR31/UH"

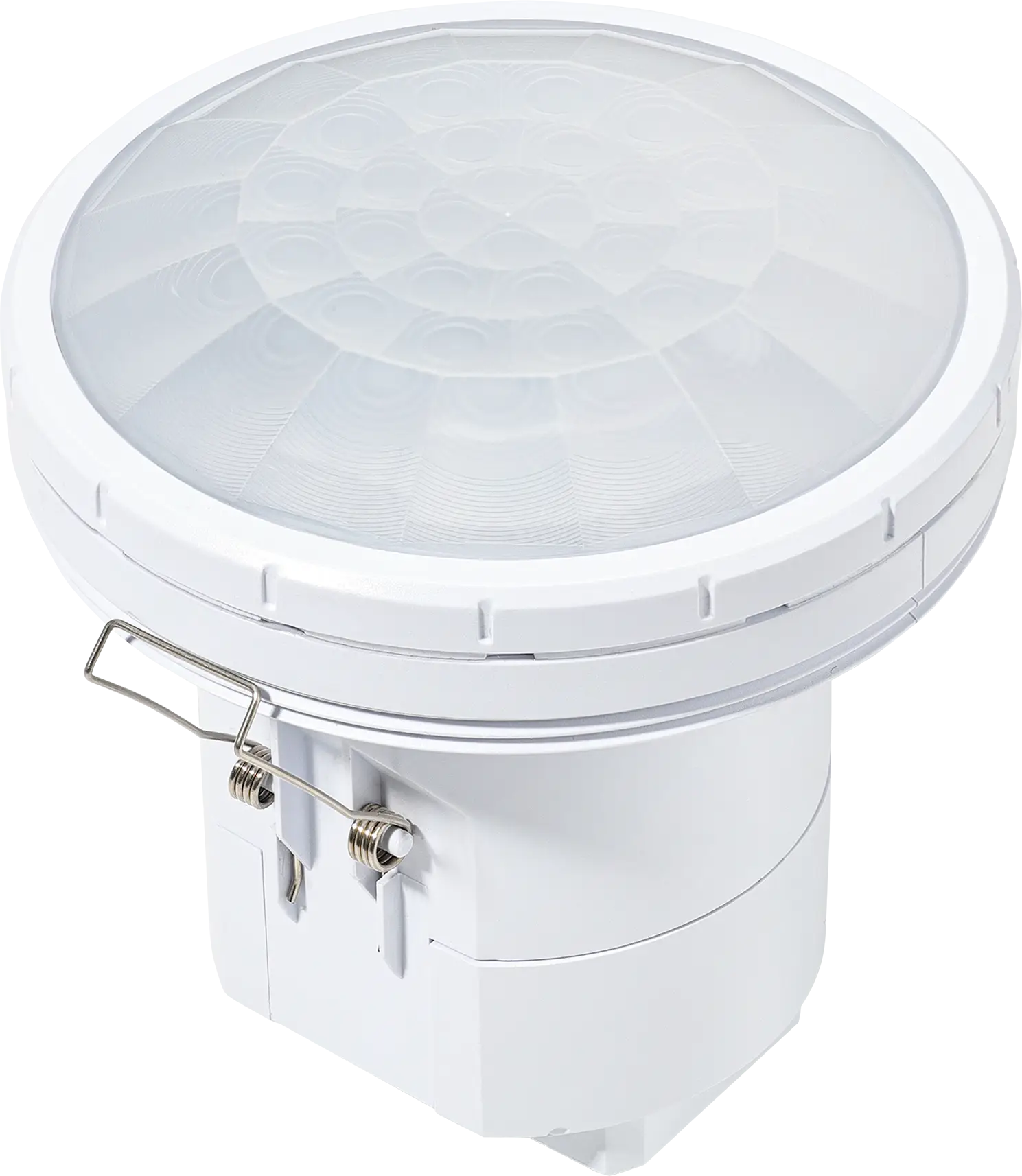

HBIR31/UH is a Bluetooth PIR standalone motion sensor designed for ultra high-bay applications with a typical mounting height of 15 m. It integrates an 80 mA DALI power supply, capable of powering and controlling multiple LED drivers on the same DALI bus. When used with standard DALI tunable white drivers, it enables motion sensing, daylight harvesting, brightness dimming, and colour temperature tuning. All parameters and commissioning can be configured via the app, enabling flexible lighting control and efficient system deployment.

Ambient temperature max.:	50 °C
Ambient temperature min.:	-20 °C
Bluetooth Platform:	Nordic nRF52832
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
Connector Type:	Standard 2 cables
Daylight Harvest:	Yes
Detection Methods:	Passive Infrared (PIR)
Detection angle:	360°
Detection range (Diameter):	26×21
Dimming (Output) Interface:	DALI/DALI-2
Features:	Daylight Harvest, Tri-level (Corridor Function)
Human Centric Lightning (HCL):	No
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Installation Type:	Stand-alone
Lens type:	Ultra high-bay
Maximum Mounting Height:	21.0000 m
Mounting Height:	Ultra High-bay
Mounting hole:	66.0000 mm
Operating voltage range:	220-240 VAC 50/60 Hz
Product height:	101.0000 mm
Product length:	94.0000 mm
Product width:	94.0000 mm
Push Button Input:	2
Sensitivity:	10%/ 30% /50% /75%/ 100%
Storage temperature max.:	55 °C
Storage temperature min.:	-35 °C
Tri-level (Corridor function):	Yes
Voltage Type:	AC
Warming-up:	20 s
Zhaga:	No
