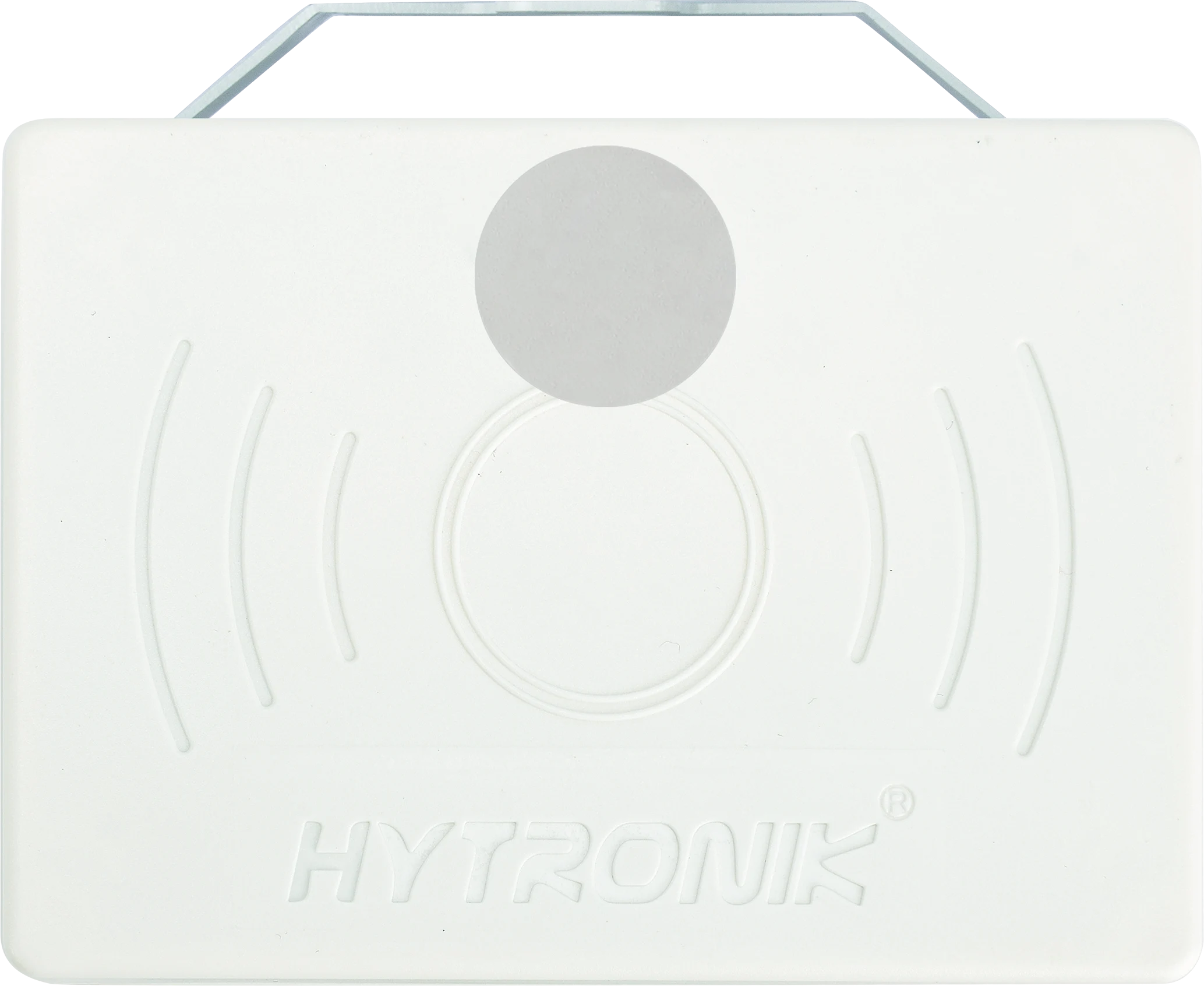

HIM450VDS/BT
HF+PIR Highbay | Bluetooth DALI | Wall/Surface mounting
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Versatile: DALI + 0/1-10V + Tri-level + Daylight harvest + Circadian Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Standalone installation for ceiling up to 20m

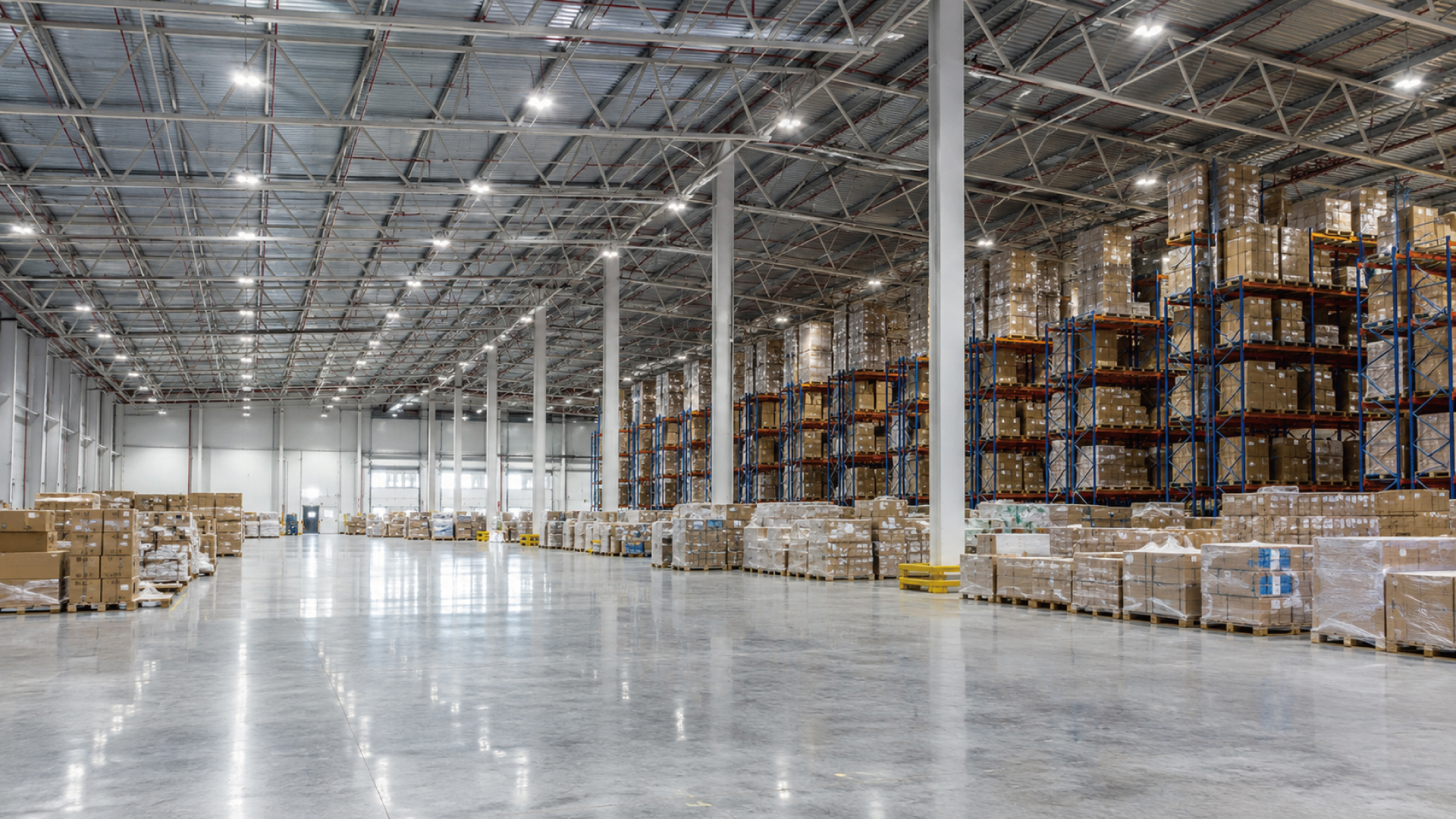

- Warehouse, Large storage room
- Production
Product information "HIM450VDS/BT"
HIM450VDS/BT is a Bluetooth high-bay Dual-sense™ (Microwave + PIR) motion sensor with an installation height of up to 20 m. It supports DALI/DALI-2 output, 0/1-10V dimming, and relay output, as well as 2-channel on/off control (Switched L + VFC). With a built-in daylight sensor, it enables tri-level dimming, daylight harvesting, and Human Centric Lighting/Circadian Rhythm applications. Designed for large spaces such as warehouses and storage facilities, it allows fast and simple setup via the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth), DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection range (Diameter): | 25×15 |
| Dimming (Output) Interface: | 0/1-10V, DALI/DALI-2, Relay On/Off, Volt-free Contact (VFC) |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 10.525GHz +/- 75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 60 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 25.0000 m |
| Mounting Height: | Ultra High-bay |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 82.7000 mm |
| Product length: | 135.0000 mm |
| Product weight: | 450.0000 g |
| Product width: | 97.0000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: him450vds-bt.pdf
