Active / Make to Stock
HED6045/BT
Bluetooth LED Driver 45W (CC) Dimmable | Plug&Play | Built-in/Stand-alone
BENEFITS
- Innovative: Push Switch and Bluetooth control interfaces for flexible operation
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Product information "HED6045/BT"

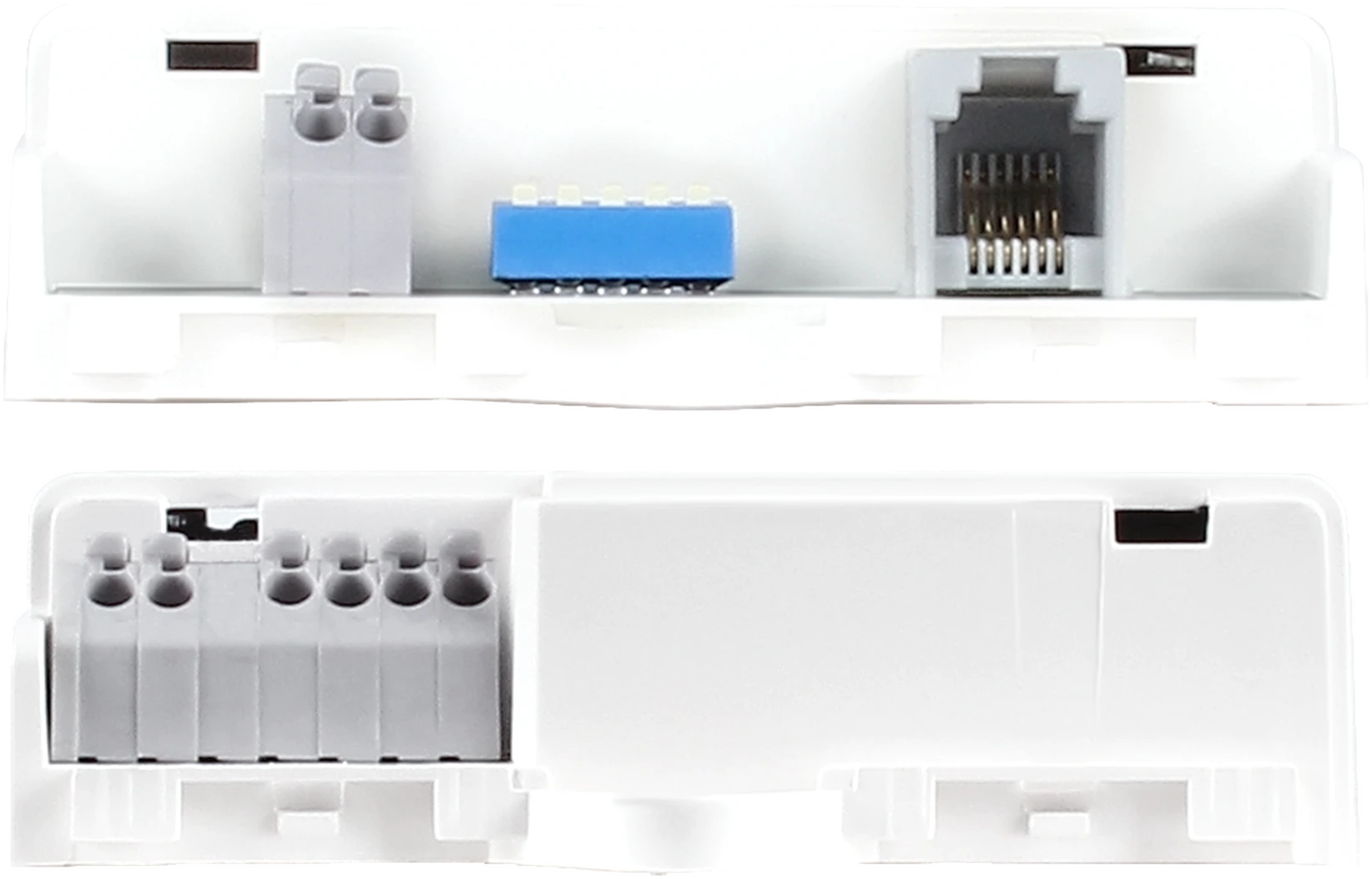

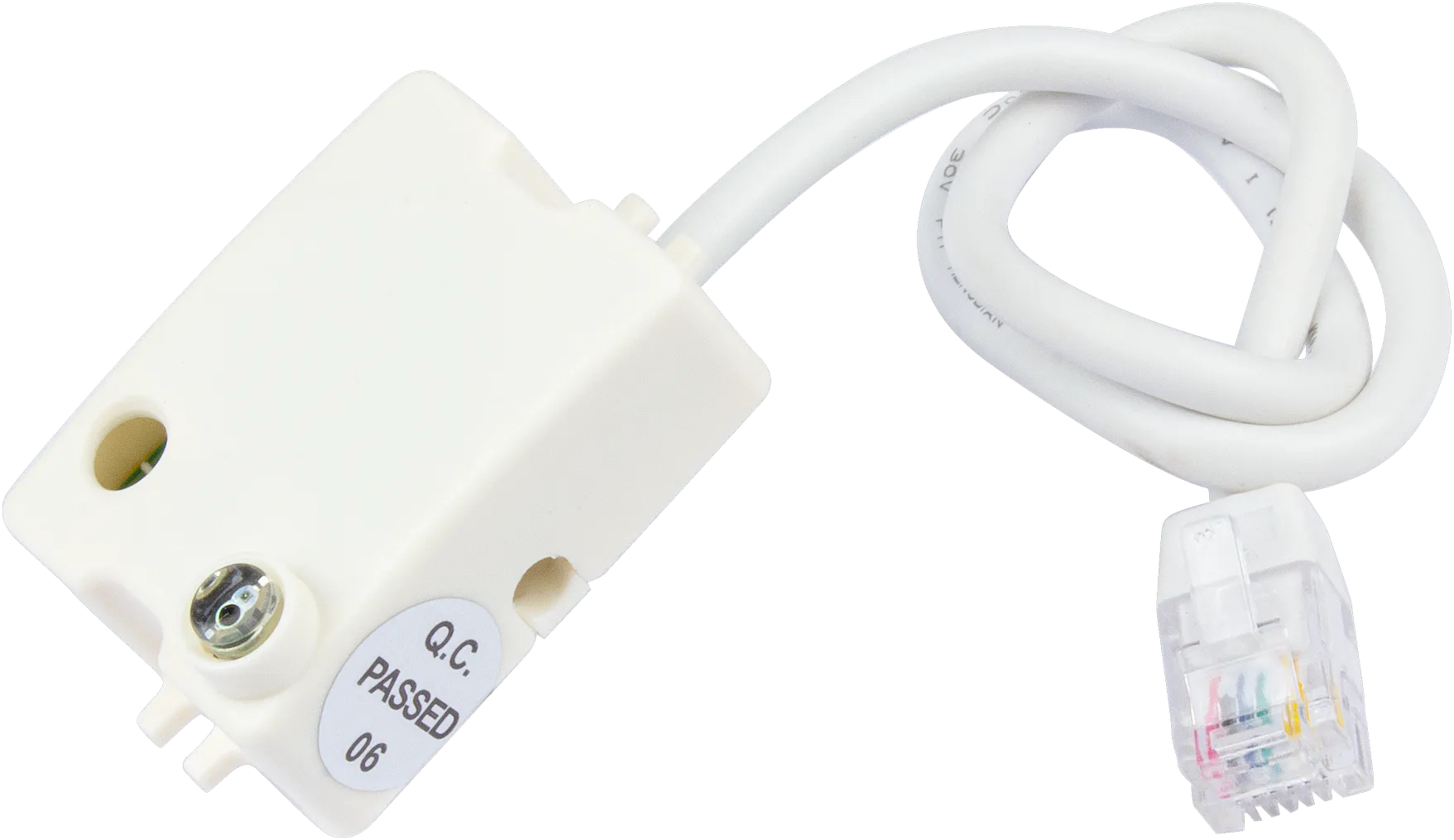

HED6045/BT is a Bluetooth dimmable LED driver designed for flexible smart lighting integration, supporting both Push Switch and Bluetooth control interfaces for convenient dimming control. Its RJ12 terminal allows easy connection to a wide range of motion sensor heads, including HF and PIR sensors, enabling flexible sensing solutions for different lighting applications. Suitable for luminaire development and lighting upgrade projects, Bluetooth Mesh networking enables wireless communication between luminaires without additional control wiring, reducing installation complexity and project costs. With a maximum output power of 45W, all configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Bluetooth dimming, Switch-Dim |
| Driver Type: | Dimming Only |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Stand-alone |
| Operating Mode: | Constant Current |
| Output Power: | ≥45W |
| Output Voltage: | 10-54V |
| Product Status: | Active / Make to Stock |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product weight: | 171.0000 g |
| Product width: | 79.2000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed6045-bt.pdf
