Active / Make to Stock

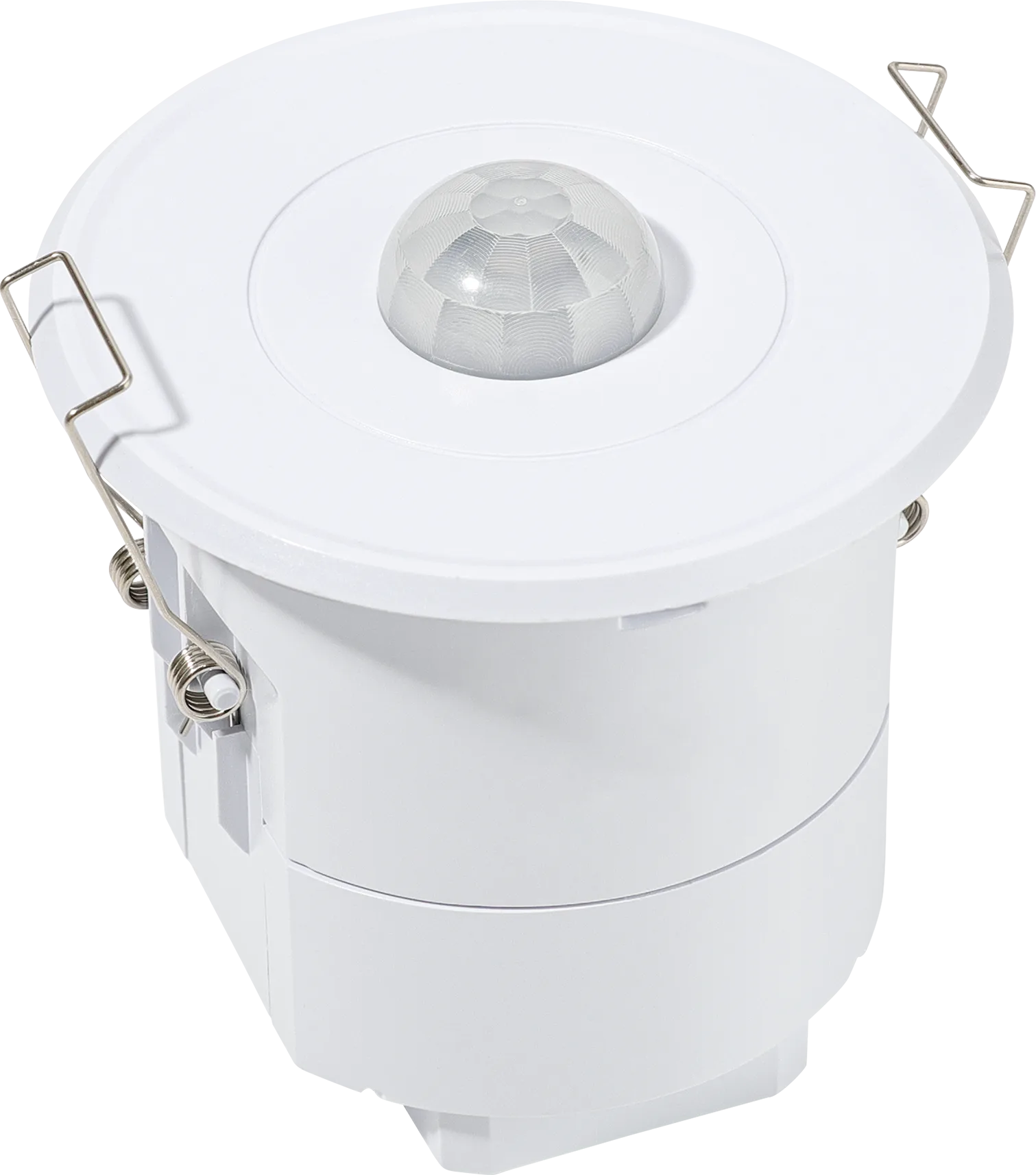

HBIR31/W
Bluetooth DALI PIR Lowbay | Integrated 80mA PSU | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Integrated: Built-in 80 mA DALI PSU for stable control
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Ceiling or surface mounting (with accessory)

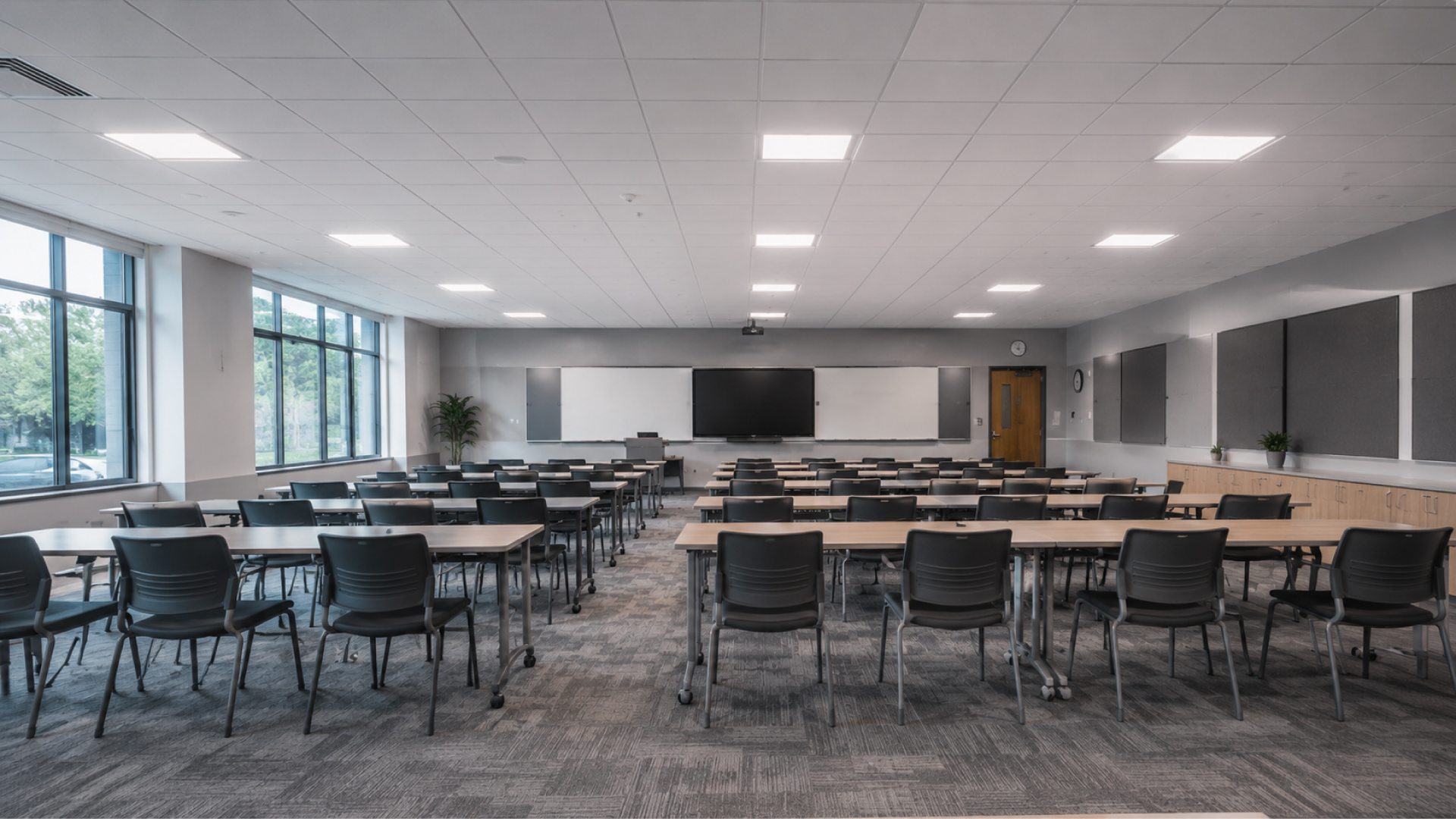

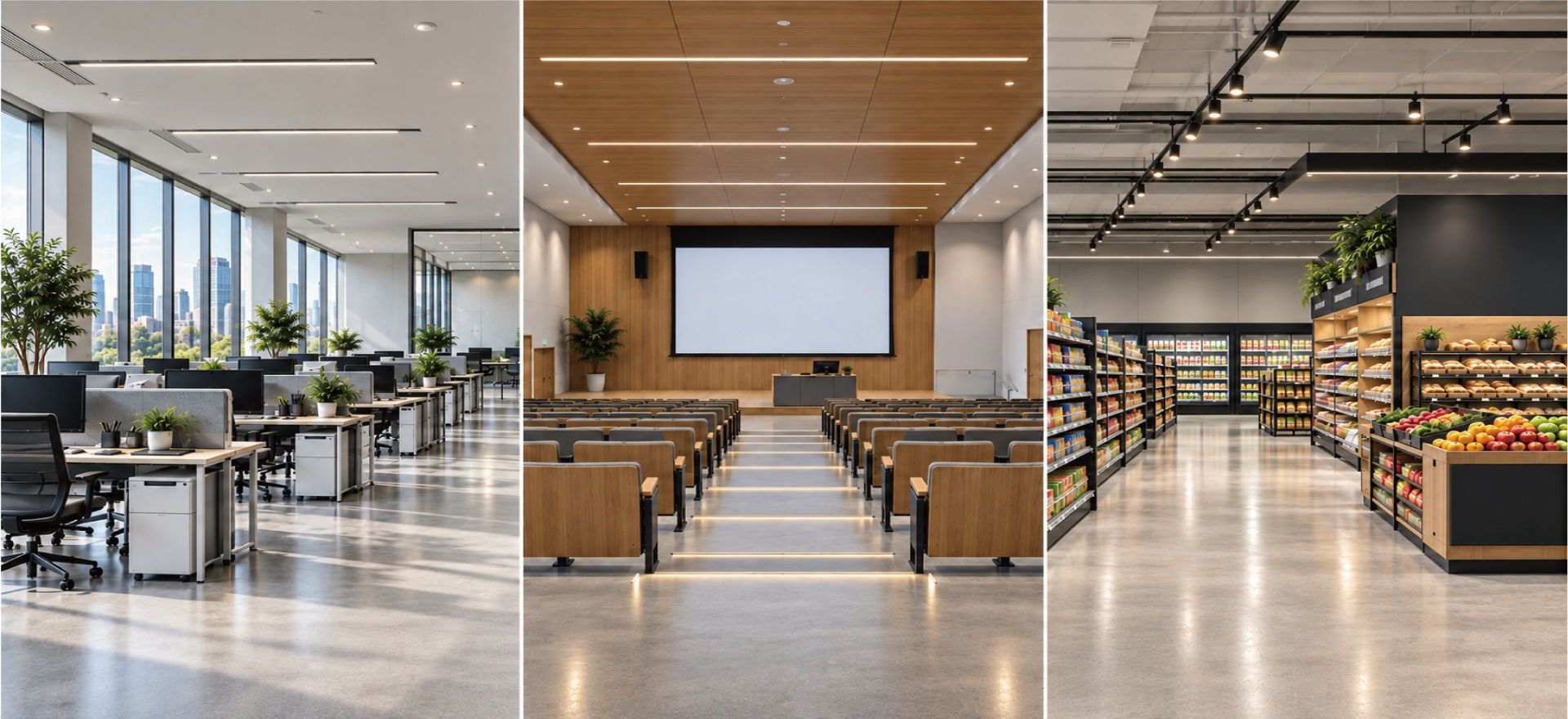

- Offices & Classrooms
- Corridors & Staircases
Product information "HBIR31/W"
HBIR31/W is a Bluetooth PIR standalone motion sensor designed for low-bay applications with a typical mounting height of 2.5 m, featuring a wide detection range for larger area coverage. It integrates an 80 mA DALI power supply, capable of powering and controlling multiple LED drivers on the same DALI bus. When used with standard DALI tunable white drivers, it enables motion sensing, daylight harvesting, brightness dimming, and colour temperature tuning. All parameters and commissioning can be configured via the app, enabling flexible lighting control and efficient system deployment.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 18x6 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Wide Range Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 85.0000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 86.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir31-w.pdf
